ddrum D-lite User Manual

Electronic drum set
Hide thumbs

Advertisement

Quick Links

Download this manual

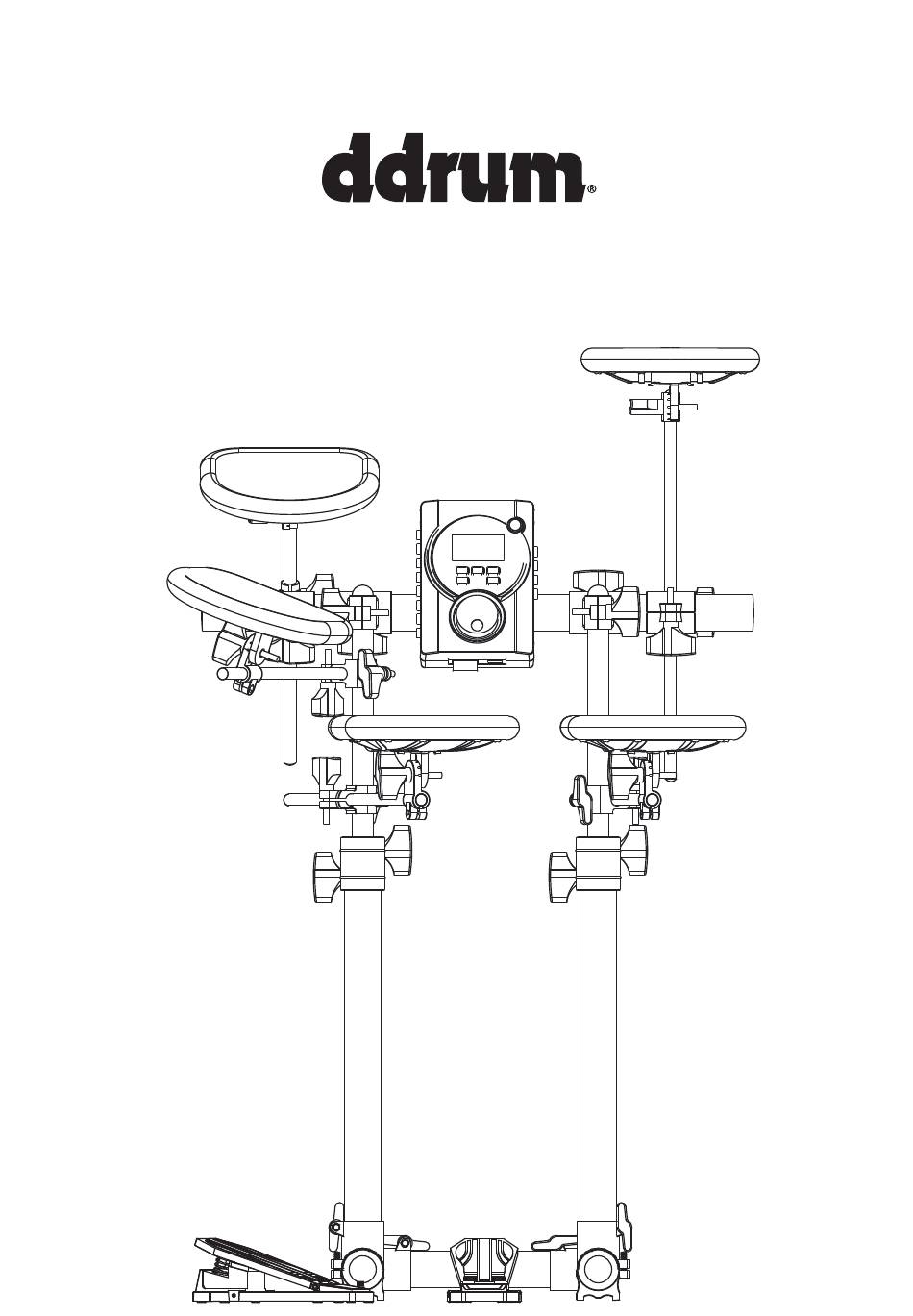

D - li t e
E L E C T R O N I C D R U M S E T
U S E R M A N U A L

Advertisement

loading
Need help?

Need help?

Do you have a question about the D-lite and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ddrum D-lite

Summary of Contents for ddrum D-lite

  • Page 1 D - li t e E L E C T R O N I C D R U M S E T U S E R M A N U A L...
  • Page 2 Operation Warning Operation Warning Instruction for Prevention of Fire, Electric Shock, & Physical Injury Instruction for Prevention of Fire, Electric Shock, & Physical Injury About Warning & Caution Signs About Warning & Caution Signs This sign indicates the risk of serious physical injury or This sign indicates the risk of serious physical injury or even death.
  • Page 3 WARNING WARNING WARNING WARNING Use only the included adapter. Make Please read the following Use only the included adapter. Make Please read the following sure that the voltage of the socket instruction before operation. sure that the voltage of the socket instruction before operation.
  • Page 4 WARNING CAUTION WARNING CAUTION Should any of the following Should any of the following Always place the machine and the Always place the machine and the situations result, please stop situations result, please stop operation and remove the adapter operation and remove the adapter from the socket, and consult with from the socket, and consult with When inserting or removing the...
  • Page 5 Precautions Precautions Please read the following precautions aside from the safety instructions Please read the following precautions aside from the safety instructions Power Supply Power Supply • Do not share the power supply with other Additional Precautions • Do not share the power supply with other Additional Precautions electronics that can produce cable statics, electronics that can produce cable statics,...
  • Page 6 Accessories Sound Module Hi-Hat Bass Drum MS310 Controller Controller Drum Stick User Cable Tie (1 set) Manual Adapter L-L Mono L-L Mono L-L Stereo Sound Sound Sound Cable Cable Cable (Black) (Black) (Red) L:100 cm L:150 cm Parts Floor Pad Ø3.81 (cm) Ø2.22 (cm) Wing-Bolt...

  • Page 7: Support Stand

    Connectors Ø1.27 Pad Ø3.81 - Ø1.27 Ø3.81 - Ø2.22 Ø1.27 - Ø2.22 Connector Connector Connector Adjustable Connector Ø3.81(cm) Ø3.81 - Ø2.22 U-shape Plate & Connector Double Screws ×1 Support Stand Ø3.81cm ×1 Ø3.81cm ×1 Ø3.81cm ×1 Ø3.81cm (Red) ×2 Ø2.22cm ×2 Ø3.81cm (Red)
  • Page 8 Connectors Expansion...
  • Page 10 Step 1 (40cm) x1 (left) Ø3.81cm (20cm) x1 (center) Ø3.81cm (40cm) x1 (right) Ø3.81cm 40cm 20cm 40cm...
  • Page 11 Step 2 (40cm) x2 (Red) Ø3.81cm (40cm) x2 Ø2.22cm (57cm) x1 (Red) Ø3.81cm 40cm Please note the direction of the screw. 40cm...
  • Page 12 Step 3 (40cm) x3 40cm 40cm...
  • Page 13 Step 4 (40 cm) x1 (right) (left) (20 cm) 40cm 20cm...
  • Page 14 Step 5 Convex Depression Below are examples of wrong assembly. Use L2 (100cm black cable) connect NOTE...
  • Page 15 Mounting on the stand Position the Sound Module onto the Bar and fold the U-Shape Plate upwards around the bar. Secure the U-Shape Plate to the back of the Sound Module with Screws. Remove the protective...
  • Page 16 Sound Cable ① HI-HAT ② SNARE ③ TOM1 ⑧ TOM2 (Black) (Black) ⑦ ③ (Black) ① ⑦ CYMBAL 2 (Red) ⑧ ② (Red) Connect the Sound Cables to the Drum Pads,Pedals and Sound Module. Mono cable (one black line) ⑤ ⑥...

  • Page 17: Midi Out

    Conecting the Pads ① HI-HAT ② SNARE (Black) ① ③ TOM1 ② ③ optional ④ CYMBAL1 (Red) ④ ⑤ ⑥ ⑤ HI-HAT CTRL ⑥ BASS DRUM CTRL " headphone ( 1 / 4 plug ) Amplifier optional ADAPTER (5V1A) (RED) ⑦...
  • Page 18 Console Control Introduction ③ POWER ① MENU ⑤ ⑥ ② ⑤ LINE IN ④ VOLUME For connection of a sound input source like a portable music player, a microphone, other instruments or another sound source. The sound is directed to both Phone and Line Out. ⑥...

  • Page 19: Console Operation

    Console Operation Percussion Sound Module Percussion Sound Module & Metronome Press these buttons to Select a Drum Style. The Selected Drum Style will be displayed on the left side of the Sound Module’s screen; the picture of the Sound Module, above, displays Selection of ROCK Style.
  • Page 20 Press this button to Select a Sound Set for the current Drum Style. There are up to 4 Sound Sets per Drum Style. TECHNO, MARCH, and TAIKO Styles only have 1 Sound Set. The Selected Sound Set Number will be displayed to Sound Set the right of a hyphen on the right side of the screen;...
  • Page 21 Metronome Press this button to Switch to the Metronome Display, above, and Turn On the Metronome. While the Metronome Display is shown, press Click Mode this button again to Turn Off the (Metronome) Metronome. If the Metronome is not Turned Off nor its settings adjusted, the Metronome Display will eventually revert back to the Drum Style &...
  • Page 22 Audio Sampling Frequency 16bit 44.1kHz WAV Maximum Polyphony 32 notes Voices 11 Categories, 168 high sound quality audio Drum kits 32 preset drum modes Sensor 128 level ultra realistic velocity sensor Effect Reverb Metronome 30-250 BPM, 3 kinds of beats Wiring Terminal MIDI OUT(5-pin DIN), DC IN(AC adaptor) Connectors...
  • Page 23 Styles & Sounds List HI-HAT SNARE TOM1 TOM2 TOM3 CRASH1 CRASH2 BASS ROCK HI-HAT SNARE TOM1 TOM2 TOM3 CRASH1 CRASH2 BASS HI-HAT SNARE TOM1 TOM2 TOM3 CRASH1 RIDE BELL BASS HI-HAT SNARE TOM1 TOM2 TOM3 CRASH1 RIDE BELL BASS RIDE RIDE HI-HAT SNARE...
  • Page 24 How to adjust hight: STEP1 Loose wing-bolts. STEP2 Pull up or down the S5 pipe to adjust the height. STEP3 Fasten wing-bolt. For more information please visit our website www.ddrum.com...
