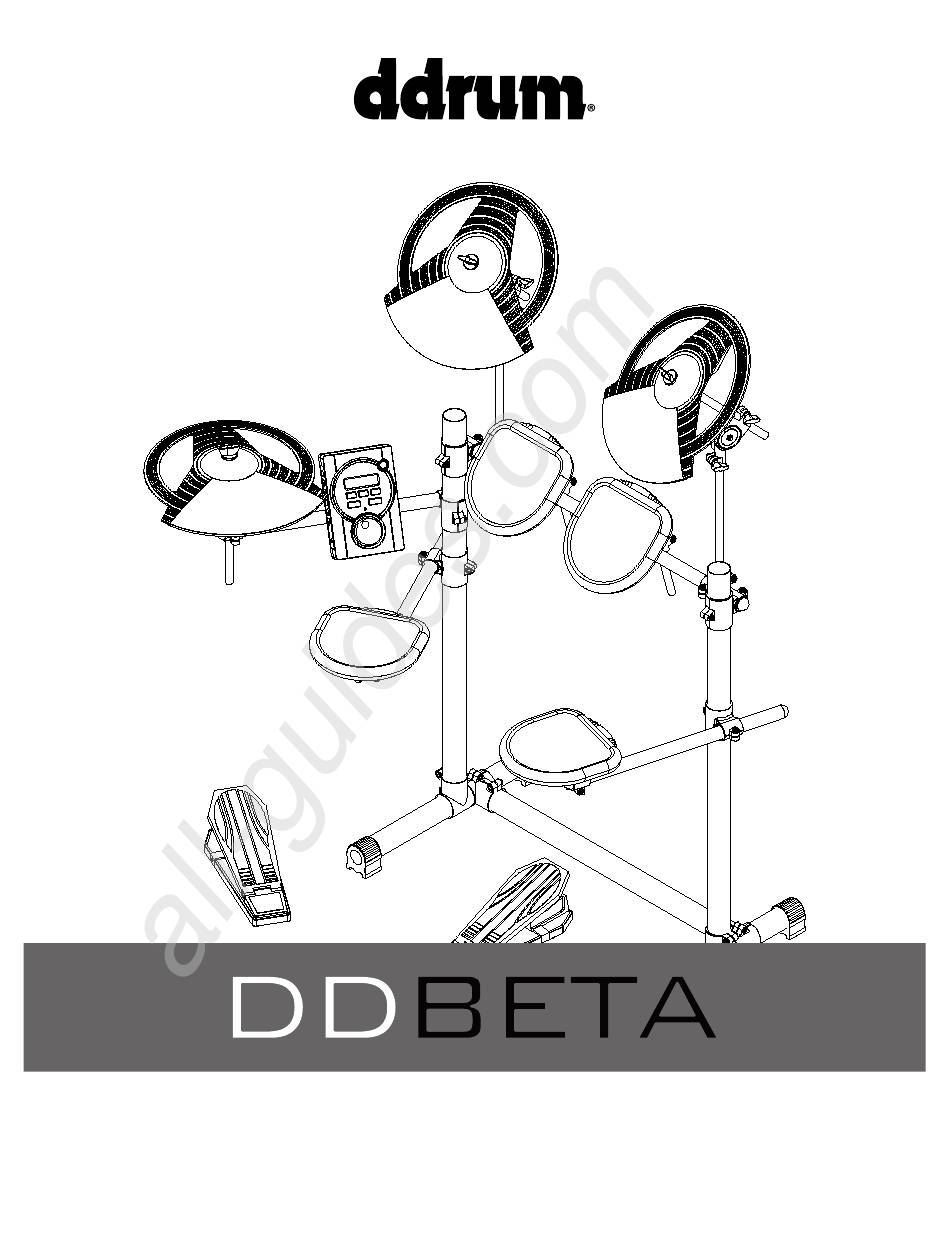

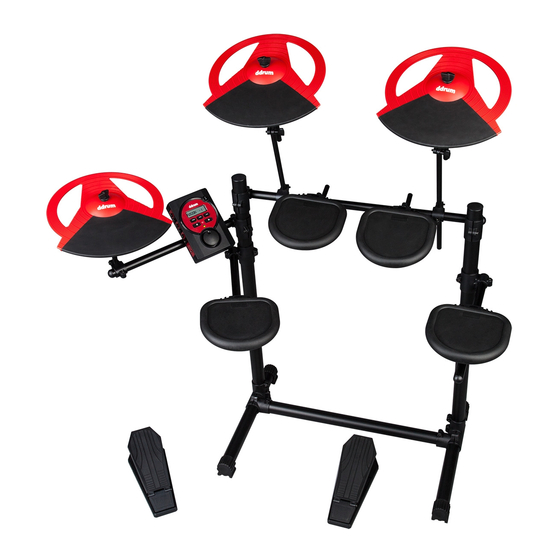

- Page 1 All manuals and user guides at all-guides.com ELECTRONI C DRUM SET USER M A NUA L...
-
Page 2: Operation Warning
All manuals and user guides at all-guides.com Operation Warning Instruction for Prevention of Fire, Electric Shock, & Physical Injury About Warning & Caution Signs This sign indicates the risk of serious physical injury or even death. Please operate the machine according to WARNING instructions. - Page 3 All manuals and user guides at all-guides.com WARNING WARNING For proper operation, make sure that Please read the following instruction the support stands are placed on flat before operation. and stable ground in order to support the machine safely and stably. Do not open or, in any way, modify Use only the included adapter.
- Page 4 All manuals and user guides at all-guides.com WARNING CAUTION Should any of the following situations Always place the machine and the result, please stop operation and adapter in areas with good airflow. remove the adapter from the socket, and consult with your retailer, the When inserting or removing the nearest customer service, or any of power cable into/from the socket or...
- Page 5 All manuals and user guides at all-guides.com Precautions Please read the following precautions aside from the safety instructions Power Supply Additional Precautions • Do not share the power supply with other • During operation, please handle with care to electronics that can produce cable statics, for prevent any damage.
- Page 6 All manuals and user guides at all-guides.com Accessories Sound Module Cymbal Drum Stick Headphones (1 set) Adapter L-L Mono L-L Streao Cable Tie User Sound Cable Sound Cable Manual (Black) (Red) Hi-Hat Bass Drum Controller Controller Velcro...
-
Page 7: Spare Parts
All manuals and user guides at all-guides.com Parts Ø3.81 (cm) Ø2.22 (cm) Floor Pad Stopper Stopper Bolt Washer Bolt Spare Parts Connectors P4~P7 Ø2.22 Pad Ø1.27 Pad U-shape Plate & Connector Connector Adjustable Bar Double Screws Support Stand Ø3.81 x40 (cm) x1 Ø3.81 x57 (cm) x1 Ø3.81 x40 (cm) x1 Ø3.81 x75 (cm) x1... - Page 8 All manuals and user guides at all-guides.com Step (40 cm) (57 cm) (40 cm) (75 cm) (65 cm) (75 cm) (40 cm)
- Page 9 All manuals and user guides at all-guides.com...
- Page 10 All manuals and user guides at all-guides.com Step Ø2.22 x40 (cm) x2 Ø1.27 x40 (cm) x2 Ø1.27 x20 (cm) x3...
- Page 11 All manuals and user guides at all-guides.com Step ① ② ③ ④ ⑤ ⑥ ⑦ ⑫ ⑬ ⑧ ⑨ ⑩ ⑪ ⑭...
- Page 12 All manuals and user guides at all-guides.com Step Convex Depression Below are examples of wrong assembly.
- Page 13 All manuals and user guides at all-guides.com Step...
- Page 14 All manuals and user guides at all-guides.com Mounting on the stand Position the Sound Module onto the Bar and fold the U-Shape Plate upwards around the bar. Secure the U-Shape Plate to the back of the Sound Module with Screws.
- Page 15 All manuals and user guides at all-guides.com Controller reverse side reverse side Hi-Hat label: label: Controller Hi-Hat Bass Drum Hi-Hat Bass Drum Bass Drum Controller reverse side Velcro Velcro floor mat (no provide) Choke Effect ④ CyMbAL1 ⑦ CyMbAL2 choke effect...
- Page 16 All manuals and user guides at all-guides.com Sound Cable ② SNARE (Black) ③ TOM1 ⑧ TOM2 ⑨ TOM3 (Black) (Blue) Connect the Sound Cables to the Drum Pads,Pedals and Sound Module. ① hI-hAT Black: mono ④ CyMbAL1 Red: stereo ⑦ CyMbAL2 (Red) ⑤...
- Page 17 All manuals and user guides at all-guides.com Conecting the Pads ① hI-hAT ② SNARE (Red) ① ③ TOM1 (Black) ② ③ ④ CyMbAL1 ④ ⑤ ⑥ ⑤ hI-hAT CTRL ⑥ bASS DRUM PHONES CTRL ⑦ CyMbAL2 DC IN ⑧ TOM2 ⑦...
- Page 18 All manuals and user guides at all-guides.com Console Control Introduction ③ POWER ① mobile music phone player ⑤ ⑥ ② ④ VOLUME ⑤ LINE IN (3.5mm stereo) For connection of a sound input source like a portable music player, a mobile phone, other instruments or another sound source.
-
Page 19: Console Operation
All manuals and user guides at all-guides.com Console Operation Percussion Sound Module Percussion Sound Module & Metronome Remove the protector first, it may cause unexpected damage. Press these buttons to Select a Drum Style. The Selected Drum Style will be displayed on the left side of the Sound Module’s screen;... - Page 20 All manuals and user guides at all-guides.com Press this button to Select a Sound Set for the current Drum Style. There are up to 4 Sound Sets per Drum Style. TECHNO, MARCH, and TAIKO Styles only have 1 Sound Set. The Selected Sound Set Number will be displayed to Sound Set the right of a hyphen on the right side...
- Page 21 All manuals and user guides at all-guides.com Metronome Press this button to Switch to the Metronome Display, above, and Turn On the Metronome. While the Metronome Display is shown, press Click Mode this button again to Turn Off the (Metronome) Metronome.
- Page 22 All manuals and user guides at all-guides.com Audio Sampling Frequency 16bit 44.1kHz WAV Maximum Polyphony 32 notes Voices 11 Categories, 168 high sound quality audio Drum kits 32 preset drum modes Sensor 128 level ultra realistic velocity sensor Effect Reverb Metronome 30-250 BPM, 3 kinds of beats Wiring Terminal...
- Page 23 All manuals and user guides at all-guides.com Styles & Sounds List ROCK hI-hAT SNARE TOM1 TOM2 TOM3 CRASh1 CRASh2 bASS hI-hAT SNARE TOM1 TOM2 TOM3 CRASh1 RIDE bELL bASS RIDE hI-hAT SNARE TOM1 TOM2 SIDE STICK CRASh1 bASS CyMbAL hI-hAT SNARE TOM1 TOM2...
- Page 24 All manuals and user guides at all-guides.com For more information please visit our website www.ddrum.com...
