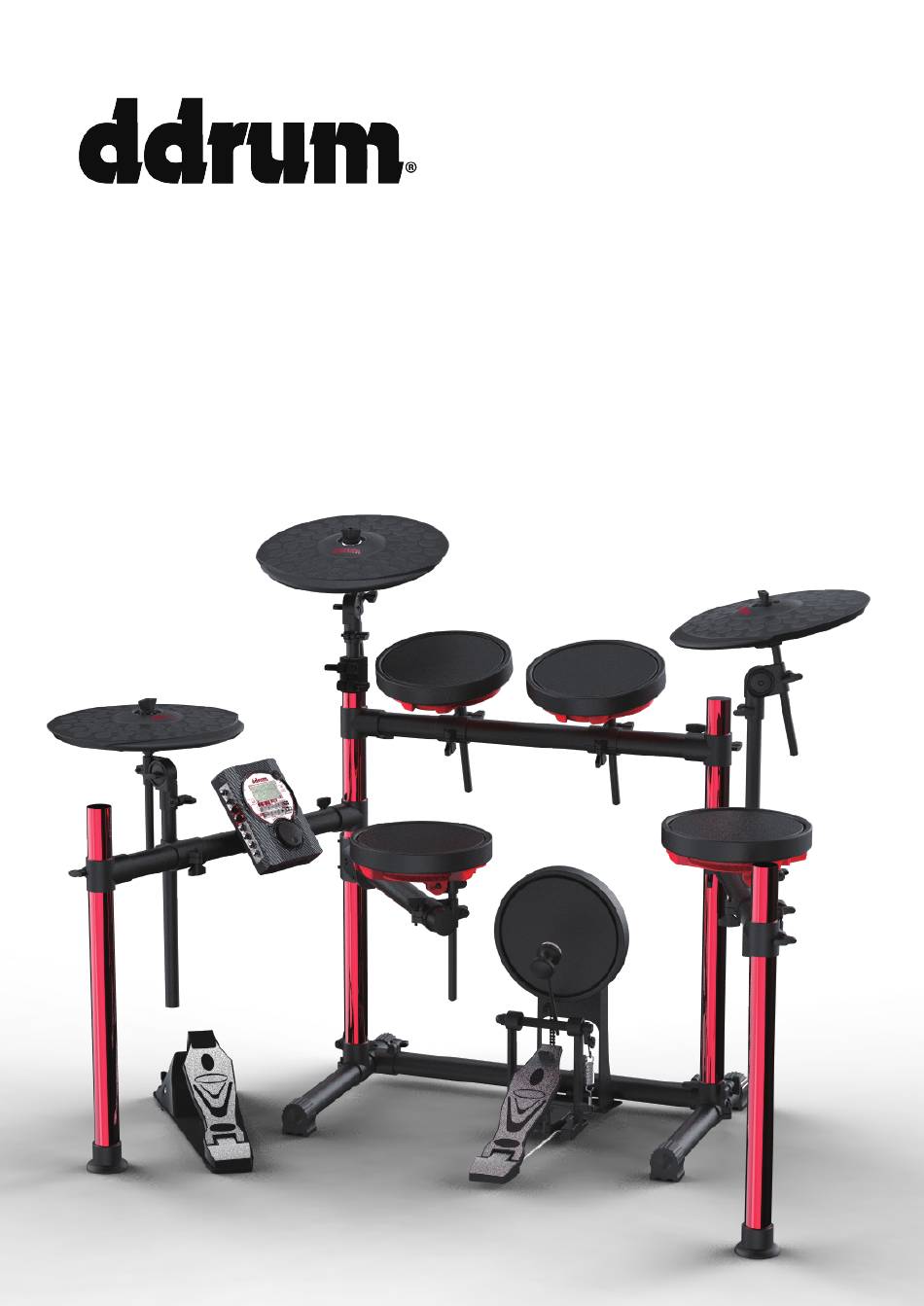

- Page 1 BETA PRO ELECTRONIC DRUM SET U S E R M A N U A L...
-
Page 2: Operation Warning
Operation Warning Warning & Caution Signs This sign indicates the risk of serious physical injury or even death. Please operate the machine according to WARNING instructions. This sign indicates the risk of serious physical injury and even death. Please operate the machine according to instructions. - Page 3 WARNING WARNING Please only use the adapter that is in- Please read the following instructions cluded with the unit. Make sure that before operation. the voltage of the socket matches the voltage indicated on the unit. Do not open or in any way modify the machine or adapter.
- Page 4 WARNING CAUTION Always place the module and the If there are children in the household, adaptor in areas with good airflow. the adults should follow the safety precautions explained in the manual. When inserting or removing the power cable into/from the socket or the machine, always grab the plug instead of the cable.
- Page 5 Precautions Please read the following precautions aside from the safety in- structions Power Supply Additional Precautions • Do not share the power supply with other • During operation, please handle with care to electronics that can produce cable statics, for prevent any damage.
- Page 6 Accessories Sound Module Cymbal Hi-hat Kick Pedal Bass Drum& User Controller Double Slip Resistant Tape Manual Connectors Cable Tie Drum Stick Drum Key Headphones Velcro Ø1.27(cm) Pad Ø3.81(cm) (1 set) Connector U-shape Plate & Double Screws ×2 Connectors WARNING Please note: whenever you insert or pull the plug out of a socket or adapter, hold Ø3.81 - Ø2.22...
- Page 7 Support Stand Ø3.81cm cm X1 ×2 cm X1 ×2 cm X1 cm X1 ×2 cm X1 Ø2.22cm cm X3 Ø1.27cm cm X4...
- Page 8 Attention: When assembling this connector, Step 1 tighten each of the bolts in a square pattern. Do not tighten one bolt at a time. This will cause the connector to be uneven.
- Page 9 Step 2 (40cm) x1 (left) (57cm) x1 (center) (40cm) x1 (right) 40cm 57cm × 40cm...
- Page 10 Step 3 (75cm) x1 (left) (57cm) x1 (center) (75cm) x1 (right) 75cm 57cm 75cm Please note the direction of the screw.
- Page 11 Step 4 (40cm) x1 × 40cm...
- Page 12 Step 5 (57cm) (57cm) (57cm) 57cm 57cm Please note the direction of the screw.
- Page 13 Step 6 Ø2.22 x40 (cm) x3 Ø1.27 x20 (cm) x4...
- Page 14 Step 7...
- Page 15 Step 8 Convex Groove Match the convex side of pad with the groove side of connector .
- Page 16 Step 9 Hi-hat and Hi-hat pedal correspond to each other as open close Hi-hat, simulating realistic Hi-hat playing.
- Page 17 Step 10 Step 1 Step 2 The slip resistant tape compensate for varying kick pedal heights. Step 3...
- Page 18 Mounting on the stand Position the Sound Module onto the Bar and fold the U-Shape plate upwards around the bar. Secure the U-Shape plate to the back of the sound module with screws.
- Page 19 Adjust the position and height With the chair that you will be using, you should sit on the chair and adjust the heights. 1. Adjust the position of ②Snare and ⑨ height of the waist. 2. Tilt the ③Tom 1 and ⑧Tom 2 for smoother playing. 3.
- Page 20 WARNING Sound Cable Please note: whenever you insert or pull the plug out of a socket or adapter, hold the plug. Do not pull on the cable. STEP 1 STEP 2 Lock Lock Controller Velcro (no provide)
- Page 21 PHONES LINE IN LINEOUT LEFT MICRO SD LINEOUT RIGHT EFFECT 1 EFFECT 2 EFFECT 3 MIDI OUT ① ⑦ Ride ( Green ) Hi-hat ( White ) ④ ② Snare ( Yellow ) Tom 2 ( Purple ) ③ Tom 1 ( Orange ) Tom 3 ( Black ) ⑤...
- Page 22 Cable Tie For the cables, use the bolts like a hook and let the cable run alongside the mounting rack. Leave some buffer for the cable so there is no stress on the connectors. Use the cable tie to secure cable.
- Page 23 ⑤ Hi-hat Controller Continuous Type More realistic Hi-hat effects transition between open and closed, such as full open, half open, full closed, foot splash. Full open Half open tone transition Full close Foot splash ① Hi-hat 2-zone+choke ② Snare ④ Crash ⑦...
