ddrum DD EFLEX BT8 User Manual

Electronic drum set
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DD EFLEX BT8
Electronic Drum Set

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DD EFLEX BT8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ddrum DD EFLEX BT8

Summary of Contents for ddrum DD EFLEX BT8

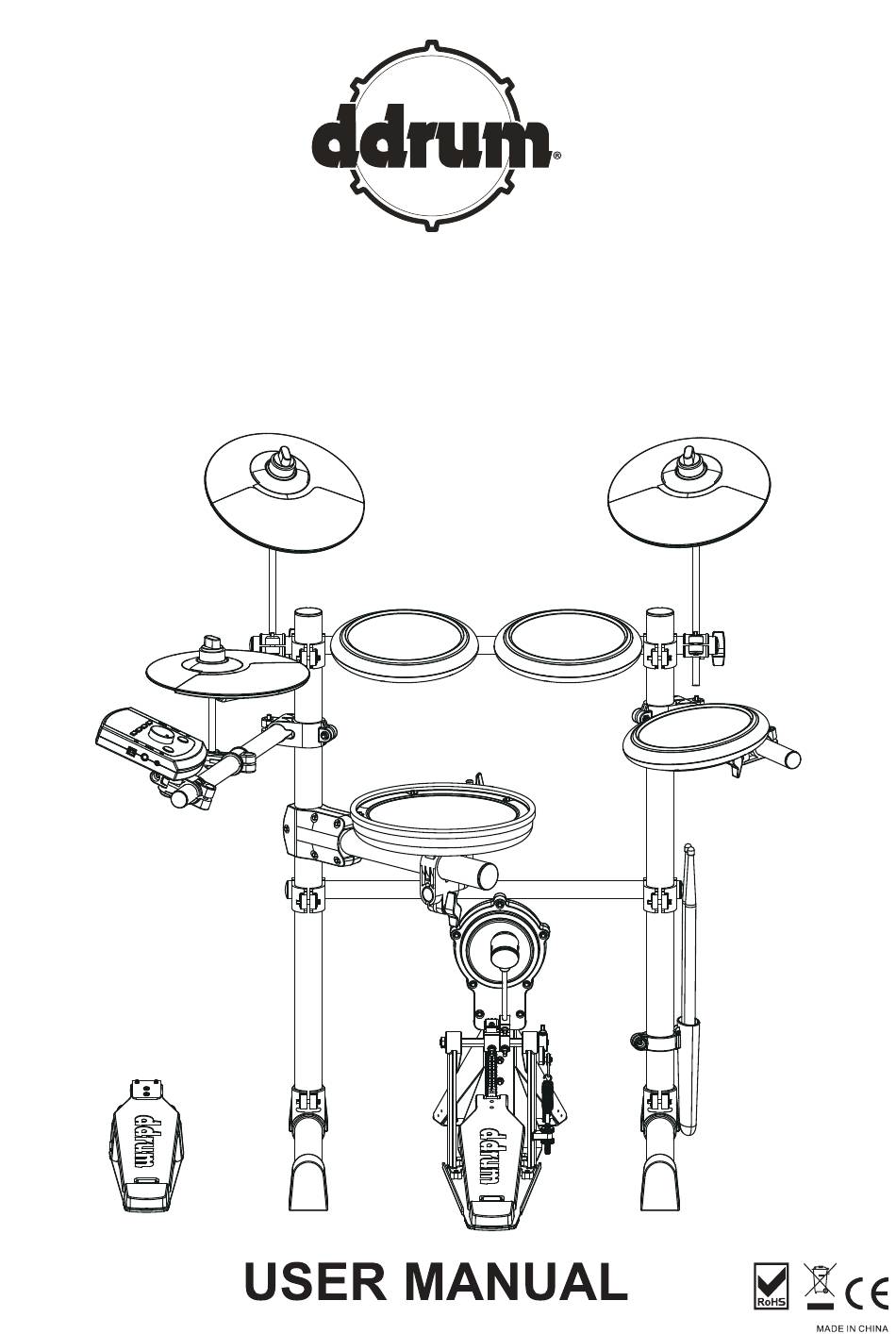

  • Page 1 DD EFLEX BT8 Electronic Drum Set...

  • Page 3: Table Of Contents

    CONTENS roduct Features…………………………………………………………………………………………………4 ddrum EFLEX BT8 Configuration………………………………………………………………………………………4 Updated Mesh Drum Heads………………………………………………………………………………………………4 Easy to use Module………………………………………………………………………………………………………4 Metronome……………………………………………………………………………………………………………………4 Drum Introduction………………………………………………………………………………………………5 Crash Cymbal………………………………………………………………………………………………………………5 Ride Cymbal…………………………………………………………………………………………………………………5 H i - H a t ………………………………………………………………………………………………………………………… 5 To m D r u m …………………………………………………………………………………………………………………… 5 S n a re D r u m ………………………………………………………………………………………………………………… 5 Bass Drum……………………………………………………………………………………………………………………5...

  • Page 4: Product Features

    AlI of the pads including the snare drum use mesh heads, which feel better and are more quiet than standard rubber pads. Easy to use Module The ddrum EFLEX BT8 module is designed to be easy to use. It has one volume knob, two drum sound switch buttons, and one metronome button. Metronome The ddrum EFLEX BT8 includes a built in metronome.

  • Page 5: Drum Introduction

    Drums Introduction Crash Cymbal Reference: CR. 9" diameter. The crash cymbal should be positioned at the left side of the drum rack. The crash Module cymbal includes choke function. Ride Cymbal Reference: RD. 9" diameter. The ridecymbal should be positioned at the right sideof the drum rack.

  • Page 6: Basic Play Method

    Playing the ddrum EFLEX BT8 This is a brief overview of how to utilize some of the features on the ddrum E-Flex kit. Hi-hat and hi-hat pedal Press down on the hi-hat pedal to engage the hi-hat sound.(Please see Diagram 2.) For amore loose sound, release the pedal and strike the hi hat pad.

  • Page 7: Module Introduction

    Module Introduction USB OUTPUT AUX CRASH 2 DC9V DD EFLEX BT8 Volume Knob Module diagram 9 Controls POWER setting ‘AUTO OFF’ in '30 MIN’ ‘1HOUR’ , or ‘OFF’ ) Change sound kits. ( Under different modes, the Button controls METRO.

  • Page 8: How To Use

    How To 1. Power And Audio Cable Connection Use the attached audio cable to connect OUTPUT of module to your drum amp or connect your headphone to the earphone port of module. And then connect the power adapter to DC9V port of module. Press POWER button to turn On the machine.

  • Page 9: Kit Edit

    Practice songs select and buttons control Press and hold “METRO.” button Press “METRO.”button to Turn power on to enter song selection. exit song selection. Song ACC. Press“ ”“ ” volume button to adjust BPM Song BASS volume button to stop Song drum song volume...

  • Page 10: System Setting

    RIDE BOW CRASH1 CRASH1 E RIDE EDG TOM 1 TOM 2 TOM 3 X-STICK SNARE HH CTRL KICK Pad and Cymbal shot names diagram 12 Reminder: 1. Stamp on hi-hat pedal and strike hi-hat cymbal, the screen shows HH CLOSE (hi-hat close). Step 3:Press“...

  • Page 11: Restore Kit Setting

    TRIG SCAN:1~21 EQ BASS: -64~+63 EQ TREBLE: -64~+63 REV VOL: 0~127 REV TYPE: 0~4 LOCAL: ON/OFF MIDI CH: 1~16 Step 2: Press“ ”“ button to confirm, and return to Step 1 to edit other parameters. After adjustment, press "SETUP" button to return to the main menu, and all the settings are automatically saved.

  • Page 12: Factory Reset

    Diagram 17 10. Factory Reset ”“ ”to select FACTORY RESET. Press confirm button to restore factory settings of all the drum kits. The indicators turns Red color and then Off, which indicating setting restored. Refer to Diagram 18. Diagram 18 11.
  • Page 13 button to select the drum pad or cymbal corresponding to the sound that crosstalk appears (select cymbal "CR1") refer to diagram 21. Diagram 21 3. Press“ ”“ ”to adjust the parameter. Increase the corresponding value, press adjustment. Note: The larger the value, the more serious the impact. It is best to adjust to no crosstalk, try not to make the value too large.

  • Page 14: Menu List

    Menu list Sensitivity adjustment. The value corresponds to the minimum signal triggered Sens by the pad or cymbal you strike. The smaller the value, the higher the sensitivity. Velo habit. 0: LINER, 1: EXP1, 2: EXP2, 3: EXP3, 4: LOG1, 5: LOG2, 6: LOUD1, 7: LOUD2 level.

  • Page 15: Metronome Function

    Metronome Function Press“ ”“ ”to adjust tempo, refer to Diagram 22, Tempo range: 40-240BPM. Another press “METRO”to suspend metronome. Diagram 22 Press“SETUP”button to select rhythm, press“ ”“ ”to adjust rhythm,refer to Diagram 23. Rhythm options: 1/4, 1/8, 1/8 A, Trip, Trip A, 1/16, 1/16 A, 1/16 B, 1/16 C, 1/16 D, 1/16 E, 6 Tup 1.

  • Page 16: Pedals Adjustment

    Double Bass Mode Bluetooth Press and hold bluetooth button on the module till that the blue indicator is On. Search, on your phone, the ID 'ddrum EFLEX BT' and click to connect. A beep sound“Di...”will be gendered when bluetooth connection succeed. Remind: 1.

  • Page 17: Usb Midi

    USB MIDI Connect to your symthesizer or personal computer to play your MIDI music. MIDI (musical instrument digital interface ) format list. MIDI: Reminder: Product information is subject to change without prior notice.
  • Page 18 Drum Kit Crash cymbal, hi-hat, ride cymbal, tom drum * 3, sanre drum, hi-hat Contents pedal , mechanical drum pedal and pad Drum Sound Kit Quantity Coach Music Files Preset Tempo 40~240BPM Sound 1~10 Metronome Rhythm 1/4,1/8,1/8A,Trip,TripA,1/16,1/16A,1/16B,1/16C,1/16D,1/16E,6Tupl Beat Power Button / Volume Knob SETUP Button Control...

  • Page 19: Troubleshooting

    Troubleshooting...
