LED PARBAR MKIII
Portable all-in-one DMX LED lighting rig
M
A
N
U
A
L
V
E
R
S
I
O
N
1
.
0
24 / 11 / 10

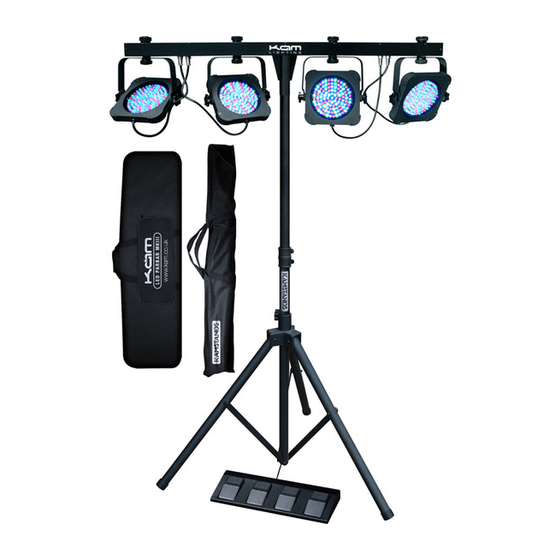

Portable all-in-one DMX LED lighting rig for all performers from live bands to DJs!
Sound-to-Light with built-in programs
Stand-alone operation for solo performance
Fully 512 DMX compatible
15 x DMX channel operation
T-bar incorporates built-in LED controller
XLR DMX in and out
4 pedal foot controller
Includes padded rig bag
Includes stand and stand bag
Endless show creation possibilities
For the latest instruction manual updates and information on the entire Kam range visit:
www.kam.co.uk
Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ
Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com
If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
Due to continuous product development, specifications and appearance are subject to change.
© Copyright Lamba plc 2010. E&OE.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KAM LED PARBAR MKIII
Summary of Contents for KAM LED PARBAR MKIII
- Page 1 For the latest instruction manual updates and information on the entire Kam range visit: www.kam.co.uk Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
- Page 2 Thank you for purchasing this product, we are sure that it will serve you for many years to come. To optimise the performance of this product, please read these operating instructions carefully to familiarise yourself with the basic operations of this unit. After you have read the instructions, please retain them for future reference. This unit has been tested at the factory before being shipped to you.
- Page 3 Modes 1. Sound mode – outputs built-in programs from the parbar in time with the music. Activated via the built-in microphone and adjusted via the onboard sensitivity control. 2. Auto mode – Outputs built-in programs from the parbar at a set speed or delay. Activated and set via the onboard controller.
- Page 4 Auto mode: Has 12 patterns in this mode, AP01-AP12 and you can set the speed for each pattern chase. Manual mode: For colour mixing you can set the intensity of the Red, Blue and Green. You can also set the strobe speed manually.
- Page 5 DMX channel data PLEASE NOTE - the DMX function will only work if CH1 is set to DMX Mode, which is set by adjusting the DMX fader value below 009 and the DMX Fade function (CH2) is set to light output level above 0% or DMX fader value greater than 1.
- Page 6 Operation description of the Stand-Alone mode Stand alone mode is with no DMX controller or footswitch attached. Stand-alone: sound/auto/manual. Auto mode “AP01-AP12”: Has 12 patterns in this mode. Select AP01-AP12 and you can set the speed for each pattern. Sound mode “SOUN”: SP03 means RGB on, SP02 means color mixing changing, SP01 means 7-single color changing and SPOO means RGB changing.
