Modes
1. Sound mode – outputs built-in programs from the parbar in time with the music. Activated via the built-in
microphone and adjusted via the onboard sensitivity control.
2. Auto mode – Outputs built-in programs from the parbar at a set speed or delay. Activated and set via the
onboard controller.
3. Manual mode – Control colour mixing, strobing and fade.
4. DMX 512 mode – Control each individual LED colour, brightness, strobe and chase via external controller (NOT
Supplied)
5. Obey3 – 3 simple sound patterns to select or 3 channel DMX mode ideal for RGB control.
6. Master/slave mode – Connect many units to one master to create a chain effect.
Display

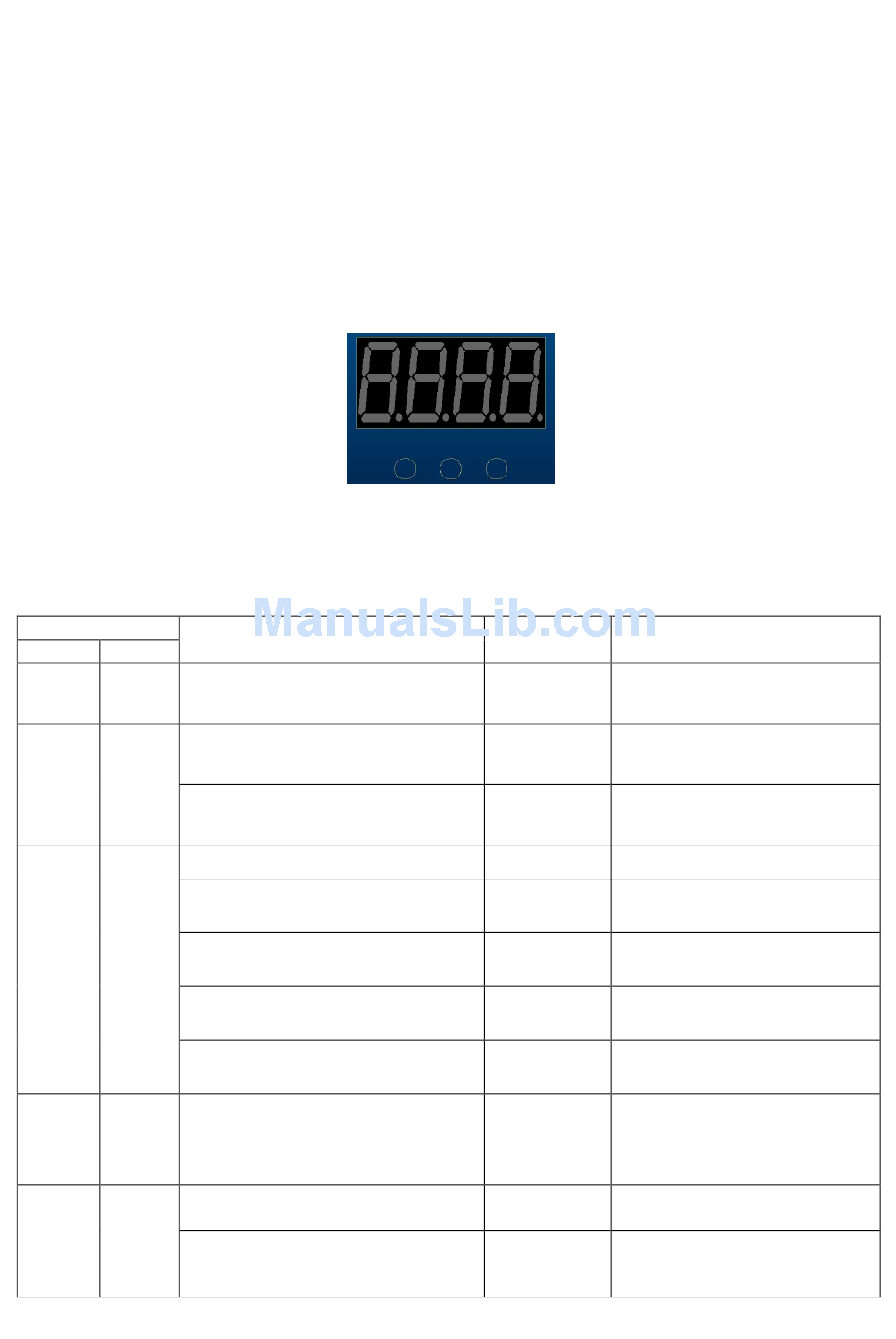

This product has an internal control system and interface. The system is configured and navigated via the menu,
down and up buttons shown in the picture below.
When first switch on the unit will automatically enter DMX mode and display (A001) and Obey3 control function. The
unit has a memory, so when switched on again the unit will enter the mode you finished with previously.
Press MENU buttons to enter different working modes, the modes are as follows:
Menu button
mode
display
DMX
A***
mode
Auto
AP**
mode
Manual
coLo
mode
Obey 3
channel
OB-3
mode
Sound
Soun
mode
Down button
A512-A001
(DMX address)
AP12-AP01
(12 patterns to select)
F-00 – F-08
(8 patterns to select)
No function
r-00 - r-08
(8 kinds of Red intensity to select)
g-00 - g-08
(8 kinds of Green intensity to select)
b-00 – b-08
(8 kinds of Blue intensity to select)
F-00 – F-08
(8 strobe speeds to select)
3 channel DMX
No function
SP00-SP03
(4 sound patterns to choose from)
MENU DOWN
UP
Menu button
return back
return back
return back
return back
return back
return back
return back
return back
return back
Ch1 – Red
Ch2 – Green
Ch3 – Blue
return back
return back
Up button
A001-A512
(DMX address)
F00/08
Enter interface to choose speed
Save data and run
Enter interface to choose Red
Enter interface to choose Green
Enter interface to choose Blue
Enter interface to choose speed
Save data and run
No function
Enter interface to choose Sound
patterns
Save data and run
