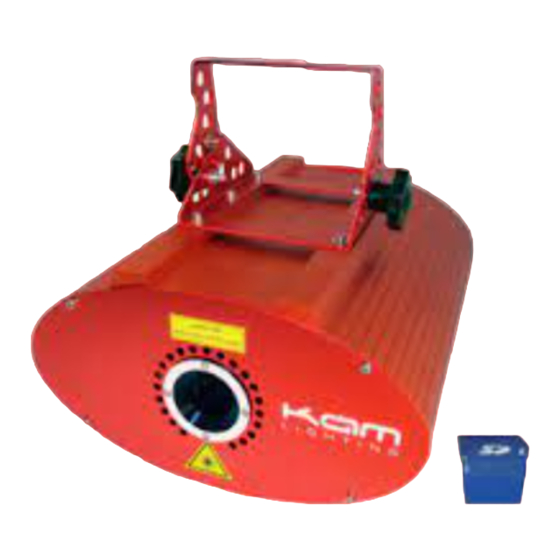

Laser Tri260 SD FScan
260mW DMX RGY animation laser with SD card interface
M
A
N
10 channel DMX 512 operation via SD-ram and standard DMX modes
Compatible with Kam LC01 laser software for text and logo input
25kpps optical fast scanner creates amazing smooth animations
Playback of ILDA laser show through computer interface & SD card
For the latest instruction manual updates and information on the entire Kam range visit:
Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ
Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com
If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
U
A
L
V
Fast scanning DMX RGY animation laser with SD card interface
Includes FREE pre-programmed SD card
Pre-programmed moving patterns in Auto mode
Sound-to-Light, Auto and DMX 512 modes
Linkable Master/Slave in Sound-to-Light mode
Fan cooled and adjustable hanging bracket
Key operated power control
www.kam.co.uk
Due to continuous product development, specifications and appearance are subject to change.
© COPYRIGHT LAMBA plc 2009. E&O E.
E
R
S
I
O
N
3
.
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Laser Tri260 SD FScan and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KAM Laser Tri260 SD FScan

Summary of Contents for KAM Laser Tri260 SD FScan

  • Page 1 For the latest instruction manual updates and information on the entire Kam range visit: www.kam.co.uk Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
  • Page 2 To optimise the performance of this product, please read these operating instructions carefully to familiarize yourself with the basic operations of this unit. The KAM Laser Tri260 SD Fscan laser has been designed to create amazing laser effects. Please keep these user instructions in a safe place for future reference.

  • Page 3: Rear Panel

    REAR PANEL FUNCTION TABLE: Audio in VOLUME Volume sensitivity Mode Message centre Indicating the state of SD card controlling system SD Card Controlling Settings Used to set some important parameters for SD card SD Card Slot SD Card (maximum capacity of 1 Gigabytes support) Mode Switches Select the operating modes DMX IN...
  • Page 4 Function mode setting For DMX, switch 10 must be on Master/Slave settings, No DMX Controller For master/slave mode, put the 2nd switch to ON position and it works as slave. DMX Control mode For DMX mode, the 10th dip switch must be ON. Then, set the DMX base address with the binary system “0”...
  • Page 5 DMX channels assignment: Channel DMX512 VALUE FUNCTION 0-63 Sound control (3-10ch not available) 64-149 Auto mode (3-10chnot available) 1.Control Mode 150-199 DMX control 200-255 Auto mode blackout 6-15 16-25 green 26-35 yellow 2.Blanking & Blackout 36-105 (Ch1 must be 200-255) single colour(auto) R-G-Y Cycling slow to fast 106-175 (Ch1 must be 200-255) tri-colour(auto) Cycling slow to fast...
  • Page 6 Press “FUNC” to exit this parameter. The value is stored automatically. All values are stored and activated when you exit the parameter input by pressing “FUNC parameter. The value is stored automatically. Without changing anything in the parameter input routine, the panel will return to main routine after about 10 seconds without storing value to memory.

  • Page 7: Important Warning

    The long names need additional space in the root directory. To avoid losing space (and limiting maximum possible number of files), the names should be kept as short as possible. Short filenames are not case sensitive! WE RECOMMEND USING THE KAM LCO1 LASER SOFTWARE. See www.kam.co.uk Reserved Filenames Some filenames are reserved for device control.

  • Page 8: Specifications

    IMPORTANT INFO REGARDING SD CARDS Your Kam SD laser requires the SD card to be formatted in FAT16 to allow files to be recognised. FAT16 (File Allocation Table) is a filing system used in computer memory systems and storage cards.
