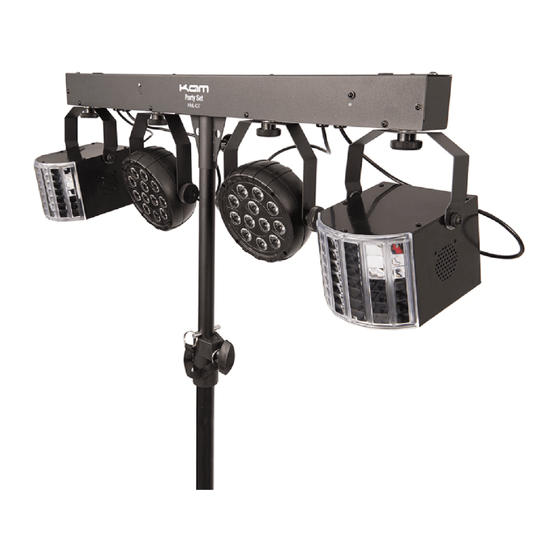

- Page 1 Party Set KML407...
-
Page 2: Unpacking Instructions
Unpacking Instructions Read Manual before Operation Before operating this device, please read this manual thoroughly, and retain it for future reference. Warning Data Please note the warnings in bold which will ensure the safe and smooth operation. These warnings are important to a certain extent. -
Page 3: Safety Instructions
To protect the environment, please try to recycle the packing material as much as possible. The KML407 is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain and moisture, excessive heat, humidity and dust. Do not allow contact with water or any other fluids, or metallic objects. - Page 4 Overhead Rigging &Product Installation Attention! The installation must be carried out by qualified service personal only. Improper installation can result in serious injuries and /or damage to property. Overhead rigging required extensive experience! Working load limits should be respected, Certified installation materials should be used, the installed device should be inspected regularly for safety.
-
Page 5: Product Installation
Product Installation DMX-512 connection ◆ Connection between lights and DMX must use the shied cable of diameter more than 0.5mm. Please use the attached 3 pin XLR plug/socket to connect the DMX output/input interface. The connection between socket and cable as below( note the plug/socket’s 3 pin number and position). DMX-output DMX-input XLR mounting-sockets(rear view):... - Page 6 Operation instructions DESCRIPTION FUNCTION IR receiver Infra-remote control receiver Output data to external lamp socket LCD control interface Various mode setting operations of the machine Receive music signal to activate shows for the T-Bar 3PIN male/female XLR interface ,for DMX communication DMX input/output AC Power input socket ,built-in fuse Power input...
- Page 7 Menu operating instruction 1、The keys description: Button Function MENU Mode / Upper menu ENTER Confirm / Sub menu Move up / + DOWN Move down / - 2.Menu description AM01…AM02 Press "ENTER"to continue Two Auto mixed shows AUTM S.01…S.99 Press "ENTER"to save and display AM** Show speed from slow to fast AP01…AP18 Press "ENTER"to continue...
- Page 8 04CH( d001-d509) 07CH( d001-d506) 34CH( d001-d479)
-
Page 9: Ir Remote Control
IR remote control Funntion Description ON/OFF Turn ON/OFF lights outputs Auto Mixed shows Auto mixed shows for AM01,AM02; Sound Mixed shows Sound mixed shows for SM01,SM02 Auto PAR shows Auto PAR shows for AP02,AP18 Sound PAR shows Sound PAR shows for SP02,SP18 Pause To pause the color change effect Speed... -
Page 10: Dmx Assignment
DMX Assignment DMX-04CH mode CHANNEL VALUE FUNCTION 000-009 Blackout 010-029 Mix auto show 1（AN01） 030-059 Mix auto show 2（AN02） 060-089 Mix auto show 3（AN03） 090-129 Auto show 01-18（AP01-AP18） 130-159 Mix sound show 1（SN01） 160-189 Mix sound show 2（SN02） 190-209 Mix sound show 3（SN03） 210-255 Sound show 01-18（SP01-SP18）... - Page 11 DMX Assignment DMX-07CH CHANNEL VALUE FUNCTION 000-255 Red Dimmer 0-100% 000-255 Green Dimmer 0-100% 000-255 Blue Dimmer 0-100% 000-255 White Dimmer 0-100% 000-255 All Dimmer 0-100% 000-015 No strobe speed 016-255 Strobe speed slow to fast 0-127 Clockwise rotation，0 is stop ，1-127 from slow to fast，127 is the fastest speed；128-255 Anticlockwise 000-255 rotation，128 is stop，129-255 from slow to fast，255 is...
- Page 12 DMX Assignment DMX-34CH VALUE CHANNEL FUNCTION 098-111 Auto/sound program 8 （ AP8/SP8） 112-125 Auto/sound program 9（AP9/SP9） Auto/sound program 10（AP10/SP10） 126-139 Auto/sound program 11（AP11/SP11） 140-153 Auto/sound program 12（AP12/SP12） 154-167 Auto/sound program 13（AP13/SP13） 168-181 Auto/sound program 14（AP14/SP14） 182-195 Auto/sound program 15（AP15/SP15） 196-209 Auto/sound program 16（AP16/SP16）...
- Page 13 DMX Assignment DMX-34CH CHANNEL VALUE FUNCTION 000-255 CH 20 White Dimmer 0-100% 000-015 No strobe speed CH 21 016-255 Strobe speed slow to fast No.3 0-127 Clockwise rotation，0 is stop ，1-127 from slow to fast，127 000-255 is the fastest speed；128-255 Anticlockwise rotation，128 is CH 22 stop，129-255 from slow to fast，255 is the fastest speed.
- Page 14 UK DISTRIBUTOR John Hornby Skewes & Co. Ltd. Salem House, Parkinson Approach, Garforth, Leeds LS25 2HR, United Kingdom. www.jhs.co.uk c� Authorised EU Representative: Pieters Musical Agencies ✓ � Sparrelaar 19, 5467 JP Veghel, Netherlands t;.• � • RoHS ©2022 JHS. Specifications are subject to change without prior notice. Made in China.
