iLINK GREEN

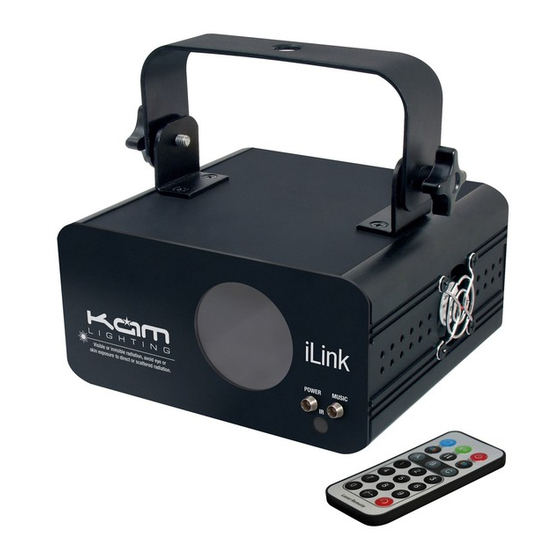

Linkable green DMX laser with remote control
M
A
N
U
A
Tough metal chassis / Adjustable metal hanging bracket / Safety chain loop
For the latest instruction manual updates and information on the entire Kam range visit:
www.kam.co.uk
Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ
Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com
If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
Due to continuous product development, specifications and appearance are subject to change.
L
V
E
R
2 8 - 0 6 - 1 2
Green DMX laser with remote control
Part of the Kam iLink laser series
Stepping motor
Full remote control
Full DMX512 operation
8 DMX channels
Auto mode / Sound-to-Light via built-in mic
Master/Slave modes
LED display
Safety key On/Off lock
Mains fused IEC
© Copyright Lamba plc 2012. E&OE.
S
I
O
N
1
.
0
Advertisement
Table of Contents
Related Manuals for KAM iLINK GREEN
Summary of Contents for KAM iLINK GREEN
- Page 1 For the latest instruction manual updates and information on the entire Kam range visit: www.kam.co.uk Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
- Page 2 Thank you for purchasing this KAM product, we are sure that it will serve you for many years to come. To optimise the performance of this product, please read these operating instructions carefully to familiarise yourself with the basic operations of this unit. After you have read the instructions, please retain them for future reference.
- Page 3 Panel NAME DESCRIPTION Power LED Indicates the laser is switched on Music LED Sound-to-Light signal IR Receiver Remote controller signal receiver The laser effect output aperture. NEVER LOOK INSIDE THE FIXTURE THROUGH Laser Aperture THIS APERTURE WHILE FIXTURE IS OPERATING. Power Switch Switch ON and OFF the fixture Fuse Holder...
- Page 4 Control & Function Regular breaks during operation are essential to maximize the life of this device as it is not designed for continual use. Always unplug the unit when it is not being used for long periods or before servicing. In the event of serious operation problems, stop using the unit and contact your dealer immediately.
- Page 5 Note: only one unit must be set to master all other units set to slave. When linking this unit to other iLink lasers always use the iLink Green as the master unit and the other units as slave units, this will allow the remote to control all the lasers.
- Page 6 Remote mode Press FUNC to enter MODE OPTION. Until the LED panel shows REN Press ENTER to confirm the setting. Remote instructions Button Function Description In REM mode, to turn ON/OFF laser. In any stand alone ON/OFF mode, except for SLA mode, pressing this button for 2 seconds will activate the REM mode.
- Page 7 Controlling units via DMX - each unit uses 8 DMX channels To set the DMX address 1. Press the function button until *** is displayed (range 001-512) 2. Using the up / down buttons select the desired DMX staring address 3.
- Page 8 Pattern list in channel 2 PATTERNS PATTERNS PATTERNS PATTERNS 000-007 064-071 128-135 192-199 008-015 072-079 136-143 200-207 016-023 080-087 144-151 208-215 024-031 088-095 152-159 216-223 032-039 096-103 160-167 224-231 040-047 104-111 168-175 232-239 048-055 112-119 176-183 240-247 056-063 120-127 184-191 248-255 Specifications Mains Input...
