KAM Laserscan 300 3D Instruction Manual

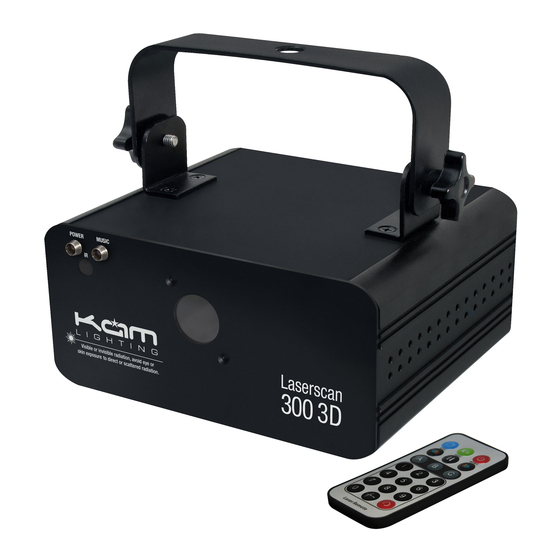

320mw 3d fast scanning laser
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
Laserscan 300 3D
320mW 3D fast scanning laser
M
A
N
U
A
L
V
E
R
S
I
O
N
1
.
0
29 - 06 - 12
Due to continuous product development, please ensure that you have downloaded
the latest instruction manual for this product from the Kam website at www.kam.co.uk
For the latest updates and information on the entire Kam range visit:
www.kam.co.uk
Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ
Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com
If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
Due to continuous product development, specifications and appearance are subject to change.
© Copyright Lamba plc 2011. E&OE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Laserscan 300 3D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KAM Laserscan 300 3D

Summary of Contents for KAM Laserscan 300 3D

  • Page 1 For the latest updates and information on the entire Kam range visit: www.kam.co.uk Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.

  • Page 2: Unpacking Instructions

    Thank you for purchasing this KAM product, we are sure that it will serve you for many years to come. To optimise the performance of this product, please read these operating instructions carefully to familiarise yourself with the basic operations of this unit. After you have read the instructions, please retain them for future reference.

  • Page 3: Xlr-Connection

    Power Supply Cable (EU) Cable (US) International Brown Black Live Light Blue White Neutral Yellow/Green Green Earth DMX-512 connection between fixtures The fixture is equipped with 3-pin XLR sockets for DMX input and output. Thesockets are wired in parallel. Only use a shielded twisted-pair cable designed for3-pin XLR-plugs and connectors in order to connect the controller with the fixtureor one fixture with another.

  • Page 4: Front Panel

    Proper laser set up &usage This fixture has been designed to be hung. It is recommended for safety purposes,your lighting effect are properly mounted using a suitable hanging clamp andsafety cable. Items appropriate for safe and effective mounting are easilysourced from your lighting vendor.

  • Page 5: Operation

    Operating Mode When the laser is powered on, the LCD monitor on rear panel shows the current operating standalone mode, DMX address or Slave mode. With help of the LCD control panel, it is very easy to set and change the operating mode of the laser. The next time the laser is powered on it will show the last setting used before the laser was powered off.

  • Page 6: Slave Mode

    DMX address Each unit uses 17 DMX channels. To select the desired DMX address press the menu button until DMX mode is displayed, then press the enter button to access the DMX channel menu. This example shows how to set the start address to 001 but use the same formula to set address at different numbers. At the top of the menu address #*** is displayed, use the up down buttons until 001 is shown and press the enter button to confirm.
  • Page 7 Remote Instruction Button Function Description In REM mode, to turn ON/OFF laser. In any stand alone mode, except ON/OFF for SLA mode, pressing this button for 2 seconds will activate the REM mode. Auto Auto running slow Sound Activated show. The blue music LED indicator is flashing when Music sound signal is detected.
  • Page 8 DMX Channels Chart Channel Value Function 000-063 Laser OFF 064-127 Auto mode CH 1 – Mode 128-191 Sound mode 192-255 DMX MODE 000-051 1 Group Patterns. 052-103 2 Group Patterns. CH 2 - Group 104-155 3 Group Patterns. 156-207 4 Group Patterns. 208-255 5 Group Patterns.
  • Page 9 Specifications Mains Input: AC100~240V, 50/60Hz Fuse: 250V /1A Slow Blow (20mm Glass) Total Power: X/Y Axis Beam Angle: ±20° Music Control: Audio / Sound Activated Laser Power (per unit): 150mW 650nm Red CW 50mW 532nm Green CW 120mW 450nm Blue CW Laser Classification: Class 3B Laser Safety Standard:...
