iLink laser series
Linkable colour DMX laser effects
M A N U A L
V E R S I O N
1 . 0
0 1 - 0 2 - 1 2

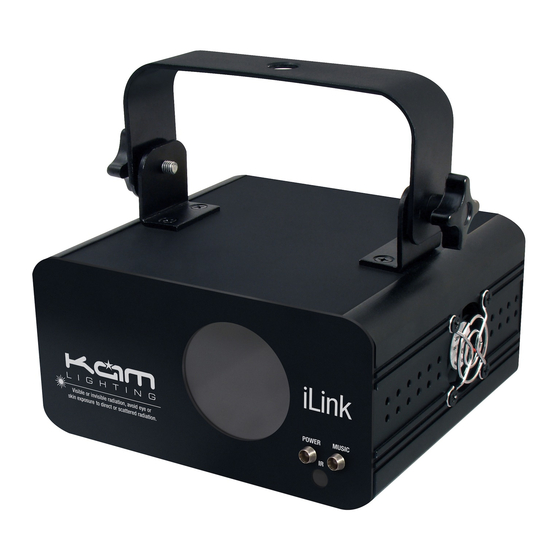

Kam iLink RGY | Kam iLink GBC | Kam iLink RBP | Kam iLink Blue 500
Due to continuous product development, please ensure that you have downloaded
the latest instruction manual for this product from the Kam website at www.kam.co.uk
For the latest updates and information on the entire Kam range visit:
www.kam.co.uk
Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ
Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com
Due to continuous product development, specifications and appearance are subject to change. © Copyright Lamba plc 2012. E&OE.
M
A
D
E
I
N
C
H
I
N
A
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for KAM Kam iLink RGY
Summary of Contents for KAM Kam iLink RGY
- Page 1 1 . 0 0 1 - 0 2 - 1 2 Kam iLink RGY | Kam iLink GBC | Kam iLink RBP | Kam iLink Blue 500 Due to continuous product development, please ensure that you have downloaded the latest instruction manual for this product from the Kam website at www.kam.co.uk For the latest updates and information on the entire Kam range visit: www.kam.co.uk...
- Page 2 Thank you for purchasing this Kam product, we are sure that it will serve you for many years to come. To optimise the performance of this product, please read these operating instructions carefully to familiarise yourself with the basic operations of this unit. Please retain them for future reference.This unit has been tested at the factory before being shipped to you.
- Page 3 Front and rear panels Power LED Indicates that the fixture is switched on Music LED Synchronises to any detected music/sound signal Remote receiver Remote controller signal receiver Power switch Use to power On or Off the unit Fuse holder The replaceable fuse is held here Mains power Power input With IEC socket and integrated fuse holder DMX In/Out...
- Page 4 Note: There will output from the laser 5 seconds after the unit is powered on. Operation (via control buttons on rear of unit) Single colour Kam iLink lasers Three colour Kam iLink lasers Auto Show / Stand Alone mode (Aut)
- Page 5 Sound-to-Light / microphone sensitivity setting Press the function button (Func) to enter Mode options Press the function button until the LED panel shows S 6 Press the Up or Down buttons to adjust the microphone sensitivity S 1 = low sensitivity / S 9 = high sensitivity / S 0 = mic is turned off Press the Enter button to confirm the setting DMX mode Press the function button (Func) to enter Mode options...
- Page 6 DMX protocol for one colour lasers Channel Value Function 000-063 Laser black out 064-127 Auto show Channel 1 - mode 128-191 Sound activated show (music) 192-255 DMX mode (other channels activated) Channel 2 - patterns 000-255 32 patterns as shown in pattern list (see below) 000-127 100%-5% size 128-169...
- Page 7 DMX protocol for multi colour lasers Channel Value Function 000-029 Automatic show with original preprogrammed colour 030-059 Auto show with colour 1 060-089 Auto show with colour 2 090-119 Auto show with colour 3 Channel 1 - mode 120-149 Sound activated show with original preprogrammed colour 150-179 Sound activated show with colour 1 180-209...
- Page 8 Pattern list in channel 2 Specifications Kam iLink Blue 500 490mW 450nm blue Kam iLink RGY 100mW red / 40mW green colour mixed to yellow Kam iLink RBP 100mW red / 80mW blue colour mixed to pink Kam iLink GBC...
