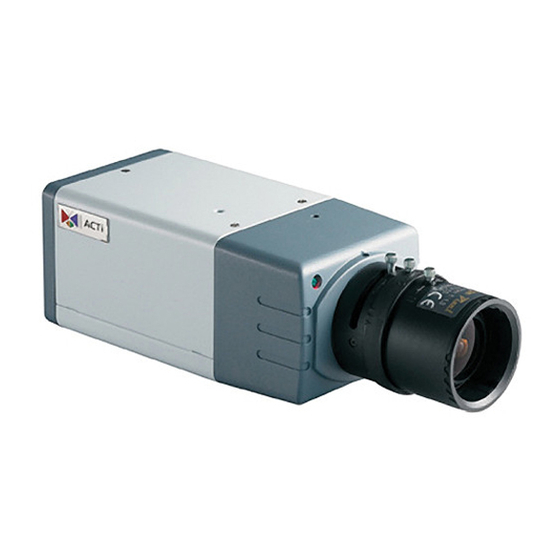

- Page 1 TCM-5611 Series H.264 Megapixel IP D/N PoE Box Camera (DC 12V / PoE) Ver. 2012/3/5 VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
-
Page 2: Table Of Contents
Product Specification ..............14 Accessing Camera If you have DHCP server / router in your network: ...... 15 If you do have DHCP server / router in your network: ..15 www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299... -
Page 3: Precautions
Operation of this equipment in a residential area is likely to cause harmful interference in which case the users will be required to correct the interference at their own expense. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299... -
Page 4: Introduction
TCM-5611 Hardware User’s Manual 1. Introduction Package Contents TCM-5611 Series Product CD Terminal Blocks for Power & DI/O Warranty Card Accessory *For the mounting block, please attach it flat side to the front. There are two types of mounting blocks, and this device uses the white version. -
Page 5: Features And Benefits
Reliable and accurate motion detection with instant warning enables immediate response in every condition. Quick and simple search and playback function lets you easily find the images and video you want. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299... - Page 6 It is very useful when users want to find the video at an exact time or between a certain time intervals. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
-
Page 7: Safety Instructions
3) If the video product has been directly exposed to rain or water. 4) If the video product does not operate normally by following the operating Instructions in www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299... - Page 8 Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
-
Page 9: Physical Description
Step 2: Press and continue to hold the Reset Button (with a sharp tipped object, like a pen.) The Power Step 3: Reconnect the power cable while continuing to hold the reset button. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299... - Page 10 (not to power an auxiliary connector for mains power to the this camera) unit. This pin can also be used to power auxiliary equipment, with a maximum current of www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
- Page 11 2. Once the cables are connected, push the connector block into the terminal connector (also green) on the camera. 3.3V FUSE 1A DC TO DC CONVERTER POWER INPUT EARTH GND DC POWER RELAY DEVICE DIODE CAMERA www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
- Page 12 5) Power Input Connect the power adaptor here if your power input is DC12V. NAME DESCRIPTION DC Power Input Ground Pin 6) DC Iris DC Iris Lens Control Port www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
-
Page 13: Basic Connections
2) Connect IP device’s Ethernet port to Network switch (via RJ45 connectors). 3) Connect a PC to the Ethernet switch (via RJ45 connectors) Please refer our PoE Guide for more details on Power over Ethernet related concepts. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299... -
Page 14: Product Specification
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, Network Protocol ARP, IGMP, SMTP, FTP, UPnP, IPv6 Microsoft Internet Explorer 6.0 or above Web Browser ACTi SDK-10000 Software Password Protection: Configured by the Administrator Security 0ºC ~ 50ºC (32ºF ~ 122ºF ) Temperature... -
Page 15: Accessing Camera
IP Box Cam into the network and your IP device will acquire network address by itself. Find and access the device with our IP Utility program. You may download it at: http://www.acti.com/product/detail/Software/ACTi_Utility_Suite If you do have DHCP server / router in your network: 1. - Page 16 Default User: Admin Password: 123456 6. After logging in, you will see the video from camera. To go to the main menu, click the ”Setup” button on the top left. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
