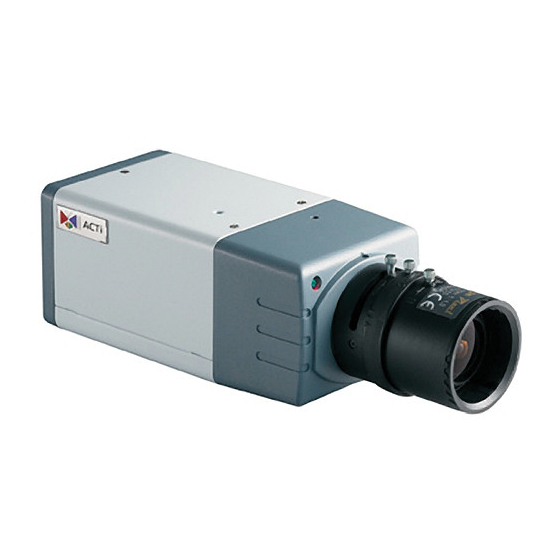

- Page 1 TCM-56x1 Series H.264 Megapixel CMOS IP Box Camera Hardware User’s Manual (DC 12V / PoE) Ver. 2010/1/5...
-
Page 2: Table Of Contents
Physical description ................9 Basic Connections ................13 Product Specification ..............14 Accessing Camera If you have DHCP server / router in your network: ...... 15 If you do NOT have DHCP server / router in your network: ..15 www.acti.com... -
Page 3: Precautions
Operation of this equipment in a residential area is likely to cause harmful interference in which case the users will be required to correct the interference at their own expense. www.acti.com... -
Page 4: Introduction
Terminal Blocks for Power & DI/O Warranty Card Accessory *For the mounting block, please attach it flat side to the front. There are two types of mounting blocks, and this device uses the white version. Please do not use the black version. www.acti.com... -
Page 5: Features And Benefits
Scheduled recording and manual recording keep every important video recorded in the local hard disk. Reliable and accurate motion detection with instant warning enables immediate response in every condition. Quick and simple search and playback function lets you easily find the images and video you want. www.acti.com... - Page 6 The “Digital Time Code Embedded” function records video time in the video stream. Therefore, each image frame is marked with its original recording time. It is very useful when users want to find the video at an exact time or between a certain time intervals. www.acti.com...
-
Page 7: Safety Instructions
2) If liquid has been spilled, or objects have fallen into the video product. 3) If the video product has been directly exposed to rain or water. 4) If the video product does not operate normally by following the operating Instructions in www.acti.com... - Page 8 Safety Check Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition. www.acti.com...
-
Page 9: Physical Description
Step 1: Switch off IP device by disconnecting the power cable Step 2: Press and continue to hold the Reset Button (with a sharp tipped object, like a pen.) Step 3: Reconnect the power cable while continuing to hold the reset button. The Power www.acti.com... - Page 10 Max: 1.2W (not to power an auxiliary connector for mains power to the this camera) unit. This pin can also be used to power auxiliary equipment, with a maximum current of www.acti.com...
- Page 11 1. Attach the cables for the device securely to the supplied green connector block. 2. Once the cables are connected, push the connector block into the terminal connector (also green) on the camera. 3.3V FUSE 1A DC TO DC CONVERTER POWER INPUT EARTH GND DC POWER RELAY DEVICE DIODE CAMERA www.acti.com...
- Page 12 TCM-56x1 Hardware User’s Manual 5) Power Input Connect the power adaptor here if your power input is DC12V. NAME DESCRIPTION DC Power Input Ground Pin 6) DC Iris DC Iris Lens Control Port www.acti.com...
-
Page 13: Basic Connections
1) Connect the power adaptor to IP Box Camera 2) Connect IP device’s Ethernet port to Network switch (via RJ45 connectors). 3) Connect a PC to the Ethernet switch (via RJ45 connectors) Please refer our PoE Guide for more details on Power over Ethernet related concepts. www.acti.com... -
Page 14: Product Specification
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, Protocol ARP, IGMP, SMTP, FTP, UPnP, IPv6 Microsoft Internet Explorer 6.0 or above Web Browser Software ACTi SDK-10000 Password Protection: Configured by the Administrator Security 0ºC ~ 50ºC (32ºF ~ 122ºF ) Operating Temperature Power Requirement PoE (IEEE 802.3af) with Class 3... -
Page 15: Accessing Camera
IP Box Cam into the network and your IP device will acquire network address by itself. Find and access the device with our IP Utility program. You may download it at: http://www.acti.com/product/detail/Software/ACTi_Utility_Suite If you do NOT have DHCP server / router in your network: 1. - Page 16 5. When you see the login window, please input default user and password: Default User: Admin Password: 123456 6. After logging in, you will see the video from camera. To go to the main menu, click the ”Setup” button on the top left. www.acti.com...
- Page 17 8. Change the IP mode to Static. 9. Change the IP to 192.168.0.101 or any other unused IPs. Do NOT use the PC’s IP address or 192.168.0.100.). If this is not the first device you add to the network, please also avoid other devices’ IPs. www.acti.com...
- Page 18 12. Wait for 30 seconds, and open IE again to connect to the IP. (In this example, 192.168.0.101). For the second device or more you add into the network, please type the correct IP. 13. Adjust the default Video setting by going to Video & Audio -> Media 1 www.acti.com...
- Page 19 TCM-56x1 Hardware User’s Manual www.acti.com...
