Summary of Contents for ACTi TCM-4101

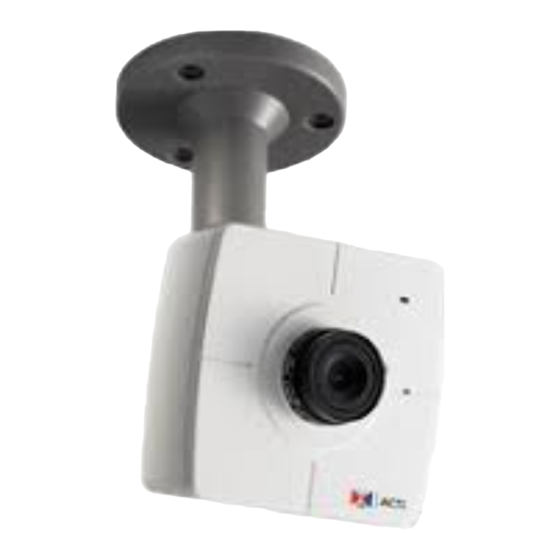

- Page 1 H.264 IP Cube Camera TCM-4101 Ver. 091021 Hardware User’s Manual...
-
Page 2: Trademarks
PRECAUTIONS Read these instructions You should read all the safety and operating instructions before using this product. Heed all warnings You must adhere to all the warnings on the product and in the instruction manual. This symbol highlights several areas of concern. Please read descriptions next to each symbol carefully. - Page 3 equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
-
Page 4: Table Of Contents
Table of Contents 0 PRECAUTIONS________________________________________________ 0-1 Trademarks ________________________________________________________________ 0-1 Liability ___________________________________________________________________ 0-1 FCC/CE Regulation __________________________________________________________ 0-1 1 INTRODUCTION ______________________________________________ 1-1 Package Contents _______________________________________________ 1-1 Features and Benefits ____________________________________________ 1-2 Safety Instructions ______________________________________________ 1-4 ... -
Page 5: Introduction
INTRODUCTION 1.1 Package Contents TCM-4101 Power Adaptor (Optional) Product CD Camera Stand Warranty Card Accessory... -
Page 6: Features And Benefits
1.2 Features and Benefits This IP device is a cutting-edge digital video transmission device. It can compress and transmit real time images with outstanding images quality (VGA, 640x480) at reasonable bandwidth through a standard TCP/IP network. That is because it is Ethernet ready and has the powerful ARM9 SoC with excellent system performance to offer dual streams of H.264/MPEG4/MJPEG. - Page 7 surveillance program is included in the package and is free to use. Users can easily utilize an existing PC to be a digital video recorder. Scheduled recording and manual recording keep every important image recorded in the local hard disk. Reliable and accurate motion detection with instant warning enables immediate response in every condition.
-
Page 8: Safety Instructions
1.3 Safety Instructions Don’t use the power supply with other voltages This device is likely to be damaged or damage other equipments / personnel if you use a power supply with a different voltage than the one marked on this device. All warranty of this product will be voided in the above situation. - Page 9 If the video product does not operate normally by following the operating Instructions in this manual. Adjust only those controls that are covered by the instruction manual, as an improper adjustment of other controls may result in damage, and will often require extensive work by a qualified technician to restore the video product to its normal operation..
-
Page 10: Physical Description
1.4 Physical Description Action LED Indicator The LED will light up after IP camera has successfully completed the boot process Microphone Input Sensitivity: -36dB ± 3dB(0dB=1V/Pa at 1KHz) S/N Ratio: More than 58dB Directivity: Omni directional... - Page 11 Audio Output The IP device supports audio output with earphone jack Ethernet Port The IP device connects to the Ethernet via a standard RJ45 connector. Supporting NWAY, this IP device can auto detect the speed of local network segment (10Base-T/100Base-TX Ethernet).
-
Page 12: Basic Connections
1.5 Basic Connections Follow the procedures below to connect the IP device to the respective apparatuses. If you have a PoE(Power over Ethernet) supported switch or injector: Connect your IP Cube Camera to the Switch / Injector by CAT5 or CAT6 cables with RJ45 connector. -
Page 13: Product Specification
1.6 Product Specification...
