Cardinal APS8 Setup And Operation Manual

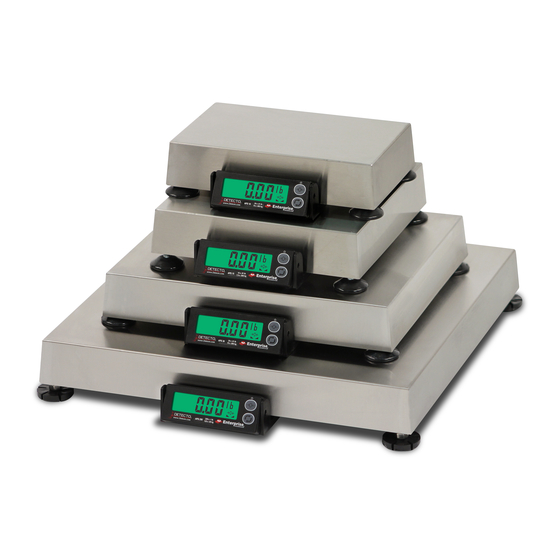

Aps series enterprise scale
Hide thumbs
Table of Contents

Advertisement

Quick Links

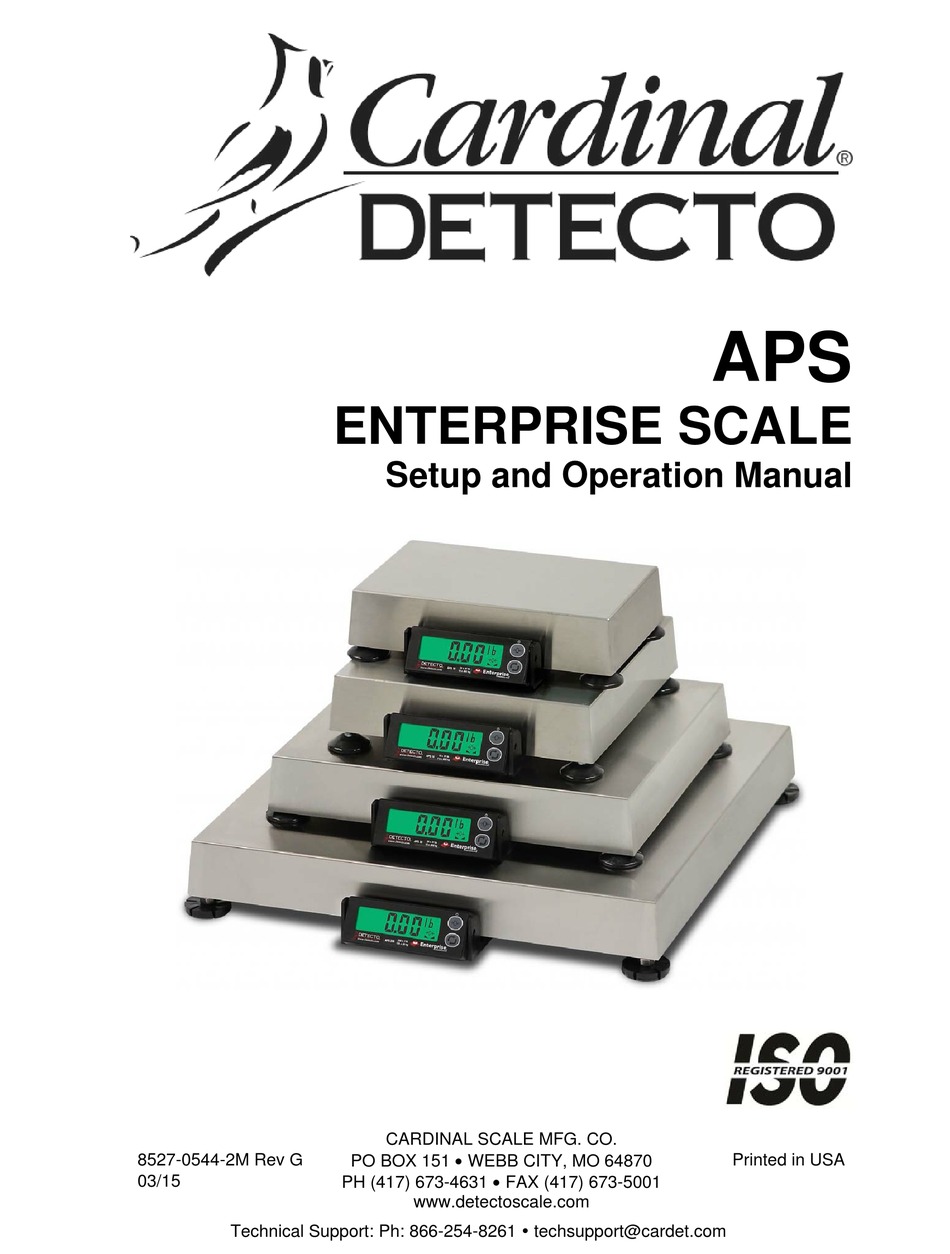

8527-0544-2M Rev G
03/15
Technical Support: Ph: 866-254-8261  techsupport@cardet.com
8527-0544-2M Rev G  APS Enterprise Scale
ENTERPRISE SCALE
Setup and Operation Manual
CARDINAL SCALE MFG. CO.
PO BOX 151  WEBB CITY, MO 64870
PH (417) 673-4631  FAX (417) 673-5001
www.detectoscale.com
APS
Printed in USA
I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APS8 and is the answer not in the manual?

Questions and answers

Related Manuals for Cardinal APS8

Summary of Contents for Cardinal APS8

  • Page 1 ENTERPRISE SCALE Setup and Operation Manual CARDINAL SCALE MFG. CO. PO BOX 151  WEBB CITY, MO 64870 8527-0544-2M Rev G Printed in USA PH (417) 673-4631  FAX (417) 673-5001 03/15 www.detectoscale.com Technical Support: Ph: 866-254-8261  techsupport@cardet.com 8527-0544-2M Rev G  APS Enterprise Scale...
  • Page 2 8527-0544-2M Rev G  APS Enterprise Scale...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SPECIFICATIONS ....................Page 1 Options ......................Page 1 Certifications ...................... Page 1 SITE PREPARATION REQUIREMENTS .............. Page 2 Site Requirements ..................... Page 2 Environmental Conditions .................. Page 2 Electrical Power ....................Page 3 Electrical Noise Interference ................Page 3 Transient Suppression ..................
  • Page 4 INTRODUCTION Thank you for selecting and purchasing the Detecto APS Enterprise Scale. It was built with Detecto quality and reliability at our factory in Webb City, Missouri and incorporates the latest in digital technology and innovative features for the weighing industry. This manual is provided to guide you through installation, setup/calibration and operation of the Detecto APS Enterprise Scale.

  • Page 5: Specifications

    0.05 kg 2500 Power Requirements: 100 to 240 VAC 50/60Hz 12 VDC 1A wall plug-in UL/CSA listed AC power adapter (Cardinal part number 6800-1045) Operating Environment: Temperature Range: 14º to 104º F (-10º to +40º C) Display: Five digit, seven segment, 0.875 inch (22 mm) high LCD...

  • Page 6: Site Preparation Requirements

    SITE PREPARATION REQUIREMENTS The Detecto APS Enterprise Scale is a precision weight-measuring instrument. As with any precision instrument, they require an acceptable environment to operate at peak performance and reliability. This section is provided to assist you in obtaining such an environment. Site Requirements In order to keep cooling requirements to a minimum, the indicator should be placed out of direct sunlight and to provide adequate air circulation, keep the area around the indicator clear.

  • Page 7: Electrical Power

    SITE PREPARATION REQUIREMENTS, CONT. Electrical Power The APS Enterprise scale is powered by a 100 to 240 VAC 50/60Hz 12 VDC 1A wall plug-in UL/CSA listed AC power adapter. Note that a special order is not required for operation at 230/240 VAC.

  • Page 8: Installation

    INSTALLATION (ALL MODELS EXCEPT APS250) Unpacking Remove the scale from the shipping carton. Remove all packing material and then examine the scale to make certain there is no shipping damage. Should damage be discovered contact the shipping company as soon as possible. The packing material and shipping carton should be retained for possible examination by the shipping company.

  • Page 9: Aps250 Only

    INSTALLATION, CONT. (APS250 ONLY) Unpacking and Setup 1. Remove the scale display, hardware pack, power supply, scale cover and scale base assembly from the shipping carton. Remove all packing material and then examine the scale to make certain there is no shipping damage. Should damage be discovered contact the shipping company as soon as possible.

  • Page 10: Level Adjustment

    INSTALLATION, CONT. (APS250 ONLY) Unpacking and Setup, Cont. 6. Determine where the scale is to be located. It should be a smooth surface capable of supporting both the scale and any load to be placed on the scale. It should not be in direct sunlight nor should it be subject to air flow from heating/cooling vents, fans or similar devices.

  • Page 11: Interconnections

    INSTALLATION, CONT. Interconnections All input, output and power connections to the APS Enterprise scale are made internally to the main board inside the scale. Connections for the scale display, remote display and OPOS compatible serial device are made using RJ11 snap-in modular connectors. The USB port is a device (or upstream) port using an industry standard Type B connector.

  • Page 12: Serial Data Cable, 8527-0545-0A

    INSTALLATION, CONT. Serial Data Cable, 8527-0545-0A 4 Feet (Included 4’ Serial Data Cable, 8527-0545-0A) (Wiring Diagram, Serial Data Cable, 8527-0545-0A) 8527-0544-2M Rev G  APS Enterprise Scale...

  • Page 13: Keypad Functions

    KEYPAD FUNCTIONS DO NOT operate the keypad with pointed objects (pencils, pens, etc.). Damage to keypad resulting from this practice is NOT covered under warranty. The keypad of the APS Enterprise Scale has two keys, ZERO (ON/OFF) and UNITS which have the following functions: This is the ZERO (ON/OFF) key.

  • Page 14: Setup And Configuration

    70 lb x 0.02 lb (31 kg x 0.01 kg) = APS20 30 lb x 0.01 lb (15 kg x 0.005 kg) = APS8 15 lb x 0.01 lb (7.5 kg x 0.005 kg) = APS12 160 oz x 0.1 oz...

  • Page 15: Uns (Motion Range)

    SETUP AND CONFIGURATION, CONT. UnS (Motion Range) This is the motion range of the scale, or the number of divisions that the scale weight can change without setting the motion indicator. Press the UNITS key to show current setting. If value displayed is acceptable, press the UNITS key again to save it.

  • Page 16: Port1 (Serial Port 1)

    SnnA This selection allows the port to respond to the following commands and will output Weight on Demand in the appropriate format. Cardinal ENQ (hex 05) Detecto AS-410D ~ (tilde, hex 7E), Pounds ONLY Mode SMA (W) NCI output format...

  • Page 17: Port3 (Serial Port 3)

    SnnA This selection allows the port to respond to the following commands and will output Weight on Demand in the appropriate format. Cardinal ENQ (hex 05) Detecto AS-410D ~ (tilde, hex 7E), Pounds ONLY Mode SMA (W) NCI output format...

  • Page 18: Hires (High Resolution Weight Mode)

    SETUP AND CONFIGURATION, CONT. HirES (High Resolution Weight Mode) The High Resolution Weight Mode feature will display the weight at 10 times the standard resolution. For example, an APS configured for 250 lb x 0.1 lb will display weight in high resolution mode at 250 lb x 0.01 lb.

  • Page 19: Error And Status Displays

    ERROR AND STATUS DISPLAYS Display Meaning Displayed when the ZERO key is pressed and the scale could not zero. -Err- ---- Displayed when scale weight exceeds scale capacity, or if there is an analog high/low error. CARE AND CLEANING NOTE: The APS Enterprise scale contains no user-serviceable parts and maintenance should be limited to an occasional cleaning as required.

  • Page 20: Security Seal Installation

    NOTE: In order to install the lead and wire security seal, two screws must be replaced with two drilled screws. They are available from the Cardinal/Detecto Parts Department. The part numbers are: 6021-0605 (SCW FILLISTER.

  • Page 21: Apsrd (Remote Display)

    APSRD (REMOTE DISPLAY) The APSRD (Remote Display) can be mounted using three (3) methods.  The bracket can be attached to the wall using the appropriate hardware for the type of wall construction.  The remote display can be removed from the bracket and mounted on the wall using the ®...

  • Page 22: Parts Identification

    PARTS IDENTIFICATION (ALL MODEL EXCEPT APS250) 8527-0544-2M Rev G  APS Enterprise Scale...
  • Page 23 A/R ADHESIVE, LOCTITE 49 6690-0001 BULLSEYE BUBBLE LEVEL 8527-0519-08 BASE PLATE, 30 8527-0520-0A LOAD CELL ASSY, 10KG (APS160, APS15, APS8, APS12) 8527-0521-0A LOAD CELL ASSY, 15KG (APS10, APS20) 8527-0521-1A LOAD CELL ASSY, 15KG (APS30) 8527-0522-0A LOAD CELL ASSY, 30KG (APS70)
  • Page 24 PARTS IDENTIFICATION, CONT. (ALL MODEL EXCEPT APS250) ITEM PART NO. DESCRIPTION 593GR986 SERIAL TAG ASSY 6021-0625 SCW FLAT-HEAD. MACHINE-SCW 06-32X.375 6021-0659 SCW FLAT-HEAD. MACHINE-SCW 06-32X1.00 6021-1069 SCW CUP-POINT. SET-SCREW.. 10-32X.25 NYLON PATCH 6021-1108 SCW FILLISTER. MACHINE-SCW 10-32X.375 6021-1706 SCW FLAT-HEAD. CAP-SCREW.. .25-20X.625 6650-0087 LABEL, MADE IN USA (WITH FLAG) 1”...
  • Page 25 PARTS IDENTIFICATION, CONT. (ALL MODEL EXCEPT APS250) ITEM PART NO. DESCRIPTION 6021-0623 SCW PAN-HEAD.. MACHINE-SCW 06-32X.750 6021-1069 SCW CUP-POINT. SET-SCREW.. 10-32X.25 NYLON PATCH 6021-1706 SCW FLAT-HEAD. CAP-SCREW.. .25-20X.625 6680-0004 WASHER LOCK INT TOOTH #6 TYPE A Z-PL 8527-C500-0A ANALOG PCB 593R1007 FACTORY SET LABEL 8527-0544-2M Rev G ...

  • Page 26: Aps250 Only

    PARTS IDENTIFICATION, CONT. (APS250 ONLY) 8527-0544-2M Rev G  APS Enterprise Scale...
  • Page 27 PARTS IDENTIFICATION, CONT. (APS250 ONLY) ITEM PART NO. DESCRIPTION 1960-B465-08 SPACER FOR EB-XXX-XXXX 6013-0077 HEX NUT 6013-0295 NUT #10-32 HEX Z/P 6021-0950 SCW HEX-HEAD.. MACHINE-SCW 10-32X1.50 Z/P 6021-1108 SCW FILLISTER. MACHINE-SCW 10-32X.375 6540-1123 LEVELLER SCREW, 3/8-16 X 1 1/4”, BLACK 6560-1072 A/R ADHESIVE, LOCTITE 49 6690-0001...
  • Page 28 PARTS IDENTIFICATION, CONT. (APS250 ONLY) ITEM PART NO. DESCRIPTION 593GR986 SERIAL TAG ASSY 6021-0625 SCW FLAT-HEAD. MACHINE-SCW 06-32X.375 6021-0659 SCW FLAT-HEAD. MACHINE-SCW 06-32X1.00 6021-1069 SCW CUP-POINT. SET-SCREW.. 10-32X.25 NYLON PATCH 6021-1108 SCW FILLISTER. MACHINE-SCW 10-32X.375 6021-1706 SCW FLAT-HEAD. CAP-SCREW.. .25-20X.625 6650-0087 LABEL, MADE IN USA (WITH FLAG) 1”...
  • Page 29 PARTS IDENTIFICATION, CONT. (APS250 ONLY) ITEM PART NO. DESCRIPTION 6013-0315 NUT #6-32 HEX SMALL PATTERN Z/P 6021-1706 SCW FLAT-HEAD. CAP-SCREW.. .25-20X.625 6680-0004 WASHER LOCK INT TOOTH #6 TYPE A Z-PL 8527-C500-0A ANALOG PCB 8527-0544-2M Rev G  APS Enterprise Scale...

  • Page 30: Scale Display And Apsrd (Remote Display)

    PARTS IDENTIFICATION, CONT. SCALE DISPLAY and APSRD (REMOTE DISPLAY) ITEM PART NO. DESCRIPTION 5930-0146-08 CAPACITY LABEL 6021-2078 SCW PAN-HEAD PHILLIPS #1-32X3/8” THD FORM, SS 8527-0515-08 APS KEYPAD 8527-C502-0A PCB ASSY APS10 DISPLAY 8527-C502-1A PCB ASSY APS15/160 DISPLAY 8527-C502-2A PCB ASSY APS30/70/150 DISPLAY 8527-C502-3A PCB ASSY APS250 DISPLAY 8527-C502-4A...

  • Page 31: Statement Of Limited Warranty

    STATEMENT OF LIMITED WARRANTY Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows: Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of two (2) years from date of shipment.
  • Page 32 8527-0544-2M Rev G  APS Enterprise Scale...
