Page 1: Parts List

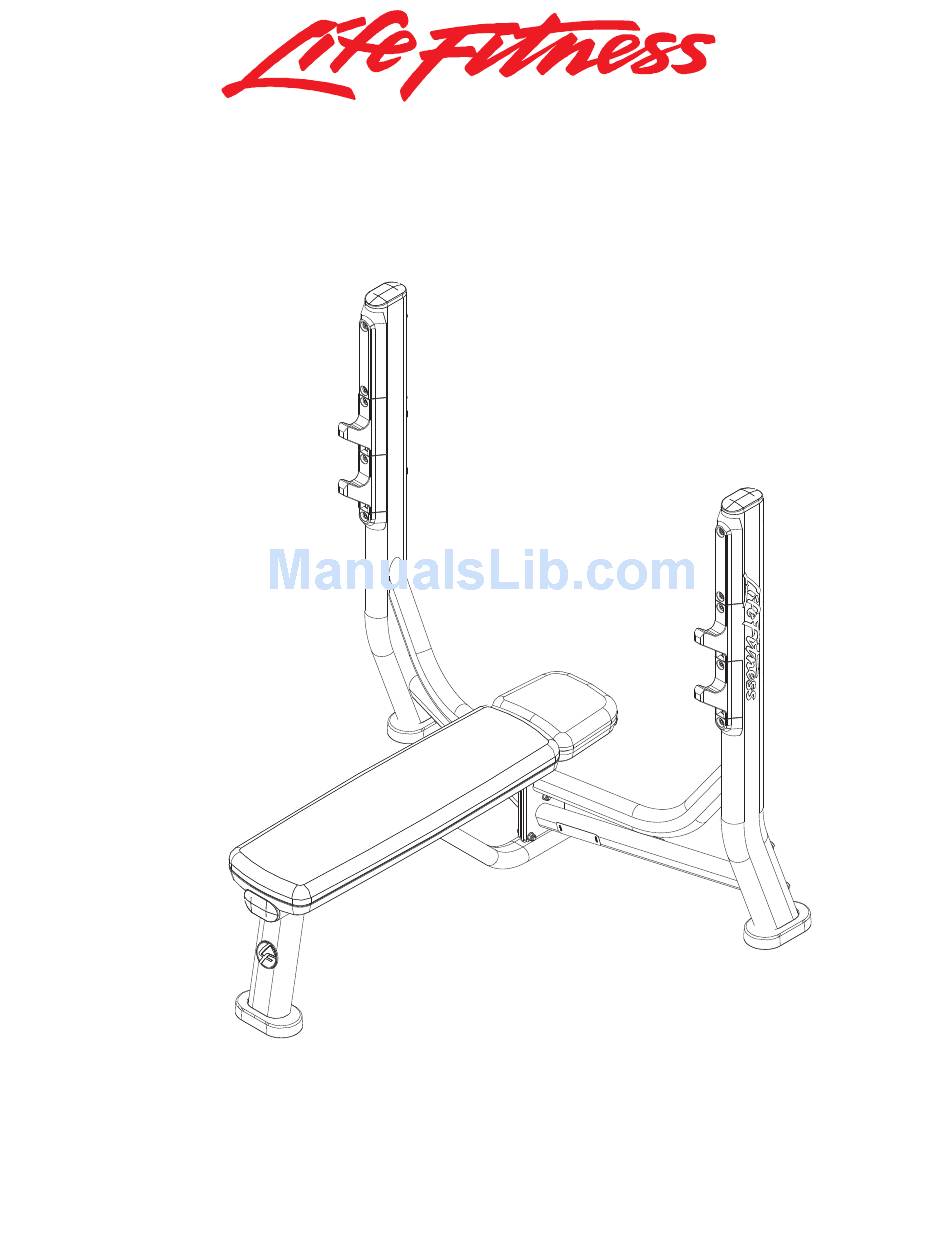

SIGNATURE SERIES SOFB-002 SIGNATURE OLYMPIC FLAT BENCH Customer Support Services PARTS LIST Page 1... -
Page 2: Table Of Contents
SOFB-002 SIGNATURE OLYMPIC FLAT BENCH CONTENTS ________________________________________ COMPONENT ASSEMBLY COMPONENT ASSEMBLY LEGEND CENTER FRAME ASSEMBLY CENTER FRAME ASSEMBLY LEGEND LEFT UPRIGHT ASSEMBLY LEFT UPRIGHT ASSEMBLY LEGEND RIGHT UPRIGHT ASSEMBLY RIGHT UPRIGHT ASSEMBLY LEGEND IMAGE ________________________________________ NOTE: SUBSTITUTE PART NUMBERS ENDING WITH ‘XX’... -
Page 3: Component Assembly
SOFB-002 SIGNATURE OLYMPIC FLAT BENCH COMPONENT ASSEMBLY ________________________________________ SEE PAGE 4 FOR LEGEND Page 3... -
Page 4: Component Assembly Legend
SOFB-002 SIGNATURE OLYMPIC FLAT BENCH COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. 78521XX 85036XX 85034XX 3256204 3256206 3242002 78219XX 78218XX 3102514 3237403 8137701 DESCRIPTION PTD ASSY, SOFB, CENTER FRAME PTD ASSY, SOFB, UPRIGHT LEFT PTD ASSY, SOFB, UPRIGHT RIGHT SCREW, M10 X 1.5 35MM SCREW, M10 X 1.5 45MM ZN NUT, M10 X 1.5 HEX NYLOCK... -
Page 5: Center Frame Assembly
SOFB-002 SIGNATURE OLYMPIC FLAT BENCH CENTER FRAME ASSEMBLY - 78521XX ________________________________________ SEE PAGE 6 FOR LEGEND Page 5... -
Page 6: Center Frame Assembly Legend
SOFB-002 SIGNATURE OLYMPIC FLAT BENCH CENTER FRAME ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. AK58-00245-0000 MEDALLION;"BUG"; PUR PART NO. DESCRIPTION 78039XX WLDMT, SOFB, CENTER FRAME 7800401 CAP, LRG FLOV END 7800501 CAP, SML FLOV END 7334001 FOOT, 2.50 X 4.49 FLOV 3251202 SCREW, M10 X1.5 X 25MM UNS HEX CS ST ZN 3102514... -
Page 7: Left Upright Assembly
SOFB-002 SIGNATURE OLYMPIC FLAT BENCH LEFT UPRIGHT ASSEMBLY - 85036XX ________________________________________ SEE PAGE 8 FOR LEGEND Page 7... -
Page 8: Left Upright Assembly Legend
SOFB-002 SIGNATURE OLYMPIC FLAT BENCH LEFT UPRIGHT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 85036XX PTD ASSY, SOFB, UPRIGHT LEFT 3102514 WASHER, FLAT 3/8 IN SAE ST ZN 3251202 M10 X 1.5 X 25MM UNS HEX CS ST ZN 3256202 SCREW, M10 X 1.5 25MM ZN 3242002... -
Page 9: Right Upright Assembly
SOFB-002 SIGNATURE OLYMPIC FLAT BENCH RIGHT UPRIGHT ASSEMBLY - 85034XX ________________________________________ SEE PAGE 10 FOR LEGEND Page 9... -
Page 10: Right Upright Assembly Legend
SOFB-002 SIGNATURE OLYMPIC FLAT BENCH RIGHT UPRIGHT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 85034XX PTD ASSY, SOFB, UPRIGHT RIGHT 3102514 WASHER, FLAT 3/8 IN SAE ST ZN 3256202 SCREW, M10 X 1.5 25MM ZN 3251202 M10 X 1.5 X 25MM UNS HEX CS ST ZN 3242002 NUT, M10 X 1.5 HEX NYLOCK 7334001... - Page 11 SOFB-002 SIGNATURE OLYMPIC FLAT BENCH IMAGE ________________________________________ Page 11...
