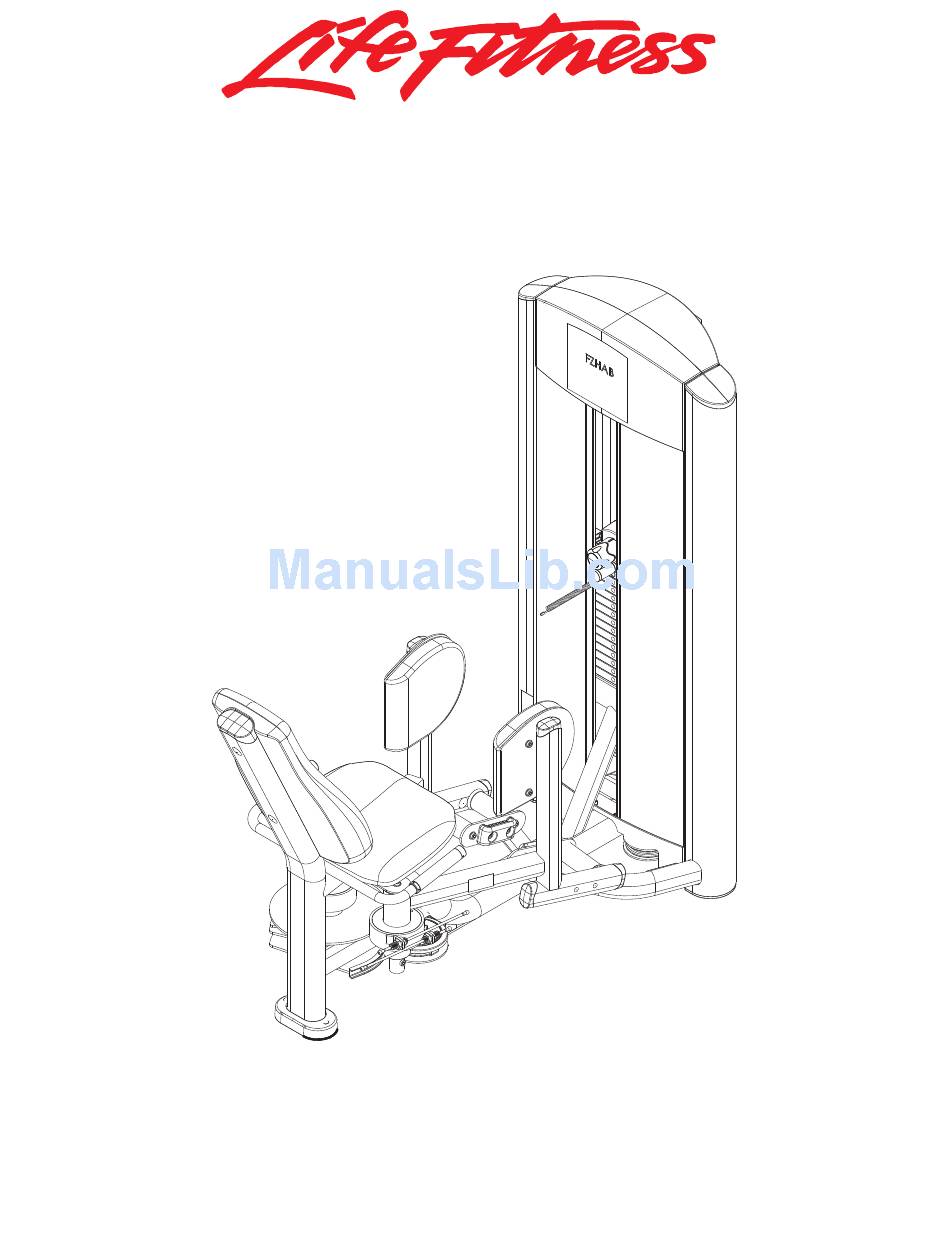

- Page 1 SIGNATURE SERIES FZHAB HIP ABDUCTION Customer Support Services PARTS MANUAL Page 1...
-
Page 2: Table Of Contents
FZHAB HIP ABDUCTION CONTENTS ________________________________________ COMPONENT ASSEMBLY COMPONENT ASSEMBLY II COMPONENT ASSEMBLY LEGEND MID-14 TOWER HAB/HAD ASSEMBLY MID-14 TOWER HAB/HAD ASSEMBLY LEGEND 5 LB. INCREMENT WEIGHT ASSEMBLY 10 LB. INCREMENT WEIGHT ASSEMBLY 15 LB. INCREMENT WEIGHT ASSEMBLY HEAD PLATE ASSEMBLY HEAD PLATE ASSEMBLY LEGEND IMAGE Page 2... - Page 3 FZHAB HIP ABDUCTION COMPONENT ASSEMBLY ________________________________________ Page 3 SEE PAGE 5 FOR LEGEND...
- Page 4 FZHAB HIP ABDUCTION COMPONENT ASSEMBLY II ________________________________________ SEE PAGE 5 FOR LEGEND Page 4...
-
Page 5: Fzhab Hip Abduction
FZHAB HIP ABDUCTION COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7592001 SHAFT, FZ, 25MM 7592101 SHAFT, FZ, 25MM X 10.12 LG. 3235601 BEARING, 6205 BALL 74741XX PAD, LARGE BACK 72972XX PAD, LARGE CHAIR 7334001 FOOT, 2.50 X 4.49 FLOV 7333801 CAP, SMALL FLOV- END 7333901 CAP, LARGE FLOV- END 7424801 KNOB, POP PIN... -
Page 6: Mid-14 Tower Hab/Had Assembly
FZHAB HIP ABDUCTION MID-14 TOWER HAB/HAD ASSEMBLY - 7622101 ________________________________________ SEE PAGE 7 FOR LEGEND Page 6... -
Page 7: Mid-14 Tower Hab/Had Assembly Legend
FZHAB HIP ABDUCTION MID-14 TOWER HAB/HAD ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7350701 ASSY, HEAD PLATE (14) 7328401 WEIGHT PLATE, 20 LB 7327601 ASSY, INCREMENT WT - 5LB 7327701 ASSY, INCREMENT WT - 10LB 7327801 ASSY, INCREMENT WT - 15LB 7328701 SPACER, INC WT STACK - 14 PLT 7351001 SPACER, INC WT STACK 7621101 RETAINER, GUIDE ROD - TOP... -
Page 8: Lb. Increment Weight Assembly
FZHAB HIP ABDUCTION 5 LB. INCREMENT WEIGHT ASSEMBLY - 7327601 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7968501 ASSY, FZ INC WEIGHT 5LB 7328001 BRKT, INCREMENT WT - 5 LB 3236202 SCREW, M10 X1.5 25MM Page 8... -
Page 9: Lb. Increment Weight Assembly
FZHAB HIP ABDUCTION 10 LB. INCREMENT WEIGHT ASSEMBLY - 7327701 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7968501 ASSY, FZ INC WEIGHT 5LB 7328101 BRKT, INCREMENT WT - 10 LB 3236202 SCREW, M10 X1.5 25MM Page 9... -
Page 10: Lb. Increment Weight Assembly
FZHAB HIP ABDUCTION 15 LB. INCREMENT WEIGHT ASSEMBLY - 7327801 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7968501 ASSY, FZ INC WEIGHT 5LB 7328201 BRKT, INCREMENT WT - 15 LB 3236202 SCREW, M10 X1.5 25MM Page 10... -
Page 11: Head Plate Assembly
FZHAB HIP ABDUCTION HEAD PLATE ASSEMBLY - 7350701 ________________________________________ WEIGHT STACK LABELS 7927201 LABEL, 390 LB STACK 7927301 LABEL, 195 KG STACK SEE PAGE 12 FOR LEGEND Page 11... -
Page 12: Head Plate Assembly Legend
FZHAB HIP ABDUCTION HEAD PLATE ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7326701 HEAD PLATE 7347801 STEM, 9 PLATE 3236001 BUSHING, SPRING PIN 7327201 WLDMT, INCREMENT WT PIN 8024501 SPRING, 1/2 OD X 1-1/2 7326101 KNOB, INC WT SELECTOR 3110008 ROLL PIN, 1/8 X 1-1/4 7326401 HOUSING, SELECTOR - FRONT 7326501 HOUSING, SELECTOR - REAR... -
Page 13: Image
FZHAB HIP ABDUCTION IMAGE ________________________________________ Page 13...
