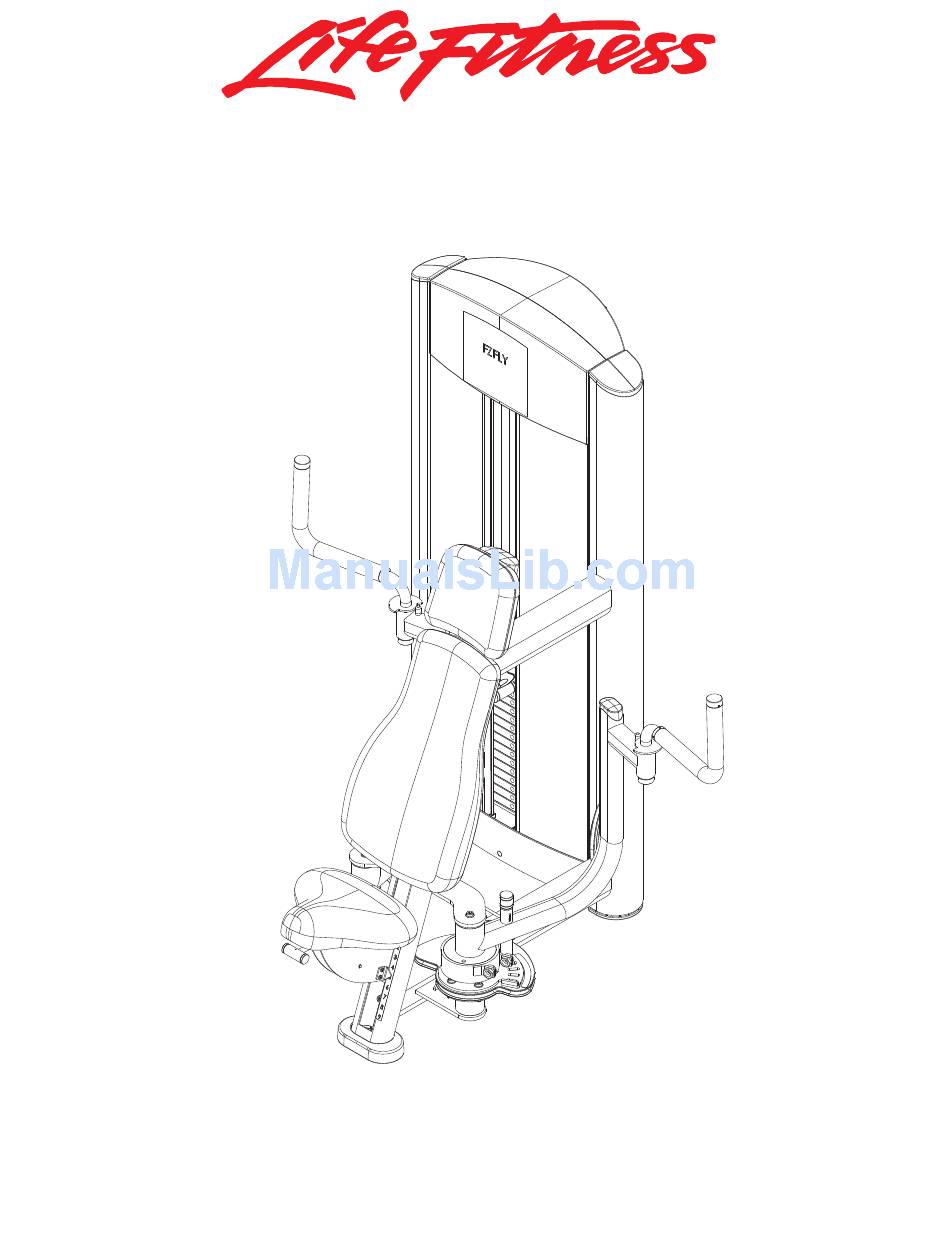

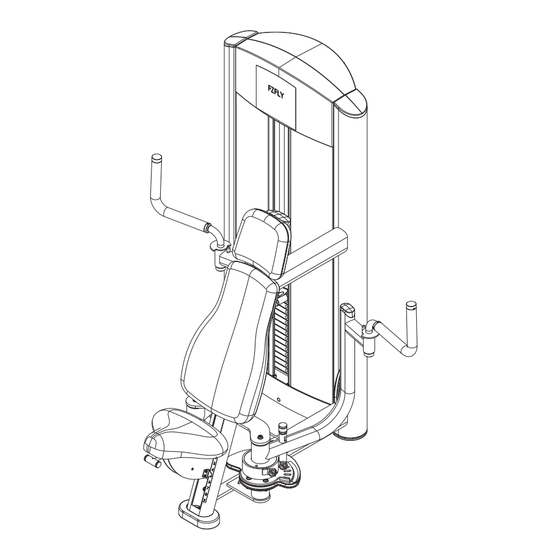

- Page 1 SIGNATURE SERIES FZFLY FLY Customer Support Services PARTS MANUAL Page 1...
-
Page 2: Table Of Contents
FZFLY FLY CONTENTS ________________________________________ COMPONENT ASSEMBLY COMPONENT ASSEMBLY II COMPONENT ASSEMBLY LEGEND SEAT CARRIAGE ASSEMBLY SEAT CARRIAGE ASSEMBLY LEGEND ADJUSTER HANDLE ASSEMBLY MID-14 TOWER ASSEMBLY PLASTIC TOWER ASSEMBLY MID-14 WEIGHT STACK ASSEMBLY 5 LB. INCREMENT WEIGHT ASSEMBLY 10 LB. INCREMENT WEIGHT ASSEMBLY 15 LB. -
Page 3: Fzfly Fly
FZFLY FLY COMPONENT ASSEMBLY ________________________________________ 38 48 SEE PAGE 5 FOR LEGEND Page 3... -
Page 4: Component Assembly Ii
FZFLY FLY COMPONENT ASSEMBLY II ________________________________________ CAM - TOP VIEW SEE PAGE 5 FOR LEGEND Page 4... -
Page 5: Component Assembly Legend
FZFLY FLY COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7485101 WLDMT, FZFLY FRAME 7330501 WLDMT, FZ SEAT SUPPORT 7485801 WLDMT, FZFLY PRESS ARM - RT 7485901 WLDMT, FZFLY PRESS ARM - LT 7486001 WLDMT, FZFLY HANDLE - RT 7486101 WLDMT, FZFLY HANDLE - LT 7486901 WLDMT, FZFLY PIVOT HSNG 7911101 ASSY, SEAT CARRIAGE... -
Page 6: Seat Carriage Assembly
FZFLY FLY SEAT CARRIAGE ASSEMBLY - 7911101 ________________________________________ SEE PAGE 7 FOR LEGEND Page 6... -
Page 7: Seat Carriage Assembly Legend
FZFLY FLY SEAT CARRIAGE ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7911295 WLDMT, SEAT CARRIAGE SHDW GRAY 7889701 ROLLER, SEAT CARRIAGE 7911901 SPACER, .625 DIA X 16 GA. 7912001 SPRING, SEAT CARRIAGE 3232408 RING, BRE .443, 5100-46, ST,PP,B 3235700 SPRING, GAS 80N 7414301 STUD, M10 BALL END M10 X 1.5 7339401 BRACKET, GAS SPRING... -
Page 8: Adjuster Handle Assembly
FZFLY FLY ADJUSTER HANDLE ASSEMBLY - 7778001 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7777595 WLDMT, FZ SEAT ADJ HANDLE SHADOW GRAY 7331801 LINK, ADJUSTER 7331601 PIN, INDEX 7407501 PIN, LINK 3232401 RING, RETAINING, EXTERNAL 7287901 HANDLE, ADJUSTER 3110010 ROLL PIN, 1/8 X 7/8 Page 8... -
Page 9: Mid-14 Tower Assembly
FZFLY FLY MID-14 TOWER ASSEMBLY - 7420401 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7420101 ASSY, WEIGHT STACK MID-14 7326301 CAP, D-TUBE-BTM 7419801 ASSY, TOWER PLASTICS-MID Page 9... -
Page 10: Plastic Tower Assembly
FZFLY FLY PLASTIC TOWER ASSEMBLY - 7419801 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7318601 COVER, TOWER- TOP FRONT 7318701 COVER, TOWER- TOP REAR 7318801 COVER, TOWER- BOTTOM FRONT 7318901 COVER, TOWER- BOTTOM REAR 3236501 M4 X 0.7 PHL PAN MS ST ZN 3239101 SCREW, M5X10 PHL PAN TT ST 7765701 SHROUD, TOWER- REAR SHORT 7765601 SHROUD, TOWER- FRT SHORT RH... -
Page 11: Mid-14 Weight Stack Assembly
FZFLY FLY MID-14 WEIGHT STACK ASSEMBLY - 7420101 ________________________________________ WEIGHT STACK LABELS 7927201 LABEL, 390 LB STACK 7927301 LABEL, 195 KG STACK ITEM NO. QTY. PART NO. DESCRIPTION 7350701 ASSY, HEAD PLATE (14) 7328401 WEIGHT PLATE, 20 LB 7327601 ASSY, INCREMENT WT-5LB 7327701 ASSY, INCREMENT WT-10LB 7327801 ASSY, INCREMENT WT-15LB 7328701 SPACER, INC WT STACK 14 PLT... -
Page 12: Lb. Increment Weight Assembly
FZFLY FLY 5 LB. INCREMENT WEIGHT ASSEMBLY - 7327601 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7968501 ASSY, FZ INC WEIGHT 5LB 7328001 BRKT, INCREMENT WT - 5 LB 3236202 SCREW, M10 X1.5 25MM Page 12... -
Page 13: Lb. Increment Weight Assembly
FZFLY FLY 10 LB. INCREMENT WEIGHT ASSEMBLY - 7327701 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7968501 ASSY, FZ INC WEIGHT 5LB 7328101 BRKT, INCREMENT WT - 10 LB 3236202 SCREW, M10 X1.5 25MM Page 13... -
Page 14: Lb. Increment Weight Assembly
FZFLY FLY 15 LB. INCREMENT WEIGHT ASSEMBLY - 7327801 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7968501 ASSY, FZ INC WEIGHT 5LB 7328201 BRKT, INCREMENT WT - 15 LB 3236202 SCREW, M10 X1.5 25MM Page 14... -
Page 15: Head Plate Assembly
FZFLY FLY HEAD PLATE ASSEMBLY - 7350701 ________________________________________ WEIGHT STACK LABELS 7927201 LABEL, 390 LB STACK 7927301 LABEL, 195 KG STACK SEE PAGE 16 FOR LEGEND Page 15... -
Page 16: Head Plate Assembly Legend
FZFLY FLY HEAD PLATE ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7326701 HEAD PLATE 7347801 STEM, 9 PLATE 3236001 BUSHING, SPRING PIN 7327201 WLDMT, INCREMENT WT PIN 8024501 SPRING, 1/2 OD X 1-1/2 7326101 KNOB, INC WT SELECTOR 3110008 ROLL PIN, 1/8 X 1-1/4 7326401 HOUSING, SELECTOR - FRONT 7326501 HOUSING, SELECTOR - REAR... -
Page 17: Image
FZFLY FLY IMAGE ________________________________________ Page 17...
