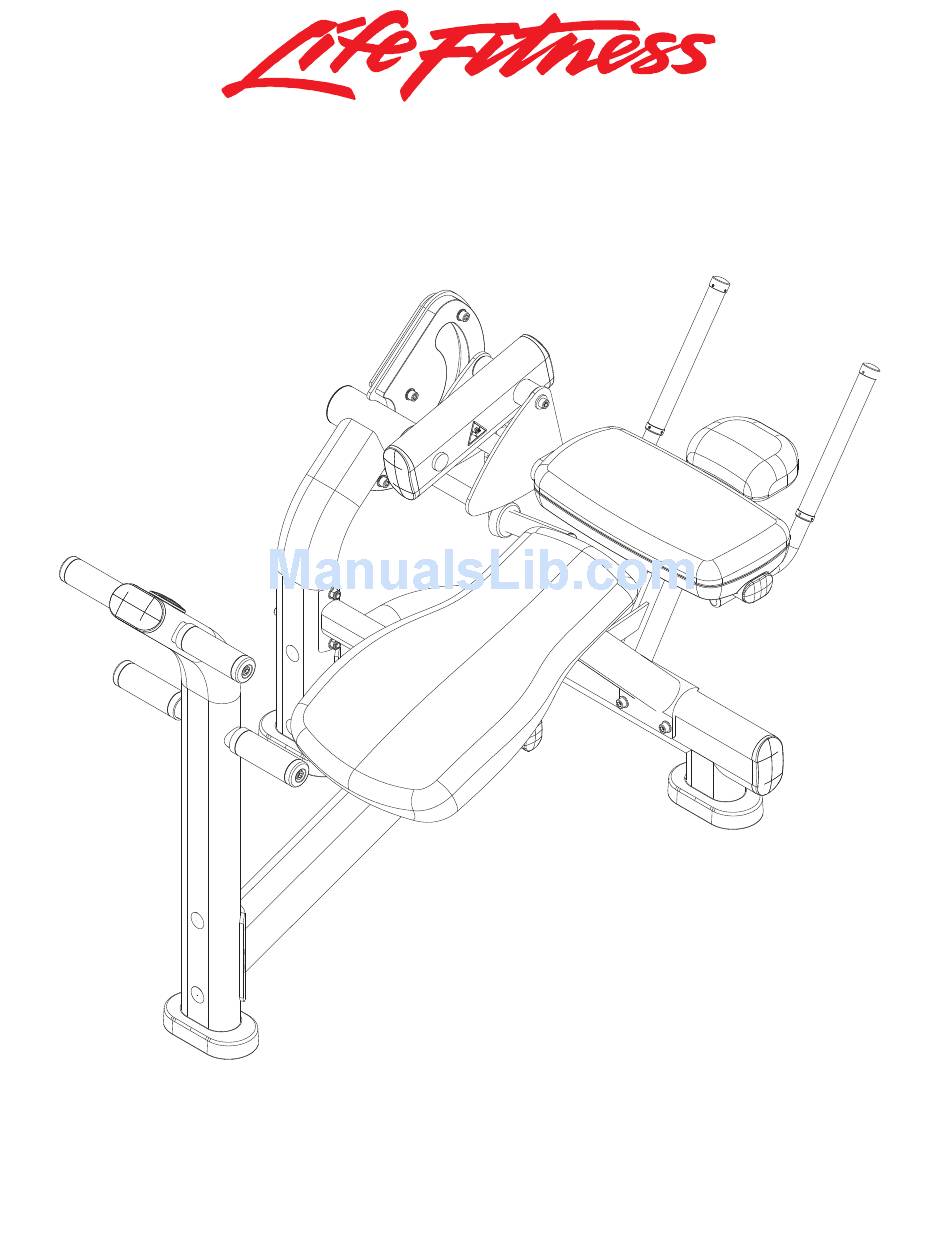

- Page 1 SABC ABDOMINAL CRUNCH BENCH Customer Support Services PARTS MANUAL Page 1...
-
Page 2: Table Of Contents
SABC ABDOMINAL CRUNCH ______________________________________ CONTENTS COMPONENT ASSEMBLY COMPONENT ASSEMBLY LEGEND FOOT REST ASSEMBLY BACK SUPPORT ASSEMBLY WORK ARM STOP ASSEMBLY LOWER SUPPORT ASSEMBLY CROSS MEMBER ASSEMBLY CAM FOLLOWER WORK ARM WORK ARM ASSEMBLY LEGEND IMAGE NOTE: ITEMS ENDING IN ‘XX’ INDICATE COLOR OPTION... -
Page 3: Component Assembly
SABC ABDOMINAL CRUNCH ______________________________________ COMPONANT ASSEMBLY LEGEND ON PAGE 4 Page 3... -
Page 4: Componant Assembly Legend
PART NO. DESCRIPTION LEA78094XX PTD ASSY, FOOT REST SABC LEA78095XX PTD ASSY, BACK SUPPORT SABC LEA78099XX PTD ASSY, WORK ARM STOP SABC LEA78096XX PTD ASSY, LOWER SUPPORT SABC LEA78097XX PTD ASSY, CROSS MEMBER SABC LEA78093XX PTD ASSY, CAM FOLLOWER SABC... -
Page 5: Foot Rest Assembly
______________________________________ FOOT REST ASSEMBLY - LEA78094XX ITEM NO. QTY. PART NO. DESCRIPTION LEA78094XX PTD ASSY, FOOT REST SABC 7340201 COVER, FOOT - STRAIGHT 7763001 FOOT, 2.50 X 4.49 FLOV 3251202 SCREW, M10 X1.5 X 25MM UNS HEX CS ST ZN 3102514 WASHER, FLAT 3/8"... -
Page 6: Back Support Assembly
SABC ABDOMINAL CRUNCH ______________________________________ BACK SUPPORT ASSEMBLY - LEA78095XX ITEM NO. QTY. PART NO. DESCRIPTION LEA78095XX PTD ASSY, BACK SPPRT SABC 7800401 CAP, LRG FLOV END Page 6... -
Page 7: Work Arm Stop Assembly
SABC ABDOMINAL CRUNCH ______________________________________ WORK ARM STOP ASSEMBLY - LEA78099XX ITEM NO. QTY. PART NO. DESCRIPTION LEA78099XX PTD ASSY, WORK ARM STOP SABC 7800501 CAP, SML FLOV END Page 7... -
Page 8: Lower Support Assembly
______________________________________ LOWER SUPPORT ASSEMBLY - LEA78096XX ITEM NO. QTY. PART NO. DESCRIPTION LEA78096XX PTD ASSY, LOWER SPPRT SABC 7340201 COVER, FOOT - STRAIGHT 7763001 FOOT, 2.50 X 4.49 FLOV 3251202 SCREW, M10 X1.5 X 25MM UNS HEX CS ST ZN 3102514 WASHER, FLAT 3/8"... -
Page 9: Cross Member Assembly
SABC ABDOMINAL CRUNCH ______________________________________ CROSS MEMBER ASSEMBLY - LEA78097XX ITEM NO. QTY. PART NO. DESCRIPTION LEA78097XX PTD ASSY, CROSS MEMBER SABC 7800501 CAP, SML FLOV END Page 9... -
Page 10: Cam Follower
SABC ABDOMINAL CRUNCH ______________________________________ CAM FOLLOWER ASSEMBLY - LEA78093XX ITEM NO. QTY. PART NO. DESCRIPTION LEA77979XX WLDMT, AB CAM FOLLOWER 7810701 CAM, FOLLOWER SABC 7340201 COVER, FOOT - STRAIGHT 7763001 FOOT, 2.50 X 4.49 FLOV 8353101 SHROUD, FZAB CAM 7821603 SPACER, .406 X .750 X .500... -
Page 11: Work Arm
SABC ABDOMINAL CRUNCH ______________________________________ WORK ARM ASSEMBLY - LEA78098XX LEGEND ON PAGE 12 Page 11... -
Page 12: Work Arm Assembly Legend
SABC ABDOMINAL CRUNCH ______________________________________ WORK ARM ASSEMBLY LEGEND ITEM NO. QTY. PART NO. DESCRIPTION LEA80602XX WLDMT, AB WORK ARM LEA77985XX WLDMT, AB PIVOT ARM 3235601 BEARING, 6205 BALL 7821501 SPACER, FLANGE ST ZN 7764301 SHAFT, TAPPED 1 DIA X 5.330 3104903 1.00"... -
Page 13: Image
SABC ABDOMINAL CRUNCH ______________________________________ IMAGE Page 13...
