Page 1: Instruction Manual
Cameras: HD-IP IC REALTIME SECURITY SOLUTIONS ICIP360L6: 360 Degree Series IP Camera Instruction Manual... - Page 2 I C R E A L T I M E S E C U R I T Y S O L U T I O N S ICIP360L6 IP Camera Instruction Manual IC Realtime 3050 N Andrews Ave Ext Pompano Beach, FL33064...
-
Page 3: Table Of Contents
T able of Contents 1. Features and Specifications ............... 1 a. Overview ..................1 b. Features .................... 1 c. Specifications ................... 3 d. Dimensions ..................4 2. Camera Installation ..................6 a. General Overview ................6 b. Step by Step Guide ................. 7 c. -
Page 4: Features And Specifications

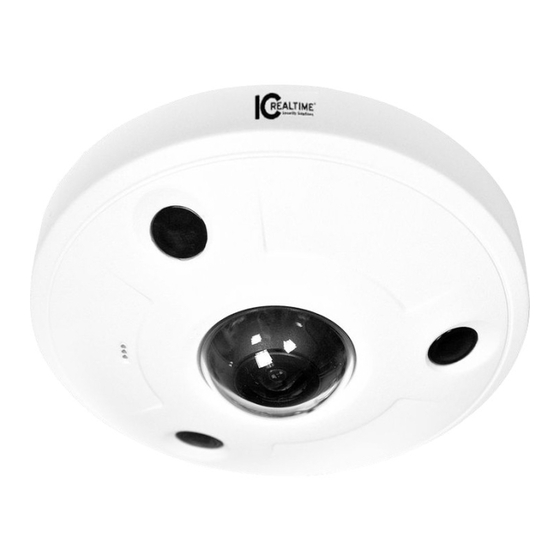

The ICIP360L6 support 6 MegaPixel with an integrated microphone. This IPC is fully suited for full operation as a standalone device, or can be paired to one of our ICR Network Video Recorders to add a great duration of recorded video. -
Page 5: Specifications
This IPC includes a special de-warping algorithm, enabling users to „Virtually‟ Pan/Tilt/Zoom across a high resolution image, in order to get the highest visibility and situational awareness from the camera. 1.c Specifications Model ICIP360L6 (PAL) ICIP360L6 (NTSC) Camera Image Sensor 1/8”... - Page 6 R E A L T I M E S E C U R I T Y S O L U T I O N S Gain Control Auto/Manual Noise Reduction Privacy Masking Up to 4 areas Lens Focal Length 1.55mm Max Aperture F2.0 Angle of View...
-
Page 7: Dimensions
R E A L T I M E S E C U R I T Y S O L U T I O N S 1.d Dimensions... - Page 8 R E A L T I M E S E C U R I T Y S O L U T I O N S 1.e External Cable Port Port Name Connector Function Description Audio output AUDIO Output audio signal to the speakers. port Audio input Input audio signal, receive the analog audio signal from...
- Page 9 R E A L T I M E S E C U R I T Y S O L U T I O N S Port Name Cable Cable Port Function Description Number Name Alarm input port 1. It is to receive the on-off signal ALARM_IN1 from an external alarm source.
-
Page 10: Camera Installation
S O L U T I O N S Camera Installation This section outlines the proper way to mount and install an ICIP360L6 IP Camera. Suitable methods of installing the IPC include either Ceiling installation, Ground Installation, or Wall installations. Note that hardware including screws and anchors are included for the camera installation. -
Page 11: Step By Step Guide
R E A L T I M E S E C U R I T Y S O L U T I O N S 2.b Step by Step Guide Step 1: Remove the cameras dome cover Using the included hex wrench from the accessories kit, unfasten the 3 hex screws on the dome camera enclosure and then remove it. -
Page 12: Sd Card Installation
R E A L T I M E S E C U R I T Y S O L U T I O N S 2.c SD Card Installation Step 1: Disconnect power source from the IP Camera SD cards shall not be installed or removed while the camera is powered and operational. Doing so can potentially result in damage to the camera, and any data stored on the SD card. -
Page 13: Web Operation
Step 2: Assign an IP address to the IP Camera. The ICIP360L6 Series camera (and all ICR IP Cameras) have a factory default static IP address of 192.168.1.108. If this matches the same subnet as your LAN, you will be able to login to the camera by typing this address into your browser (assuming that the IP address does not conflict with another device on your network). - Page 14 R E A L T I M E S E C U R I T Y S O L U T I O N S Step 2: Follow the on screen prompts to install the plugin When you first access the IP Camera over your web browser, you will be prompted to install the plugin. See below: ...
-
Page 15: Eptz Controls
One of the primary features and functions of this series IP Cameras is its virtual Pan/Tilt/Zoom Capabilities. Read on for a step- by-step guide on how to control the multiple viewing options of the ICIP360L6. Before Using the EPTZ function, you must configure the Installation Mode. - Page 16 R E A L T I M E S E C U R I T Y S O L U T I O N S o Ground: Use this option when the camera is mounted or laying on the ground, and the camera is facing up.
- Page 17 R E A L T I M E S E C U R I T Y S O L U T I O N S...
- Page 18 This user manual is intended for reference only. Slight differences may be found in the user interface as products continually develop. All designs and software herein are subject to change without prior written consent. All trademarks and registered trademarks mentioned are the properties of their respective owners. Please visit http://www.icrealtime.com for more information.
