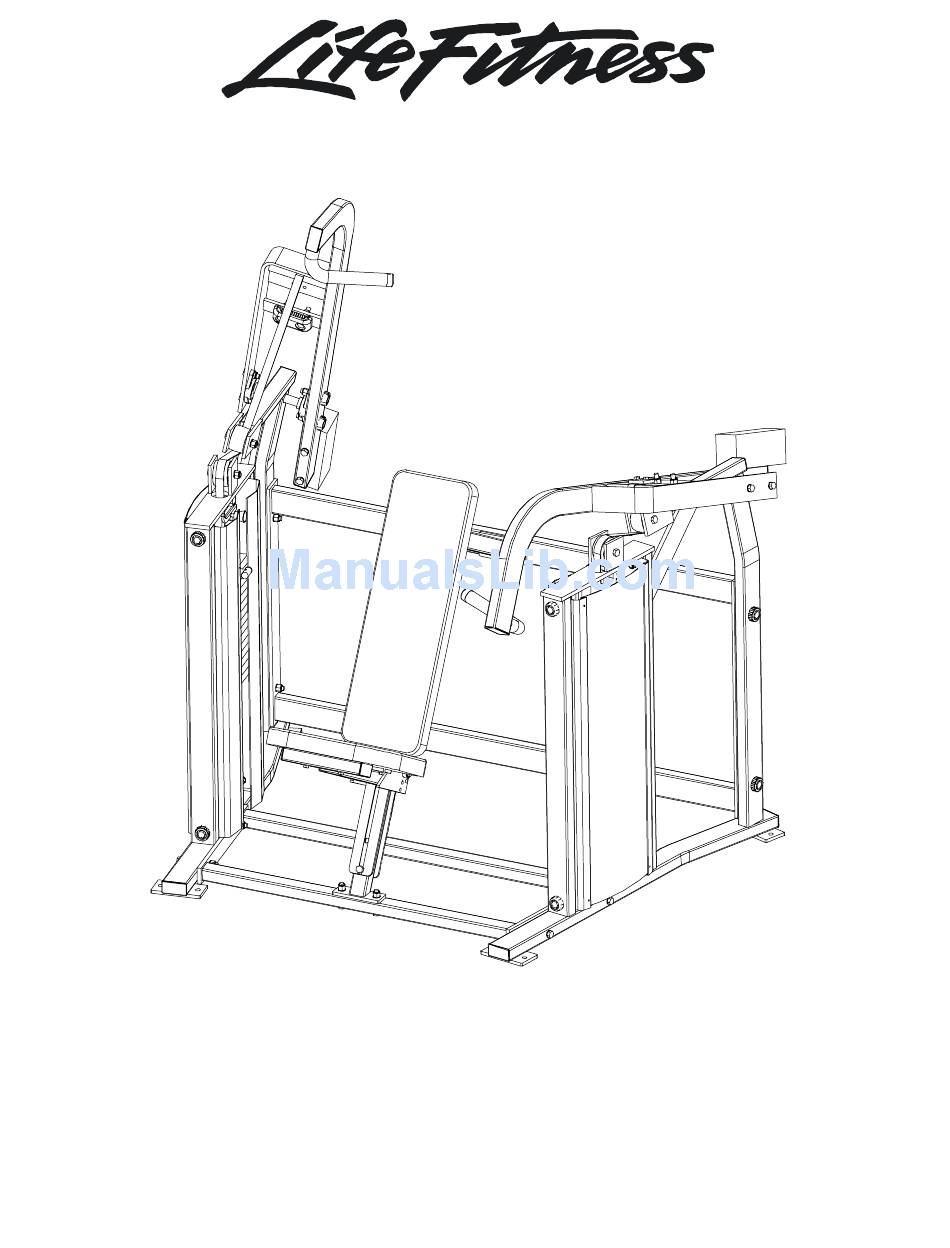

- Page 1 MTS - MOTION TECHNOLOGY SELECTORIZED MTSP SHOULDER PRESS Customer Support Services PARTS MANUAL 1Page 1 of 17...
- Page 2 MTSP SHOULDER PRESS Notes: 2Page 2 of 17...
-
Page 3: Table Of Contents
MTSP SHOULDER PRESS Contents PAGE COMPONENT ASSEMBLY...4 LEFT MOVEMENT ARM...5 RIGHT MOVEMENT ARM...6 LEFT SIDE FRAME ...7 LEFT SIDE FRAME W/MOVEMENT ARM ...8 RIGHT SIDE FRAME ...9 RIGHT SIDE FRAME W/MOVEMENT ARM ...10 PADS...11 SEAT FRAME WELDMENT...12 SEAT FRAME ASSEMBLY...13 SEAT ROLLER ASSEMBLY...14... -
Page 4: Component Assembly
MTSP SHOULDER PRESS COMPONENT ASSEMBLY Lock Washer-18 0017-00104-0379 Lock Nut-12 0017-00103-0223 Bolt-2 0017-00101-1582 Bottom Frame MTSP-S0001 4Page 4 of 17 Bolt-2 (1/2x3) 0017-00101-1582 Hammer Head Washer-6 0017-00042-1041 Bolt-4 (1/2x2-3/4) 0017-00101-1573 Bolt-4 (1/2x4-1/4) 0017-00101-1573... -
Page 5: Left Movement Arm
MTSP SHOULDER PRESS LEFT MOVEMENT ARM Bolt-2 (1/2X3) Hammer 0017-00101-1582 Head Washer-2 0017-00042-1041 Counterweight 0K50-P1134 Lock Washer-4 0017-00104-0379 Bolt-2 (1/2x1-1/2) 0017-00101-1584 Bearing-2 0017-00009-1034 Bolt-2 (1/2x2-3/4) 0017-00101-1573 Bolt-2 (3/8x1-1/4) 0017-00101-1412 Lock Nut-4 0017-00103-0223 Shaft Collar 0017-00009-0942 Socket Head Cap Screw 0017-00101-1599... -
Page 6: Right Movement Arm
MTSP SHOULDER PRESS RIGHT MOVEMENT ARM Hammer Head Washer-2 0017-00042-1041 Bolt-2 (3/8x1-1/4) 0017-00101-1412 Lock Washer-2 0017-00104-0377 Strap Clamp 0K50-P1021 Right Arm Weldment MTSP-S0007 End Cap-3 0017-00042-1038 H-GRIP Handle Grip End Cap 0K50-P0315-4000 Bearing-2 0017-00009-1034 Bolt-2 (1/2x3) 0017-00101-1582 Shaft Collar Black Rubber Cap... -
Page 7: Left Side Frame
MTSP SHOULDER PRESS LEFT SIDE FRAME Hammer Head Small Bumper 0017-00042-1040 End Cap 0017-00042-1945 Lock Washer-2 0017-00104-0379 Lock Nut-2 0017-00103-0223 Bolt-2 (1/2x2-3/4) 0017-00101-1573 7Page 7 of 17 Plastic Bellow-2 0017-00042-1042 Left Side Frame Weldment MTSP-S0004 End Cap-3 0017-00042-1038... -
Page 8: Left Side Frame W/Movement Arm
MTSP SHOULDER PRESS LEFT SIDE FRAME W/MOVEMENT ARM Lock Washer-4 0017-00104-0379 Lock Nut-2 0017-00103-0223 Left Arm Assy Split Shield w/nut-2 MTSP-P0023 Guide Rod Collar 0K50-P1110 Black Plastic Rod Cap-2 0017-00042-0967 Guide Rod-2 MTSP-P0020 Bolt-2 (1/4x2-1/2) 0017-00101-1585 Weight Stack Donut-2 0017-00042-0993 Left Side Frame Assy Belt (46”) -
Page 9: Right Side Frame
MTSP SHOULDER PRESS RIGHT SIDE FRAME Plastic Bellow-2 0017-00042-1042 Lock Washer-2 0017-00104-0379 Lock Nut-2 0017-00103-0223 Bolt-2 (1/2x2-3/4) 0017-00101-1573 End Cap-3 0017-00042-1038 9Page 9 of 17 Hammer Head Small Bumper 0017-00042-1040 End Cap 0017-00042-1945 Right Side Frame Weldment MTSP-S0005... -
Page 10: Right Side Frame W/Movement Arm
MTSP SHOULDER PRESS RIGHT SIDE FRAME W/MOVEMENT ARM Lock Washer-4 0017-00104-0379 Shield Rivet-2 0017-00101-1587 Plastic Panel MTSP-P0021 Bolt-2 (1/2x3-1/4) 0017-00101-1574 Bolt-2 (1/4x2-1/2) 0017-00101-1585 Weight Stack Donut-2 0017-00042-0993 Belt (46”) 0017-00033-0855 Left Arm Assy Bolt-4 (1/2x2-1/2) Right Side Frame Assy 0017-00101-1572 10Page 10 of 17 3”... -
Page 11: Pads
MTSP SHOULDER PRESS PADS Back Pad 0K50-US063-0000 Seat Pad 0K50-US065-0000 Lock Washer-6 0017-00104-0377 Bolt-2 (3/8x2-1/2) 0017-00101-1417 Bolt-4 (3/8x1-1/2) 0017-00101-1411 11Page 11 of 17... -
Page 12: Seat Frame Weldment
MTSP SHOULDER PRESS SEAT FRAME WELDMENT Bolt-2 0017-00101-1573 Seat Shaft 0K50-P1007 Lock Collar-2 0017-00009-1019 Seat Support 0K50-S1003 End Cap 0017-0042-1038 End Cap 0017-00042-0945 Lock Nut-2 0017-00103-0223 Seatrack Front 0K50-P1017 12Page 12 of 17 Seat Frame MTSP-S0002 Seatrack Back 0K50-P1018 Black Plastic... -
Page 13: Seat Frame Assembly
MTSP SHOULDER PRESS SEAT FRAME ASSEMBLY ITEM NO. QTY. PART NO. DESCRIPTION 1 MTIP-S0012 BACK FRAME WELDMENT, SEAT 1 AK50-A1006 MTS SEAT #1 ASSM. (ROLLER) 1 73763 ROLLER ASSM. 4 0017-00104-0377 3/8" Internal Lock Washer 2 0017-00101-1662 M10 X 64 HXS SOC CS ST ZN... -
Page 14: Seat Roller Assembly
MTSP SHOULDER PRESS SEAT ROLLER ASSEMBLY ITEM NO. QTY. PART NO. 0K50-S1007 MTS SEAT #2 (ROLLER) AK50-S0041-0000 WELDMENT, PS- ROLLER SEAT HANDLE 0017-00009-1110 TORSION SPRING, S.S. 0017-00101-1662 M10 X 64 HXS SOC CS ST ZN 0017-00104-0377 3/8" Internal Lock Washer... -
Page 15: Increment Weight
MTSP SHOULDER PRESS INCREMENT WEIGHT Body 5 lbs 0K50-P1107 Lever 0K50-P1108 C-Clip 0017-00100-0189 Knob 0K50-P1125 Retaining Pin 0K50-P1148 Slotted Pin 0017-00007-0249 15Page 15 of 17 Compression Spring 0017-00009-1090 Bearing Sleeve Guide-3 0017-00006-0240 Bumper-2 0K50-P1127... -
Page 16: Weight Stack
MTSP SHOULDER PRESS WEIGHT STACK Head Plate 0K50-P1012-0000 Bearing 0017-00006-0220 E-Ring 0017-00100-0180 10lbs Weight Plate 0K50-P0483-0000 Lock Washer-2 0017-00104-0377 Bayonet-14 Holes 0K50-P1011-1001 16Page 16 of 17 Weight Stack Guide-2 MTFP-P0028 150lbs Belt Attachment AK50-S0023 Bolt-2 (3/8x1) 0017-00101-1464 Weight Stack Pin... -
Page 17: Decals
MTSP SHOULDER PRESS DECALS Increment Weight Decal (Arrow Right) M051-00297-A000 Patent Decal M051-00299-A000 Instructional Decal M051-00350-A000 Weight Stack Number Strip-2 M051-00294-A000 Increment Weight Decal (Arrow Left) M051-00298-A000 Warning Decal-2 M051-00293-A000 Warning Decal M051-00335-A000 Seat Adjustment Number Strip M051-00296-A000 17Page 17 of 17...
