MuxLab 500758 Quick Installation Manual

Specifications

Environment HDMI 1.4
Devices Blu-Ray, projectors, monitors, TV, PC, laptops, servers supporting HDMI.
Transmission Transparent to the user
Bandwidth 300MHz
Signals HDMI 1.4 protocol
Connectors One (1) HDMI receptacle.
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
Two (2) 3.5mm jacks for IR emitter (on TX)/sensor (on RX).
Two (2) 3.5mm jacks for audio insert (on TX)/audio extract (on RX).
One (1) DB9 Serial Port for RS232.
Note: Cables not included. Four (4) DIP Switches for device ID addressing.
Cat5e/6: 330ft (100m) up to 4K @ 30Hz
Maximum Distance
Note: When installed in an electrically noisy environment, an STP cable must be
Based on a maximum length
used. Also, cross-connection reduces the effective distance depending on the grade
of 6.6ft (2m) of HDMI cable
of twisted cable used.
per end.
Latency Typical one (1) Frame (16ms), maximum 2 frames (33ms)
Compression Proprietary Compression
Up to 850Mbps
Bandwidth
Network Requirement 1000BaseT with Jumbo Frame
IR Frequency 38 to 56KHz
RJ45 Pin Configuration RJ45 Link
Pin 1 (R) Pin 2 (T)
Reverse Polarity Sensitive.
Pin 3 (R) Pin 6 (T)
Use EIA/TIA 568A or 586B
Pin 4 (R) Pin 5 (T)
straight-through wiring.
Pin 7 (R) Pin 8 (T)
Cable One (1) Cat 5e/6 or better twisted pair cables required
Power Source This device supports PoE (PD), an external power supply is not included. It is
intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional
power supply (500993) may be purchased separately.
PoE Standard IEEE 802.3af
Power Consumption Transmitter: 2.85Watt
Temperature Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
4.40" x 5.08" x 1.00" (112mm x 129mm x 25mm)
Dimensions
Weight 1.5lbs (0.68kg)
Compliance Regulatory: FCC, CE, RoHS
Warranty 3 years
Order Information 500758 HDMI 4K over IP PoE Extender Kit
500758-TX HDMI 4K over IP PoE Extender TX
500758-RX HDMI 4K over IP PoE Extender RX
Accessories 500920 16-Port Rackmount Transceiver Chassis
(These items are sold 500917 Wall Mount Transceiver Bracket Kit
separately) 500990 IR Emitter, and 500991 IR Sensor
500993 Univ. Locking Power Supply 5VDC/2.6A US/UK/EU Blade
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Receiver: 2.55Watt
Storage: -20° to 85°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000827-B SE-000827-B

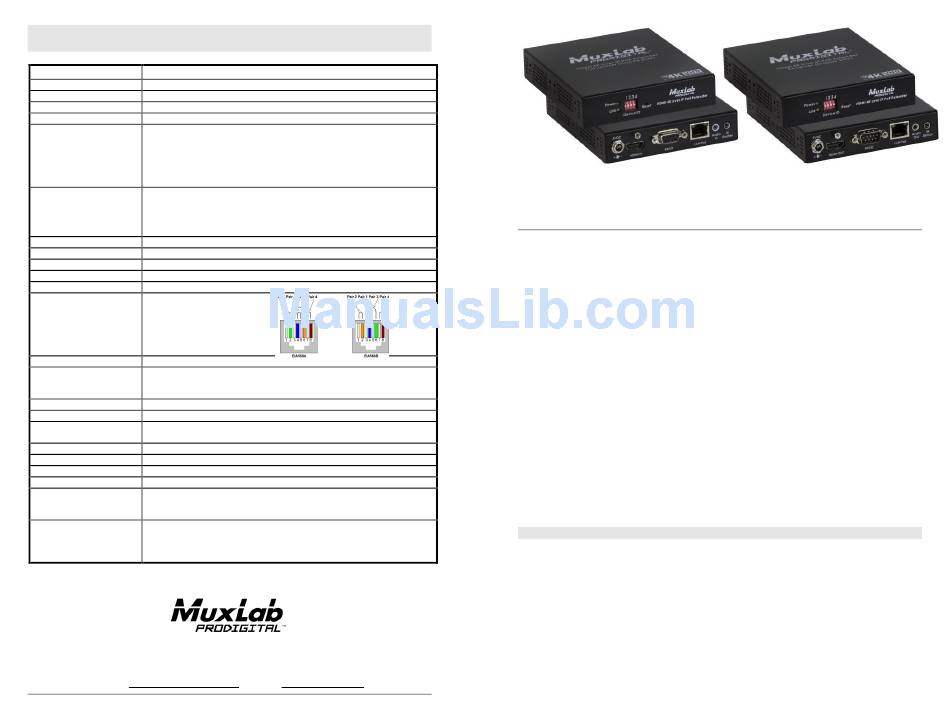

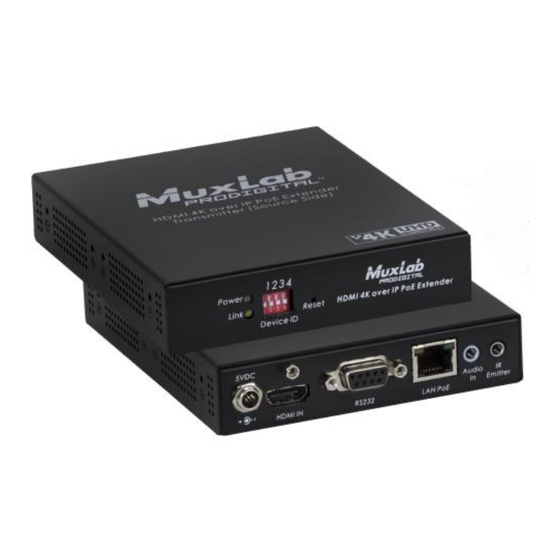

HDMI 4K over IP PoE Extender Kit
Quick Installation Guide

Overview

The HDMI 4K over IP PoE Extender Kit allows HDMI equipment to be connected up to 330ft
(100m) up to 4K (3840x2160) resolution @ 30Hz via one (1) Cat5e/6 unshielded twisted pair
cable in a point-to-point configuration. Point-to-multipoint and multipoint-to-multipoint
configurations are also possible by connecting several Transmitters and Receivers to the same local
Ethernet IP network via an Ethernet Switch. The Transmitter (500758-TX) and Receiver (500758-
RX) also support PoE (PD) if used with a PoE (PSE) Ethernet Switch. The kit comes with one (1)
Transmitter and one (1) Receiver. IR Emitter and IR Sensor, if required, may be purchased
separately for IR based remote control applications. Additional Transmitters and Receivers may be
purchased as kits or purchased separately depending on the intended application and number of
units required.
For the point-to-multipoint and multipoint-to-multipoint configuration the Ethernet Switch must
have Gigabit ports, Jumbo Frame capability and DHCP Server capability, and additionally support
the IGMP communication protocol for the multipoint-to-multipoint case. MuxLab recommends
using the Cisco SG300 Series Managed Switches.
The MuxLab ProDigital Network Controller (500811) is available to simplify the configuration and
utilization of the 500758 and other MuxLab IP based products via an Ethernet web interface.

Applications

Applications include commercial and residential AV systems, classroom projector systems, digital
signage, boardroom systems, collaborative PC systems, and medical information systems.

Installation

1.
Identify the connectors on the Transmitter and Receiver as indicated on the product labels, see the
above front and rear product views for further details.
2.
Verify that the distance between the HDMI Transmitter and Receiver is within MuxLab
specifications (see Specifications table for more details).
3.
To install the Transmitter:
3a. Connect the Transmitter to the HDMI video source with an HDMI compliant cable.
3b. If the application is point-to-point, then connect one (1) length of Cat 5e/6 (or higher)
grade UTP cable to the RJ45 LINK connector on the Transmitter. If transmitting over
the network, use an Ethernet Switch between Transmitter and Receiver.
500758
