MuxLab 500754 Quick Installation Manual

Specifications

Environment HDMI 1.3a
Devices DVDs, projectors, monitors, TVs, PCs, laptops, servers supporting HDMI.
Video Wall NxM video wall capabilities.
Transmission Transparent to the user.
Video Bandwidth 225MHz
Signals HDMI 1.3a protocol.
Connectors One (1) HDMI receptacle.
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
One (1) 3.5mm jack for IR emitter/sensor.
One (1) DB9 Serial Port Connector.
Four (4) DIP switches for device ID addressing.
Note: HDMI, RS232, IR and Cat 5e/6 cables not included.
Maximum Distance Cat5e/6: 330ft (100m) up to 1080P
Based on a maximum length Note: When installed in an electrically noisy environment, an STP cable must be
of 6.6ft (2m) of HDMI cable used. Also, cross-connections in the signal path reduce the effective distance
per end. depending on the grade of twisted pair cable used.
Latency One (1) Frame.
Compression Motion JPEG
Network Bandwidth 60Mbps
Network Requirement 100BaseT for Point-to-Point; 1000BaseT for multi-point configurations.
IR Frequency 38 to 56 KHz
RJ45 Pin Configuration RJ45 Link
Pin 1 (R) Pin 2 (T)
Reverse Polarity Sensitive.
Pin 3 (R) Pin 6 (T)
Use EIA/TIA 568A or 586B
Pin 4 (R) Pin 5 (T)
straight-through wiring.
Pin 7 (R) Pin 8 (T)
Cable One (1) Cat 5e/6 or better twisted pair cable required.
Power Source This device supports PoE (PD), an external power supply is not included. It is
intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional
power supply (500992) may be purchased separately.
PoE IEEE 802.3af
Power Consumption Transmitter: 2.9Watt
Temperature Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
Enclosure Metal
4.40" x 3.00" x 1.00" (11.2 x 7.6 x 2.5cm)
Dimensions
Weight 1.1lbs (0.5kg)
Compliance Regulatory: FCC, CE, RoHS
Warranty 3 years
Order Information HDMI over IP PoE Transmitter
500754-TX
HDMI over IP PoE
500754-RX
Accessories 500905 3-Port Rackmount Transceiver Chassis
(These items are sold 500920 16-Port Rackmount Transceiver Chassis
separately) 500917 Wall Mount Transceiver Bracket Kit
500990 IR Emitter, and 500991 IR Sensor
500992 Univ. Power Supply 5VDC/1.2A US/UK/EU Blade
2321 Rue Cohen, Montreal, Quebec, Canada. H4R 2N7
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: info@muxlab.com
© MuxLab Inc.
Receiver: 1.8Watt
Storage: -20° to 85°C
Flammability: 94V0
Receiver
Fax: (514) 905-0589
URL: www.muxlab.com
94-000803-E SE-000803-E

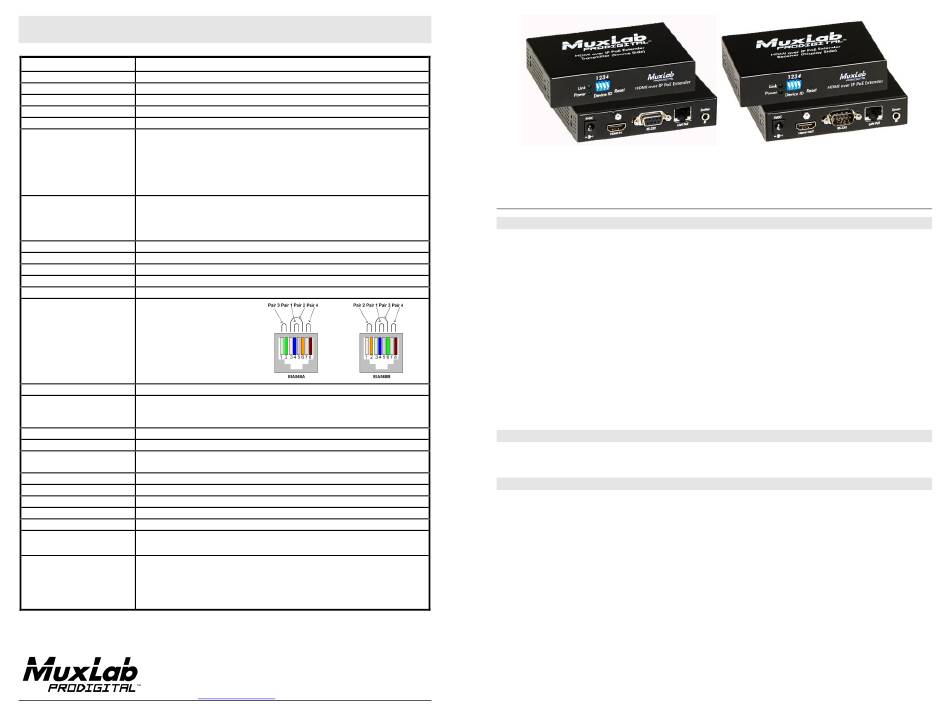

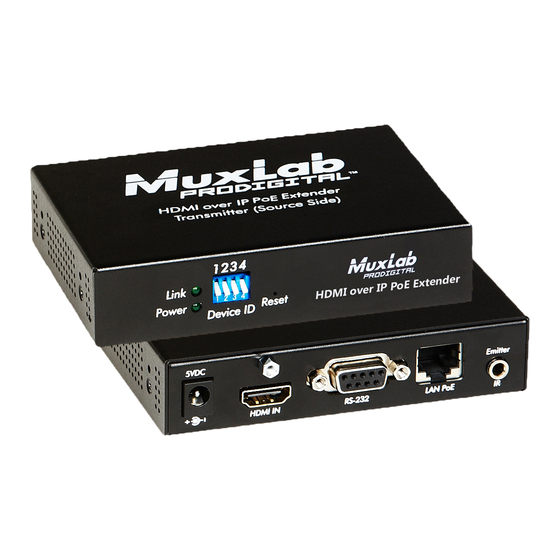

500754 HDMI over IP PoE Extender
Quick Installation Guide

Overview

The HDMI over IP PoE Extender (500754) allows HDMI equipment to be connected up to 330ft (100m)
@ 1080p via one (1) Cat5e/6 unshielded twisted pair cable in a point-to-point configuration. Point-to-
multipoint, multipoint-to-multipoint, and Video Wall configurations are also possible by connecting
several Transmitters and Receivers to the same Ethernet local IP network via an Ethernet Switch. The
Transmitter (500754-TX) and Receiver (500754-RX) also support PoE (PD) if used with a PoE Ethernet
Switch. The kit comes with one (1) Transmitter and one (1) Receiver. The IR Emitter and IR Sensor, if
required, may be purchased separately for remote control applications. Additional Transmitters and
Receivers may be purchased as kits or purchased separately depending on the intended application and
number of units required.
For the point-to-multipoint and multipoint-to-multipoint configuration the Ethernet Switch must have
Gigabit ports and DHCP Server capability and additionally support the IGMP communication protocol
for the multipoint-to-multipoint case. MuxLab recommends using the Cisco SG350 Series Managed
Switches.
The MuxLab ProDigital Network Controller (500811) is available to simplify the configuration and
utilization of the 500754 and other MuxLab IP based products via an Ethernet web interface.

Applications

Applications include commercial and residential AV systems, classroom projector systems, digital
signage, boardroom systems, collaborative PC systems, and medical information systems.

Installation

1.
Identify the connectors on the Transmitter and Receiver as indicated on the product labels,
see the above front and rear product views for further details.
2.
Verify that the distance between the HDMI Transmitter and Receiver is within MuxLab
specifications (see Specifications table for further details).
3.
To install the Transmitter:
3a. Connect the Transmitter to the HDMI video source with an HDMI compliant cable.
3b. If the application is point-to-point, then connect one (1) length of Cat 5e/6 (or higher)
grade UTP cable to the RJ45 LINK connector on the Transmitter. If transmitting over
the network, use an Ethernet Switch between the TX & RX unit.
4.
To install the Receiver:
4a. Connect the Receiver to the HDMI display equipment with an HDMI compliant cable.
4b. If the application is point-to-point, then connect one (1) Cat 5e/6 cable (or higher)
coming from the Transmitter, to the RJ45 LINK connector on the Receiver. If
