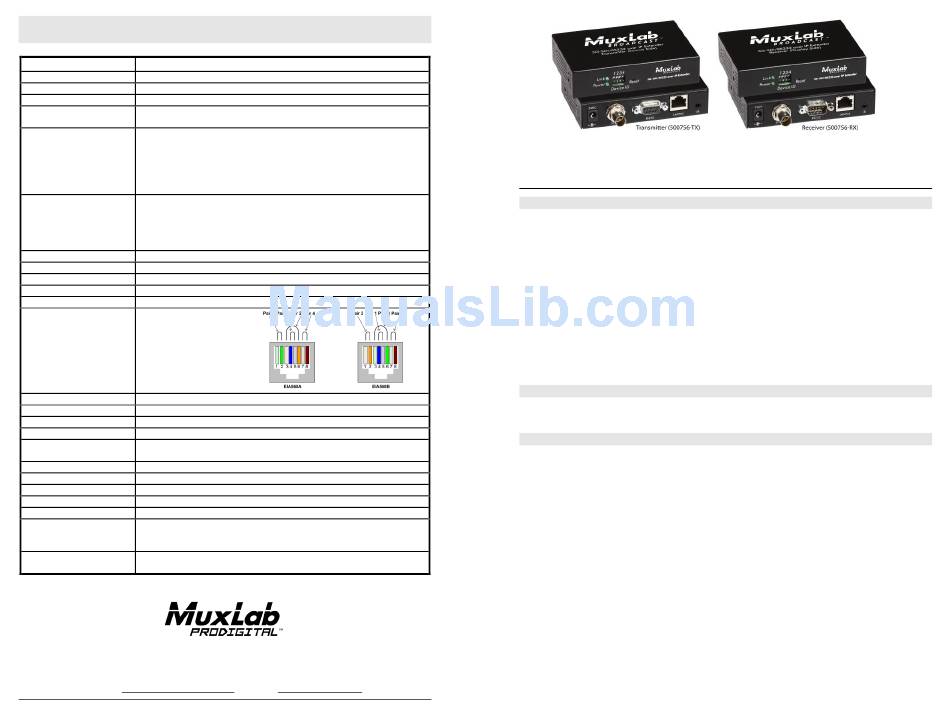

Specifications
Environment
3G-SDI
Devices
Cameras, players, monitors, servers supporting SDI signaling.
Transmission
Transparent to the user.
Bandwidth
2.97Gbps
Signals
SD-SDI, HD-SDI, 3G-SDI protocol.
Note: 3G-SDI level B not fully supported.
Connectors
One (1) BND receptacle.
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
One (1) 3.5mm jacks for IR emitter/sensor.
One (1) DB9 Serial Port Connector.
Four (4) DIP Switches for device ID addressing.
Note: SDI coax, RS232 and Cat 5e/6 cables not included.
Maximum Distance
Cat5e/6: 330ft (100m) distance from LAN Switch @ 1080P resolution.
Cat5e/6: 400ft (120m) distance (PT-to-PT) if no LAN Switch is used.
Excluding coax cable length.
Note: When installed in an electrically noisy environment, an STP cable must be
used. Also, cross-connections in the signal path reduce the effective distance
depending on the grade of twisted pair cable used.
Latency
One (1) Frame.
Motion JPEG
Compression
Bandwidth
60Mbps
100BaseT for Point to Point; 1000BaseT for other configuration.
Network Requirement
30 – 60 KHz
IR Frequency
RJ45 Pin Configuration
RJ45 Link
Pin 1 (R)
Pin 2 (T)
Reverse Polarity Sensitive.
Pin 3 (R)
Pin 6 (T)
Use EIA/TIA 568A or 586B
Pin 4 (R)
Pin 5 (T)
straight-through wiring.
Pin 7 (R)
Pin 8 (T)
Cable
One (1) Cat 5e/6 or better twisted pair cables required.
Power Supply
Two (2) 110-240V/5VDC power supplies with interchangeable blades.
PoE
IEEE 802.3af
Power Consumption
Transmitter: 2.9 Watt
Temperature
Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
Enclosure
Metal
3.70" x 3.68" x 0.97" (94 x 93.5 x 24.6 mm)
Dimensions
Weight
1.1 lb (0.5 kg)
Compliance
Regulatory: FCC, CE, RoHS
Warranty
2 years
Order Information
500756
3G-SDI/ RS232 Over IP Extender Kit with PoE
500756-TX 3G-SDI / RS232 Over IP Transmitter with PoE
500756-RX 3G-SDI / RS232 Over IP Receiver with PoE
Accessories
500905 Rackmount Transceiver Chassis 3-Port
500906 Rackmount Transceiver Chassis 16-Port
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Receiver: 1.8 Watt
Storage: -20° to 85°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000820-A SE-000820-A
500756 3G-SDI / RS232 over IP Extender Kit with PoE
Quick Installation Guide
Overview

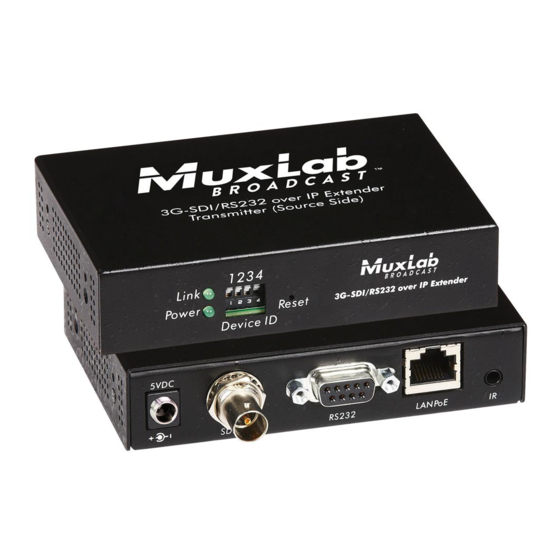

The 3G-SDI / RS232 over IP Extender Kit with PoE (500756) allows SDI equipment to be
connected up to 330ft (100m) @ 1080p via one (1) Cat5e/6 unshielded twisted pair cable in a
point-to-point configuration through an Ethernet LAN Switch. Point-to-multipoint and multipoint-
to-multipoint is possible by connecting several Transmitters and Receivers to the same local
Ethernet network. The Transmitter (500756-TX) and Receiver (500756-RX) also support PoE (PD)
if used with a PoE Ethernet Switch. The kit comes with one (1) Transmitter and one (1) Receiver
as well as an IR Emitter and IR Sensor for remote control applications.
For the point-to-multipoint and multipoint-to-multipoint configuration the Ethernet Switch must
have Gigabit ports and DHCP Server capability and additionally support the IGMP communication
protocol for the multipoint-to-multipoint case. MuxLab recommends using the Cisco SG300 Series
Managed Switches.
The MuxLab ProDigital Network Controller (500811) is available to simplify the configuration and
utilization of the 500756 and other MuxLab IP based products via an Ethernet web interface.
Applications
Applications include commercial and residential AV systems, classroom projector systems, digital
signage, boardroom systems, collaborative PC systems, and medical information systems.
Installation
1.
Identify the connectors on the Transmitter and Receiver as indicated on the product labels,
see the above front and rear product views for further details.
2.
Verify that the distance between the 3G-SDI Transmitter and Receiver is within
MuxLab specifications (see Specifications table for further details).
3.
To install the Transmitter:
3a. Connect the Transmitter to the SDI video source with a COAX cable
(Belden 1694A recommended).
3b. If the application is point-to-point, then connect one (1) length of Cat 5e/6 (or
higher) grade UTP cable to the RJ45 LINK connector on the Transmitter. If
transmitting over the network, use an Ethernet Switch between the TX & RX
unit.
4.
To install the Receiver:
4a. Connect the Receiver to the SDI display equipment with a COAX cable (Belden
1694A recommended).
4b. If the application is point-to-point, then connect one (1) Cat 5e/6 cable (or
higher) coming from the Transmitter, to the RJ45 LINK connector on the
