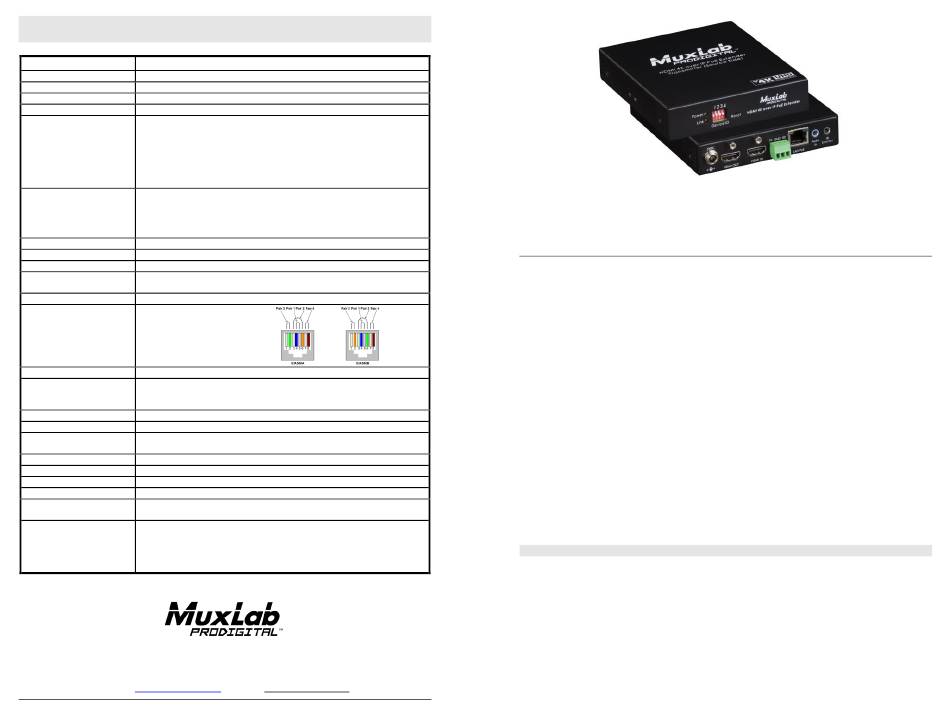

MuxLab 500759-TX-HLO Quick Installation Manual

Specifications
Environment HDMI 2.0b
Devices Blu-Ray, projectors, monitors, TV, PC, laptops, servers supporting HDMI.
Transmission Transparent to the user.
Bandwidth 300MHz
Signals HDMI 1.4 protocol
Connectors One (1) HDMI receptacle for input.
One (1) HDMI loop out.
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
One (1) 3.5mm jack for IR emitter.
One (1) 3.5mm jack for audio insert.
One (1) RS232 (3-pin phoenix connector).
Note: Cables not included. Four (4) DIP Switches for device ID addressing.
Maximum Distance Cat5e/6: 330ft (100m) up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0)
Note: When installed in an electrically noisy environment, an STP cable must be
Based on a maximum length
used. Also, cross-connection reduces the effective distance depending on the
of 6.6ft (2m) of HDMI cable
grade of twisted cable used.
per end.
Latency Typical one (1) Frame (16ms), maximum 2 frames (33ms).
Compression JPG2000 Proprietary Compression.
Bandwidth Up to 850Mbps.
Network Requirement 1Gb Ethernet Network
(Switch support for Jumbo Frame, IGMP and PoE required).
IR Frequency 38 to 56 KHz (IR Emitter and IR Sensor sold separately).
RJ45 Pin Configuration RJ45 Link
Pin 1 (R) Pin 2 (T)
Reverse Polarity Sensitive.
Pin 3 (R) Pin 6 (T)
Use EIA/TIA 568A or 586B
Pin 4 (R) Pin 5 (T)
straight-through wiring.
Pin 7 (R) Pin 8 (T)
Cable One (1) Cat 5e/6 or better twisted pair cables required.
Power Supply This device supports PoE (PD), an external power supply is not included. It is
intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional
power supply (500993) may be purchased separately.
PoE IEEE 802.3af
Power Consumption Transmitter: 2.85Watt
Temperature Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
4.40" x 5.08" x 1.00" (112mm x 129mm x 25mm)
Dimensions
Weight 1.5lbs (0.68kg)
Compliance Regulatory: FCC, CE, RoHS
Warranty 3 years
Order Information 500759-TX-HLO HDMI over IP PoE TX with Loop Out, UHD-4K
(UPC: 627699927595)
Accessories 500920 16-Port Rackmount Transceiver Chassis
(These items are sold 500917 Wall Mount Transceiver Bracket Kit
separately) 500990 IR Emitter
500991 IR Sensor
500993 Univ. Locking Power Supply 5VDC/2.6A US/UK/EU Blade
2321Rue Cohen, Montreal, Quebec, Canada. H4R 2N7
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: info@muxlab.com
© MuxLab Inc.
Storage: -20° to 85°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000985-A SE-000985-A
HDMI over IP PoE TX with Loop Out, UHD-4K
500759-TX-HLO
Quick Installation Guide
Overview
The HDMI over IP PoE TX with Loop Out, UHD-4K (model 500759-TX-HLO) allows HDMI
video equipment supporting up to 4K @ 30Hz or 1080p @ 60Hz resolution to be connected and
extended to create an independently distributed video network. 100's of Single Displays and Video
Wall Displays of user configurable size (X by Y) may be supported, depending on network
bandwidth. In addition, the unit features a local HDMI video output which allows the video source
to be shown on a local display.
The unit can be connected via Cat5e/6 cable up to 330ft (100m) from an Ethernet Switch, and
supports PoE (PD) when powered by a PoE (PSE) Ethernet Switch. An IR Emitter or IR Sensor, if
required, may be purchased separately for IR based remote control applications of end devices.
The MuxLab Pro Digital Network Controller (500812) and MuxControl App are available to
simplify configuration and management of this and other MuxLab AV over IP networked devices
via PC (500812 web interface), Smartphone and Tablet (Apple or Android).
Applications
Applications include video wall, digital signage, commercial and residential AV systems,
classroom projector systems, boardroom systems, collaborative PC systems, and medical
information systems.
Installation
1.

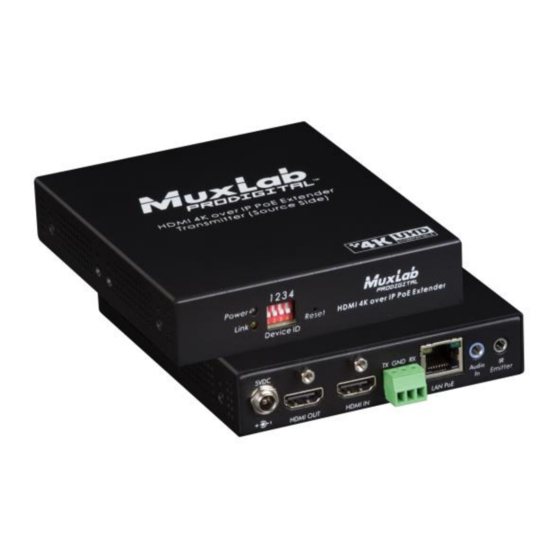

Identify the connectors on the Transmitter as indicated on the product labels, see the above front
and rear product views for further details.
2.
Verify that the distance between the HDMI Transmitter is within MuxLab specifications (see
Specifications table for more details).
3.
To install the Transmitter:
3a. Connect the Transmitter to the HDMI video source with an HDMI compliant cable.
3b. If the application is point-to-point, then connect one (1) length of Cat 5e/6 (or higher)
grade UTP cable to the RJ45 LINK connector on the Transmitter. If transmitting over
the network, use an Ethernet Switch between Transmitter and Receiver
