MuxLab 500752 Quick Installation Manual

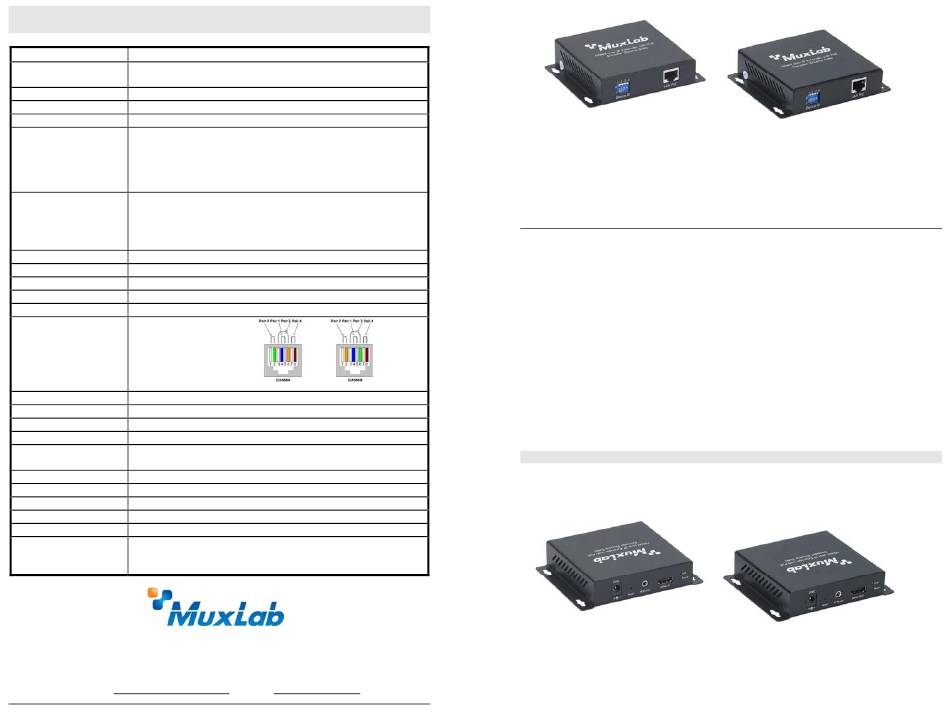

Specifications

Environment HDMI 1.3a
DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting
Devices
HDMI.
Transmission Transparent to the user
Bandwidth 225 MHz
Signals HDMI 1.3a protocol
Connectors One (1) HDMI receptacle.
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
One (1) 3.5mm jacks for IR emitter/sensor.
Four (4) DIP Switches for device ID addressing.
Note: HDMI cables not included.
Maximum Distance Cat5e/6: 330 ft (100 m) up to 1080P
Note: When installed in an electrically noisy environment, an STP cable
Based on a maximum
must be used. Also, cross-connection reduces the effective distance
length of 6.6 ft (2 m) of
depending on the grade of twisted cable used.
HDMI cable per end.
Latency One (1) Frame
Compression Motion JPEG
60Mbps
Bandwidth
Network Requirement 100BaseT for Point to Point; 1000BaseT for other configuration
IR Frequency 38KHz
RJ45 Pin Configuration RJ45 Link
Pin 1 (R) Pin 2 (T)
Reverse Polarity
Pin 3 (R) Pin 6 (T)
Sensitive. Use EIA/TIA
Pin 4 (R) Pin 5 (T)
568A or 586B straight-
Pin 7 (R) Pin 8 (T)
through wiring.
Cable One (1) Cat 5e/6 or better twisted pair cables required
Two (2) 110-240V/5VDC power supplies with interchangeable blades
Power Supply
PoE IEEE 802.3af
Power Consumption Transmitter: 2.9 Watt
Temperature Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
Enclosure Metal
Dimensions 3.70" x 3.68" x 0.97" (94 x 93.5 x 24.6 mm)
1.1 lb (0.5 kg)
Weight
Compliance Regulatory: FCC, CE, RoHS
Warranty 2 years
500752 HDMI Over IP Extender Kit with PoE
Order Information
500752-TX HDMI Over IP Encoder with PoE
500752-RX HDMI Over IP Decoder with PoE
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Receiver: 1.8 Watt
Storage: -20° to 85°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000748-A SE-000748-A
HDMI over IP Extender Kit with PoE
500752
Quick Installation Guide
Overview
The HDMI over IP Extender Kit with PoE (500752) allows HDMI equipment to be connected up to
330 ft (100 m) @ 1080p via one (1) Cat 5e/6 unshielded twisted pair cable in a point-to-point
configuration. Point-to-multipoint and multipoint-to-multipoint is possible by connecting several

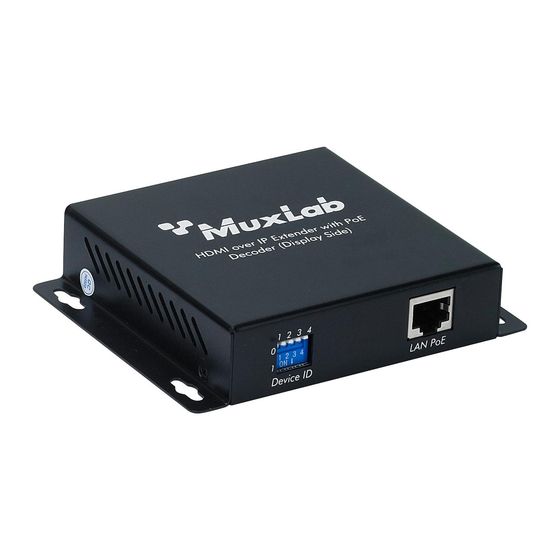

encoders and decoders to the same Ethernet network. The Encoder (500752-TX) and Decoder
(500752-RX) also support PoE (PD) if used with a PoE Ethernet Switch. The kit comes with one
(1) Encoder and one (1) Decoder as well as an IR Emitter and IR Sensor for remote control
applications.
For the multipoint-to-multipoint configuration the gigabit Ethernet switch must support the IGMP
communications protocol.
Applications
Applications include commercial and residential AV systems, classroom projector systems, digital
signage, boardroom systems, collaborative PC systems, and medical information systems.
Installation
1.
Identify the connectors on the Encoder and Decoder as indicated on the product labels.
