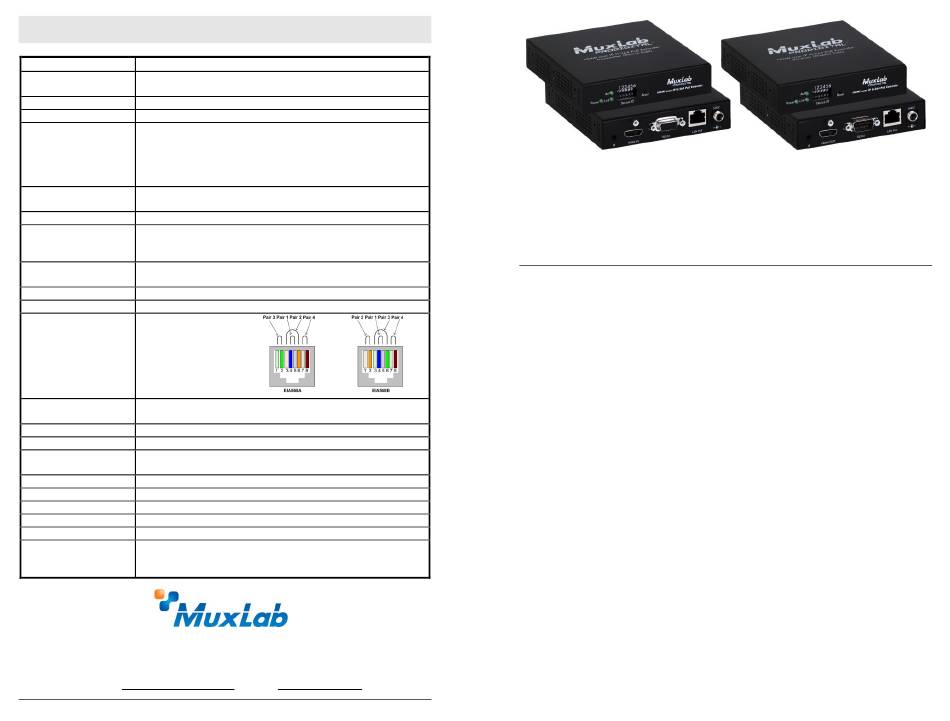

MuxLab 500757 Quick Installation Manual

Specifications

Environment HDMI (up to 1080p, 30fps)
Devices DVD, plasma, projectors, monitors, TV, PC, laptops, servers
supporting HDMI.
Control Controllable via the Ethernet port.
HDMI standard HDMI ver. 1.3, HDCP 1.1
Connectors One (1) HDMI receptacle.
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
One (1) 3.5mm jack for IR emitter/sensor.
Six (6) DIP Switches for device ID addressing.
Note: HDMI and CAT5e/6 cables not included.
Maximum Distance On HDMI (per side): 6.6ft (2m)
On Cat5e/6: 330ft (100m)
Latency Less than 500ms
Compression Video: H.264 fully compliant with ISO/IEC 14496-10 high profile
and level 4.1, up to 1920x1080p@30fps
Audio: MPEG
Network Requirement Compliant with the full IEEE 802.3-2002 specifications
(100BaseTX).
Network Bandwidth Video: 18Mbps, Audio: 256kbs
IR Frequency 38KHz
RJ45 Pin
Configuration RJ45 Link
Pin 1 (R) Pin 2 (T)
Use EIA/TIA 568A or
Pin 3 (R) Pin 6 (T)
586B straight-through
Pin 4 (R) Pin 5 (T)
wiring.
Pin 7 (R) Pin 8 (T)
Power Supply One (1) 110-240V/5VDC power supply with interchangeable blades is
included with each Transmitter and Receiver.
IEEE 802.3af
PoE
Transmitter: 4.5 Watt
Power Consumption
Operating: 0° to 40°C
Temperature
Humidity: Up to 95% non-condensing
Enclosure Metal enclosure.
4.1" x 4.6" x 1.0" (110mm x 120mm x 25mm)
Dimensions
Weight 1.5 lb. (0.7 kg)
Compliance Regulatory: FCC, CE, RoHS
Warranty 2 years
Order Information 500757 HDMI over IP H264 Extender Kit with PoE
500757-TX HDMI over IP H264 Transmitter with PoE
500757-RX HDMI over IP H264 Receiver with PoE
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Receiver: 2.5 Watt
Storage: -20° to 85°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000816-A
HDMI over IP H.264 Extender Kit, with PoE
500757
Quick Installation Guide

Overview

The HDMI over IP H.264 Extender Kit with PoE (500757) allows HDMI equipment to be
connected up to 330ft. (100m) @ 1080p via one (1) Cat5e/6 unshielded twisted pair cable in a
point-to-point configuration. Point-to-multipoint and multipoint-to-multipoint is possible by
connecting several Transmitters and Receivers to the same local Ethernet network. The Transmitter
(500757-TX) and Receiver (500757-RX) may be sold separately, and support PoE (PD) if used
with a PoE Ethernet Switch. The kit comes with one (1) Transmitter and one (1) Receiver as well
as an IR Emitter and IR Sensor for remote control applications.
For the point-to-multipoint and multipoint-to-multipoint configurations the Ethernet Switch must
have Gigabit ports, DHCP Server capability and additionally support the IGMP communication
protocol for the multipoint-to-multipoint case. MuxLab recommends using the Cisco SG300 Series
Managed Switches.
The MuxLab ProDigital Network Controller (500811) is available to simplify the configuration and
utilization of the 500757 and other MuxLab IP based products via an Ethernet web interface.

Applications

Applications include commercial and residential AV systems, classroom projector systems, digital
signage, boardroom systems, collaborative PC systems, and medical information systems.
