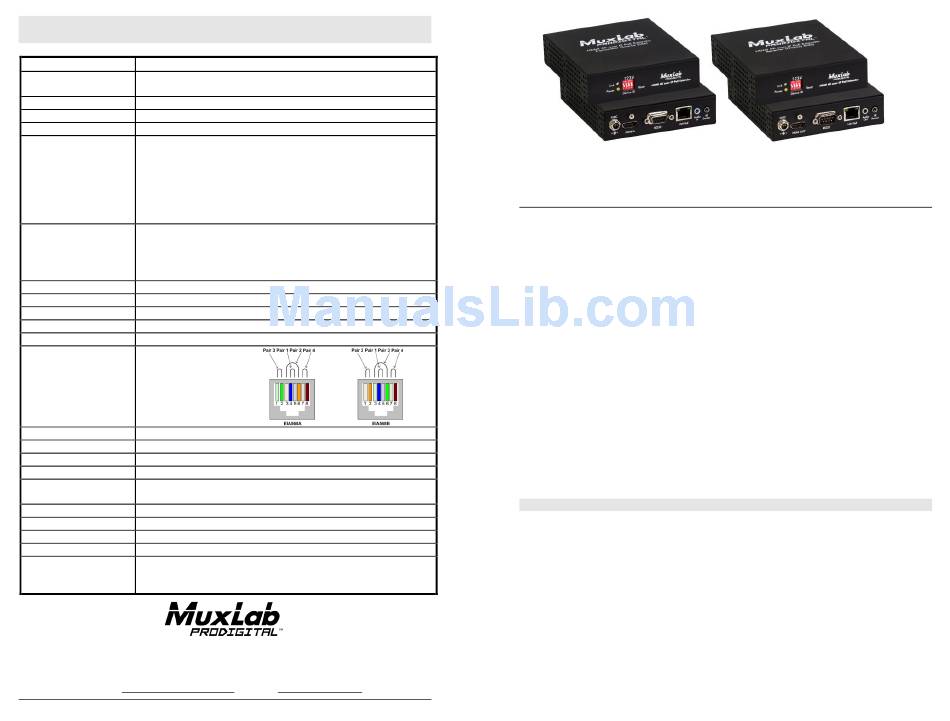

MuxLab 500758 Quick Installation Manual

Specifications

Environment HDMI 1.4
Devices Blu-Ray, projectors, monitors, TV, PC, laptops, servers supporting
HDMI.
Transmission Transparent to the user
Bandwidth 300MHz
Signals HDMI 1.4 protocol
Connectors One (1) HDMI receptacle.
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
Two (2) 3.5mm jacks for IR emitter (on TX)/sensor (on RX).
Two (2) 3.5mm jacks for audio insert (on TX)/audio extract (on RX)
One (1) DB9 for the RS232
Four (4) DIP Switches for device ID addressing.
Note: HDMI cables not included.
Cat5e/6: 330ft (100m) up to 4K/30Hz
Maximum Distance
Note: When installed in an electrically noisy environment, an STP
Based on a maximum
cable must be used. Also, cross-connection reduces the effective
length of 6.6ft (2m) of
distance depending on the grade of twisted cable used.
HDMI cable per end.
Typical one (1) Frame (16ms), maximum 2 frames (33ms)
Latency
Proprietary Compression
Compression
Up to 850Mbps
Bandwidth
1000BaseT with Jumbo Frame
Network Requirement
38 to 56KHz
IR Frequency
RJ45 Pin RJ45 Link
Configuration Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Reverse Polarity
Pin 4 (R) Pin 5 (T)
Sensitive. Use EIA/TIA
Pin 7 (R) Pin 8 (T)
568A or 586B straight-
through wiring.
Cable One (1) Cat 5e/6 or better twisted pair cables required
Power Supply Two (2) 110-240V/5VDC power supplies with interchangeable blades
PoE IEEE 802.3af
Power Consumption Transmitter: 2.85Watt
Temperature Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
4.40" x 5.08" x 1.00" (112mm x 129mm x 25mm)
Dimensions
Weight 1.5lb (0.68kg)
Compliance Regulatory: FCC, CE, RoHS
Warranty 2 years
Order Information 500758 HDMI/RS232 over IP Extender Kit with PoE, UHD-4K
500758-TX HDMI/RS232 over IP Extender TX with PoE, UHD-4K
HDMI/RS232 over IP Extender RX with PoE, UHD-4K
500758-RX
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Receiver: 2.55Watt
Storage: -20° to 85°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000827-A SE-000827-A
HDMI/RS232 over IP Extender Kit with PoE, UHD-4K
Quick Installation Guide
Overview

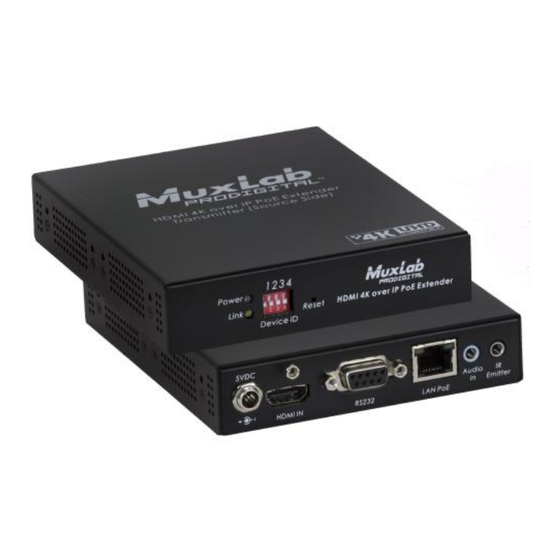

The HDMI/RS232 over IP Extender Kit with PoE, UHD-4K (500758) allows HDMI equipment to
be connected up to 330ft (100m) up to 4K (3840x2160) resolution @ 30fps via one (1) Cat5e/6
unshielded twisted pair cable in a point-to-point configuration. Point-to-multipoint and multipoint-
to-multipoint configurations are also possible by connecting several Transmitters and Receivers to
the same local Ethernet IP network via an Ethernet Switch. The Transmitter (500758-TX) and
Receiver (500758-RX) also support PoE (PD) if used with a PoE Ethernet Switch. The kit comes
with one (1) Transmitter and one (1) Receiver as well as an IR Emitter and IR Sensor for remote
control applications. Additional Transmitters and Receivers may be purchased as kits or purchased
separately depending on the intended application and number of units required.
For the point-to-multipoint and multipoint-to-multipoint configuration the Ethernet Switch must
have Gigabit ports, Jumbo Frame capability and DHCP Server capability, and additionally support
the IGMP communication protocol for the multipoint-to-multipoint case. MuxLab recommends
using the Cisco SG300 Series Managed Switches.
The MuxLab ProDigital Network Controller (500811) is available to simplify the configuration and
utilization of the 500758 and other MuxLab IP based products via an Ethernet web interface.
Applications
Applications include commercial and residential AV systems, classroom projector systems, digital
signage, boardroom systems, collaborative PC systems, and medical information systems.
Installation
1.
Identify the connectors on the Transmitter and Receiver as indicated on the product labels, see the
above front and rear product views for further details.
2.
Verify that the distance between the HDMI Transmitter and Receiver is within MuxLab
specifications (see Specifications table for more details).
3.
To install the Transmitter:
3a. Connect the Transmitter to the HDMI video source with an HDMI compliant cable.
3b. If the application is point-to-point, then connect one (1) length of Cat 5e/6 (or higher)
grade UTP cable to the RJ45 LINK connector on the Transmitter. If transmitting over
the network, use an Ethernet Switch between Transmitter and Receiver.
4. To install the Receiver:
4a. Connect the Receiver to the HDMI display equipment with an HDMI compliant cable.
500758
