Page 1: Parts List

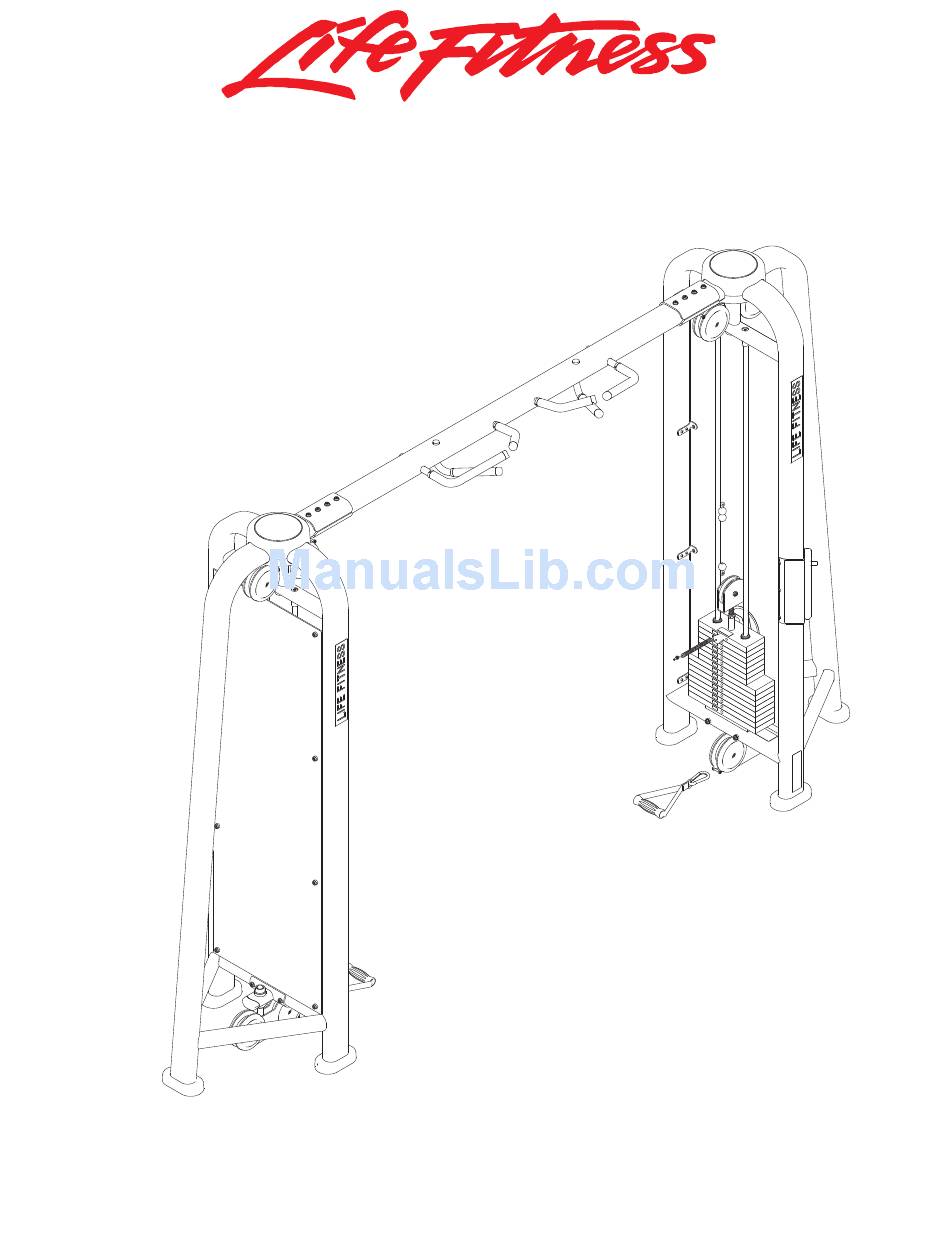

CABLE MOTION CMFCO FIXED CROSSOVER Customer Support Services PARTS LIST Page 1... -
Page 2: Table Of Contents
CMFCO FIXED CROSSOVER Contents ________________________________________ COMPONENT ASSEMBLY TOWER ASSEMBLY TOWER ASSEMBLY LEGEND CROSSOVER BOTTOM ASSEMBLY BEAM ASSEMBLY WEIGHT STACK ASSEMBLY ACCESSORIES SPORT BAR ASSEMBLY OPTIONAL FRONT SHROUD KIT Page 2 PAGE... -
Page 3: Cmfco Fixed Crossover
CMFCO FIXED CROSSOVER COMPONENT ASSEMBLY ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7641401 ASSY, CM/MJFCO TOWER 7640601 ASSY, MJ X-BEAM 7633201 BRKT, MJ LRG OVAL 3236213 SCREW, M10 X 1.5 80MM 7630101 RETAINER, CM/MJ, PULLEY 7335401 NUT, M10 X 1.5 SOCKET HEAD 8219601 HANDLE, CM/MJ, SHORT STRAP 3250201 SNAP LINK, 3/8"... -
Page 4: Tower Assembly
CMFCO FIXED CROSSOVER TOWER ASSEMBLY ________________________________________ SEE PAGE 5 FOR LEGEND Page 4... -
Page 5: Tower Assembly Legend
SCREW, M5X10 PHL PAN TT ST 3236220 SCREW, M10 X1.5 130MM 7634701 SPACER, CM/MJ, .565 X .815 7385201 SPACER, .406 X .750 X .250 7348001 LABEL, LIFE FITNESS LOGO 7647001 WLDMT, CM/MJ, PLACARD BRKT 7711501 WEIGHT, 5 LB. ADD-ON 7733901 LABEL, PLACARD CM/MJ CROSSOVER 7732202... -
Page 6: Crossover Bottom Assembly
CMFCO FIXED CROSSOVER CROSSOVER BOTTOM ASSEMBLY - 7636101 ________________________________________ ITEM NO PART NO DESCRIPTION 7635901 WLDMNT, MJFCO/FXO PULLEY SPRT 3104903 1.00" ID 1.25" OD BRONZ BUSHING 7333801 CAP, SMALL FLOV- END 7635601 WLDMNT, MJFCO/FXO BOTTOM PULLEY 3241801 WASHER, FLAT 6MM SS 7641301 SHAFT, CM/MJ, BALL STOP 3232401... -
Page 7: Beam Assembly
CMFCO FIXED CROSSOVER BEAM ASSEMBLY - 7640601 ________________________________________ ITEM NO PART NO DESCRIPTION 7632701 WLDMT, MJ X-BEAM 7662801 RING, GRIP 1.25 OD 7662901 CAP, GRIP 1.25 OD 3235801 GRIP, 1.25 OD OPEN END 3247701 M4 X 0.7 X 3 HZS NO CUP ST BO Page 7... -
Page 8: Weight Stack Assembly
CMFCO FIXED CROSSOVER WEIGHT STACK ASSEMBLY 190LB - 7647501 ________________________________________ ITEM NO PART NO DESCRIPTION 7353901 HEADPLATE, WT. STACK 7352601 BAYONET, 14 PLATE 7338001 HEADPLATE BUSHING & CLIP 3236001 BUSHING, SPRING PIN 7353001 ASSY, SELECTOR PIN 7353701 ASSY, 10 LB PLATE 7353801 ASSY, 15 LB PLATE 7356501... -
Page 9: Accessories
CMFCO FIXED CROSSOVER ACCESSORIES ________________________________________ 7753001 - LE/LC STRAP 7734701 - 4 WAY ANKLE STRAP 7647801 - HANDLE CM/MJ SHORT STRAP 6851501 - TRICEP ROPE 7752901 - TRAINING BELT 7647901 - HANDLE CM/MJ LONG STRAP Page 9... -
Page 10: Sport Bar Assembly
CMFCO FIXED CROSSOVER SPORT BAR ACCESSORY - 7753201 ________________________________________ ITEM NO PART NO DESCRIPTION 7760395 WLDMT, SPORT BAR SHADOW GRAY 3235801 GRIP, 1.25 OD OPEN END 7662901 CAP, GRIP 1.25 OD 7662801 RING, GRIP 1.25 OD 3247701 M4 X 0.7 X 3 HZS NO CUP ST BO 3119304 CAP, END 1 DIA RD 10-12GA Page 10... -
Page 11: Optional Front Shroud Kit
CMFCO FIXED CROSSOVER OPTIONAL FRONT SHROUD KIT - 7766601 ________________________________________ ITEM NO PART NO DESCRIPTION 7763601 BRKT, SHROUD, CM/MJ BOTTOM SG 7763901 BRKT, SHROUD, CM/MJ TOP SG 3238601 M10X1.5 BLIND THRD INSERT(HEX) 7634001 SHROUD, CM/MJ FRONT 3236601 WASHER,3/8 SAE STAINLESS STEEL 3236201 M10 X 1.5 X 20 HXS SOC CS SS Page 11...
