Life Fitness Pro 2 Series PSSLPSE Parts Manual
Pro 2 series seated leg press
Hide thumbs
Also See for Pro 2 Series PSSLPSE:
- Owner's manual (43 pages) ,
- Parts manual (18 pages) ,
- Assembly manual (18 pages)
Related Manuals for Life Fitness Pro 2 Series PSSLPSE
Summary of Contents for Life Fitness Pro 2 Series PSSLPSE

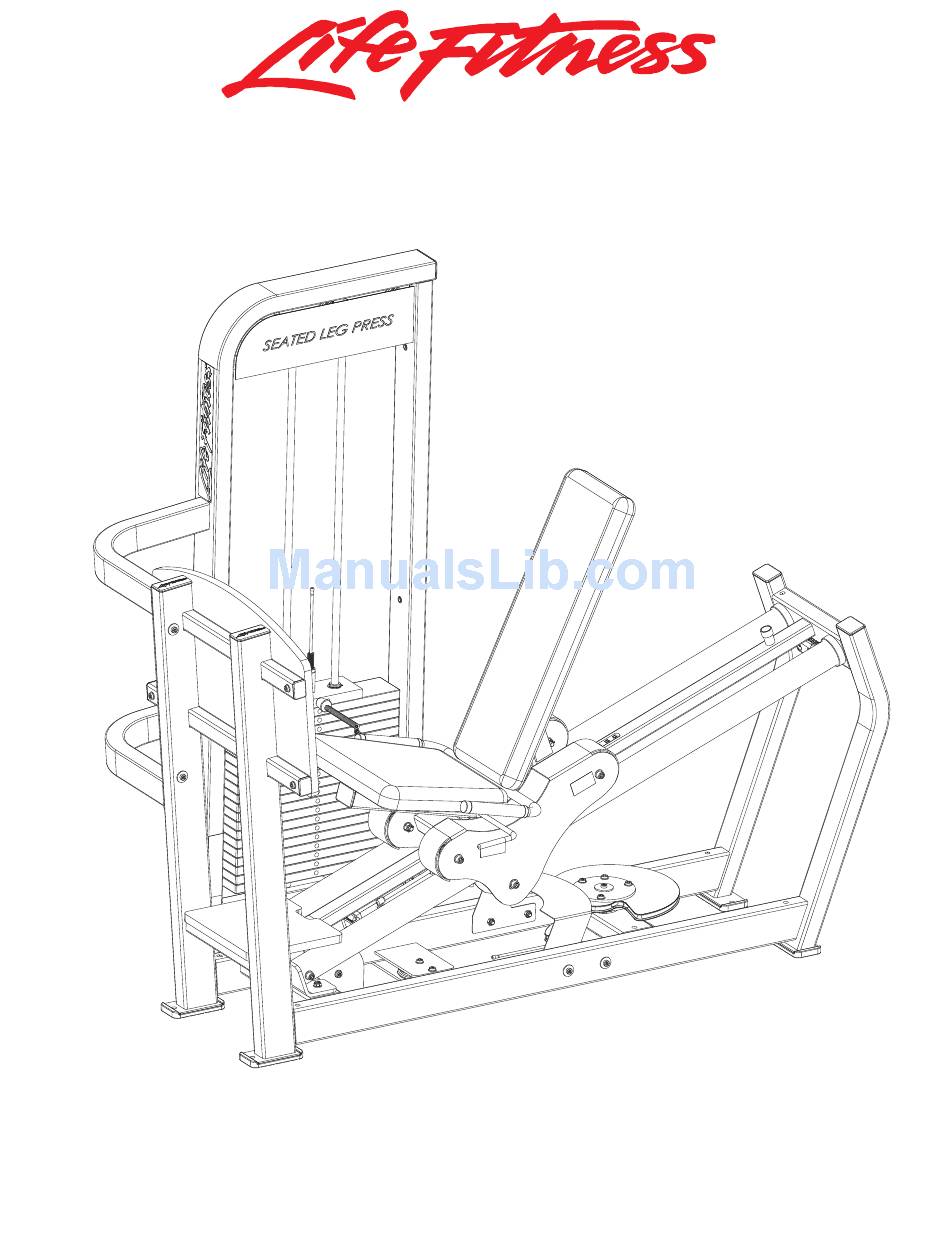

- Page 1 PRO 2 SERIES PSSLPSE SEATED LEG PRESS Customer Support Services PARTS MANUAL Page 1...
-
Page 2: Table Of Contents
PSSLPSE SEATED LEG PRESS CONTENTS ________________________________________ COMPONENT ASSEMBLY COMPONENT ASSEMBLY LEGEND SIDE FRAME ASSEMBLY SIDE FRAME ASSEMBLY LEGEND BASE FRAME ASSEMBLY BASE FRAME ASSEMBLY LEGEND SEAT ASSEMBLY SEAT ASSEMBLY LEGEND SEAT ADJUSTMENT ASSEMBLY SEAT ADJUSTMENT ASSEMBLY LEGEND SEAT HANDLE ASSEMBLY LOWER CAM ASSEMBLY LOWER CAM ASSEMBLY LEGEND 5LB INCREMENT WEIGHT ASSEMBLY... -
Page 3: Psslpse Seated Leg Press
PSSLPSE SEATED LEG PRESS COMPONENT ASSEMBLY ________________________________________ SEE PAGE 4 FOR LEGEND Page 3... -
Page 4: Component Assembly Legend
PSSLPSE SEATED LEG PRESS COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7450401 ASSY, PSSLP BASE FRAME 7450601 ASSY, PSSLP SEAT 7450501 ASSY, PSSLP SIDE FRAME 7422901 ASSY, FZ/PS-SLP SEAT ADJ 3251501 ROLLER ASSY 7450701 ASSY, FZ/PS-SLP SEAT HANDLE 73991xx PAD, 17 X 18 1/2 7409895 SHIELD, FZ/PS-SLP CAM SG... -
Page 5: Side Frame Assembly
PSSLPSE SEATED LEG PRESS SIDE FRAME ASSEMBLY - 7450501 ________________________________________ SEE PAGE 6 FOR LEGEND Page 5... -
Page 6: Side Frame Assembly Legend
3236902 NUT, M16 X 2 HEX JAM SS 3238101 NUT, BLIND INSERT M10 X 1.5 7490201 LABEL, PSSLP PLACARD 7491301 LABEL, PSSLP LOGO PANEL 7422004 LABEL, 2" ASTM WARN 7571301 LABEL, SERIAL NUMBER 7348001 LABEL, LIFE FITNESS LOGO Page 6... -
Page 7: Base Frame Assembly
PSSLPSE SEATED LEG PRESS BASE FRAME ASSEMBLY - 7450401 ________________________________________ SEE PAGE 8 FOR LEGEND 18 19 Page 7... -
Page 8: Base Frame Assembly Legend
PSSLPSE SEATED LEG PRESS BASE FRAME ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7447201 WLDMT, PSSLP MAIN FRAME 3237801 PULLEY, 4.5" OD 7352001 BUMPER, 2-1/8 X 4-5/8 7450901 BOARD, PSSLP LINEXED 7494301 BOARD, PSSLP LINEXED 3237401 PLUG, 7/16" HOLE 7352301 CAP, END 2 X 3 7352401 CAP, END 2 X 4 7352201 CAP, END 1-1/2 X 2... -
Page 9: Seat Assembly
PSSLPSE SEATED LEG PRESS ________________________________________ SEAT ASSEMBLY - 7450601 SEE PAGE 10 FOR LEGEND Page 9... -
Page 10: Seat Assembly Legend
PSSLPSE SEATED LEG PRESS ________________________________________ SEAT ASSEMBLY LEGEND ITEM NO. QTY. PART NO. DESCRIPTION 7448701 WLDMT, PSSLP CARRIAGE 7352301 CAP, END 2 X 3 3235801 GRIP, 1.25 OD OPEN END 7662901 CAP, GRIP 1.25 OD 3251501 ROLLER ASSY 7662801 RING, GRIP 1.25 OD 3247701 M4 X .7 HXS NO CUP ST BO 3241401 WASHER, FLAT 12MM SS 3241320 SCREW, M12 X1.75 120MM... -
Page 11: Seat Adjustment Assembly
PSSLPSE SEATED LEG PRESS SEAT ADJUSTMENT ASSEMBLY - 7422901 ________________________________________ SEE PAGE 12 FOR LEGEND Page 11... -
Page 12: Seat Adjustment Assembly Legend
PSSLPSE SEATED LEG PRESS SEAT ADJUSTMENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7409095 WLDMT, FZ/PS-SLP SEAT ADJ SG 7778501 BLOCK, FZ/PS-SLP DELRIN 7409502 WLDMT, FZ/PS-SLP ADJ PLATED 7414301 STUD, M10 BALL END M10 X 1.5 7354301 SPACER, 7/16 ID X .75 OD X 1 3236601 WASHER, 3/8 SAE SS 3236205 SCREW, M10 X1.5 40MM 3239401 SPRING,GAS-135N- 300... -
Page 13: Seat Handle Assembly
PSSLPSE SEATED LEG PRESS SEAT HANDLE ASSEMBLY - 7450701 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7412295 WLDMT, FZ/PS-SLP LEVER SG 3104901 .75" ID 1.00" OD BRONZE BUSHING 7324802 SHAFT, TAPPED 0.75 DIA X 1.800 Page 13... -
Page 14: Lower Cam Assembly
PSSLPSE SEATED LEG PRESS LOWER CAM ASSEMBLY - 7511801 ________________________________________ SEE PAGE 15 FOR LEGEND Page 14... -
Page 15: Lower Cam Assembly Legend
PSSLPSE SEATED LEG PRESS LOWER CAM ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7511495 WLDMT, FZ/PS-SLP CAM SHAFT SG 7511501 SPACER, FZ/PS INTERNAL .403 7511502 SPACER, FZ/PS INTERNAL 1.845 3243201 BEARING, 6007 BALL 7414401 CAM, FZ/PS-SLP RND 7511195 PLATE, FZ/PS-SLP CAM THRD SG 3236601 WASHER, 3/8 SAE SS 3236204 SCREW, M10 X1.5 35MM 7342201 PLATE, CABLE END... -
Page 16: 5Lb Increment Weight Assembly
PSSLPSE SEATED LEG PRESS 5LB INCREMENT WEIGHT ASSEMBLY - 7446501 ________________________________________ ITEM NO PART NO DESCRIPTION 7446602 BODY, 5LB INCREMENT WEIGHT 7446901 PIN, RETAINING 7447001 SPRING, COMPRESSION 7560001 BUSHING, MTS, INC WEIGHT 7351401 KNOB, TULIP STYLE Page 16... -
Page 17: Increment Weight Assembly W/Striker
PSSLPSE SEATED LEG PRESS INCREMENT WEIGHT W/STRIKER - 7415101 ________________________________________ ITEM NO PART NO DESCRIPTION 7446501 ASSY, 5LB INCREMENT WEIGHT 8002601 PLATE, INCR. WT STRIKER 3236202 SCREW, M10 X1.5 25MM 3236801 NUT, M10 HEX NYLOCK SS 7767601 BUMPER, PS INCREMENT WT 3237401 PLUG, 7/16"... -
Page 18: Weight Stack (390Lb)
PSSLPSE SEATED LEG PRESS WEIGHT STACK ASSY 390LB - 7353601 ________________________________________ WEIGHT PLATE LABELS PART NO. DESCRIPTION 7927201 LABEL, 390 LB STACK 7927301 LABEL, 195 KG STACK ITEM NO PART NO DESCRIPTION 7353901 HEADPLATE, WT. STACK 7356601 STEM, PRO2 19 HOLE 7328401 WEIGHT PLATE, 20 LB 3236001... -
Page 19: Rear Shroud Kit
PSSLPSE SEATED LEG PRESS REAR SHROUD KIT WIDE-TALL - 7415205 ________________________________________ ITEM NO. QTY. PART NO. DES CRIPTION 7376805 S HIELD, PS REAR 7655301 BRACKET, PS REAR S HIELD 3236601 W AS HER, 3/8 S AE S S 3236201 S CREW , M10 X1.5 20MM Page 19... -
Page 20: Optional Full Shroud Kit
PSSLPSE SEATED LEG PRESS OPTIONAL FULL SHROUD KIT WIDE-TALL - 7539605 ________________________________________ ITEM NO. QTY. PART NO. DES CRIPTION 7376805 S HIELD, PS REAR 7655301 BRACKET, PS REAR S HIELD 3236601 W AS HER, 3/8 S AE S S 3236201 S CREW , M10 X1.5 20MM 3236203 S CREW , M10 X1.5 30MM 7376601 BRACKET, PS FRONT S HIELD 7376905 S HIELD, PS - FRONT... -
Page 21: Cable Routing
PSSLPSE SEATED LEG PRESS CABLE ROUTING ________________________________________ Note: Some components removed for display purposes. THROUGH SLOT 7423721 WEIGHT STACK CABLE 7423803 LOWER CAM CABLE Page 21... -
Page 22: Image
PSSLPSE SEATED LEG PRESS IMAGE ________________________________________ Page 22...
