Page 1: Parts List

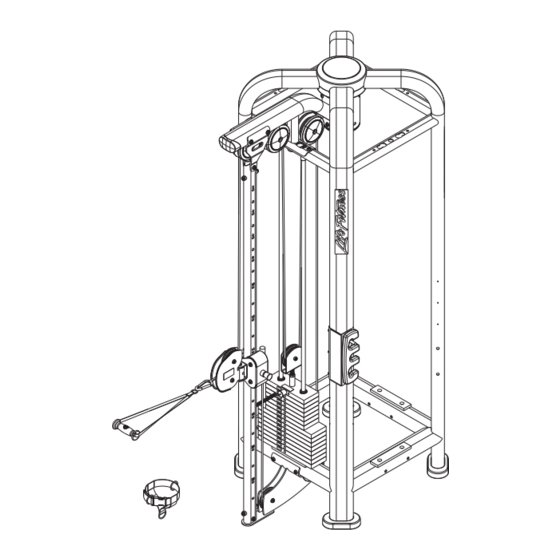

CABLE MOTION SERIES MJAP MULTI JUNGLE ADJUSTABLE PULLEY Customer Support Services PARTS LIST Page 1... -
Page 2: Table Of Contents
MJAP ADJUSTABLE PULLEY Contents ________________________________________ MJCORE ASSEMBLY COMPONENT ASSEMBLY COMPONENT ASSEMBLY LEGEND MJAP BOOM ASSEMBLY CM/MJ ADJ. PULLEY COLUMN ASSEMBLY CM/MJ ADJ. PULLEY CARRIAGE ASSEMBLY MJAP BASE SUPPORT ASSEMBLY WEIGHT STACK ASSEMBLY MJAP CABLE ROUTING GUIDE Page 2 PAGE... -
Page 3: Mjcore Assembly
3236801 NUT, M10 HEX NYLOCK SS Page 3 ITEM NO. QTY. PART NO. DESCRIPTION 7629201 COVER, CENTER TOP 7629801 COVER, CENTER BOTTOM 3236501 M4 X 0.7 PHL PAN MS ST ZN 7348001 LABEL, LIFE FITNESS LOGO 7571301 LABEL, SERIAL NUMBER 7422000 LABEL, 2" ASTM WARN... -
Page 4: Component Assembly
MJAP ADJUSTABLE PULLEY COMPONENT ASSEMBLY ________________________________________ SEE PAGE 5 FOR LEGEND Page 4 17 18... -
Page 5: Component Assembly Legend
MJAP ADJUSTABLE PULLEY COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION MJCORE-ASSY ASSY, COMPONENTS MJCORE 7647501 ASSY, 190LB STACK 7352101 CUSHION, WEIGHT STACK 7328618 GUIDE ROD, .75 OD SOLID 71.63 3232421 RING, BRE .940, 5100-100 ST PP B 7634401 RETAINER, CM/MJ, GUIDEROD 3240502... -
Page 6: Mjap Boom Assembly
MJAP ADJUSTABLE PULLEY MJAP BOOM ASSEMBLY - 7641901 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7635201 WLDMNT, MJAP BOOM 7333901 CAP, LARGE FLOV- END 3236207 SCREW, M10 X1.5 50MM 7335401 NUT, M10 X 1.5 SOCKET HEAD 7630101 RETAINER, CM/MJ, PULLEY 7629901 COVER, PULLEY- BOLTED FULL 3237801 PULLEY, 4.5"... -
Page 7: Cm/Mj Adj. Pulley Column Assembly
MJAP ADJUSTABLE PULLEY CM/MJ ADJ PULLEY COLUMN ASSEMBLY - 7708401 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 8264101 TUBE, CM/MJ ADJ COLUMN 7645501 SPACER, CM/MJ, SM FLOV CONCAVE 7630101 RETAINER, CM/MJ, PULLEY 3236215 SCREW, M10 X1.5 90MM 7335401 NUT, M10 X 1.5 SOCKET HEAD 7333801 CAP, SMALL FLOV- END Page 7... -
Page 8: Cm/Mj Adj. Pulley Carriage Assembly
MJAP ADJUSTABLE PULLEY CM/MJ ADJ PULLEY CARRIAGE ASSEMBLY - 7645201 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7637501 WLDMT, MJ ADJ PULLEY CARRIAGE 7637901 ASSY, ROLLER-CONCAVE 7633301 WLDMT, CM/MJ, SWIVEL PULLEY 7631801 BRKT, CM/MJ, CARRIAGE SHROUD 7645401 SHAFT, CM/MJ, 6203 BRNG 3239101 SCREW, M5X10 PHL PAN TT ST 3237801 PULLEY, 4.5"... -
Page 9: Mjap Base Support Assembly
MJAP ADJUSTABLE PULLEY MJAP BASE SUPPORT ASSEMBLY - 7645101 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7634801 WLDMT, MJ ADJ PULLEY BASE 3237801 PULLEY, 4.5" OD 7630101 RETAINER, CM/MJ, PULLEY 3236206 SCREW, M10 X1.5 45MM 7335401 NUT, M10 X 1.5 SOCKET HEAD 3236208 SCREW, M10 X1.5 55MM 7629901 COVER, PULLEY- BOLTED FULL Page 9... -
Page 10: Weight Stack Assembly
MJAP ADJUSTABLE PULLEY 190LB. WEIGHT STACK ASSEMBLY - 7647501 ________________________________________ QTY. PART NO. DESTCRIPTION 8068901 LABEL, WEIGHT STACK 95LBS 8069101 LABEL, WEIGHT STACK 45.5KG ITEM NO. QTY. PART NO. DESCRIPTION 7353901 HEADPLATE, WT. STACK 7352600 BAYONET, 14 PLATE 7338001 BUSHING, HEADPLATE 3236001 BUSHING, SPRING PIN 7353001 ASSY, SELECTOR PIN 7353701 ASSY, 10 LB PLATE... - Page 11 MJAP ADJUSTABLE PULLEY CABLE ROUTING GUIDE (cross-section) ________________________________________ Page 11...
