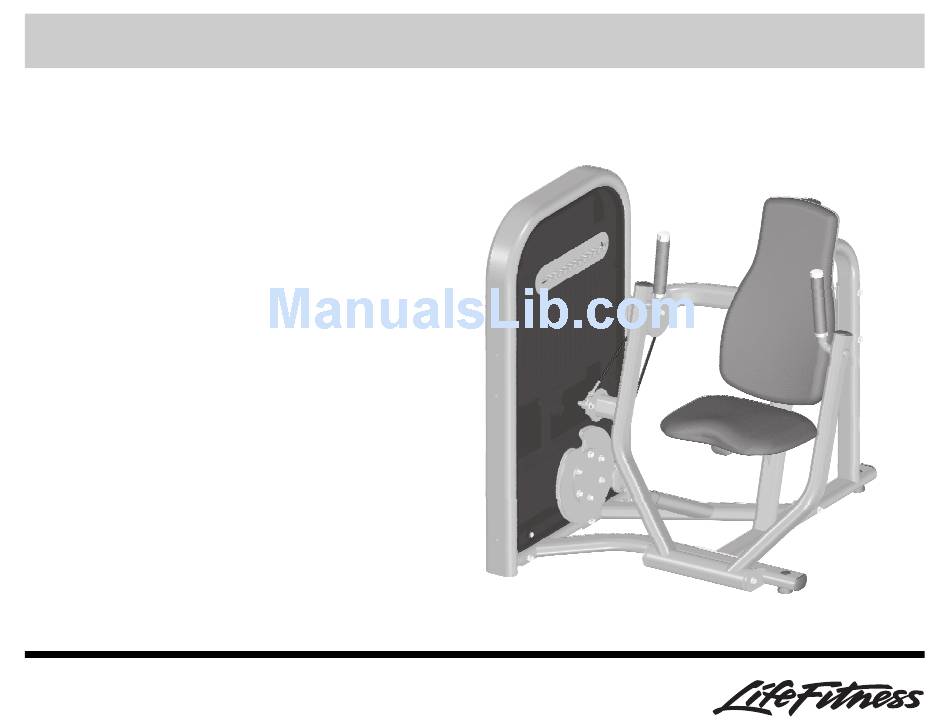

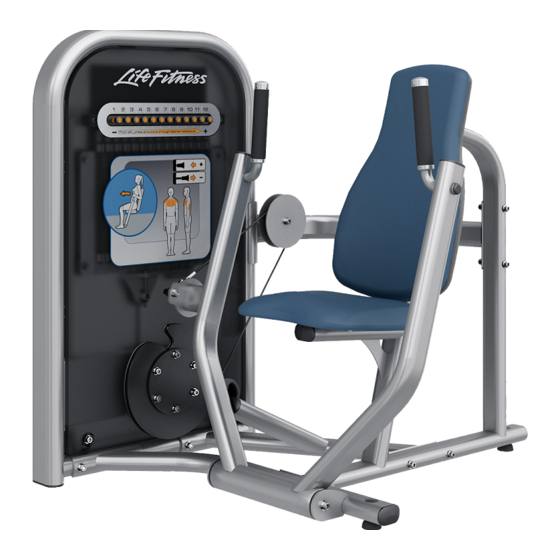

Page 1: Chest Press
Chest Press Assembly Instructions... -
Page 2: Assembly Instructions
Chest Press Assembly Instructions Item Description Front Brace Rear Brace Tower M10 x 130mm Bolt 3/8” Flat Washer M10 Nylock Nut Seat Frame M10 x 90mm Bolt Top Brace M10 x 70mm Bolt Pivot Shaft Long Spacer Bearing Small Spacer... - Page 4 Chest Press Assembly Instructions 1. LOOSELY assemble the FRONT BRACE (1) and REAR BRACE (2) to the TOWER (3) using four M10 X 130mm BOLTS (4), eight 3/8" SAE WASH- ERS (5) and four M10 NYLOCK NUTS (6) as shown.
- Page 5 5. Insert the PIVOT SHAFT (11), LONG SPACER (12), two BEARINGS (13) and two SMALL SPACER (14) into the WORKARM (15) as shown. Carefully insert the WORKARM into the FRONT BRACE (1) and secure it with two M10 X 25mm BOLTS (16) and two 3/8" SAE WASHERS (5). Tighten the BOLTS securely.
- Page 6 Chest Press Assembly Instructions 6. Assemble the OUTPUT CAM (17), OUTPUT PLATE (18), and OUTPUT RING (19) using three M10 X 45mm BOLTS (20) and three 3/8" SAE WASHERS (5) as shown. Tighten the BOLTS securely. 7. Assemble the REAR SHROUD (21) and FRONT SHROUD (22) to the TOWER (3) using four M10 X 20mm BOLTS (23), four 3/8"...
- Page 7 10. Attach the SEAT PAD (27) to the SEAT FRAME (7) using two M10 X 25mm BOLTS (16) and two 3/8" SAE WASHERS (5). Tighten the BOLTS securely. 11. Attach the BACK PAD (28) to the SEAT FRAME (7) using two M10 X 35mm BOLTS (29) and two 3/8"...
- Page 8 BOLT and NUT. Do not over-tighten the BOLT and NUT. 17. Install HOLE PLUGS in all open bolt holes. 2006 Life Fitness, a division of Brunswick Corporation. All rights reserved. © Life Fitness is a registered trademark of Brunswick Corporation.
