Redexim Verti-Drain 7007 Hydro User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

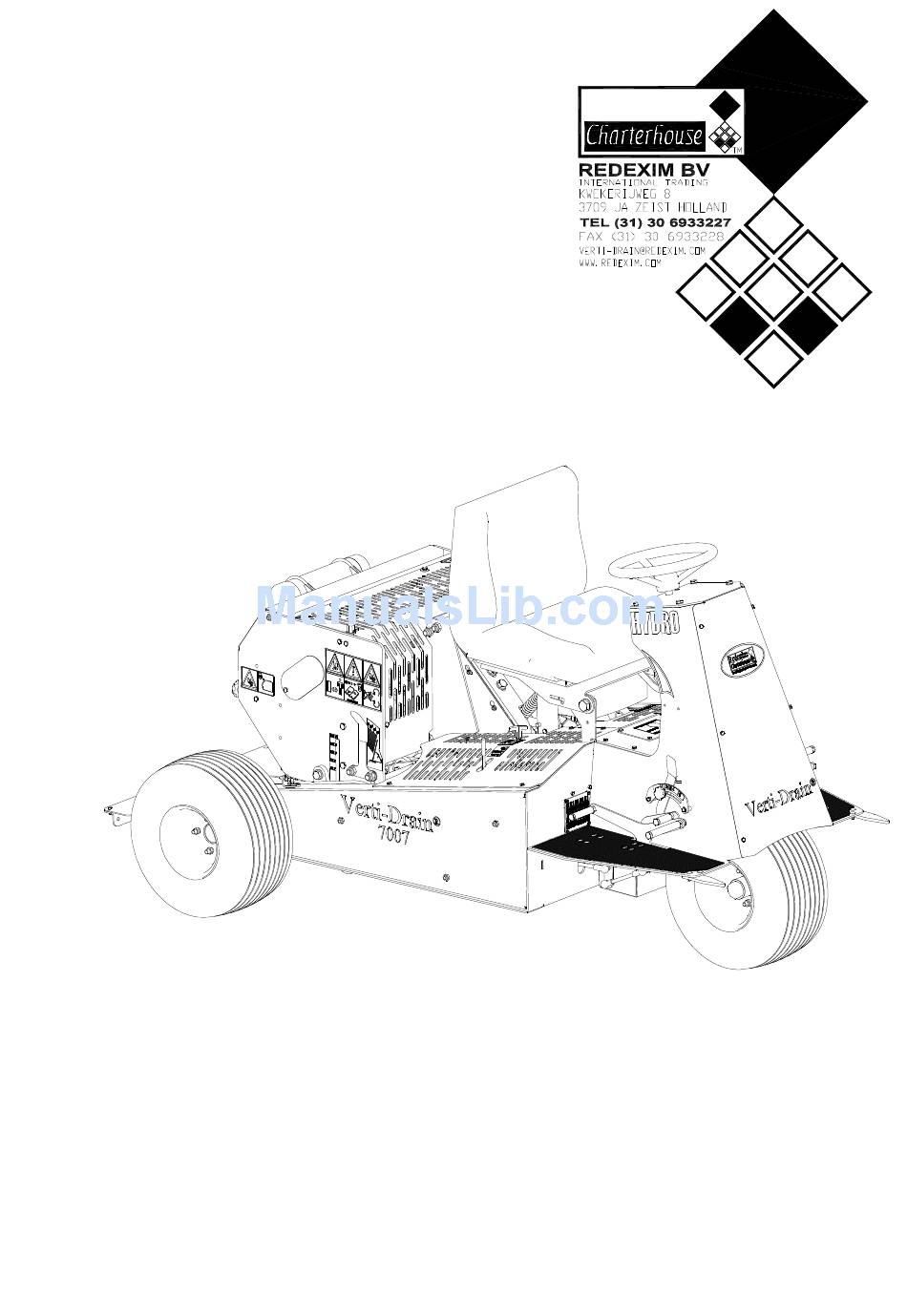

User manual and parts
handbook
Verti-Drain
7007 Hydro Model

Serial number:

ATTENTION:
TO ENSURE SAFE USE OF THIS MACHINE AND TO ACHIEVE
THE BEST RESULTS, IT IS OF THE UTMOST IMPORTANCE TO
READ THIS USER MANUAL CAREFULLY BEFORE USING THE
VERTI-DRAIN
®
®
.
0718 English
Manual code: 911.120.402
Redexim

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Verti-Drain 7007 Hydro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Redexim Verti-Drain 7007 Hydro

Summary of Contents for Redexim Verti-Drain 7007 Hydro

  • Page 1: Serial Number

    User manual and parts Redexim handbook ® Verti-Drain 7007 Hydro Model Serial number: ATTENTION: TO ENSURE SAFE USE OF THIS MACHINE AND TO ACHIEVE THE BEST RESULTS, IT IS OF THE UTMOST IMPORTANCE TO READ THIS USER MANUAL CAREFULLY BEFORE USING THE ®...

  • Page 2: Foreword

    FOREWORD ® Congratulations on your purchase of the Verti-Drain . To ensure the long and safe use of ® this Verti-Drain , it is of the utmost importance for all those who will be using it to read and understand this user manual. Operation of this machine is not safe without full knowledge of the content of the manual.

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS ® The design of the Verti-Drain allows for safe use. However, this is only possible if the user fully observes the safety instructions given in this manual. Read and understand the manual before (Fig. 1) ® starting to use the Verti-Drain Fig.1 If the machine is not used as described in the ®...
  • Page 4 ® NEVER use de Verti-Drain if its protective covers and safety stickers are missing. ® NEVER step off the Verti-Drain while the engine is still running. The motor should cut out automatically when pressure is no longer exerted on the seating area when you dismount.

  • Page 5: Machine! (Fig

    ® (6) Before starting to work, all persons who will operate the Verti-Drain must be familiar with all its functions and controls. ® On both sides of the Verti-Drain on the sideboard, there are safety stickers Fig. ) and on the back cover with the same meaning.
  • Page 6 (7) Location of safety stickers. (Fig. 8) Fig. 8 Used oil/grease is harmful to the environment; dispose of it according to locally applicable regulations.

  • Page 7: Table Of Contents

    CONTENTS Section Description Page Foreword Guarantee conditions Registration card Safety instructions Technical data First installation Initial Adjustment of Speed Pedal General parts list Adjusting the operating depth Pin angle adjustment Start/stop procedure ® Operation of the Verti-Drain ® Transportation of the Verti-Drain Operation of the pedal/driving speed 10.0 Operation of the brake pedal/parking brake...

  • Page 8: Technical Data

    TECHNICAL DATA Model 7007 Hydro Working width 675 mm (26.5”) Operating depth Up to 150 mm (6”) Max. speed Theoretically 10.6 km/hour (6.59 miles/hour) Weight 745 Kg (1620 lbs) Hole separation between the 55 mm (2 1/8”). tines Hole separation in driving 55 mm (2 1/8”) or larger.

  • Page 9: First Installation

    2.0 FIRST INSTALLATION Fig. 9 The machine will be delivered on a pallet and will have been attached with bolts at the front and the rear. The back wheels, the related brakes and scrapers and the tines will have been supplied separate with the machine. Fig.
  • Page 10 - Remove the nuts that have been used as standard to secure bearing 2. Replace them by long nuts 4 and 5 that have been supplied. Nut 4 has been unscrewed and must fit in plate 3. - Base plate 18 can be attached to nuts 4 and 5 by using bolts 7 and rings 8. Simultaneously mount handle 19.

  • Page 11: Initial Adjustment Of Speed Pedal

    2.1 Initial Adjustment of Speed Pedal 90 mm BOTTOM VIEW The speed pedal will be set at the factory, but is important for your own safety to check this before starting the machine the first time. Check as following: Lift up the rear wheels of the unit and block securely (for 3-wheel drive version, lift all wheels off ground).

  • Page 12: General Parts List

    Fig. 12 3.0 GENERAL PARTS LIST Figure 12 shows some important general parts: 1. Safety sticker 900.280.402 , read user manual before use/Toolbox with tools and manual. 2. Safety sticker 911.280.402: keep a distance of at least 4 metres from the machine.
  • Page 13 A number of important parts on the prime mover: 7. The engine. 8. The hydraulic pump. 9. The hydraulic motors. 10. The battery. 11. The driving pedal. 12. Tine distance speed adjustment. 13. The brake pedal/parking brake. 14. Starter switch. 15.

  • Page 14: Adjusting The Operating Depth

    Fig. 13 4.0 OPERATING DEPTH ADJUSTMENT Carry out the following to adjust the operating depth: (see fig. 13) ® 1. Lift the Verti-Drain unit to the highest position. 2. Block the whole machine with the foot brake in the parking position. ®...

  • Page 15: Pin Angle Adjustment

    Fig. 14 5.0 Tine angle adjustment The tine angle of all tines can be adjusted by changing the angle of the central adjustment shaft. This should be done as follows: (See fig.14) ® 1. Lift the Verti-Drain unit to the highest position. 2.

  • Page 16: Start/Stop Procedure

    Fig. 16 6.0 Start/Stop procedure ® To ensure the Verti-Drain is not been damaged by wrong usage, the start and stop procedure must take place as follows: (See fig.16) Starting: 1. Drive to the place where you want to start. 2.

  • Page 17: Operation Of The Verti-Drain

    ® 7.0 Operation of the Verti-Drain Before the Verti-Drain® is used in the field, the following should be checked: 1. Are there any loose objects in the field? Remove these first. Are there any slopes? The maximum slope this machine can work on is 20 degrees. Always work downhill.

  • Page 18: Operation Of The Pedal/Driving Speed

    Fig. 17 9.0 Operation of the pedal/driving speed ® The Verti-Drain has two pedals that can be found on the right side of the machine (see fig. 17). This design consists of a main speed pedal (1) and a Tine distance speed pedal (2). ®...

  • Page 19: Operation Of The Brake Pedal/Parking Brake

    Fig. 18 10.0 Operation of the brake pedal/parking brake ® The Verti-Drain has two brake pedals that can be found on the left side of the machine (see fig. 18). The shorter of the two is the brake pedal (1). The long one that is also nearest to the pedal that sits on the frame is the parking brake (2) and is only used to lock the machine when it is standing still.

  • Page 20: Blocking The Verti-Drain ® Unit

    Fig. 19 ® 11.0 Blocking the Verti-Drain unit ® ® When the Verti-Drain is not being used for a longer period, the Verti-Drain unit may drop. There is a blocking mechanism on the machine to avoid this situation. ® When the Verti-Drain is no longer operational, the blocking strip (1) can be turned ®...
  • Page 21 12.0 DISCONNECTING THE V-BELT Fig. 20 ® The V-belt of the pump to the Verti-Drain unit can be disconnected so that the ® elements are no longer running and the Verti-Drain unit will, therefore, be at a standstill. A practical situation when this occurs is when the engine cuts out with the ®...

  • Page 22: Disconnect V-Belts

    13.1 TROUBLESHOOTING Problem Possible cause Solution The engine is not starting/is not The battery is dead. Check the condition of the battery. running. Charge or replace the battery. Wiring damaged. Check the wiring for short circuits. Check the battery connections. No fuel.

  • Page 23: Verti-Drain ® Unit Troubleshooting

    ® 13.2 VERTI-DRAIN UNIT TROUBLESHOOTING Problem Possible cause Solution Machine vibrating. Crankshaft turns irregularly. Machine not at 90 degrees. Check the timing of the crankshaft. Heavy conditions. Adjust the operating depth. Use thinner/shorter tines. If conditions are dry, water soil. Solid/hollow tines bend/break.

  • Page 24: Maintenance

    * See the manual for the engine for more maintenance information on the engine. 15.0 EU DECLARATION OF CONFORMITY We, Redexim, Utrechtseweg 127, 3702 AC Zeist, The Netherlands, declare entirely on our own responsibility that the product: ® VERTI-DRAIN...

  • Page 25: Technical Information

    16.0 TECHNICAL INFORMATION ® Generally speaking, the Verti-Drain is not a complicated machine. A number of technical items will be explained. If you have additional questions, contact your dealer who will be happy to provide assistance. Fig. 21 16.1 THE CRANKSHAFT The crankshaft assembly is shown in figures 21 and 22.

  • Page 26: Releasing Crankshaft Tension

    16.1.2 RELEASING CRANKSHAFT TENSION If parts of the crankshaft have been replaced, the crankshaft may be more difficult to turn. Pre-tension can be the cause. It is necessary to eliminate the sources of tension as follows, see fig. 21: Use a hammer to tap against the centre of the crank, starting with crank 1 located next to the V-belt drive.

  • Page 27: Alignment Of An Element

    16.3 ALIGNING AN ELEMENT If an element is no longer in line with the adjacent elements, the alignment can be corrected as follows: (see fig. 22) 1. Loosen the four bolts/nuts A, that connect the crankshaft to the element. 2. Loosen the two bolts B, with which the element is connected to the frame. 3.

  • Page 28: Replace The V-Belt Drive

    16.5 REPLACING THE V-BELT DRIVE Fig. 23 ® The Verti-Drain is driven by a “power belt” V-belt. When it is worn and must, therefore, be replaced, follow the following method: (See fig. 23) ® 1. Ensure that the Verti-Drain unit is in the top position and block it so that it cannot drop (see section 11.0).

  • Page 29: Tensioning The Verti-Drain ® Unit V-Belt Drive

    ® 16.6 TENSIONING THE VERTI-DRAIN UNIT V-BELT DRIVE Fig. 24 ® To ensure the Verti-Drain unit operates at its best capacity, the 3 V-belts used in connection with the driven shaft and crankshaft must have the correct tension. Follow the following steps to achieve this: (See fig. 24) 1.

  • Page 30: Correct Adjustment Of The Pedal

    16.7 CORRECTLY ADJUSTING THE PEDAL 90 mm BOTTOM VIEW Fig. 25 To ensure that the pedal is optimally used, it must be adjusted correctly. Adjust the pedal by using the two threaded rods that can be found under the foot plate. The following two conditions must be met to correctly adjust the pedal: (see fig.

  • Page 31: Chain Drive Of The Back Wheel

    16.8 CHAIN DRIVE OF THE BACK WHEEL Fig. 26 Fig. 26 shows a drawing of the chain drive of the back wheel. The tensioning wheel (1) can be found behind the back wheel. Remove the side cover to access the tensioning wheel (1) and adjust it.

  • Page 32: Options, Turf Hold-Down Kit

    17.0 OPTIONS, TURF HOLD-DOWN KIT Fig. 28 You can use a turf hold-down kit when the turf layer comes loose. Two turf hold-down kits can be supplied for the 12 mm tines under number 211.700.002. ® The Verti-Drain 7007 Hydro is equipped as standard with a pre-mounted main beam on which the turf hold-down fingers can be mounted.

  • Page 33: Options, Tines

    17.1 OPTIONS, TINES Tines are essential for the correct operation of the machine. There are various tines available for this machine; see the parts page for a complete overview. In general, the tines can be divided into two categories: solid and hollow tines. We recommend only using original tines because they are completely adapted to the machine.

  • Page 34: Hollow Tines

    17.1.2 HOLLOW TINES The ground can be mixed with hollow tines. Various sizes are available; see the parts page for more information. The opening of the tine must be directed toward the rear of the machine. For hollow tines it is important that the tine angle is set to 90 degrees. The movement of the tine in the ground is minimal and in this manner a nice “clean”...

  • Page 35: Options, 3-Wheel Drive (3Wd)

    17.4 OPTIONS, 3-WHEEL DRIVE (3WD). Item 211.700.026 ® The standard drive of the Verti-Drain is only on the two back wheels. Should it start to slip due to a lack of grip or should you have to aerate with greater accuracy, you can use the 3WD option.
