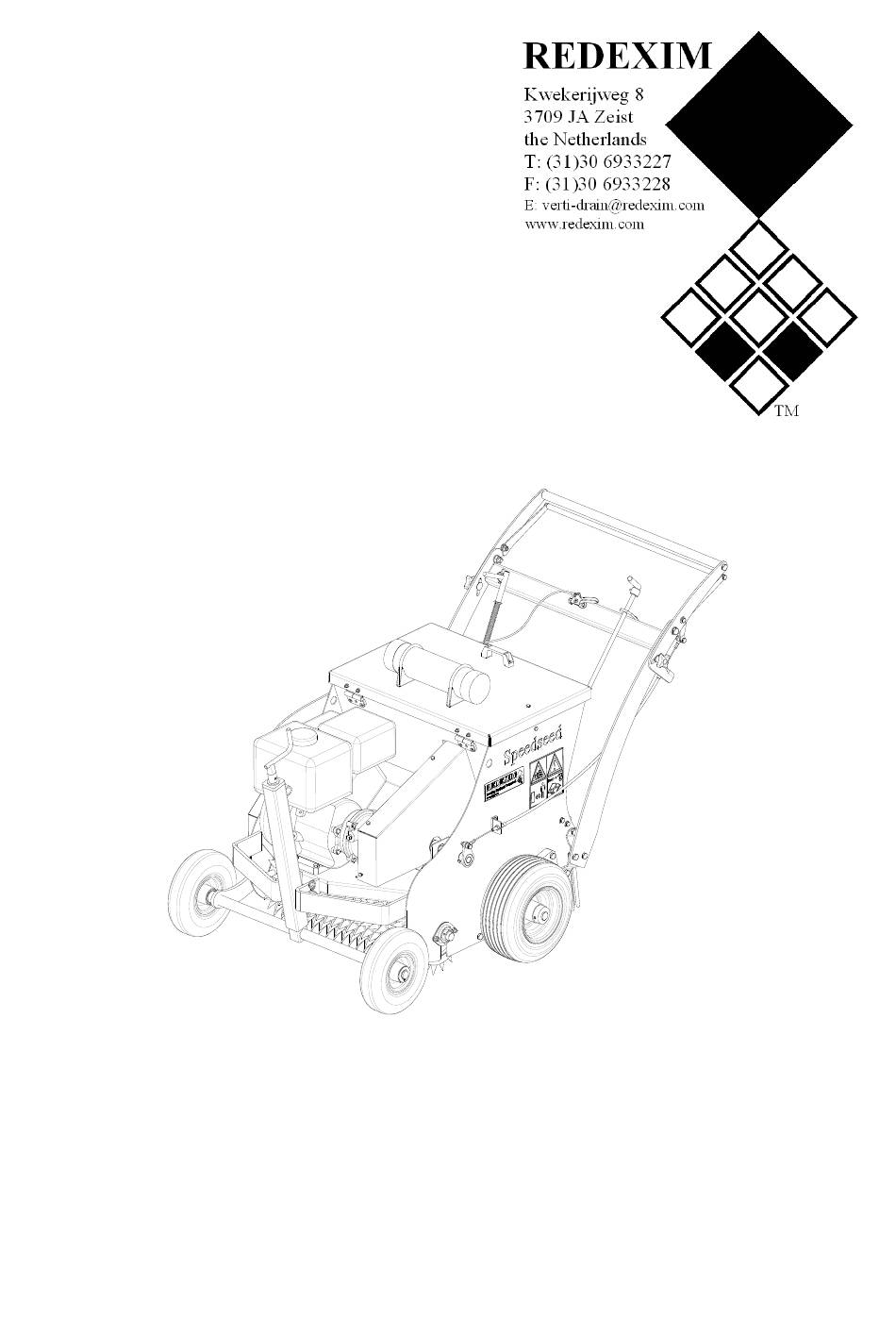

User Manual and Parts
Book
Speedseed Walk Behind
Walk Behind
Model:
Serial number:
Translation of the original operating
instructions
ATTENTION:
IT IS OF THE UTMOST IMPORTANCE TO READ THIS USER MANUAL
CAREFULLY PRIOR TO USING THE 'SPEEDSEED WALK BEHIND' IN ORDER
TO USE THE MACHINE SAFELY AND TO OBTAIN THE BEST RESULTS.
1703 English 924.060.030

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Speedseed Walk Behind and is the answer not in the manual?

Questions and answers

Related Manuals for Redexim Speedseed Walk Behind

Summary of Contents for Redexim Speedseed Walk Behind

  • Page 1 Translation of the original operating instructions ATTENTION: IT IS OF THE UTMOST IMPORTANCE TO READ THIS USER MANUAL CAREFULLY PRIOR TO USING THE ‘SPEEDSEED WALK BEHIND’ IN ORDER TO USE THE MACHINE SAFELY AND TO OBTAIN THE BEST RESULTS. 1703 English 924.060.030...
  • Page 2 FOREWORD Congratulations with the purchase of your Speedseed Walk Behind. To ensure long and safe use of this Speedseed Walk Behind, it is of major importance to all users to read and understand this user manual. Operation of this machine is not safe without full knowledge of the content of the manual.
  • Page 3 In addition, user’s instructions must be prepared. Before using the Speedseed Walk Behind, the user is obliged to inspect it for visible damage and defects. Any changes of the Speedseed Walk Behind (including its functioning) that may affect its safety must be corrected immediately.
  • Page 4 For use on public roads the relevant traffic rules also apply. Transporting persons is not permitted! Do not use the Speedseed Walk Behind when it is dark, during heavy rain/storms or on slopes with a gradient of more than 20 degrees.
  • Page 5 Before driving off, make sure you have a clear view both nearby and far away. On both sides of the Speedseed Walk Behind, safety stickers (Fig. 3, 4, 5) have been applied to the sideboards and to the back cover (Fig. 6) showing these warnings.
  • Page 6 Location of safety stickers (Fig. 6). Fig. 6...

  • Page 7: Table Of Contents

    5.0  ADJUSTING THE SEED QUANTITY ................11  6.0  TRANSPORTING THE ‘SPEEDSEED WALK BEHIND’ ..........12  7.0  GENERAL REMARKS FOR USING THE ‘SPEEDSEED WALK BEHIND’ ....12  8.0  USING THE ‘SPEEDSEED WALK BEHIND’ ............... 12  9.0  START/STOP PROCEDURE ..................13  10.0  TROUBLE SHOOTING (PROBLEM ANALYSIS) ............15 ...

  • Page 8: Technical Data

    TECHNICAL DATA Model Speedseed Walk Behind Working width 600 mm (23.6”) Working depth 5 mm -20 mm (0.2” - 0.8”) Sowing speed Max. 5 km/h (3.1 mph) Weight 210 kg (463 lbs) Sow hole distance Square 30 mm (1.18”) Number of holes per m Motor Briggs and Stratton 6.5 Hp...

  • Page 9: General Description

    GENERAL DESCRIPTION The ‘Speedseed Walk Behind’ is a continuous sowing machine that is used in all grass field applications. The machine is equipped with a spike roller and a brush at the rear of the machine. FIRST INSTALLATION, TAKING THE MACHINE OFF THE PALLET The ‘Speedseed Walk Behind’...

  • Page 10: Working Depth Adjustment Of The Spike Roller

    The procedure is as follows (see Figure 8) !! Make sure that the ‘Speedseed Walk Behind’ is blocked well and cannot move on its own accord !! !! Switch off the ‘Speedseed Walk Behind’ before making adjustments !! 1.

  • Page 11: Adjusting The Seed Quantity

    To obtain the correct quantity of seed, take the following steps (see Figure 9) !! Make sure that the ‘Speedseed Walk Behind’ is blocked well and cannot move on its own accord !! !! Switch off the ‘Speedseed Walk Behind’ before making adjustments !! Put the supplied tray (1) under the seed output opening at the bottom of the machine.

  • Page 12: Transporting The 'Speedseed Walk Behind

    Try to file these burrs off or replace the spike component. USING THE ‘SPEEDSEED WALK BEHIND’ Before using the ‘Speedseed Walk Behind’ in a location, you should check the following items: Are there loose objects in the field? First remove these objects.

  • Page 13: Start/Stop Procedure

    Is there danger of flying objects (e.g., balls) that distract the attention of the driver? If so, the ‘Speedseed Walk Behind’ can NOT be used. Are there hard objects in the ground? If so, use the ‘Speedseed Walk Behind’ with a low speed and adjust the working depth.
  • Page 14 5. Start the motor with a low number of revolutions. (Please refer to the supplied manual for the start procedure of the motor.) 6. Operate the machine by pulling the handle for driving (1) towards the handle bar. 7. Push the accelerator handle (2) downwards; start with a speed of approx. 3 km/h (1.9 mph).

  • Page 15: Trouble Shooting (Problem Analysis)

    11.0 EU DECLARATION The product ‘SPEEDSEED WALK BEHIND’ WITH A MACHINE NUMBER AS INDICATED ON THE MACHINE AND INDICATED IN THIS MANUAL to which this declaration refers, complies with stipulation of the 2006/42/EC machine directive and is in conformity with the following standards: NEN-EN-ISO 12100 : 2010 NEN- EN-ISO 13857 : 2008 Zeist, 27.12.2010...

  • Page 16: Maintenance

    12.0 MAINTENANCE Time schedule Check/Grease point Method Before every use Check for loose bolts / nuts. Tighten loose bolts / nuts with the correct tightening moment. Presence and readability of Replace these if not present the safety stickers or damaged. (Figure 6) After the first 20 working Check the roller bearings...

  • Page 17: Adjusting The Tension Of The Chain

    12.1 ADJUSTING THE TENSION OF THE CHAIN Figure 12 The ‘Speedseed Walk Behind’ is equipped with adjustable tension pulleys that keep the tension on the chain. Depending on the intensity of using the machine, the driveline could be affected by wear and tear.
