User Manual and Parts Book
REDEXIM-BLEC

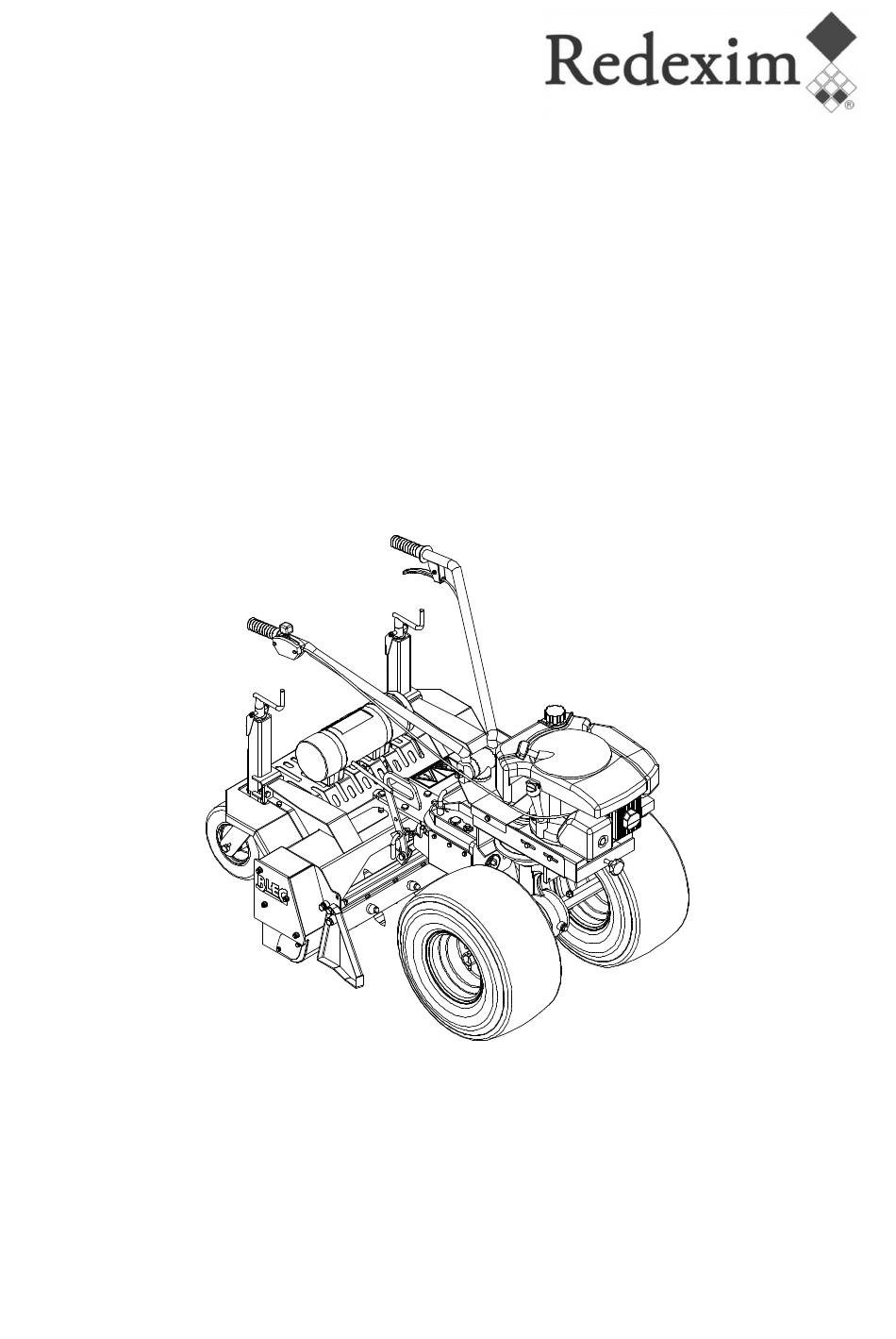

POWER BOX RAKE 80
Serial number:
Translation of the original manual
ATTENTION:
IT IS OF THE UTMOST IMPORTANCE TO READ THIS USER MANUAL CAREFULLY
PRIOR TO USING THE POWER BOX RAKE IN ORDER TO USE THE MACHINE SAFELY
AND TO OBTAIN THE BEST RESULTS.
1717 English 952.120.012
Kwekerijweg 8
3709JA Zeist
The Netherlands
T: (31)30-6933227
F: (31)30-6933228
E: verti-drain@redexim.com
www.redexim.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Redexim BLEC POWER BOX RAKE 80
Summary of Contents for Redexim BLEC POWER BOX RAKE 80
- Page 1 3709JA Zeist The Netherlands T: (31)30-6933227 F: (31)30-6933228 Serial number: E: verti-drain@redexim.com www.redexim.com Translation of the original manual ATTENTION: IT IS OF THE UTMOST IMPORTANCE TO READ THIS USER MANUAL CAREFULLY PRIOR TO USING THE POWER BOX RAKE IN ORDER TO USE THE MACHINE SAFELY AND TO OBTAIN THE BEST RESULTS.
-
Page 2: Warranty Conditions
THIS WARRANTY IS VALID FOR A PERIOD OF 12 MONTHS FROM THE PURCHASE DATE. BLEC-REDEXIM WARRANTIES ARE SUBJECT TO THE ‘GENERAL CONDITIONS FOR SUPPLY OF PLANT AND MACHINERY FOR EXPORT, NUMBER 188’ THAT ARE PUBLISHED UNDER THE AUSPICES OF THE UNITED NATIONS ECONOMIC COMMISSION FOR EUROPE. -
Page 3: Safety Instructions
Read and understand (Figure 1) the manual before you start using the BLEC-Redexim machine. If the machine is not used as described in this manual, this can result in injuries and/or damage to the machine. - Page 4 REQUIREMENTS FOR THE ENVIRONMENT AND TOWING VEHICLES Inspect the area to be treated before using the Power Box Rake. As described in the technical details, always use the Power Box Rake in combination with a towing vehicle that is suitable for this job. Do not use the Power Box Rake in the dark, in heavy rain/storm or on slopes with an angle larger than 20 degrees.
- Page 5 SAFETY STICKERS Safety stickers are located on both sides of the Power Box Rake (Figures 2 and 3). These safety stickers must always be clearly visible and legible and must be replaced if they have become damaged. In case of maintenance, adjustments and repair, always switch OFF the engine of the towing vehicle.
- Page 6 EU DECLARATION We – Redexim BV, Utrechtseweg 127, 3702 AC Zeist, Holland – declare entirely under our own responsibility that the product: POWER BOX RAKE WITH A MACHINE NUMBER AS INDICATED ON THE MACHINE AND INDICATED IN THIS MANUAL to which this declaration refers, complies with the stipulation of the 2006/42/EC machine directive and with the NEN-EN-ISO 12100 : 2010 and NEN-EN-ISO 13857 : 2008 norms.
-
Page 7: Table Of Contents
TABLE OF CONTENTS WARRANTY CONDITIONS ................... 2 REGISTRATION CARD ....................2 !! SAFETY INSTRUCTIONS !! ..................3 TECHNICAL DATA ..................... 8 GENERAL DESCRIPTION ................. 8 FIRST INSTALLATION ..................9 TRANSPORTING THE POWER BOX RAKE ............ 9 SAFETY WHEN USING THE POWER BOX RAKE .......... 9 START/STOP PROCEDURE ................ -
Page 8: Technical Data
1. TECHNICAL DATA Type Recommended vehicle 12 PK Working width 0.8 m (31.5”) Maximum working depth 75 mm (3”) Attached machine BCS 740 2-wheel tractor Weight of the Power Box Rake 92 Kg (202.4 lbs) Weight including the BCS 2-wheel tractor 234 Kg (515 lbs) Power Box Rake dimensions (l x w x h) 0.7 x 1 x 0.71 m... -
Page 9: First Installation
3. FIRST INSTALLATION The Power Box Rake must be prepared for first use as follows (see Figure 5): Remove the protective cover (1) by loosening the bolts and washers (2). Attach the Power Box Rake to the BCS 740 and fasten it using the nuts and washers included in the delivery. -
Page 10: Start/Stop Procedure
5. If the soil is frozen or very wet, postpone the activities until conditions improve. 6. Do NOT make sharp curves when the Power Box Rake touches the ground. 6. START/STOP PROCEDURE The start procedure is VERY important. Follow the described procedure precisely, because otherwise the Power Box Rake can get damaged. -
Page 11: Starting To Level
STARTING TO LEVEL The Power Box Rake can move soil, rocks, rubble, etc. This can be done by pulling the material forward using the machine (Figure 6). Set the required working depth by turning the spindles (1). Make sure that the rotor frame is perpendicular to the 2-wheel tractor. Make sure that the working depth is set so that the teeth of the rotor do not cut the soil. -
Page 12: Trouble Shooting (Problem Analysis)
7. TROUBLE SHOOTING (PROBLEM ANALYSIS) Problem Possible cause Solution Too much damage to Damaged rotor teeth Mount new teeth. the treated ground Not driving in a straight line Try to drive in a straight line. Soil is too wet. ... -
Page 13: Maintenance
8. MAINTENANCE Time schedule Check / Grease point Method Before every use Check for loose bolts / nuts. Tighten loose bolts / nuts with the correct tightening moment. Let the machine’s engine run for Listen and observe any 5 minutes. strange movements / sounds. -
Page 14: Technical Information: Lubrication Points
9. TECHNICAL INFORMATION: LUBRICATION POINTS To guarantee the proper functioning of the Power Box Rake, the lubrication points at both sides of the machine (Figure 7) must be greased periodically. Grease these points according to the table in Chapter 8. Figure 7 !! Consult the manual of the 2-wheel tractor for its proper maintenance instructions !! -
Page 15: Technical Information: Chain Tension
TECHNICAL INFORMATION: CHAIN TENSION The chain tension is important and should be checked regularly. It is also important to regularly clean and lubricate the chain and chain wheels when necessary (Figure 8). 1. Remove the protective cover. !! Make sure that the Power Box Rake is blocked well and cannot move on its own accord !! !! Switch off the 2-wheel tractor !! 2.
