Summary of Contents for Redexim Combi-Groom

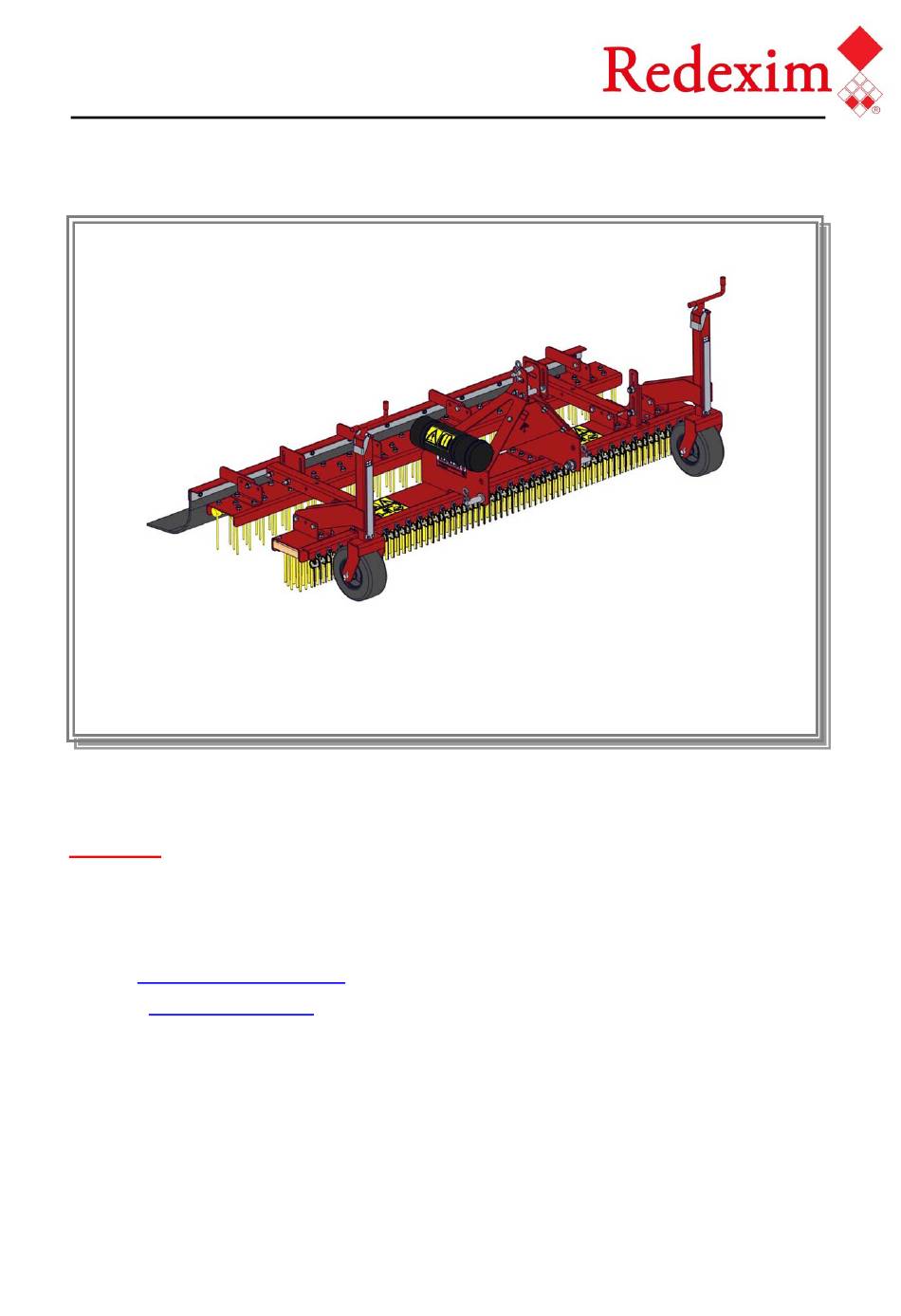

- Page 1 User Manual and Parts Book Combi-Groom 1808 English 962.120.000 REDEXIM Kwekerijweg 8 3709JA – Zeist – The Netherlands Tel.: +31 (0)306 933 227 E-mail: redexim@redexim.com Internet: www.redexim.com...
- Page 2 3702 AC Zeist, Holland declare entirely under our own responsibility that the product: COMBI-GROOM WITH A MACHINE NUMBER AS INDICATED ON THE MACHINE AND INDICATED IN THIS MANUAL to which this declaration refers, complies with the stipulation of the 2006/42/EC machine directive and the following norms: NEN-EN-ISO 12100:2010, NEN-EN-ISO 13857:2008.
- Page 3 Redexim FOREWORD Congratulations on your Combi-Groom purchase. For safe and long-lasting operation of this machine, it is necessary to read and to understand this user manual. It is impossible to work safely with this machine without complete knowledge of the content of the user manual.
-
Page 4: Table Of Contents
Redexim TABLE OF CONTENTS SAFETY INSTRUCTIONS ................5 1.1. Obligations of the user ..................5 1.2. Maintenance, repairs and adjustments ............. 6 1.3. Using the machine .................... 6 TECHNICAL DATA ..................7 GENERAL DESCRIPTION ................7 ... -
Page 5: Safety Instructions
Redexim 1. SAFETY INSTRUCTIONS This machine is designed for safe use. This can only be achieved if you completely follow the safety instructions described in this manual. Read and understand the manual before you start using this machine. If the machine is not used as described in this manual, this can result in injuries and/or damage to the machine. -
Page 6: Maintenance, Repairs And Adjustments
When unskilled people use, maintain or repair the machine, this could result in injuries to the user and to third parties. This should be avoided! Use only original Redexim parts for maintenance or repairs because of the safety of the machine and of the user. -
Page 7: Technical Data
Maximum 12 km/h (7.5 mph) Weight 195 kg (430 lbs) 2.01 x 1.3 x 0.9 m Dimensions (L x W x H) (80”x51”x35”) Three-point system Cat. 1 3. GENERAL DESCRIPTION The Combi-Groom is a raking / brushing machine for treating artificial and natural grass. -
Page 8: Safety Stickers
Redexim 4. SAFETY STICKERS Safety stickers are located on both sides of the machine. These safety stickers must always be clearly visible and legible and must be replaced if they have become damaged. In case of maintenance, adjustments and repair, always switch OFF the engine of the towing vehicle. -
Page 9: First Installation
Redexim 5. FIRST INSTALLATION The machine is placed vertically on the pallet. To remove the pallet and to place the machine horizontally on the ground, take the following steps (see Figure 1): Make sure that the cable/crane/lift can hoist minimum 300 kg (662 lbs). -
Page 10: Attaching And Detaching The Machine
Redexim 6. ATTACHING AND DETACHING THE MACHINE Attaching and detaching the machine has to be done carefully. Follow the instructions below: Figure 2 6.1. Attaching the machine Prior to attaching the machine, check the following the points: Check whether the machine is undamaged and whether it is safe to attach and use the machine. -
Page 11: Detaching The Machine
Redexim 6.2. Detaching the machine The machine should be detached in the following manner (see Figure 2): 1. Place the tractor and the machine on a flat surface. !! Make sure that the tractor and the machine cannot move while you are detaching... -
Page 12: Transport
Redexim 8. TRANSPORT The user is responsible for transporting the machine on public roads. Verify the national legislation regarding the regulations. In view of the machine’s weight, it is not advised to drive faster than 20 km/h (12.4 mph) with a raised machine. Higher speeds can lead to hazardous situations and result in damage to the machine and tractor. -
Page 13: Options
If the pin section is too aggressive for treating the soil, it can be replaced by a brush. You can order this option under number 262.120.006. See the parts book for mounting this option onto the Combi-Groom. Figure 4 10.2. -
Page 14: Towing Hook
Redexim 10.3. Towing hook If the towing vehicle is not fitted with a three-point system to lift the Combi-Groom, the Combi-Groom can be equipped with a towing hook. You can order this option under number 262.120.002. Figure 6... -
Page 15: Maintenance
Redexim MAINTENANCE 11.1. Maintenance schedule Time schedule Check point Work activities Before every use Loose parts, bolts and nuts Tighten loose bolts / nuts with the correct tightening moment. Safety stickers Presence and readability of the safety stickers Replace these if not present or damaged.
