Redexim Verti-Drain 7007 Operator / Technical And Parts Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

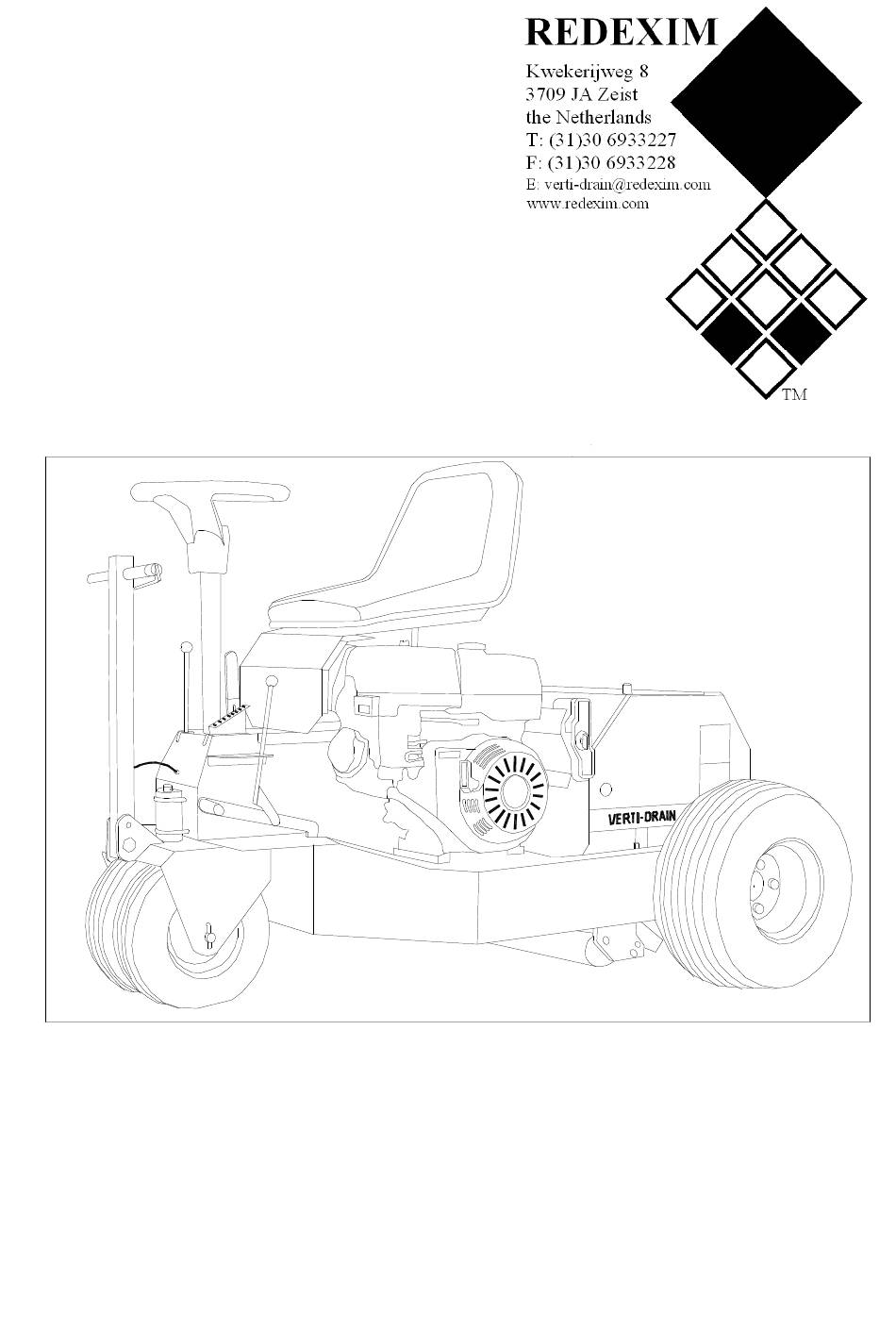

Operator / Technical
and (Parts) manual
Verti-Drain®
Model 7007
Serial number:
Translation of the original operating instructions
IN ORDER TO ENSURE THE SAFE USE AND TO ACHIEVE THE BEST
PERFORMANCE, IT IS ESSENTIAL THAT THIS OPERATORS
MANUAL IS CAREFULLY READ BEFORE THE VERTI-DRAIN IS
USED.
NOTE:
0948 English 911.120.400

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Verti-Drain 7007 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Redexim Verti-Drain 7007

Summary of Contents for Redexim Verti-Drain 7007

  • Page 1 Operator / Technical and (Parts) manual Verti-Drain® Model 7007 Serial number: Translation of the original operating instructions NOTE: IN ORDER TO ENSURE THE SAFE USE AND TO ACHIEVE THE BEST PERFORMANCE, IT IS ESSENTIAL THAT THIS OPERATORS MANUAL IS CAREFULLY READ BEFORE THE VERTI-DRAIN IS USED.

  • Page 2: Foreword

    FOREWORD Congratulations on the purchase of your VERTI-DRAIN. To ensure the safe and lasting operations of this VERTI-DRAIN you (and anyone using the machine) should read and understand this users manual. A complete knowledge of the contents of the manual is necessary in order to ensure the safe use of this machine.

  • Page 3: Safety Instruction

    SAFETY INSTRUCTIONS Never disconnect or shortcut any of the safety switches. The VERTI-DRAIN can be used as a sit-on and walk-in front unit. We strongly advise to transport the machine whilst sitting on the unit (gear 4,5 or 6) and to walk in front when working (gear 1,2 and 3) with the VERTI-DRAIN.

  • Page 4: Table Of Contents

    CONTENTS Par. Description Page Foreword Guarantee conditions Registration card Safety instruction Technical specification First setup General controls Working depth adjustment Tine angle adjustment Start/ stop procedures General usage of Verti-Drain Transport of Verti-Drain Problem analysis 10.0 Maintenance 11.0 Weight transfer system 12.0 EU Declaration 13.0...

  • Page 5: Technical Specification

    1.0 TECHNICAL SPECIFICATIONS Model 7007 Working width 675 mm (26 ½ ”) Working depth Up to “150 mm (6”) Weight 520 Kg (1140 lbs) Hole spacing side-to-side 55 mm (2 1/8”) Engine 13 HP, with electric start, max 3000 rpm. Hole pattern 1st gear: 28 x 55 mm 2nd gear: 55 x 55 mm...

  • Page 6: First Setup

    Fig.1 2.0 FIRST SETUP The machine is delivered at a pallet, which is bolted to the rear side of the machine. The rear wheel assemblies are removed and a fake shaft 9 has been put in place, to keep the sprocket wheel at its position.
  • Page 7 The machine can be prepared as follows: 1. Take all separate parts from machine 2. The rear wheels with brakes can be assembled, as follows, see Fig 1A: The control rod mechanism 3 with the brake pedal is already installed. Remove the bearing 4 standard nuts one by one and put the new longer ones 5 and 6 on.

  • Page 8: General Controls

    27 Parking brake 25 Foot brake Fig.2 3.0 GENERAL CONTROLS In fig.2. some key details of the machine are shown, as follows: Steering wheel when seated on the machine. Manual steering handle, when walking in front of machine. Dead men’s lever. When not squeezed engine will die, or not run. Lever to raise and drop Verti-Drain unit.

  • Page 9: Working Depth Adjustment

    19 Safety decall 911.280.402; keep safe distance of 4 mtr (14’) to machine all the time for bystanders and when maintenance is done or adjustments made, switch-off engine 20 Toolbox including manuals, combi tool and safety decall RA; read manual first. 21 Working depth adjustment spindle.

  • Page 10: Tine Angle Adjustment

    Raise the machine above the ground, slacken the nuts 4 at each side of the machine Adjust the tine angle by rotating the lever 6. The angle-value can be read from the decall 5 next to the handle. After the correct angle is set, tighten all nuts. @ An angle of 90 degrees means almost no tine movement in the ground.

  • Page 11: General Usage Of Verti-Drain

    5. Lower Verti-Drain unit by pulling lever 5 to the rear. As the decall shows, the Verti-Drain unit will drop and the V-belt drive will be engaged at the same time. 6. Drop the Verti-Drain unit fully on the ground (on the front roller). 7.

  • Page 12: Transport Of Verti-Drain

    8.0 TRANSPORT OF VERTI-DRAIN The Verti-Drain can not be used for transport along public streets. Put the Verti-Drain on a trailer. Use a safe trailer system to drive the Verti-Drain on and off. On slopes and undulated areas, reduce the transport speed of the Verti-Drain. Be aware that the Verti-Drain can roll-over, if unit is not properly driven.

  • Page 13: Maintenance

    Vibration during work Machine not stable on the ground Drop machine fully on the ground. Reduce working depth Use other thinner tines Machine out of balance Check crankshaft timing Rear wheels slip During work Too wet Too undulated Not enough weight on machine. Use spring force from second rod alongside hydraulic cylinder.

  • Page 14: Weight Transfer System

    Fig. 6 12.0 EU-Declaration We, Redexim Utrechtseweg 127 3702 AC Zeist Holland, hereby declare fully on our authority that the product: VERTI-DRAIN 7007, WITH MACHINE NUMBER AS INDICATED ON THE MACHINE AND IN THIS MANUAL, to which this declaration relates is according to the stipulation of the 2006/42/EC directive for machines.

  • Page 15: Technical Items

    13.0 TECHNICAL ITEMS 13.1 Rear wheel chain drive. In Fig. 7. The rear wheel chain drive is drawn. The idler 4 is located behind the rear wheel and can be accessed underneath the rear wheel support leg. The chain play A should be approximately 15 mm ( 0.6”), when moved by hand. Adjust the chain tension by unscrewing bolt/nut 1 one turn and pushing the idler up in its slot 2 and tighten again.

  • Page 17: Transmission Drive, Gearbox And V-Belt Adjustment

    13.4. Transmission drive, gearbox and V belt adjustment. The standard transmission mounted underneath the main frame is driven via gearbox 4 and V-belt drive 3, see fig.10. The V-belt 3 can be adjusted by unscrewing the 3x bolts/ nuts 2 one turn and moving gearbox 4 up or down.

  • Page 19: Disassembling The Engine

    13.7 Disassembling the engine. For several reasons, the engine may need to be removed, like changing V-belts and checking the main clutch inside. Hereunder a detailed description is made for doing it the right way. 13.7.1 Preparation. To prepare for disassembling the engine, or having a closer view at some of the inside items, it is important to understand the right setup of the construction.
  • Page 21 lot 8 in the drive shaft end connects the drive shaft with the hydraulic pump. Be sure they line up with each other when assembling. The stud with slotted hole can be replaced. The hydraulic tank 10 has the hydraulic pump inside. Contents should be app. 7 ltr (2 gallon). The tank assembly does not have to be removed, other than when the bearing 4 or the hydraulic components inside tank 10 needs to be checked.

  • Page 24: Main Clutch Details

    13.7.3 Main clutch details When the engine with main shaft is removed (see chapter 13.7.2), we have full access to the drive shaft. Some notes, see Fig.15.: The main shaft 6 has to be fully pushed on the crankshaft of the engine. When it lays against the collar of the crankshaft, the shaft is locked with clamp 1 and 14.

  • Page 26: Main Clutch Pedal Adjustment

    Fig.17 13.9 Main clutch pedal adjustment. The main clutch can be operated by the foot pedal 8 when sitting on the unit, or with lever 6 when walking in front of the unit, see Fig 17. Don’t use the lever 6 for activating the clutch when sitting on the unit. Lever 6 can be locked in gap 7.
  • Page 27 When tines are new, they may disrupt the turf, specially when the root system is weak. Clean the tines first by hand or use the machine for 10 minutes at another rough area. If the rootsystem is weak, don’t try to break the soil much deeper than the root system. Adjust the working depth till the penetration is about 75 mm (3”) more than the root system depth.

  • Page 28: Hollow Tines

    14.0.2 Hollow tines. With hollow tines, the soil can be exchanged. Different sizes are available, see the spare part manual. The side outlet should face to the rear of the machine. It is important that the tine angle is set a 90 degrees with hollow coring tines. The tine motion in the ground is minimum and we create a nice clean hole.

  • Page 29: Core Collector

    14.3 Core collector. For the 7007 Verti-Drain an identical core collector is available as for some other Verti-Drain models, see figure 20. The partnumber for the full kit is 211.700.006. It only fits when the rear roller is on (chapter 14.2), because we need the supports and the weight of the rear roller. The fine clean blade springs 3 can be mounted with bolts and nuts 2 to the main support 1.
