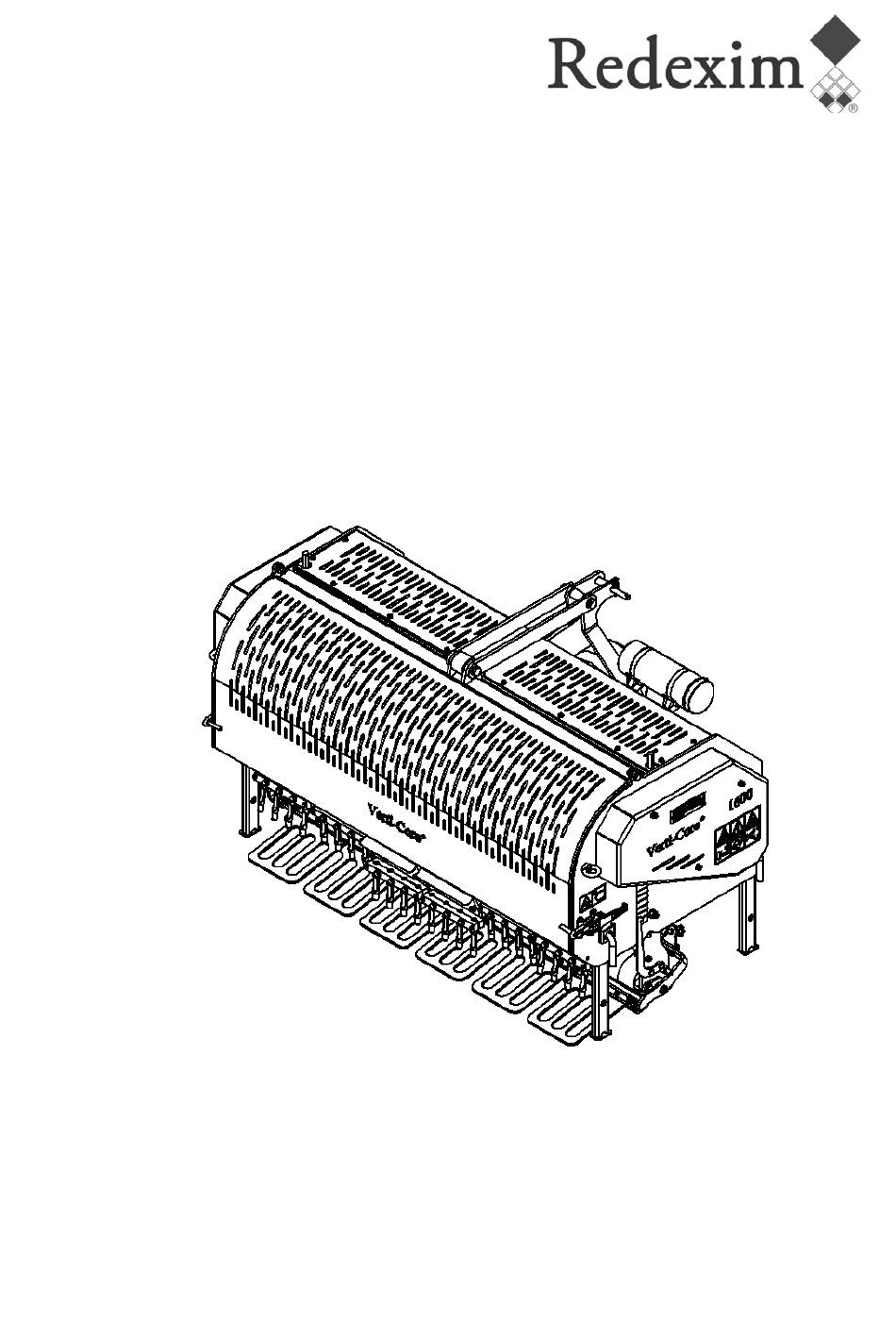

User Manual
and Parts Manual
Verti-Core III
Model: 1600-2100
Serial number:
Translation of the original operating
instructions
NOTE:
PLEASE READ THIS USER MANUAL CAREFULLY PRIOR TO USING THE
®
VERTI-CORE III
RESULTS.
®
TO ENSURE SAFE USE OF THE MACHINE AND TO GET THE BEST
1703 English 912.120.300
Kwekerijweg 8
3709JA Zeist
The Netherlands
T: (31)306933227
F: (31)306933228
E: verti-drain@redexim.com
www.redexim.com
Advertisement
Table of Contents
Related Manuals for Redexim Verti-Core III 1600
Summary of Contents for Redexim Verti-Core III 1600
- Page 1 ® Verti-Core III Kwekerijweg 8 3709JA Zeist The Netherlands Model: 1600-2100 T: (31)306933227 F: (31)306933228 E: verti-drain@redexim.com www.redexim.com Serial number: Translation of the original operating instructions NOTE: PLEASE READ THIS USER MANUAL CAREFULLY PRIOR TO USING THE ® VERTI-CORE III TO ENSURE SAFE USE OF THE MACHINE AND TO GET THE BEST RESULTS.
-
Page 2: Preface
PREFACE Congratulations on the purchase of your Verti-Core III. In order to ensure safe operation and a long life span of this Verti-Core III it is crucial that you read and fully understand this user manual. Without full knowledge of the contents of this manual, you will not be able to safely operate this machine. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS The Verti-Core III is designed to facilitate safe operation. But safe operation is only possible if all safety instructions described in this manual are observed without fail. Read and understand the manual prior to (Fig. 1) working with the Verti-Core III. Fig. - Page 4 Always check the Verti-Core III for loose nuts/bolts/parts prior to use. Check any possible hydraulic hoses regularly, and replace them when they are damaged or showing signs of excessive wear. Replacement hoses must meet the technical requirements specified by the manufacturer. The hydraulic system, if installed, must always be depressurized prior to working on it.
- Page 5 (6) Prior to working with the machine, all people who will be operating the Verti-Core III must be acquainted with all its functions and control elements. Hook up the Verti-Core III to the tractor as per the instructions (Danger of physical injury!) Make sure you have good visibility, both close by and of the entire surroundings, prior to setting off.
- Page 6 (7) Location of safety stickers. (Fig. 6) Fig. 6 All safety stickers have to remain on the machine at all times - and be fully understood by the operator. Used oil is harmful to the environment; dispose of it in line with local regulations.
-
Page 7: Eu Declaration
EU DECLARATION Redexim BV Utrechtseweg 127 3702 AC Zeist, Holland hereby declare under our own full responsibility that the product: VERTI-CORE III WITH MACHINE NUMBER AS INDICATED ON THE MACHINE AND IN THIS MANUAL, to which this declaration refers, complies with stipulation of the 2006/42/EC machine directive and is in... -
Page 8: Table Of Contents
TABLE OF CONTENTS PREFACE .......................... 2 WARRANTY CONDITIONS ......................2 REGISTRATION CARD ......................... 2 SAFETY INSTRUCTIONS ! ....................3 EU DECLARATION ........................7 1.0 TECHNICAL DATA ......................9 2.0 TAKING THE MACHINE OFF THE PALLET ..............10 3.0 THE PTO........................... 11 3.1 ... -
Page 9: Technical Data
TECHNICAL DATA Model 1600 2100 Working width 1.6 m (63”) 2.1mtr (83”) Working depth 0mm - 100mm (0”-4”) Tractor speed measured at 540 rpm on power take-off (PTO) shaft Hole spacing 55 mm (2.2”) Up to 1.8 km/h (1.2 mph) Hole spacing 110 mm (4.3”) Up to 3.6 km/h (2.4 mph) Weight... -
Page 10: Taking The Machine Off The Pallet
1. Attach a cable to the lifting points (1) on both sides of the machine, and to the top of the 3-point hitch (2) on the front. Verti-Core III 1600 Make sure the cable/crane/lift has the capacity to lift at least 1700 kg (3750 lbs). -
Page 11: The Pto
THE PTO The PTO is an essential part of the machine. This part drives the machine from the tractor, and ensures safe use of the machine, providing it has been maintained and installed correctly. The PTO has its own CE certification. -
Page 12: Pto Use
3.2 PTO USE Proper use of the PTO requires checking the following items: 1. While the Verti-Core III is operating, the angle of the pivoting points must never exceed 30 degrees. 2. Pivoting points must always be in line. 3. Sleeve overlap must be at least 150 mm. 4. - Page 13 4. Annual maintenance: - Remove the PTO from the machine - Inspect the PTO components. All damaged parts must be replaced. - Disassemble the slip clutch by removing all spring assembly bolts/nuts; the slip clutch should then fall apart. - Lay all parts down and check them closely. Replace any damaged and worn parts. - Clean all intermeshing parts.
-
Page 14: Connecting To The Tractor
CONNECTING TO THE TRACTOR Checks prior to connecting the Verti-Core III. Check the Verti-Core III for any visual damage, and repair if safe operation of the machine cannot be guaranteed. Check whether all nuts and bolts have been tightened properly. ... -
Page 15: Setting The Working Depth
SETTING THE WORKING DEPTH Fig. king dept hine lifte d off grou (see Fig.10) The procedure is as follows: !! Make sure the tractor/Verti-Core III are secured in place, and cannot start moving !! !! Switch the tractor off prior to getting off !! 1. -
Page 16: Driving Speed
DRIVING SPEED Driving speed is limited to 12 km/h (7.5mph). We advise against going any faster because that could lead to excessive wear and damage to the machine and the treated lawn. Hole spacing in the driving direction is determined by the driving speed. The input speed of the PTO shaft must not exceed 540 rpm. -
Page 17: Using The Verti-Core Iii
Stop as follows: 1. Lower the engine rpm to about 1000. 2. Raise the machine from the ground. 3. Disengage the PTO shaft, as soon as the tines are out of the ground. 4. Raise the machine further, until the tines are at least 120 mm above the ground. 5. -
Page 18: Transporting The Verti-Core Iii
TRANSPORTING THE VERTI-CORE III The user is responsible for the transport of the Verti-Core III behind the tractor on public roads. Check national legislation for regulations for driving on public roads. Do not exceed a speed of 12 km/h on open fields, due to the weight of the Verti-Core III. Higher speeds can pose a serious danger to the operator/bystanders, and could possibly damage the machine. -
Page 19: Disconnecting The Verti-Core Iii
10.0 DISCONNECTING THE VERTI-CORE III Fig. 12 The machine can be disconnected from the tractor in the following way (See Fig 12) 1. Drive the Verti-Core III to a storage space with a stable/even floor. !! Make sure the tractor is secured in place and cannot start moving !! !! Switch the tractor off before getting off !! 2. -
Page 20: Troubleshooting
11.0 TROUBLESHOOTING Machine vibrates Crankshaft turns irregularly Machine not at 90 degrees Angles of PTO pivoting points differ Difficult conditions PTO pivoting points not in line Adjust working depth Use thinner/shorter tines In case of dryness, sprinkle first Hollow tines bend/break Wrong tine Change tines, use shorter ones. -
Page 21: Maintenance
12.0 MAINTENANCE Before start-up: Check bolts/nuts See instructions in this Connect machine to a tractor manual Allow the machine to idle for Look and listen 5 minutes. Mount the tines See Chapter 15, Options Weekly Check gearbox oil level Clean the machine After first 20 hours of Lubricate PTO and roller 2 shots with EP 2... -
Page 22: Lubrication Pionts
13.0 LUBRICATION PIONTS Fig 13... -
Page 23: V-Belt Tensioning
14.0 V-BELT TENSIONING Fig. 14 V-belt tension is important and has to be checked regularly. It is also important to regularly clean v-belts and pulleys whenever required. Belts should be checked and adjusted one by one in the following way: Check whether the tractor engine is switched off and the machine is firmly placed on the ground. -
Page 24: Technical Information
TECHNICAL INFORMATION The Verti-Core III is generally not a complicated machine. A number of technical items will be explained further. If you still have questions after that, you should contact your dealer, who will be happy to help you. Fig. 15 Figure 15 depicts the structure of the crankshaft. -
Page 25: Releasing Crankshaft Tension
14.2 RELEASING CRANKSHAFT TENSION When crankshaft parts have been replaced, the shaft can run less smoothly. This can be down to pretensioning. These tensions have to be released. Act as follows, see Fig. 15: 1. Unscrew the nuts (3) of the bearings (4) a few turns. 2. - Page 26 Fig 17. Fig. 16+17 shows the torques of the most important nuts/bolts. Make sure that bolts and nuts for which the torque is not shown here, are tightened with the same tightening torque as similar bolts and nuts. When bolts and nuts come loose, you can use Loctite to tighten them.
-
Page 27: Options
15.0 OPTIONS The Verti-Core III is intended as a hollow core machine. Always use tines with the same length and thickness. Replace bent tines right away. If you fail to do so, the machine can become unstable. Do not use tines that are thicker and longer than specified in the technical specifications. -
Page 28: Turf Hold Down Fingers
When aerating using hollowing tines, cores are removed from the ground. The Windrow kit ensures that these cores are subsequently gathered so that they can be removed easily after working on the lawn. This kit is available under number: - 212.160.018 -> Verti-Core III 1600 - 212.210.002 -> Verti-Core III 2100...
