435 L/U Brushcutter

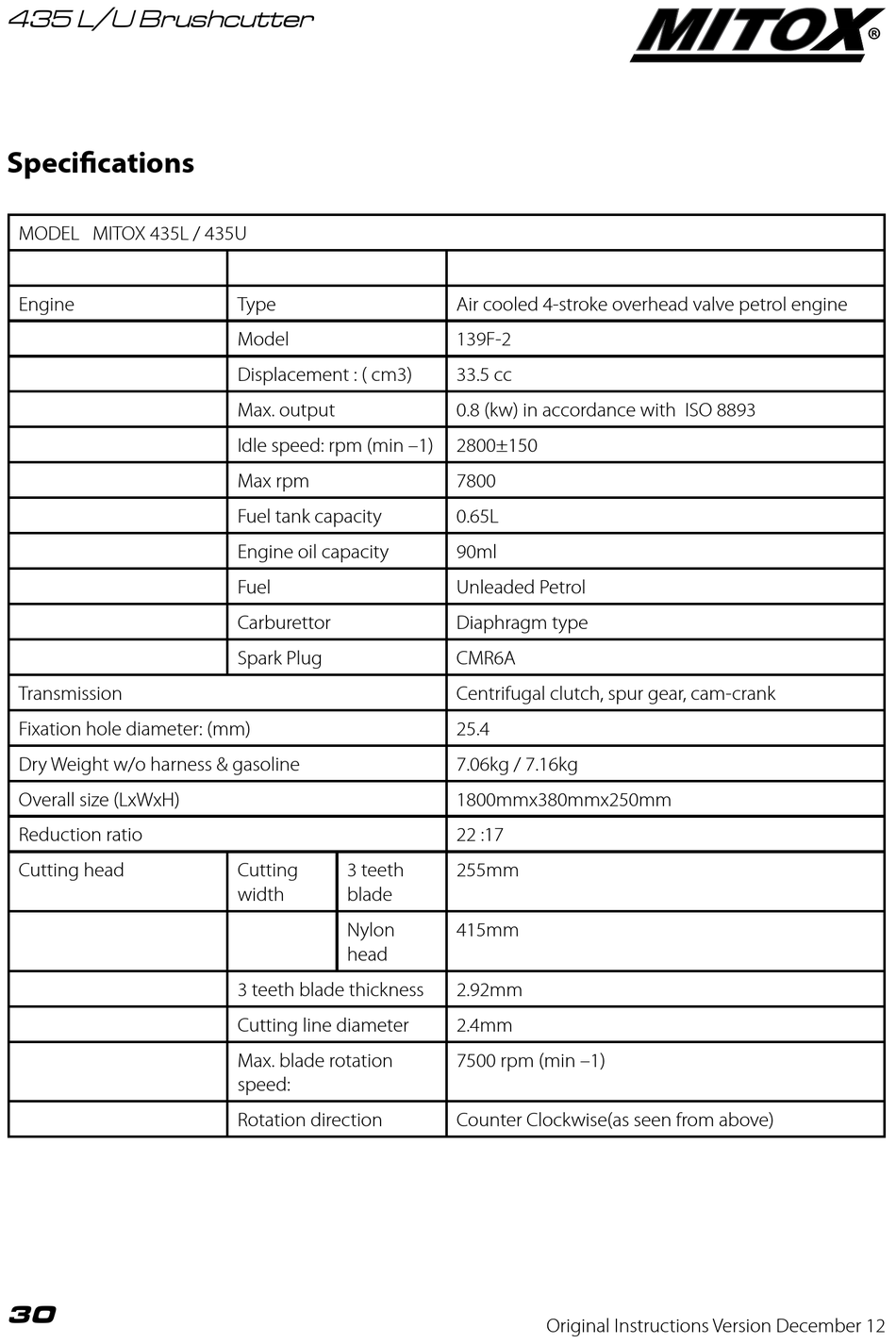

Specifications

MODEL MITOX 435L / 435U
Engine
Transmission
Fixation hole diameter: (mm)
Dry Weight w/o harness & gasoline
Overall size (LxWxH)
Reduction ratio
Cutting head
30
Type
Model
Displacement : ( cm3)
Max. output
Idle speed: rpm (min –1)
Max rpm
Fuel tank capacity
Engine oil capacity
Fuel
Carburettor
Spark Plug
Cutting 3 teeth
width blade
Nylon
head
3 teeth blade thickness
Cutting line diameter
Max. blade rotation
speed:
Rotation direction
Air cooled 4-stroke overhead valve petrol engine
139F-2
33.5 cc
0.8 (kw) in accordance with ISO 8893
2800±150
7800
0.65L
90ml
Unleaded Petrol
Diaphragm type
CMR6A
Centrifugal clutch, spur gear, cam-crank
25.4
7.06kg / 7.16kg
1800mmx380mmx250mm
22 :17
255mm
415mm
2.92mm
2.4mm
7500 rpm (min –1)
Counter Clockwise(as seen from above)
Original Instructions Version December 12
