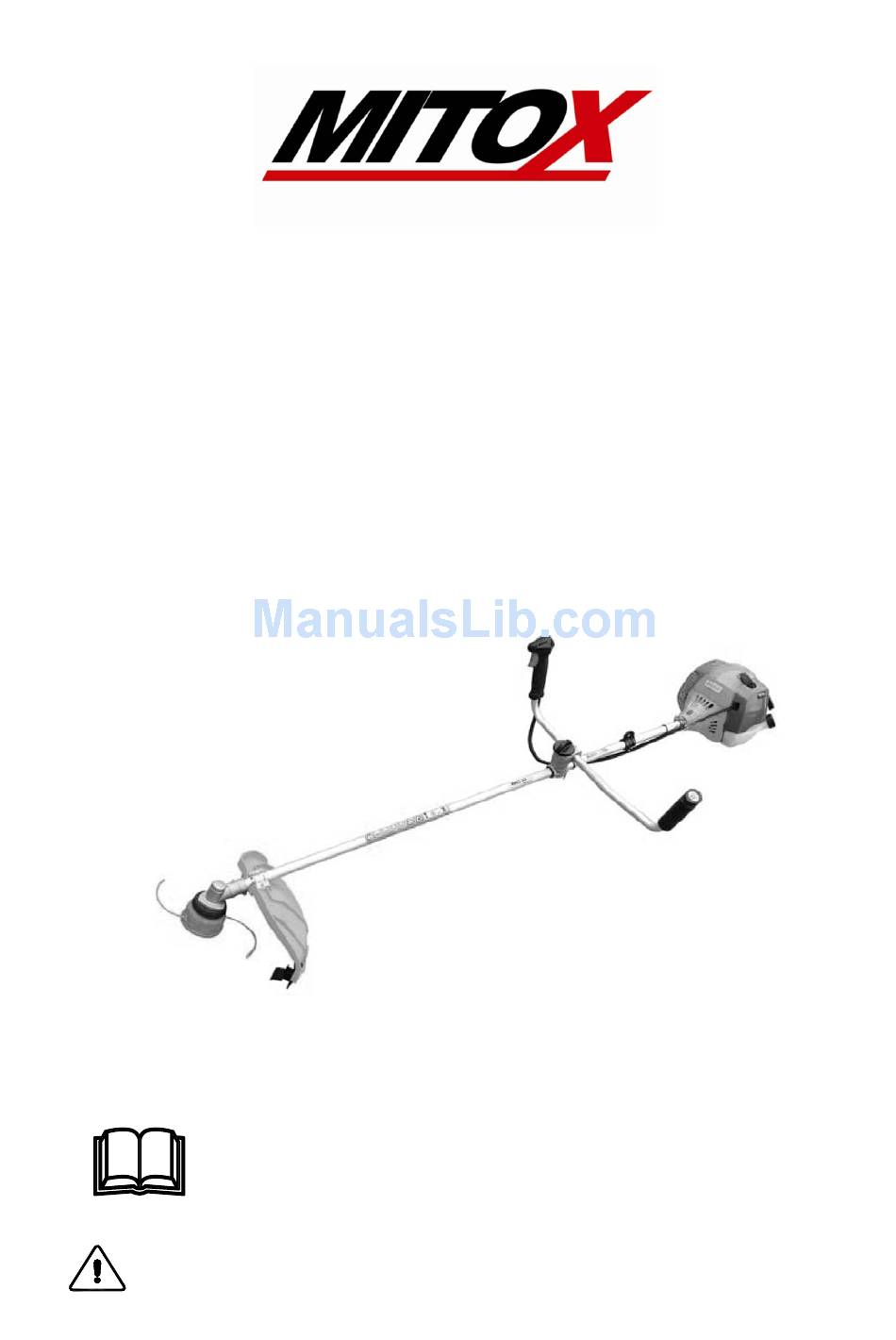

- Page 1 OWNER’S MANUAL PETROL BRUSH CUTTER 2800 AND 3600 USER MANUAL, MAINTENANCE INSTRUCTIONS AND SPARE PARTS READ THIS MANUAL CAREFULLY BEFORE OPERATING THE MACHINE WARNING: THIS SYMBOL INDICATES IMPORTANT SAFETY PRECAUTIONS...
-
Page 2: Description
DESCRIPTION L HANDLE U HANDLE BLADE 3 Point blade for grass, weed or brush cutting applications. DRIVE SHAFT Contains the drive shaft. THROTTLE TRIGGER Spring loaded to return to idle when released. IGNITION SWITCH Slide switch, forward to run, back to stop. SAFETY LEVER Prevents accidental operation of the throttle. -
Page 3: Table Of Contents
TABLE OF CONTENTS DESCRIPTION ......................1 SAFETY SYMBOLS....................3 WARNINGS IN THE MANUAL..................4 EXPLANATION OF SYMBOLS ON THE MACHINE............4 ASSEMBLY OF THE BRUSH CUTTER ..............5 INSTALLATION OF THE GUARD.................. 5 INSTALLATION OF THE NYLON HEAD ............... 5 INSTALLATION OF THE 3 TOOTH BLADE .............. -
Page 4: Safety Symbols
SAFETY SYMBOLS Warning: Danger, Caution Read the documentation and safety instructions which are provided in this user manual. When operating this machine, use protective equipment such as goggles, helmet, and ear defenders. Wear security shoes and gloves. Beware: Keep hands and feet away from moving parts. Always keep a safe distance from the cutting parts. -
Page 5: Warnings In The Manual
TAKING CARE OF WARNING LABELS • Always keep warning labels clean and free of scratches, which might make them illegible or difficult to read. If the warning labels provided with your brush cutter become damaged, peel off, or otherwise become illegible or difficult to read, order new labels from the authorised servicing dealer and replace the damaged labels. -
Page 6: Assembly Of The Brush Cutter
ASSEMBLY OF THE BRUSH CUTTER The blade fitted to the guard is sharp and can cause injury, always wear gloves INSTALLATION OF THE GUARD • Place the brush cutter with the head facing down. • Fit the shield using the bracket and 3 X M5x16 screws Fig1 & Fig 2. Fig1 INSTALLATION OF THE NYLON HEAD •... -
Page 7: Installation Of The 3 Tooth Blade
INSTALLATION OF THE 3 TOOTH BLADE Always wear gloves when touching the blade • Lay the brush cutter on its back with the gearbox shaft facing up. • Rotate the gearbox shaft until the hole in the holder A lines up with the slot in the plastic guard Fig 3. •... -
Page 8: Installation Of The Handle Assembly
Fig 11 INSTALLATION OF THE HANDLE ASSEMBLY • Remove the upper cap from the bracket by undoing the Lockscrew Fig 11. • Install the handle assembly, upper cap to the bracket and secure using the Lockscrew. • Ensure that the controls are located on the right and adjust the handle for maximum comfort before securing. -
Page 9: Safety Precautions
SAFETY PRECAUTIONS INTRODUCTION • Read this Owner/Operator Manual carefully. Be sure you understand how to operate this brush cutter properly before you use it. Failure to do so could result in serious injury. • Keep this manual handy so that you may refer to it later whenever any questions arise. -
Page 10: Safety And Operation
SAFETY AND OPERATION • This brush cutter is equipped with a very sharp blade, and when used incorrectly the blades can be extremely dangerous. • Improper handling can cause accidents, which may in turn lead to serious injury or death. For this reason, you should always be careful to adhere to the following instructions when using your brush cutter. -
Page 11: Avoid Noise Problems
AVOID NOISE PROBLEMS • Check and follow the local regulations for sound levels and hours of operation for garden machinery. • In general, operate brush cutters between 8 am and 5 pm on week days and 9 am to 5 pm at weekends. •... -
Page 12: Fuel Storage
FUEL STORAGE • Mixed two-stroke fuel which has been left unused for a period of one month or more may damage the carburettor and result in the engine failing to start or operate correctly. • When storing the brush cutter for a period of more than one month, empty the fuel tank, and run the engine to empty the carburettor of fuel. -
Page 13: Stopping The Engine
Fig 13 Fig 14 • Set the ignition switch Fig 15B to the RUN (I) position. Fig 15A Fig 15B • While holding the unit, pull out the starter rope firmly until engine fires (indicated by a cough from the engine). •... -
Page 14: Using The Brush Cutter
• During the first ten hours of work, avoid running the engine at maximum speed for a prolonged period until all the components have bedded in, after the engine has been run in, it will reach its maximum power. IMPORTANT •... -
Page 15: Spark Plug
If the element is broken or shrunk, replace with a new one. FIG 18 AIR FILTER COVER SCREW Fig 19 AIR FILTER Fig 19 AIR FILTER 2800 3600 CARBURETTOR • The carburettor mixture setting has been set at the factory and will not need adjusting. -
Page 16: Storage
Fig 21 SAFETY LOCK, Fig 21 THROTTLE LEVER THROTTLE LEVER SAFETY LOCK SAFETY LOCK • The safety lock is to prevent the throttle lever from accidentally being engaged. • The throttle lever Fig 21 can only be pressed in if the safety lock is held down. •... -
Page 17: Line Head
LINE HEAD This machine is fitted with a “Tap to Go” head. To release more line, tap the ‘bump knob’ against the ground with the engine at top speed: the line will be released automatically and the knife fitted to the guard will cut off any excess line. -
Page 18: Specification
Fig 25 Fig 24 Fig 27 Fig 26 SPECIFICATION MODEL MITOX 2800 Type Air cooled 2-stroke petrol engine Engine Model IE34F-2E Displacement : ( cm 25.4 cc Max. output 0.7 (kw) in accordance with ISO 8893 –1 Idle speed: rpm (min ±... -
Page 19: Troubleshooting
MODEL MITOX 3600 Type Air cooled 2-stroke petrol engine Engine Model IE36F-2E Displacement : ( cm 32.6 cc Max. output 0.9 (kw) in accordance with ISO 8893 –1 Idle speed: rpm (min ± 2800 –1 Max. power speed: rpm (min... -
Page 20: Maintenance Schedule
MAINTENANCE SCHEDULE Component Procedure Before Every 15 Every 25 Every 50 Note Hours Hours Hours Fuel leaks / spillage Wipe up Fuel tank, filter Inspect / clean Replace if necessary Idle adjust screw See above Adjust carburettor if necessary Spark plug BPMR7A Clean and readjust GAP .025”... -
Page 21: Conditions Of Warranty
The manufacturer undertakes to replace, any spare parts that are classified as defective by an appointed Mitox service dealer. The manufacturer will not accept liability for the replacement of the machine, either partially or wholly, and /or consequential damages and /or interest charge either directly or indirectly. - Page 22 équipées d'un moteur thermique dichiara sotto la sua propria responsabilità che i seguenti decespugliatori con motore termico a scoppio declara bajo su propria responsabilidad que las desbrozadoras con motor de combustion MITOX Brand. Marque. Marca Type. N° serial + engine Type.
- Page 23 équipées d'un moteur thermique dichiara sotto la sua propria responsabilità che i seguenti decespugliatori con motore termico a scoppio declara bajo su propria responsabilidad que las desbrozadoras con motor de combustion MITOX Brand. Marque. Marca Type. N° serial + engine Type.
