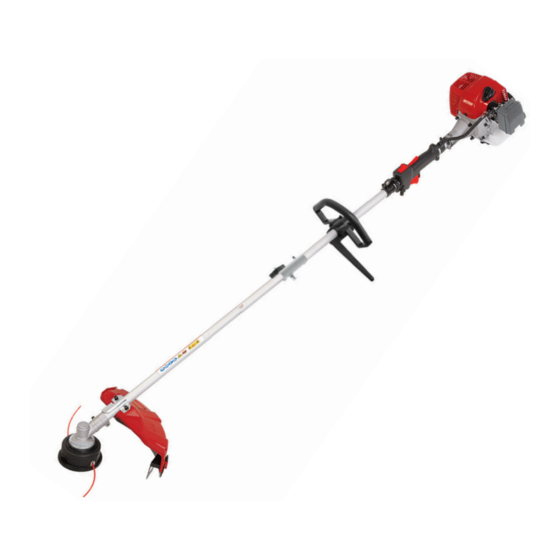

Mitox 26L-SP Operator's Manual

Special edition brushcutter
Hide thumbs
Table of Contents

Advertisement

Quick Links

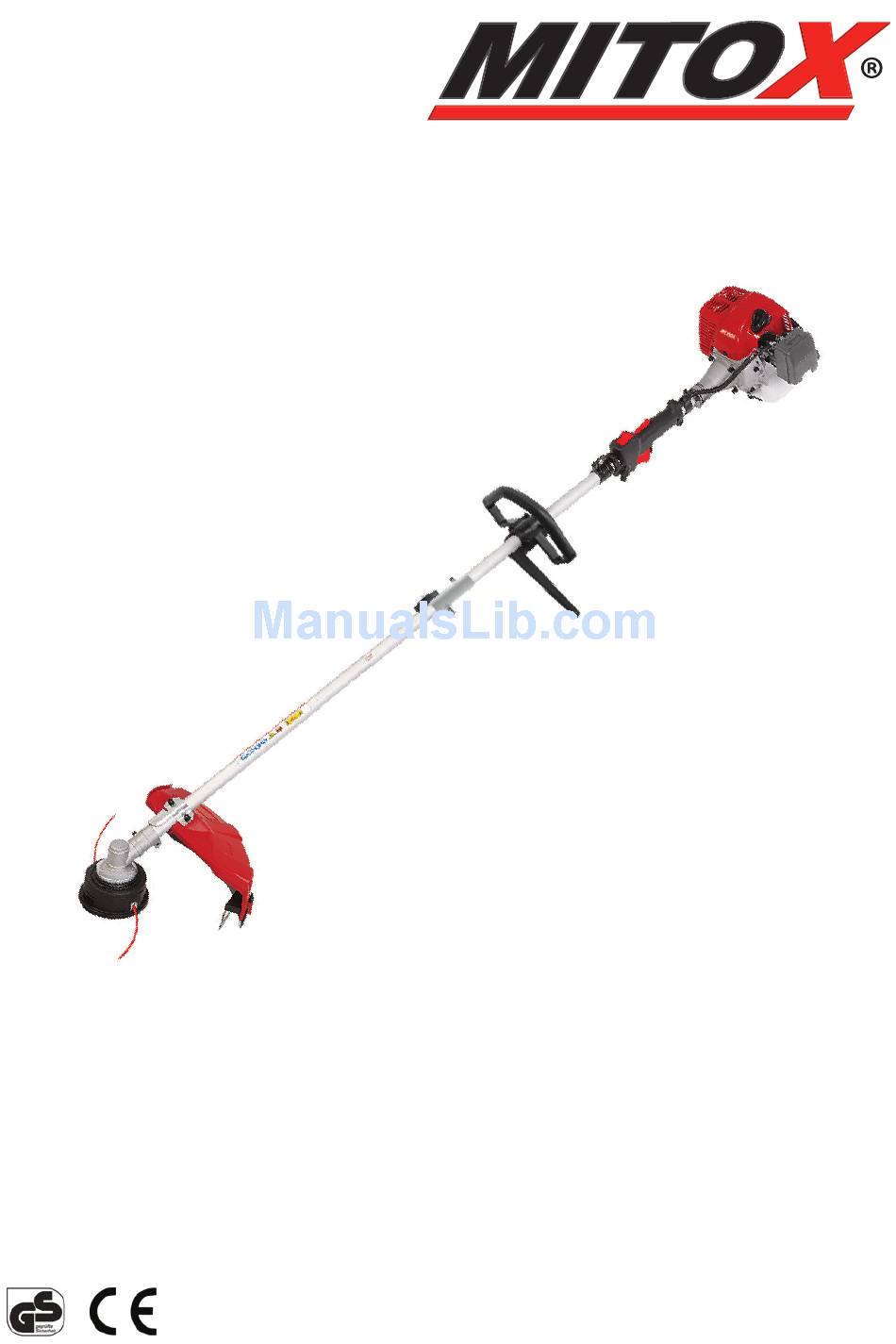

www.mitox.co.uk
Operator's Manual
user manual, maintenance instructions and spare parts
26L-SP Special Edition Brushcutter
Read this manual carefully before operating the machine
Original Instructions Version August 15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 26L-SP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mitox 26L-SP

Summary of Contents for Mitox 26L-SP

  • Page 1 Operator’s Manual user manual, maintenance instructions and spare parts 26L-SP Special Edition Brushcutter Read this manual carefully before operating the machine Original Instructions Version August 15...
  • Page 2 26L-SP Special Edition PRODUCT DESCRIPTION This Brushcutter is a 2 stroke fast running power tool and is designed to be used in a domestic application for trimming grass and light brush. Original Instructions Version August 15...

  • Page 3: Warnings In The Manual

    26L-SP Special Edition Component Location BLADE 3 Point blade for grass, weed or brush cutting applications. DRIVE SHAFT Contains the drive shaft. THROTTLE TRIGGER Spring loaded to return to idle when released. IGNITION SWITCH Slide switch, forward to run, back to stop.

  • Page 4: Safety Symbols

    26L-SP Special Edition Safety Symbols Warning: Danger, Caution Read the documentation and safety instructions which are provided in this user manual. When operating this machine, use protective equipment such as goggles, helmet and ear defenders. Wear security shoes and gloves.

  • Page 5: Taking Care Of Warning Labels

    26L-SP Special Edition Never modify the cutter in any way. Improper use of any cutter can cause serious or fatal injury. Beware of blade thrust Taking Care of Warning Labels Always keep warning labels clean and free of scratches, which might make them illegible or difficult to read.

  • Page 6: Safety Precautions

    Only approved Mitox accessories should be used with this product. This Brushcutter is equipped with extremely sharp blades, always wear sturdy gloves when handling the blades and fit the safety guards when not in use.

  • Page 7: Work Clothing And Safety Equipment

    26L-SP Special Edition Never use the Brushcutter in conditions as described below: When the ground is slippery or when other conditions exist which might make it difficult to maintain a steady posture while using the Brushcutter. At night, at times of heavy fog, or at any other times when your field of vision is limited and it would be difficult to gain a clear view of the area where the Brushcutter is to be used.

  • Page 8: Safe Handling Of Fuel

    26L-SP Special Edition this reason, you should always be careful to adhere to the following instructions when using your Brushcutter. Never hold the Brushcutter in a way in which the cutting head is pointing towards someone else. Never allow the blade to come into contact with your body.

  • Page 9: Before Starting The Engine

    26L-SP Special Edition Before Operating the Brushcutter Before beginning work, carefully check the work area and remove any obstacles. Within a perimeter of 15 metres of the work area should be considered a hazardous area into which no- one should enter while the Brushcutter is being used, and when necessary this area should be marked with a warning rope, warning signs, or other forms of warning.

  • Page 10: Avoid Noise Problems

    26L-SP Special Edition Avoid Noise Problems Check and follow the local regulations for sound levels and hours of operation for garden machinery. In general, operate Brushcutters between 8 am and 5 pm on weekdays and 9 am to 5 pm at weekends.
  • Page 11 NOTE Due to increased Ethanol content in petrol we recommend the use of B3C Ethanol Shield 2-Stroke Oil, or Ethanol Shield Fuel Stabiliser to protect your MITOX® engine against the harmful effects of Ethanol. Visit www.b3cfuel.co.uk for more information. Original Instructions Version August 15...

  • Page 12: Fuel Storage

    26L-SP Special Edition Fuel Storage Mixed two-stroke fuel (without Ethanol Shield) which has been left unused for a period of one month or more may damage the carburettor and result in the engine failing to start or operate correctly. When storing the Brushcutter for a period of more than one month, empty the fuel tank, and run the engine to empty the carburettor of fuel.
  • Page 13 26L-SP Special Edition Assembly of the Brushcutter The blade fitted to the guard is sharp and can cause injury, always wear gloves. Installing the Guard • Place the Brushcutter with the head facing down. • Fit the shield using the bracket and 2 X M6x20 screws...
  • Page 14 26L-SP Special Edition Installing the Brushcutter Attachment Attachment Locking Clamp Locking pin shaft hole • Pull out the locking pin (1) and twist (2) to lock in the outer position (3). • Loosen the clamp by turning the handle (4).

  • Page 15: Point Blade

    26L-SP Special Edition Using the Brushcutter Choosing the cutting device Choose the most suitable cutting device for the job to be done, according to these general indications: • The cutting line head can eliminate tall grass and non-woody vegetation •...
  • Page 16 26L-SP Special Edition Installing the Nylon Head • Lay the Brushcutter on its back with the gearbox shaft facing up. Rotate the gear box shaft until the hole Insert an Allen key or screwdriver into in the holder A lines up with the slot in the hole in the gearbox cover and into the metal guard.
  • Page 17 26L-SP Special Edition Installing the 3 Point Blade • Lay the Brushcutter on its back with the gearbox shaft facing up. Insert an Allen key or Rotate the screwdriver gear box shaft into the hole until the hole in the gearbox...
  • Page 18 26L-SP Special Edition Installing the Loop Handle Assembly (L Models) Upper Handle Fixing Screws (4) Drive Shaft Rubber Block To Engine Lower Handle Drive Shaft To Cutter Head • Fix the loop-handle to the shaft over the rubber block provided. Adjust to a comfortable working position then tighten the fixing screws securely.

  • Page 19: Starting The Engine

    26L-SP Special Edition Operation Keep clear of the cutter head as it may start moving when the engine starts. Starting the Engine CAUTION do not pull the starter cord all the way out and do not let go of the starter handle when the cord is extended, this can damage the starter mechanism.
  • Page 20 26L-SP Special Edition Fig 5 - Move the choke lever (e) to the Fig 6 - Pull the starter rope until the engine open ( ) position. starts, then squeeze the throttle briefly to release the fast idle control and return the engine to idle.

  • Page 21: Fuel Filter

    26L-SP Special Edition Running In During the first ten hours of work, avoid running the engine at maximum speed for a prolonged period until all the components have bedded in, after the engine has been run in, it will reach its maximum power.

  • Page 22: Spark Plug

    26L-SP Special Edition Spark Plug 0.6 - 0.7mm Poor starting or misfiring is often caused by a fouled or defective spark plug, clean and reset the gap to 0.65 mm, or replace the spark plug with BPMR7A as necessary. Air Filter Before using the Brushcutter, check the air filter (a).
  • Page 23 26L-SP Special Edition Carburettor The carburettor mixture setting has been set at the factory and will not need adjusting. Adjusting the idle speed: If adjustment is necessary turn the T screw (a) clockwise until the cutting head starts to move, then turn the screw T anticlockwise until the cutting head stops.

  • Page 24: Gear Case

    26L-SP Special Edition Storage • Remove the spark plug; pour a small amount of oil into the cylinder. Rotate the crankshaft several times using the starting rope in order to distribute the oil. Put the spark plug back in. •...
  • Page 25 26L-SP Special Edition Replacing the Nylon Cord Check to see if the nylon head is damaged before replacing the cord. If you can see serious traces of wear or damage, you must replace the complete nylon head. 1. Stop the engine.

  • Page 26: Troubleshooting

    26L-SP Special Edition Troubleshooting Engine will not start, power loss: • Check that the fuel tank is not empty. Fill with mixed fuel. • The fuel does not reach the carburettor. Change the fuel filter in the fuel tank. •...

  • Page 27: Specifications

    26L-SP Special Edition Specifications Model 26L-SP Special Edition Engine type 1E34F-4 (air cooled 2-stroke petrol engine) Power  (max.) 0.75Kw Engine displacement 25.4cc Idling speed 3100 ± 400 Engine maximum speed no load Grass Trimmer 6900 rpm, Brushcutter 7900 rpm Cutting diameter...
  • Page 28 26L-SP Special Edition Parts Diagram - Engine Original Instructions Version August 15...
  • Page 29 26L-SP Special Edition Parts List - Engine ID No. Part Number escription MIGB/T2671.2 M5X16 SCREW M5X16 MIGB/T93 M5 SPRING WASHER M5 MIGB/T97.1 M5 WASHER M5 MIGB/T2671.2 M5X25 SCREW M5X25 MIGB/T93 M5 SPRING WASHER M5 MIGB/T97.1 M5 WASHER M5 MITBC260AD.01.00.00-10 BUSHING MITBC260D.01.12.00-00...
  • Page 30 26L-SP Special Edition Parts List - Engine ID No. Part Number escription MIGB/T97.1 M5 WASHER M5 MIGB/T119.2 5X10 PIN 5X10 MIGB/T2671.2 M5X30 SCREW M5X30 MIGB/T93 M5 SPRING WASHER M5 MIGB/T97.1 M5 WASHER M5 MIYD38-3.01.01.02-00 OIL SEAL 12X22X7 MITBC260D.01.10.00-00 FLYWHEEL MIGB/T6177.2 M8X1 NUT M8X1 MIGJB25D.01.00.00-15...
  • Page 31 26L-SP Special Edition Parts List - Engine ID No. Part Number escription MIGB/T2671.2 M5X12 SCREW M5X12 MIGB/T93 M5 SPRING WASHER M5 MIGB/T97.1 M5 WASHER M5 MIGB/T2671.2 M5X55 SCREW M5X55 MIGB/T93 M5 SPRING WASHER M5 MIGB/T97.1 M5 WASHER M5 MITBC226D.1-2 MUFFLER COVER MITBC260D.01.09.00-00...
  • Page 32 26L-SP Special Edition Parts List - Engine ID No. Part Number escription MITBC260D.01.13.00-1 FUEL TANK MITBC430D.01.13.00-2 AV RUBBER MITBC260D.01.00.00-7 BRACKET- FUEL TANK MIGB/T2671.2 M5X25 SCREW M5X25 MIGB/T93 M5 SPRING WASHER M5 MIGB/T97.1 M5 WASHER M5 MITBC430D.01.13.00-5 RETURN PIPE MITBC430D.01.13.00-3 GROMMET MITBC430D.01.13.00-4...
  • Page 33 26L-SP Special Edition Parts Diagram - Shaft Original Instructions Version August 15...
  • Page 34 26L-SP Special Edition Parts List - Shaft ID No. Part Number escription MITBC430D.03.02-00 HARNESS CLAMP ASSEMBLY MIGB/T70.1 M5X20 BOLT M5X20 MITBC430D.03.00-2 CLAMP MIGB/T6170 M5 NUT M5 MITBC260DJ.03.02-00 OUTER SHAFT - UPPER MITBC431DJ.03.03-00 COUPLING MIGB/T70.1 M5X25 CAP HEAD SCREW M5X25 MIGB/T93 M5 SPRING WASHER M5 MIGB/T97.1 M5...
  • Page 35 26L-SP Special Edition Parts List - Shaft ID No. Part Number escription MITBC431D.04.00-4 GEAR MITBC431D.04.00-3 GEAR SHAFT MIGB/T276 6002-2Z BALL BEARING 6002-2Z MIGB/T893.1 32 CIRCLIP 32 MITBC431D.04.00-6 BLADE CLAMP - LOWER MITBC431D.04.00-5 BLADE CLAMP - UPPER MITBC431D.04.00-8 NUT PROTECTOR MIGB/T6177.2 M10X1.25 FLANGE NUT LEFT MIGB/T2671.2 M6X12...
  • Page 36 26L-SP Special Edition Parts List - Shaft ID No. Part Number escription MIGB/T6170 M5 NUT M5 MITBC430DJ.03.00-1 DRIVE SHAFT - UPPER MIGB/T6170 M5 NUT M5 MITBC430S.05.02-4 THROTTLE SPRING MITBC430S.05.05-00 CABLE (A) MITBC430S.05.06-00 CABLE (B) MITBC430S.05.02-8 CONDUIT MITBC430S.05.03-00 THROTTLE CABLE MIGB/T70.1 M5X22 CAP HEAD SCREW M5X22 MIGB/T845 ST4.2X19...
  • Page 37 26L-SP Special Edition Original Instructions Version August 15...
  • Page 38 26L-SP Special Edition Original Instructions Version August 15...
  • Page 39 26L-SP Special Edition Original Instructions Version August 15...
  • Page 40 The manufacturer undertakes to replace, any spare parts that are classified as defective by an appointed Mitox service dealer. The manufacturer will not accept liability for the replacement of the machine, either partially or wholly, and /or consequential damages and /or interest charges either directly or indirectly.
