Mitox 260LX Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

www.mitoxgm.co.uk

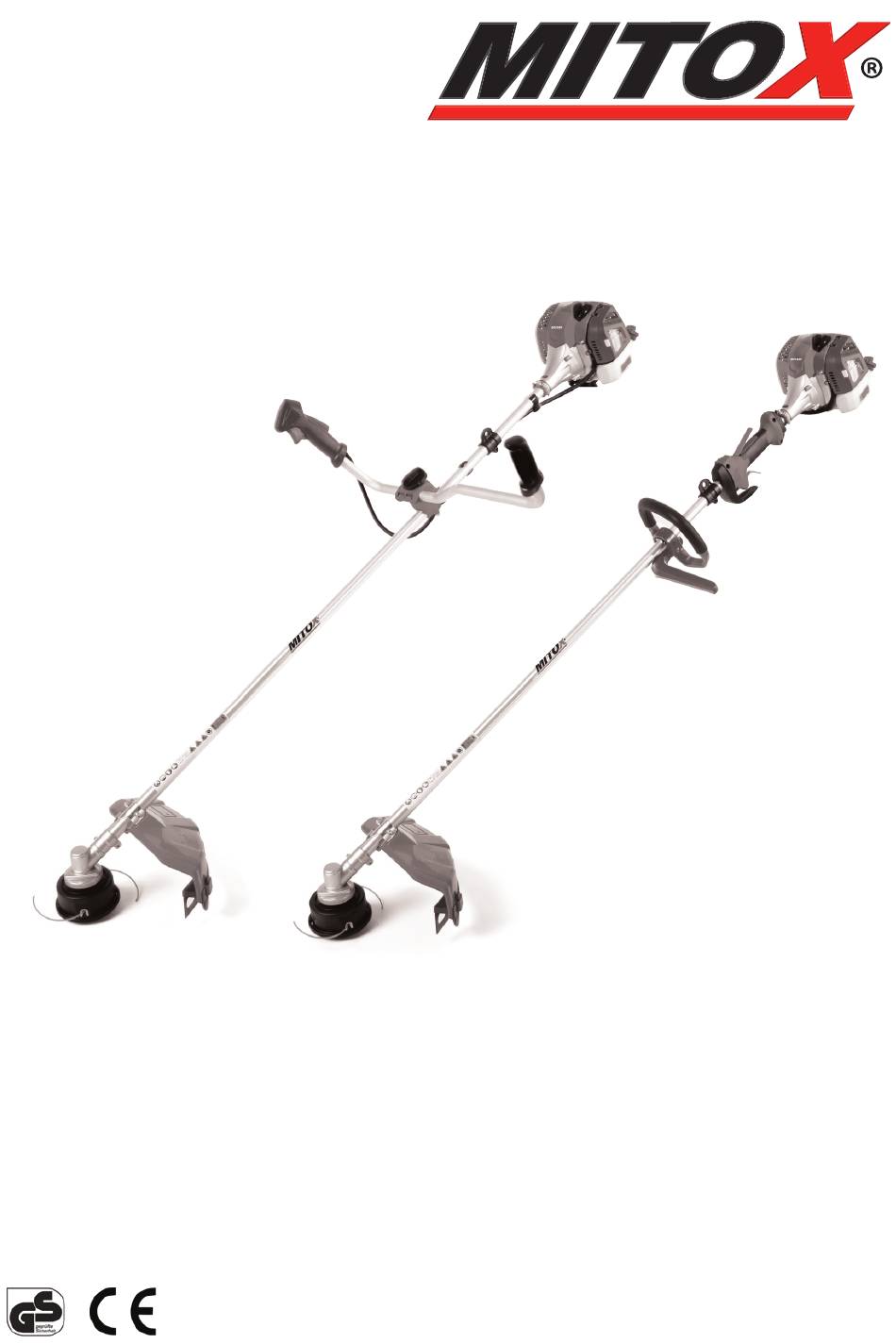

Operator's Manual
user manual, maintenance instructions and spare parts
260LX/UX, 330LX/UX,
430UX, 530UX Brushcutter
Read this manual carefully before operating the machine
Original Instructions Version August 13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 260LX and is the answer not in the manual?

Questions and answers

Related Manuals for Mitox 260LX

Summary of Contents for Mitox 260LX

  • Page 1 Operator’s Manual user manual, maintenance instructions and spare parts 260LX/UX, 330LX/UX, 430UX, 530UX Brushcutter Read this manual carefully before operating the machine Original Instructions Version August 13...
  • Page 2 260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter PRODUCT DESCRIPTION This Brushcutter is a 2 stroke fast running power tool and is designed to be used in a domestic ap- plication for trimming grass and light brush. Original Instructions Version August 13...

  • Page 3: Component Location

    260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Component Location BLADE 3 Point blade for grass, weed or brush cutting applications. DRIVE SHAFT Contains the drive shaft. THROTTLE TRIGGER Spring loaded to return to idle when released. IGNITION SWITCH Slide switch, forward to run, back to stop.

  • Page 4: Safety Symbols

    260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Safety Symbols Warning: Danger, Caution Read the documentation and safety instructions which are provided in this user manual. When operating this machine, use protective equipment such as goggles, helmet and ear defenders. Wear security shoes and gloves.

  • Page 5: Explanation Of Symbols On The Machine

    260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Never modify the cutter in any way. Improper use of any cutter can cause serious or fatal injury. Beware of blade thrust Taking Care of Warning Labels Always keep warning labels clean and free of scratches, which might make them illegible or difficult to read.

  • Page 6: Safety Precautions

    Only approved Mitox accessories should be used with this product. This Brushcutter is equipped with extremely sharp blades, always wear sturdy gloves when handling the blades and fit the safety guards when not in use.

  • Page 7: Work Clothing And Safety Equipment

    260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Never use the Brushcutter in conditions as described below: When the ground is slippery or when other conditions exist which might make it difficult to maintain a steady posture while using the Brushcutter. At night, at times of heavy fog, or at any other times when your field of vision is limited and it would be difficult to gain a clear view of the area where the Brushcutter is to be used.

  • Page 8: Safe Handling Of Fuel

    260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter this reason, you should always be careful to adhere to the following instructions when using your Brushcutter. Never hold the Brushcutter in a way in which the cutting head is pointing towards someone else.

  • Page 9: Before Operating The Brushcutter

    260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Before Operating the Brushcutter Before beginning work, carefully check the work area and remove any obstacles. Within a perimeter of 15 metres of the work area should be considered a hazardous area into which no- one should enter while the Brushcutter is being used, and when necessary this area should be marked with a warning rope, warning signs, or other forms of warning.

  • Page 10: Avoid Noise Problems

    260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Avoid Noise Problems Check and follow the local regulations for sound levels and hours of operation for garden machinery. In general, operate Brushcutters between 8 am and 5 pm on weekdays and 9 am to 5 pm at weekends.

  • Page 11: Two-Stroke Fuel

    260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Two-Stroke Fuel Fuel is very flammable. Do not smoke or bring any flame or sparks near fuel. Always stop the engine and allow it to cool before refuelling. Refuel outdoors on bare ground, restart engine at least 5m away from the refuelling stop.

  • Page 12: Fuel Storage

    260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Fuel Storage Mixed two-stroke fuel which has been left unused for a period of one month or more may damage the carburettor and result in the engine failing to start or operate correctly. When storing the Brushcutter for a period of more than one month, empty the fuel tank, and run the engine to empty the carburettor of fuel.

  • Page 13: Installing The Guard

    260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Assembly of the Brushcutter The blade fitted to the guard is sharp and can cause injury, always wear gloves. Installing the Guard • Place the Brushcutter with the head facing down. • Fit the shield using the bracket and 2 X M5x16 screws Original Instructions Version August 13...
  • Page 14 260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Installing the Nylon Head • Lay the Brushcutter on its back with the gearbox shaft facing up. Rotate the gear box shaft until the hole Insert an Allen key or screwdriver into in the holder A lines up with the hole in the hole in the metal guard and into the metal guard.
  • Page 15 260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Installing the 3 Tooth Blade • Lay the Brushcutter on its back with the gearbox shaft facing up. Insert an Allen key or Rotate the screwdriver gear box shaft into the hole until the hole in the gearbox in the holder A cover and into lines up with holder A.
  • Page 16 260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Using the Brushcutter Choosing the cutting device Choose the most suitable cutting device for the job to be done, according to these general indications: • The cutting line head can eliminate tall grass and non-woody vegetation • The 3-point blade is suitable for cutting brushwood and small shrubs up to 2 cm in diameter. Nylon Head • Cut the grass in 1.5 metre widths, keeping the machine well balanced. •...
  • Page 17 260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter 3-Point Blade • Start cutting above the undergrowth and then move down with the blade so as to cut the brush into small pieces. • Avoid hitting stones, piles of earth, small pieces of wood or anything that could be hidden or difficult to see in the grass. Original Instructions Version August 13...
  • Page 18 260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Installing the Loop Handle Assembly (LX Models) Ensure Arrow Points Towards Cutter Head Upper Handle Fixing Screw Clamp Rubber Block Drive Shaft To Engine Drive Shaft To Cutter Head Lower Handle • Fix the Clamp to the Drive Shaft, then pinch the flat lugs together on the underside of the Clamp and slide them into the slot in the Lower Handle.
  • Page 19 260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Installing the U Handle Assembly (UX Models) Lockscrew Washer Upper Bracket Drive Shaft To Right handle To Engine Lower Bracket To Left handle Drive Shaft To Cutter Head • Remove the upper bracket from the assembly by undoing the Lockscrew. • Install the U handle assembly, reassemble the bracket assembly and secure using the Lockscrew. •...

  • Page 20: Operation

    260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Operation Keep clear of the cutter head as it may start moving when the engine starts. Starting the Engine CAUTION do not pull the starter cord all the way out and do not let go of the starter handle when the cord is extended, this can damage the starter mechanism.

  • Page 21: Stopping The Engine

    260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Fig 5 - Move the choke lever (e) to the Fig 6 - Pull the starter rope until the engine open ( ) position. starts, then squeeze the throttle briefly to release the fast idle control and return the engine to idle.

  • Page 22: Maintenance

    260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Running In During the first ten hours of work, avoid running the engine at maximum speed for a prolonged period until all the components have bedded in, after the engine has been run in, it will reach its maximum power.

  • Page 23: Spark Plug

    260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Spark Plug 0.6 - 0.7mm Poor starting or misfiring is often caused by a fouled or defective spark plug, clean and reset the gap to 0.65 mm, or replace the spark plug with RCJ7Y (Champion) as necessary.

  • Page 24: Safety Lock

    260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Carburettor The carburettor mixture setting has been set at the factory and will not need adjusting. Adjusting the idle speed: If adjustment is necessary turn the T screw (a) clockwise until the cutting head starts to move, then turn the screw T anticlockwise until the cutting head stops.
  • Page 25 260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Storage • Remove the spark plug; pour a small amount of oil into the cylinder. Rotate the crankshaft several times using the starting rope in order to distribute the oil. Put the spark plug back in. • Remove the fuel from the machine. Gear Case • Remove the bolt (a) on the gear case, top up the gearbox using Lithium grease and refit the bolt, every 15 hours use.
  • Page 26 260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Replacing the Nylon Cord Check to see if the nylon head is damaged before replacing the cord. If you can see serious traces of wear or damage, you must replace the complete nylon head.

  • Page 27: Troubleshooting

    260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Troubleshooting Engine will not start, power loss: • Check that the fuel tank is not empty. Fill with mixed fuel. • The fuel does not reach the carburettor. Change the fuel filter in the fuel tank. • There is water in the fuel. Drain and clean the fuel system. • The air filter is dirty. Clean or replace the air filter. • There are carbon deposits in the exhaust muffler restricting the engine. Clean or change the muffler. • Spark plug is worn. Replace spark plug. Original Instructions Version August 13...

  • Page 28: Service Schedule

    260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Service Schedule Component Procedure Before Every 15 Every 25 Every 50 Note Hours Hours Hours Fuel leaks / Wipe up spillage Fuel tank, filter Inspect / Replace if clean necessary Idle adjust See p.24...

  • Page 29: Specifications

    260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Specifications Model 260LX PREMIUM 260UX PREMIUM Engine type 1E34F-4 (air cooled 2-stroke petrol engine) Power  (max.) 0.75Kw Engine displacement 25.4cc Idling speed 3100 ± 300 Engine maximum speed no load Grass Trimmer 9000 rpm...
  • Page 30 260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Specifications Model 430UX PREMIUM Engine type 1E40F-5 (air cooled 2-stroke petrol engine) Power  (max.) 1.25Kw Engine displacement 42.7cc Idling speed 3100 ± 300 Engine maximum speed no load Grass Trimmer 8500 rpm Cutting diameter...
  • Page 31 260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Original Instructions Version August 13...
  • Page 32 260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Original Instructions Version August 13...
  • Page 33 260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Original Instructions Version August 13...
  • Page 34 260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Original Instructions Version August 13...
  • Page 35 260LX/UX, 330LX/UX, 430UX, 530 UX Brushcutter Original Instructions Version August 13...
  • Page 36 The manufacturer undertakes to replace, any spare parts that are classified as defective by an appointed Mitox service dealer. The manufacturer will not accept liability for the replacement of the machine, either partially or wholly, and /or consequential damages and /or interest charges either directly or indirectly.

This manual is also suitable for:

260ux330lx330ux430ux530ux
