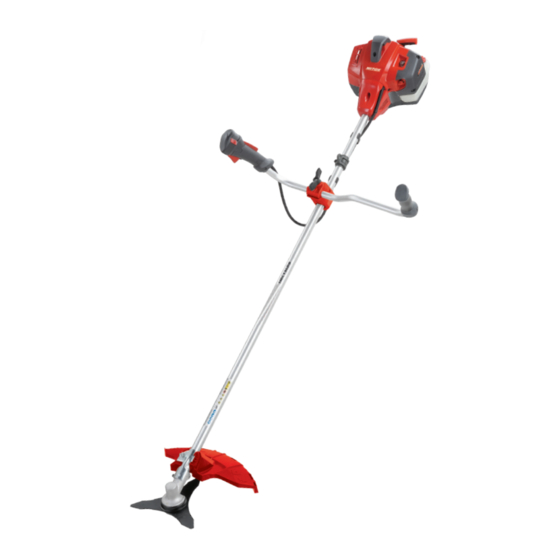

Mitox 360UX Operator's Manual

Premium brushcutter
Hide thumbs
Table of Contents

Advertisement

Quick Links

www.mitox.co.uk

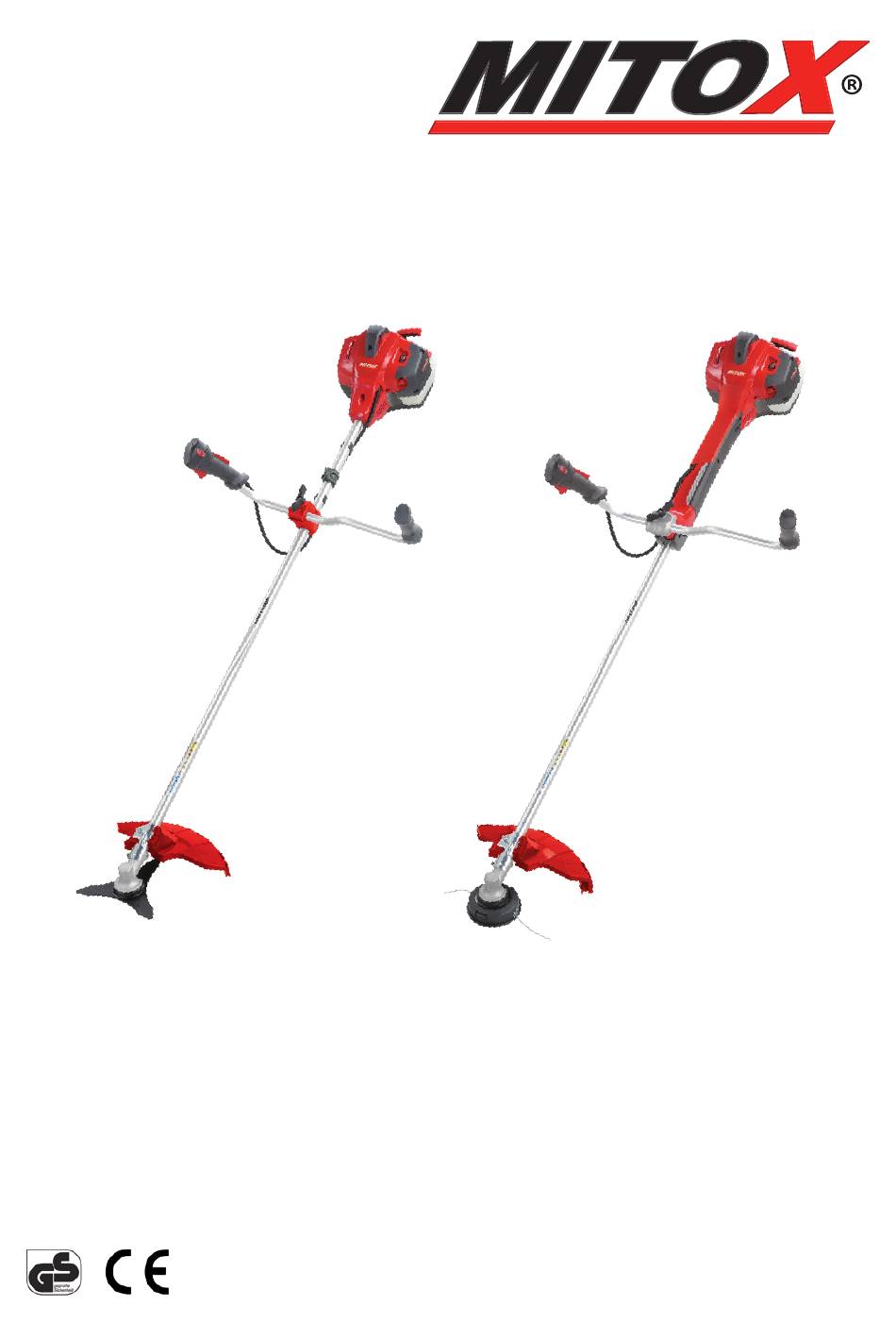

Operator's Manual
user manual, maintenance instructions and spare parts
360UX, 460UVX Premium Brushcutter
Read this manual carefully before operating the machine
Original Instructions Version November 17
360UX/460UVX_1011171

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 360UX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mitox 360UX

Summary of Contents for Mitox 360UX

  • Page 1 Operator’s Manual user manual, maintenance instructions and spare parts 360UX, 460UVX Premium Brushcutter Read this manual carefully before operating the machine Original Instructions Version November 17 360UX/460UVX_1011171...
  • Page 2 360UX, 460UVX Premium Brushcutter Original Instructions Version November 17 360UX/460UVX_1011171...

  • Page 3: Component Location

    360UX, 460UVX Premium Brushcutter Component Location NYLON CUTTING HEAD Auto bump feed nylon cutting head. DRIVE SHAFT Contains the drive shaft. THROTTLE TRIGGER Spring loaded to return to idle when released. IGNITION SWITCH Slide switch, forward to run, back to stop.

  • Page 4: Safety Symbols

    360UX, 460UVX Premium Brushcutter Safety Symbols Warning: Danger, Caution Read the documentation and safety instructions which are provided in this user manual. When operating this machine, use protective equipment such as goggles, helmet and ear defenders. Wear security shoes and gloves.

  • Page 5: Explanation Of Symbols On The Machine

    360UX, 460UVX Premium Brushcutter Never modify the cutter in any way. Improper use of any cutter can cause serious or fatal injury. Beware of blade thrust Taking Care of Warning Labels Always keep warning labels clean and free of scratches, which might make them illegible or difficult to read.

  • Page 6: Safety Precautions

    Only approved Mitox accessories should be used with this product. This Brushcutter is equipped with extremely sharp blades, always wear sturdy gloves when handling the blades and fit the safety guards when not in use.

  • Page 7: Work Clothing And Safety Equipment

    360UX, 460UVX Premium Brushcutter Never use the Brushcutter in conditions as described below: When the ground is slippery or when other conditions exist which might make it difficult to maintain a steady posture while using the Brushcutter. At night, at times of heavy fog, or at any other times when your field of vision is limited and it would be difficult to gain a clear view of the area where the Brushcutter is to be used.

  • Page 8: Safe Handling Of Fuel

    360UX, 460UVX Premium Brushcutter this reason, you should always be careful to adhere to the following instructions when using your Brushcutter. Never hold the Brushcutter in a way in which the cutting head is pointing towards someone else. Never allow the blade to come into contact with your body.

  • Page 9: Before Operating The Brushcutter

    360UX, 460UVX Premium Brushcutter Before Operating the Brushcutter Before beginning work, carefully check the work area and remove any obstacles. Within a perimeter of 15 metres of the work area should be considered a hazardous area into which no- one should enter while the Brushcutter is being used, and when necessary this area should be marked with a warning rope, warning signs, or other forms of warning.

  • Page 10: Avoid Noise Problems

    360UX, 460UVX Premium Brushcutter Avoid Noise Problems Check and follow the local regulations for sound levels and hours of operation for garden machinery. In general, operate Brushcutters between 8 am and 5 pm on weekdays and 9 am to 5 pm at weekends.

  • Page 11: Two-Stroke Fuel

    Due to increased Ethanol content in petrol we recommend the use of B3C Ethanol Shield 2-Stroke Oil, and Ethanol Shield Fuel Stabiliser   to protect your MITOX® engine against the harmful effectsof Ethanol. www.b3cfuel.co.uk Original Instructions Version November 17 360UX/460UVX_1011171...

  • Page 12: Fuel Storage

    360UX, 460UVX Premium Brushcutter Fuel Storage Mixed two-stroke fuel which has been left unused for a period of one month or more may damage the carburettor and result in the engine failing to start or operate correctly. When storing the Brushcutter for a period of more than one month, empty the fuel tank, and run the engine to empty the carburettor of fuel.

  • Page 13: Installing The Guard

    360UX, 460UVX Premium Brushcutter Assembly of the Brushcutter The blade fitted to the guard is sharp and can cause injury, always wear gloves. The guard extension shall always be fitted when using the trimmer head. The guard extension shall always be removed when using the grass blade.

  • Page 14: Installing The 3 Tooth Blade

    360UX, 460UVX Premium Brushcutter Installing the 3 Tooth Blade Lay the Brushcutter on its back with the gearbox shaft facing up. Rotate the Insert an Allen gear box shaft key or screw- until the hole driver into the in the holder...
  • Page 15 360UX, 460UVX Premium Brushcutter Installing the Nylon Head Lay the Brushcutter on its back with the gearbox shaft facing up. Rotate the gear box shaft until the hole Insert an Allen key or screwdriver into in the holder (a) lines up with the slot in the hole in the gearbox cover and into the metal guard (b).
  • Page 16 360UX, 460UVX Premium Brushcutter Original Instructions Version November 17 360UX/460UVX_1011171...
  • Page 17 360UX, 460UVX Premium Brushcutter Using the Brushcutter Choosing the cutting device Choose the most suitable cutting device for the job to be done, according to these general indications: • The cutting line head can eliminate tall grass and non-woody vegetation •...
  • Page 18 360UX, 460UVX Premium Brushcutter Installing the U Handle Assembly (460UVX) • Remove the upper bracket from the assembly by undoing the Lockscrew. • Install the U handle assembly, reassemble the bracket assembly and secure using the Lockscrew. • Ensure that the controls are located on the right and adjust the handle for maximum comfort before securing.
  • Page 19 360UX, 460UVX Premium Brushcutter Installing the U Handle Assembly (360UX) Lockscrew Washer Upper Bracket Drive Shaft To Right handle To Engine Lower Bracket To Left handle Drive Shaft To Cutter Head • Remove the upper bracket from the assembly by undoing the Lockscrew.

  • Page 20: Operation

    360UX, 460UVX Premium Brushcutter Operation Keep clear of the cutter head as it may start moving when the engine starts. Starting the Engine CAUTION do not pull the starter cord all the way out and do not let go of the starter handle when the cord is extended, this can damage the starter mechanism.

  • Page 21: Stopping The Engine

    360UX, 460UVX Premium Brushcutter e). Move the choke lever to the open f). Repeat pulling the cord until the engine ) position. starts. When the engine starts, allow the engine to warm up with the throttle pulled slightly. Allow the engine to warm up before use. When cutting, always use the Brushcutter on full throttle.

  • Page 22: Maintenance

    360UX, 460UVX Premium Brushcutter Running In During the first ten hours of work, avoid running the engine at maximum speed for a prolonged period until all the components have bedded in, after the engine has been run in, it will reach its maximum power.

  • Page 23: Spark Plug

    360UX, 460UVX Premium Brushcutter Spark Plug 0.6 - 0.7mm Poor starting or misfiring is often caused by a fouled or defective spark plug, clean and reset the gap to 0.65 mm, or replace the spark plug with RCJ7Y (Champion) as necessary.

  • Page 24: Safety Lock

    360UX, 460UVX Premium Brushcutter Carburettor The carburettor is adjusted at the factory; if adjustment is required it must be performed by your authorised Mitox dealer. If the head rotates at idle speed, stop the machine and return it to your authorised Mitox dealer for repair.
  • Page 25 360UX, 460UVX Premium Brushcutter Storage • Remove the spark plug; pour a small amount of oil into the cylinder. Rotate the crankshaft several times using the starting rope in order to distribute the oil. Put the spark plug back in.
  • Page 26 360UX, 460UVX Premium Brushcutter Replacing the Nylon Cord Check to see if the nylon head is damaged before replacing the cord. If you can see serious traces of wear or damage, you must replace the complete nylon head. Images are for illustrative purposes only. Actual head design may vary, however the method remains the same.

  • Page 27: Troubleshooting

    360UX, 460UVX Premium Brushcutter Troubleshooting Engine will not start, power loss: • Check that the fuel tank is not empty. Fill with mixed fuel. • The fuel does not reach the carburettor. Change the fuel filter in the fuel tank.
  • Page 28 360UX, 460UVX Premium Brushcutter Maintenance Timescale The following intervals apply to normal operating conditions only. If your daily working time is longer or operating conditions are difficult (very dusty work area, etc.), shorten the specified intervals Complete Visual inspection (condition, wear,...

  • Page 29: Specifications

    360UX, 460UVX Premium Brushcutter Specifications Model 360UX PREMIUM 460UVX PREMIUM Capacity 36.3 cm 46.5 cm Power 1.6 kw 1.95 kw Weight (without fuel, 8.2 kg 8.7 kg harness, cutting attachment and guard) Maximum engine rotation 9500 for grass trimmer, 10000 for grass trimmer,...
  • Page 30 360UX, 460UVX Premium Brushcutter Original Instructions Version November 17 360UX/460UVX_1011171...
  • Page 31 360UX, 460UVX Premium Brushcutter 360UX Parts - Engine Unit MIC36.1106.0302 WIRE B PART NUMBER DESCRIPTION MIC36.1101.0006 MUFFLER GASKET MIC36.1104.0001 SCREW MIC36.1101.0007 HEAT SHIELD MIC36.1104.0002 AIR FILTER COVER MIC36.1105.0000 MUFFLER MIGB/T3452.1 O-RING 3.63X2.62 MIGB/T2671.2 SCREW M6X60 M6X60 MIC36.1104.0200 AIR FILTER MIC36.1101.0005 CYLINDER GASKET MIGB/T2671.2...
  • Page 32 360UX, 460UVX Premium Brushcutter 360UX Parts - Engine Unit PART NUMBER DESCRIPTION PART NUMBER DESCRIPTION MIGB/T97.1 M8 FLAT WASHER M8 MIC45.6808.0001 AV RUBBER MIC36.1101.0600 PAWL ASSEMBLY MIC45.6808.0002 CLAMP MIGB/T6175 M8 NUT M8 MIGB/T2671.2 SCREW M6X25 M6X25 MIC36.1110.0000 STARTER ASSEMBLY MIGB/T893.1 45...
  • Page 33 360UX, 460UVX Premium Brushcutter Original Instructions Version November 17 360UX/460UVX_1011171...
  • Page 34 360UX, 460UVX Premium Brushcutter 360UX Parts - Shaft Assembly PART NUMBER DESCRIPTION MIC43.2113.0307 LOCK SCREW MIC36.1800.0100 SHAFT ASSEMBLY MIGB/T2671.2 SCREW M6X25 M6X25 MIGB/T2671.2 SCREW M5X20 M5X20 MIGB/T2671.2 SCREW M6X12 M6X12 MIC27.6111.0203 LEFT CLAMP MIC43.B116.0000 GEAR CASE ASSEMBLY MIC27.6111.0206 AV RUBBER...
  • Page 35 360UX, 460UVX Premium Brushcutter 360UX Parts - Shaft Assembly 36-8 MIGB/T97.1 M5 WASHER M5 36-9 MIGB/T845 SCREW ST3.5X9.5 ST3.5X9.5 36-10 MIC36.1111.0108 TRIGGER SPRING 36-11 MIC43.2111.0104 36-12 MIC43.2111.0103 TRIGGER 36-13 MIC36.1111.0302 WIRE ASSEMBLY 36-14 MIC36.1111.0301 THROTTLE CABLE AS- SEMBLY Original Instructions Version November 17...
  • Page 36 360UX, 460UVX Premium Brushcutter Original Instructions Version November 17 360UX/460UVX_1011171...
  • Page 37 360UX, 460UVX Premium Brushcutter 460UVX Parts - Engine Unit PART NUMBER DESCRIPTION MIC36.1106.0302 WIRE B MIC36.1101.0006 MUFFLER GASKET MIC36.1104.0001 SCREW MIC36.1101.0007 HEAT SHIELD MIC36.1104.0002 AIR FILTER COVER MIC36.1105.0000 MUFFLER MIGB/T3452.1 O-RING 3.63X2.62 MIGB/T2671.2 SCREW M6X60 M6X60 MIC36.1104.0200 AIR FILTER MIC36.1101.0005 BASE GASKET MIGB/T2671.2...
  • Page 38 360UX, 460UVX Premium Brushcutter 460UVX Parts - Engine Unit MIA38.0302.0200 OIL SEAL MIC36.1101.0004 PLASTIC PLATE MIGB/T2671.2 SCREW M5X30 MIC36.1108.0001 CLUTCH DRUM HOUS- M5X30 MIGB/T97.1 M8 WASHER M8 MIGB/T894.1 15 CIRCLIP 15 MIC36.1101.0600 PAWL ASSEMBLY MIC45.6808.0001 AV RUBBER MIGB/T6175 M8 NUT M8 MIC45.6808.0002...
  • Page 39 360UX, 460UVX Premium Brushcutter Original Instructions Version November 17 360UX/460UVX_1011171...
  • Page 40 360UX, 460UVX Premium Brushcutter 460UVX Parts - Shaft Assembly PART NUMBER DESCRIPTION MIC24.0113.0105 LOWER GUARD MIC36.1100.0100 SHAFT ASSEMBLY MIC24.0113.0104 CUTTING BLADE MIC36.1111.0101 VIBRATION COVER MIGB/T6564 SCREW ST4.2X13 ST4.2X13 MIC36.1111.0102 SIDE COVER MIC43.2113.0309 SCREW ST4.8X19 MIC36.1111.0103 UPPER COVER MIC43.2113.0305 GUARD CLAMP MIC36.1111.0104...
  • Page 41 360UX, 460UVX Premium Brushcutter 460UVX Parts - Shaft Assembly MIC36.1111.0300 THROTTLE CONTROL ASSEMBLY 40-1 MIC43.1111.0700 SWITCH 40-3 MIC36.2111.0107 SPRING 40-4 MIC43.2111.0106 LOCK TRIGGER 40-6 MI01.01.3121 SCREW ST4X14 40-7 MIGB/T2671.2 SCREW M5X35 M5X35 40-8 MIGB/T97.1 M5 WASHER M5 40-9 MIGB/T845 SCREW ST 3.5X9.5 ST3.5X9.5...
  • Page 42 EC DECLARATION OF CONFORMITY The undersigned, as authorised by: Mitox Garden Machinery Declares that the following equipment manufactured by Mitox conforms to the Directive: - 2000/14/EC of the European Parliament and of the council on the approximation of the laws of the Member States relating to the noise emission in the environment by equipment for use outdoors.
  • Page 43 EC DECLARATION OF CONFORMITY The undersigned, as authorised by: Mitox Garden Machinery Declares that the following equipment manufactured by Mitox conforms to the Directive: - 2000/14/EC of the European Parliament and of the council on the approximation of the laws of the Member States relating to the noise emission in the environment by equipment for use outdoors.
  • Page 44 The manufacturer undertakes to replace any spare parts that are classified as defective by an appointed Mitox service dealer. The manufacturer will not accept liability for the replacement of the machine, either partially or wholly, and /or consequential damages and /or interest charges either directly or indirectly.
