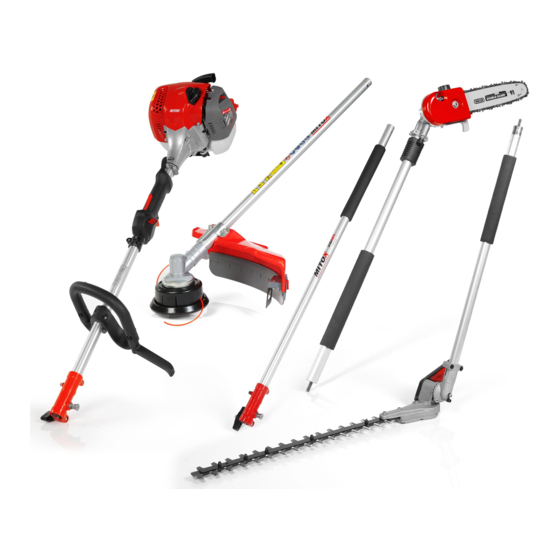

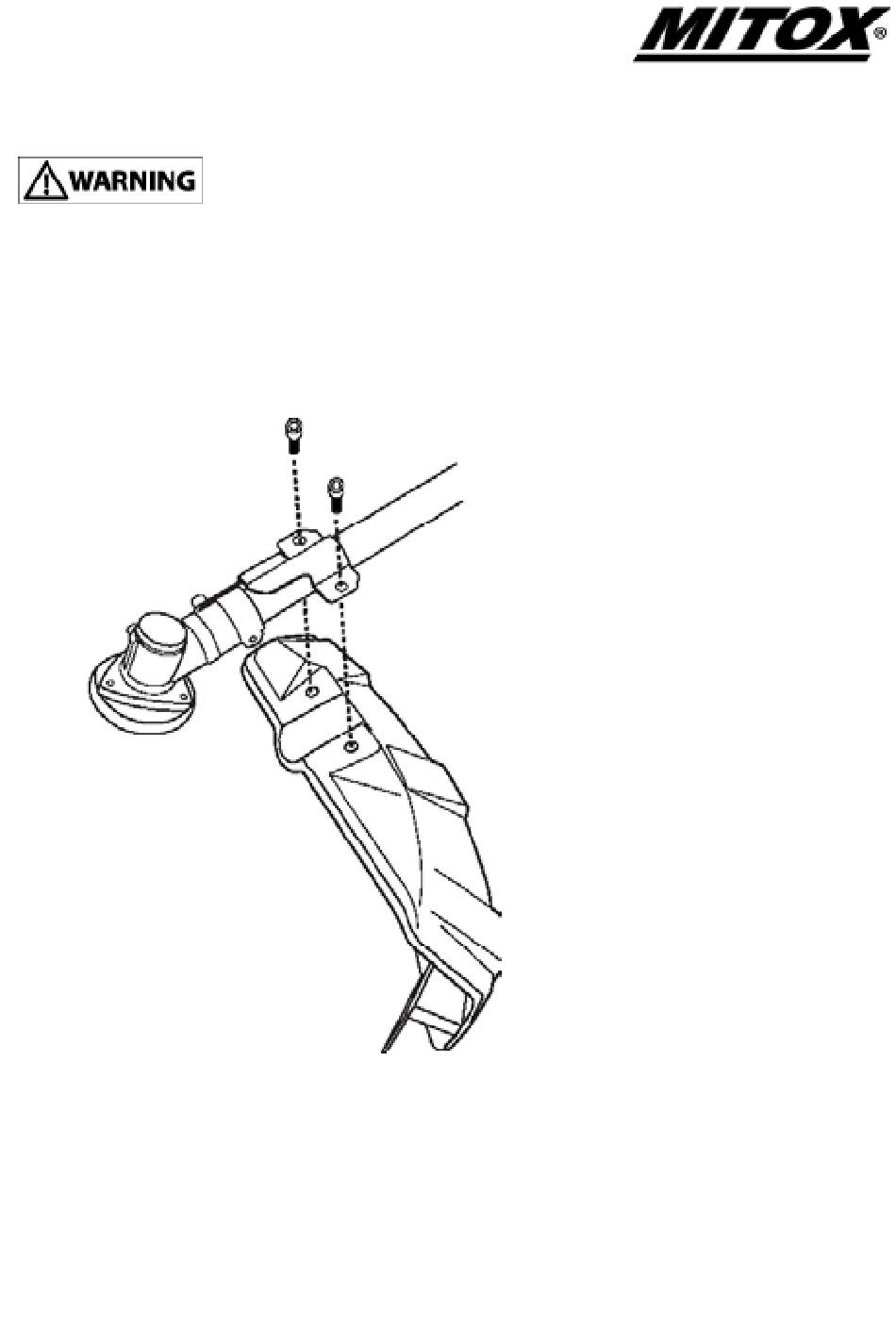

- Page 1 28MT Multi-Tool Assembly of the Brushcutter The blade fitted to the guard is sharp and can cause injury, always wear gloves. Installing the Guard • Place the Brushcutter with the head facing down. • Fit the shield using the bracket and 2 X Torx screws...
- Page 2 28MT Multi-Tool Installing the 3 Point Blade • Lay the Brushcutter on its back with the gearbox shaft facing up. Insert an Allen key or Rotate the screwdriver gear box shaft into the hole until the hole in the gearbox...
- Page 3 28MT Multi-Tool Replacing the Nylon Cord Check to see if the nylon head is damaged before replacing the cord. If you can see serious traces of wear or damage, you must replace the complete nylon head. 1. Stop the engine.
- Page 4 28MT Multi-Tool Installing the Nylon Head • Lay the Brushcutter on its back with the gearbox shaft facing up. Rotate the gear box shaft until the hole Insert an Allen key or screwdriver into in the holder A lines up with the slot in the hole in the gearbox cover and into the metal guard.
- Page 5 28MT Multi-Tool Installing the Attachments to the Power Unit (or Optional Extension Shaft) Attachment Locking Clamp Locking pin shaft hole • Pull out the locking pin (1) and twist (2) to lock in the outer position (3). • Loosen the clamp by turning the handle (4).
- Page 6 28MT Multi-Tool Using the Brushcutter Choosing the cutting device Choose the most suitable cutting device for the job to be done, according to these general indications: • The cutting line head can eliminate tall grass and non-woody vegetation • The 3-point blade is suitable for cutting brushwood and small shrubs up to 2 cm in diameter.
-
Page 7: Gearbox Lubricant
28MT Multi-Tool Brushcutter Gear Case • Remove the bolt (a) on the gear case, top up the gearbox using Lithium grease and refit the bolt. Gearbox Lubricant • DO NOT force grease into the gear boxes, apply 2 or 3 pumps of grease every 15 hours of operation. -
Page 8: Parts Diagram - Body
28MT Multi-Tool Parts Diagram - Body Original Instructions Version December 15... - Page 9 28MT Multi-Tool Parts List - Body ID No. Part Number escription MITBC431D.02.00-3 CLAMP MITBC430D.03.02-00 HARNESS CLAMP ASSEMBLY MIGB/T2671.2 M5X20 SCREW M5X20 MITBC430D.03.00-2 CLAMP MIGB/T6170 M5 NUT M5 MITBC431SJ.03.02-00 OUTER SHAFT - UPPER MITBC431DJ.03.03-00 COUPLING ASSEMBLY MIGB/T2671.2 M5X25 SCREW M5X25 MIGB/T2671.2 M5X12...
- Page 10 28MT Multi-Tool Parts List - Body ID No. Part Number escription MIGB/T276 6000-2Z BALL BEARING 6000-2Z MITBC430D.04.00-2 PINION MITBC431D.04.00-1 GEAR BOX MITBC430D.04.00-7 GUARD MIGB/T70.1 M5X8 SCREW M5X8 MIGB/T276 6000-2Z BALL BEARING 6000-2Z MITBC430D.04.00-4 GEAR MITBC431D.04.00-3 GEAR SHAFT MIGB/T276 6002-2Z BALL BEARING 6002-2Z MIGB/T893.1 32...
-
Page 11: On/Off Switch
28MT Multi-Tool Parts List - Body ID No. Part Number escription MIGB/T97.1 5X12X1.5 WASHER 5X12X1.5 MIGB/T97.1 5X11X2 WASHER 5X11X2 MIGB/T97.1 5X12X1.5 WASHER 5X12X1.5 MIGB/T845 ST4.8X19 TAPPING SCREW ST4.8X19 MI03.06.1.075 FOAM GRIP MITBC430DJ.03.00-1 DRIVE SHAFT MIGB/T6170 M5 NUT M5 MITBC431S.05.02-5 SPRING MITBC431S.05.02-8... -
Page 12: Conditions Of Warranty
The manufacturer undertakes to replace, any spare parts that are classified as defective by an appointed Mitox service dealer. The manufacturer will not accept liability for the replacement of the machine, either partially or wholly, and /or consequential damages and /or interest charges either directly or indirectly.
