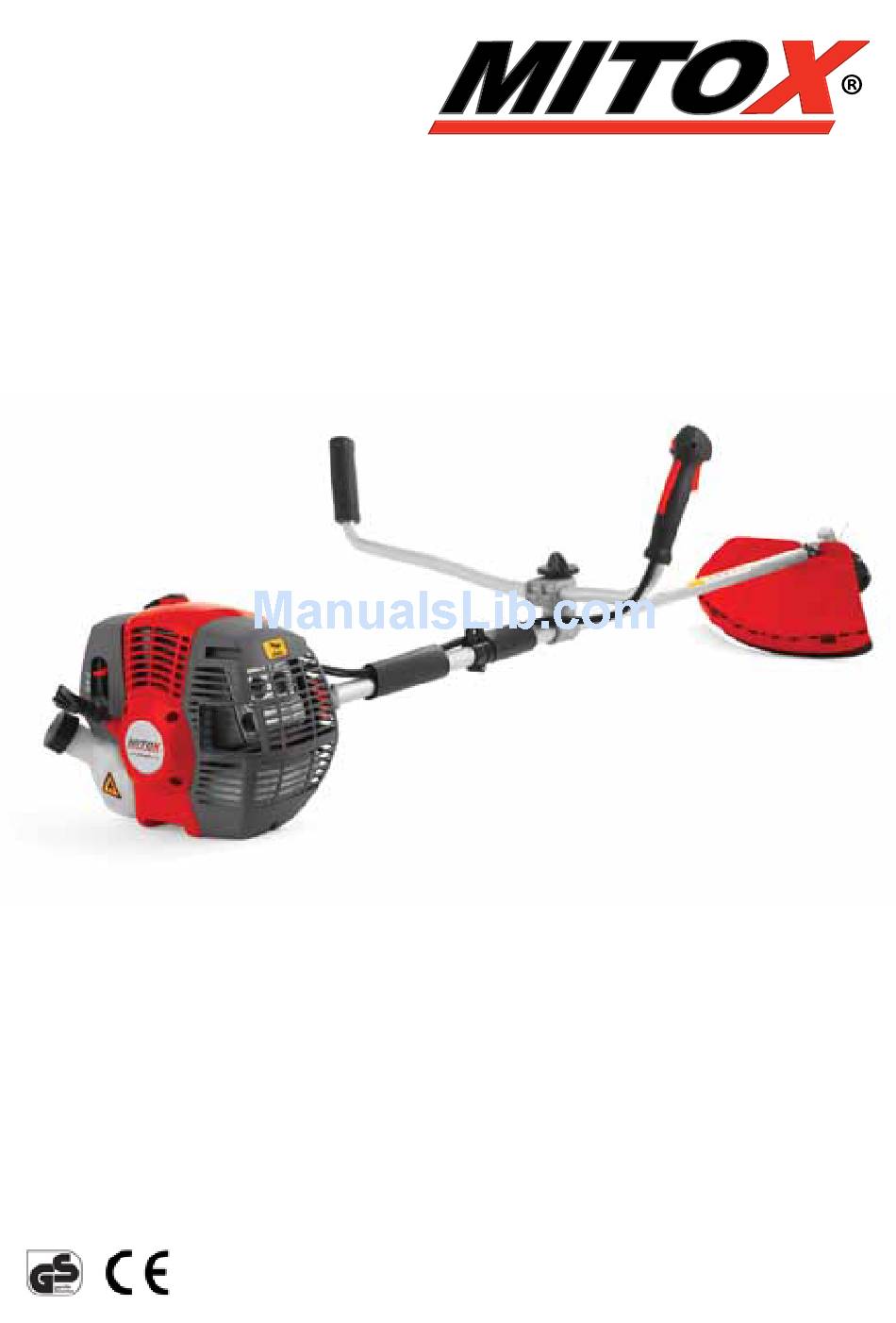

- Page 1 Operator’s Manual user manual, maintenance instructions and spare parts 2800LX, UX / 3600UX Brushcutter Read this manual carefully before operating the machine Original Instructions Version July 12...
- Page 2 2800LX ,UX / 3600UX Brushcutter PRODUCT DESCRIPTION This Brush Cutter is a 2 stroke fast running power tool and is designed to be used in a domestic application for trimming grass and light brush. Original Instructions Version July 12...
-
Page 3: Component Location
2800LX ,UX / 3600UX Brushcutter Component Location BLADE 3 Point blade for grass, weed or brush cutting applications. DRIVE SHAFT Contains the drive shaft. THROTTLE TRIGGER Spring loaded to return to idle when released. IGNITION SWITCH Slide switch, forward to run, back to stop. -
Page 4: Safety Symbols
2800LX ,UX / 3600UX Brushcutter Safety Symbols Warning: Danger, Caution Read the documentation and safety instructions which are provided in this user manual. When operating this machine, use protective equipment such as goggles, helmet and ear defenders. Wear security shoes and gloves. -
Page 5: Taking Care Of Warning Labels
2800LX ,UX / 3600UX Brushcutter Taking Care of Warning Labels Always keep warning labels clean and free of scratches, which might make them illegible or difficult to read. If the warning labels provided with your brush cutter become damaged, peel off, or otherwise become illegible or difficult to read, order new labels from the authorised servicing dealer and replace the damaged labels. -
Page 6: Safety Precautions
Only approved Mitox accessories should be used with this product. This Brush Cutter is equipped with extremely sharp blades, always wear sturdy gloves when handling the blades and fit the safety guards when not in use. -
Page 7: Work Clothing And Safety Equipment
2800LX ,UX / 3600UX Brushcutter Never use the brush cutter in conditions as described below: When the ground is slippery or when other conditions exist which might make it difficult to maintain a steady posture while using the brush cutter. -
Page 8: Safe Handling Of Fuel
2800LX ,UX / 3600UX Brushcutter Never hold the brush cutter in a way in which the cutting head is pointing towards someone else. Never allow the blades to come into contact with your body. Always turn off the engine before adjusting the brush cutter, or at any time when coming into close proximity with the cutting head. -
Page 9: Before Operating The Brush Cutter
2800LX ,UX / 3600UX Brushcutter Before Operating the Brush cutter Before beginning work, carefully check the work area and remove any obstacles. Within a perimeter of 15 metres of the work area should be considered a hazardous area into which no-one should enter while the brush cutter is being used, and when necessary this area should be marked with a warning rope, warning signs, or other forms of warning. -
Page 10: Avoid Noise Problems
2800LX ,UX / 3600UX Brushcutter Avoid Noise Problems Check and follow the local regulations for sound levels and hours of operation for garden machinery. In general, operate brush cutters between 8 am and 5 pm on weekdays and 9 am to 5 pm at weekends. -
Page 11: Two-Stroke Fuel
2800LX ,UX / 3600UX Brushcutter Two-Stroke Fuel Fuel is very flammable. Do not smoke or bring any flame or sparks near fuel. Always stop the engine and allow it to cool before refuelling. Refuel outdoors on bare ground, restart engine at least 5m away from the refuelling stop. -
Page 12: Fuel Storage
2800LX ,UX / 3600UX Brushcutter Fuel Storage Mixed two-stroke fuel which has been left unused for a period of one month or more may damage the carburettor and result in the engine failing to start or operate correctly. When storing the brush cutter for a period of more than one month, empty the fuel tank, and run the engine to empty the carburettor of fuel. -
Page 13: Installing The Guard
2800LX ,UX / 3600UX Brushcutter Assembly of the Brush Cutter The blade fitted to the guard is sharp and can cause injury, always wear gloves. Installing the Guard • Place the brush cutter with the head facing down. • Fit the shield using the bracket and 3 X M5x16 screws... -
Page 14: Installing The 3 Tooth Blade
2800LX ,UX / 3600UX Brushcutter Installing the 3 Tooth Blade • Lay the brush cutter on its back with the gearbox shaft facing up. Insert the Allen key into the Rotate the gear hole in the gear- box shaft until... - Page 15 2800LX ,UX / 3600UX Brushcutter Installing the Nylon Head • Lay the brush cutter on its back with the gearbox shaft facing up. Rotate the gear box shaft until the hole in Insert the Allen key into the hole in the the holder lines up with the slot in the plastic gearbox cover and into holder.
-
Page 16: Using The Brush Cutter
2800LX ,UX / 3600UX Brushcutter Using the Brush Cutter Choosing the cutting device Choose the most suitable cutting device for the job to be done, according to these general indications: • The cutting line head can eliminate tall grass and non-woody vegetation •... -
Page 17: Point Blade
2800LX ,UX / 3600UX Brushcutter 3-Point Blade • Start cutting above the undergrowth and then move down with the blade so as to cut the brush into small pieces. • Avoid hitting stones, piles of earth, small pieces of wood or anything that could be hidden or difficult to see in the grass. - Page 18 2800LX ,UX / 3600UX Brushcutter Installing the U Handle Assembly (UX Models) Lockscrew Upper Bracket To Right handle Lower Bracket To Left handle Drive Shaft Spring To Gear Case • Remove the upper cap from the bracket by undoing the Lockscrew.
- Page 19 2800LX ,UX / 3600UX Brushcutter Installing the Loop Handle Assembly (LX Models) Upper Handle Fixing Screws Drive Shaft Rubber Block To Gear Case Lower Handle • Fix the loop-handle to the shaft over the rubber block provided. Adjust to a comfortable working position then tighten the fixing screws securely.
-
Page 20: Operation
2800LX ,UX / 3600UX Brushcutter Operation Keep clear of the blades as they may start moving when engine starts. Starting the Engine CAUTION do not pull the starter cord all the way out and do not let go of the starter handle when the cord is extended, this can damage the starter mechanism. -
Page 21: Stopping The Engine
2800LX ,UX / 3600UX Brushcutter • While holding the unit, pull out the starter rope firmly until engine fires (indicated by a ‘cough’ from the engine). • Move the choke lever to the open position. • Pull the starter rope until the engine starts, then squeeze the throttle briefly to release the fast idle control and return the engine to idle. -
Page 22: Maintenance
2800LX ,UX / 3600UX Brushcutter Running In During the first ten hours of work, avoid running the engine at maximum speed for a prolonged period until all the components have bedded in, after the engine has been run in, it will reach its maximum power. -
Page 23: Spark Plug
2800LX ,UX / 3600UX Brushcutter Spark Plug Poor starting or misfiring is often caused by a fouled or defective spark plug, clean and reset the gap to 0.65 mm, or replace the spark plug with NGK: BPRM7A as necessary. Air Filter... -
Page 24: Safety Lock
2800LX ,UX / 3600UX Brushcutter Carburettor The carburettor mixture setting has been set at the factory and will not need adjusting. Adjusting the idle speed.. If adjustment is necessary turn the T screw (b) clock wise until the blades start to move, then turn the screw T anticlockwise until the blades stop. -
Page 25: Gear Case
2800LX ,UX / 3600UX Brushcutter Storage • Remove the spark plug; pour a small amount of oil into the cylinder. Rotate the crankshaft several times using the starting rope in order to distribute the oil. Put the spark plug back in. - Page 26 2800LX ,UX / 3600UX Brushcutter Replacing the Nylon Cord This machine is fitted with a “Tap to Go” head. To release more line, tap the ‘bump knob’ against the ground with the engine at top speed: the line will be released automatically and the knife fitted to the guard will cut off any excess line.
-
Page 27: Troubleshooting
2800LX ,UX / 3600UX Brushcutter Troubleshooting Engine will not start, power loss: • Check that the fuel tank is not empty. Fill with mixed fuel. • The fuel does not reach the carburettor. Change the fuel filter in the fuel tank. -
Page 28: Service Schedule
2800LX ,UX / 3600UX Brushcutter Service Schedule Component Procedure Before Every 15 Every 25 Every 50 Note Hours Hours Hours Fuel leaks / Wipe up spillage Fuel tank, filter Inspect / Replace if clean necessary Idle adjust See above Adjust... -
Page 29: Specifications
2800LX ,UX / 3600UX Brushcutter Specifications MODEL MITOX 2800LX / UX Engine Type Air cooled 2-stroke petrol engine Model IE34F-2E Displacement : ( cm3) 25.4 cc Max. output 0.7 (kw) in accordance with ISO 8893 Idle speed: rpm (min –1) 2800±150... - Page 30 2800LX ,UX / 3600UX Brushcutter Specifications MODEL MITOX 3600UX Engine Type Air cooled 2-stroke petrol engine Model IE36F-2E Displacement : ( cm3) 32.6 cc Max. output 0.9 (kw) in accordance with ISO 8893 Idle speed: rpm (min –1) 2800±150 Max. power speed: rpm 10200 (min –1)
- Page 31 2800LX ,UX / 3600UX Brushcutter Original Instructions Version July 12...
- Page 32 The manufacturer undertakes to replace, any spare parts that are classified as defective by an appointed Mitox service dealer. The manufacturer will not accept liability for the replacement of the machine, either partially or wholly, and /or consequential damages and /or interest charges either directly or indirectly.
