- Page 1 INSTEON Keypad Dimmer Quick Start Guide...

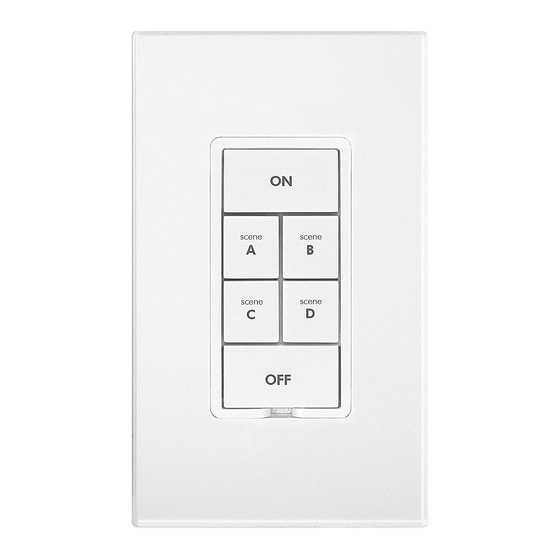

- Page 2 INSTEON Keypad Dimmer Hold to Scene Brighten Buttons Hold to Dim Set Button & Status LED For the complete Owner’s Manual and more, visit: insteon.com/support...
-
Page 3: Disconnect Power
Tools Needed for Installation Phillips Screwdriver Flathead Screwdriver Voltage Detector Wire Cutter / Stripper Disconnect Power Always disconnect power before installation. Contact INSTEON Support when uncertain about installation. 1-866-243-8022... -
Page 4: Installation
Installation Turn off power to your switch at the electrical service panel. Circuit Breakers Fuse Panel Power is ON Power is OFF... - Page 5 Remove the old switch and disconnect the wires. If your box lacks neutral wires, stop and contact support. Neutral Wire ½” 12mm...
- Page 6 Turn on power at the circuit breaker and use a voltage detector or multi-meter to identify line and load. Line will be energized.
- Page 7 Turn off power at the circuit breaker. Connect junction box. Verify that the wire nuts are secu except for the bare ground wire. Load Line...
- Page 8 the Keypad wires to the identified wires in the ure and that no exposed copper wire is visible Neutral Ground...
- Page 9 Mount the Keypad into the junction box and turn power on to the switch at the circuit breaker panel.
- Page 10 Test the Keypad by tapping the ON and OFF buttons. On Keypad Dimmer, press and hold to dim or brighten. Installation complete. You can now link your Keypad to the Hub.
- Page 11 Linking to the Hub Follow the on-screen instructions to add your Keypad to the INSTEON Hub. When prompted, press and hold the Keypad’s set button. If not using the Hub, refer to the instructions that came with your product.
-
Page 12: Device Control
Device Control Dim, brighten, set schedules and create scenes for your Keypad using the INSTEON Hub and App. LED Bulb Protected under U.S. and foreign patents (see www.insteon.com/patents) ©2014 INSTEON RAW-1289 Rev 03.27.14...
