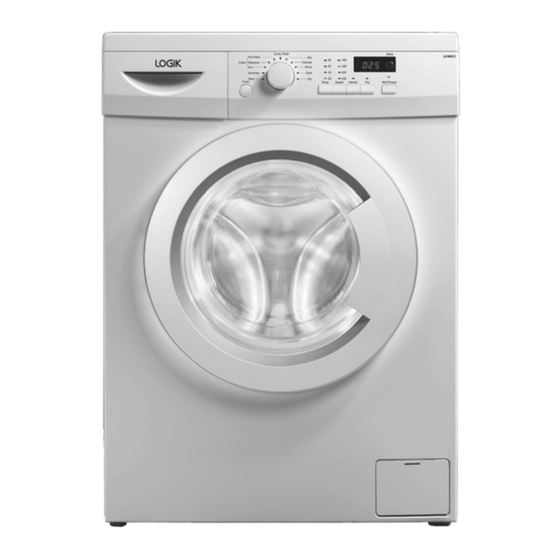

03d series front load washing machine
Hide thumbs Also See for L614WD13:

Advertisement

Table of Contents

See also: Instruction and Installation Manual

SERVICE MANUAL

03D Series
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not
contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by
electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or
products dealt with in this service information by anyone else could result in serious injury or death
©2011 Front Load Haier Washing Machine
All rights reserved. Unauthorized copying and distribution is a violation of law.
SERVICE MANUAL
Front Load Washing Machine
MODEL:
WARNING
Front Load Washing Machine
Order No.
L614WD13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L614WD13 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Logik L614WD13

Summary of Contents for Logik L614WD13

  • Page 1: Service Manual

    Order No. Front Load Washing Machine MODEL: L614WD13 WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by electricity should be serviced or repaired only by experienced professional technicians.
  • Page 2 SERVICE MANUAL 03D Series Front Load Washing Machine...
  • Page 3 SERVICE MANUAL 03D Series 10 Washing process table Front Load Washing Machine...
  • Page 4 03D Series Front Load Washing Machine...
  • Page 5 SERVICE MANUAL 03D Series Front Load Washing Machine...
  • Page 6 03D Series L614WD13 1400 2050 850X525X595 Front Load Washing Machine...

  • Page 7: Name Of Parts

    SERVICE MANUAL 03D Series Chapter 3 Appearance brief introduction 3-1. Name of parts L614WD13 Front Load Washing Machine...

  • Page 8: Chapter 4 Operational Guidance

    SERVICE MANUAL 03D Series Chapter 4 Operational Guidance Quick Wash L614WD13 Delay Pre-Wash 1400 Cotton Standard Delicate 1000 Rinse Synthetic Spin Wool Power Temp. Speed Intense Start/Pause ¬ Control panel lock function: Press the "Delay" and the "Start/Pause" buttons simultaneously for 3 seconds after starting a program.Button Functions and wash cycle will be unable to be changed.
  • Page 9 SERVICE MANUAL 03D Series Press this button ,the "dry" indicator light will illuminate.When you select the washing programe first, and then press this button,the machine will perform the washing and drying function. ¬To cancel a program Press the "Start/Pause" button, then switch off the power and the program is automatically cancelled. Turn on the power and use the program selector again to choose another program.

  • Page 10: Chapter 5 Wiring Circuit

    SERVICE MANUAL 03D Series Chapter 5 Wiring circuit Front Load Washing Machine...
  • Page 11 4. The model will change as following “1490/1480/1470/1460/1450/1290/1280/1270/1260/1250/1090/1080/ 1070/1060/1050 when you choose the model for the first time (from the lager number to the little).The model can not change after you set up. 5. For the model “L614WD13” Please choose “ 1460 ”...

  • Page 12: Chapter 7 Error Display And Troubleshooting

    SERVICE MANUAL 03D Series Chapter 7 Error Display and troubleshooting Front load Washing Machine...

  • Page 13: Error Display

    SERVICE MANUL 03D Series 7-2. Error Display Error message:Door is not properly shut 20s after program is started. Troubleshooting: Shut the door properly Pushing the door to Check Whether Door is properly shut or not Door lock is broken and need replacing, Cut off the power and then turn on again.
  • Page 14 SERVICE MANUL 03D Series Error message:Temperature sensor is not properly connected or damaged. Troubleshooting: Cut off power and measure the resistance NTC exist open circuit. Replace it multimeter of temperature sensor by , is it between 5-14k ? Check if NTC is connected properly Connect NTC well Check the wire between NTC and PBC, are they connected well?
  • Page 15 SERVICE MANUL 03D Series Error message: The required water level is not reached within 8 min. Troubleshooting: Connect it well. Check if water is leaking from washer bottom. Inlet pipe. drain pipe or other pipe connection Check if tap is closed or water Open the tap or wait for normal water pressure (usual...
  • Page 16 SERVICE MANUL 03D Series Error message. Motor speed is abnormal. Troubleshooting: Cut off power and check if motor wires Reconnect well are connected well Switch on the power and check the Replace the PCB voltage(9 or 10 of motor connector) is between 220-240V? The motor is broken, replace it.
  • Page 17 SERVICE MANUL 03\D Series Error message. Water level exceeds protection value. TroubTroubleshooting: leshooting: Troubleshooting: pipe connected Unfold the pipe connected to the Check if the to the water level sensor water level sensor is folded. pipe connected to the Check if the water level sensor is jammed.
  • Page 18 SERVICE MANUL 03D Series dry heating element error check the resistance of dry heating tube by mulitimeter,is it between 27- check the import voltage of dry heating tube by mulitimeter,is it between 220- 240V Haier Front Load Washing Machine...
  • Page 19 SERVICE MANUL 03D Series Error message dry motor error Troubleshooting Cut off power and check if drying motor wires are Reconnect well connected well Replace the drying motor Haier Front Load Washing Machine...
  • Page 20 SERVICE MANUL 03D Series Error message The PCB and the motor can not communicate Troubleshooting Are the lines between PC board and Please connect the lines drive board ok? or replace them. Can the indicator light on the drive board flash? replace the drive board replace the PC...

  • Page 21: Examination & Troubleshooting

    SERVICE MANUL 03D Series 7-3. Examination & Troubleshooting 7-3-1. Display nothing Troubleshooting: Repair power supply Measure the power supply ,is it exists 220V-240V AC voltage ? Press the power switch Is power switch on? The filter is broken, replace the filter Press power switch and check the voltage between L port and N port of the filter.

  • Page 22: Abnormal Noise And Vibration

    SERVICE MANUL 03D Series 7-3-3. No draining Troubleshooting: Adjust the height of drainpipe to Is the height of drain pipe too high? 80-100 cm Turn filter anticlockwise, open and check if filter is jammed Clean and tighten filter clockwise. Check if hose-connecting cylinder to Arrange hose and clean pump is bent or jammed Turn on power and choose spin...

  • Page 23: Water Leaking

    SERVICE MANUL 03D Series 7-3-5. Water leaking Troubleshooting: Check if water is leaking from the inlet pipe Readjust it or the tap Is drain pipe broken? Replace drainpipe Check if there is foreign material nipped Remove clothes between cushion of sight window and sight window Check if all tubes and tie-in is leaking water, including the connecting of tube...
  • Page 24 SERVICE MANUAL 03D Series Front Load Washing Machine...
  • Page 25 SERVICE MANUAL 03D Series Front Load Washing Machine...
  • Page 26 SERVICE MANUAL 03D Series Dismantle the motor Release the two screws on the Motor bracket. Pull the motor along the arrowhead, then take off the motor. Dismantle shock absorber shock absorber Pull out the pin of shock absorber, then take off the bolt and washer of on the cabinet The pins can not be used again.
  • Page 27 SERVICE MANUAL 03D Series Front Load Washing Machine...
  • Page 28 SERVICE MANUAL 03D Series Chapter 9 Componenten Prüfzeichen Einzelteil Hersteller Typ/Modell Technische Daten Geprüft nach Mark(s) of Object/part No. Manufacturer/ Type/model Technical data Standard conformity trademark see separate sheet 1.PCB ASSEMBLY Haier Interlligent 0021800059 220-240V Test with display Electronics Co.Ltd. 50Hz/60Hz appliance Changzhou...
  • Page 29 SERVICE MANUAL 03D Series IEC/EN132400 ENEC 4.X2Capacitor Pilkor Electronics X2,0.0047UF PCX2 337J60334 Co.Ltd 275VAC IEC/EN132400 Xiamen Faratronic MKP61 X2,0.0047UF Co.,Ltd. 275VAC IEC/EN132400 EPCOS(Zhuhai B32921C3473K2 X2,0.0047UF FTZ)Co., Ltd 305VAC IEC/EN132400 Okaya electric X2,0.0047UF ENEC LE104-M industries Co., Ltd. 275VAC IEC/EN132400 MPRC X2,0.0047UF Nistronics (Jiangxi) 0275K472000000...
  • Page 30 SERVICE MANUAL 03D Series 1.PCB ASSEMBLY Haier Interlligent 0021800052 220-240V Test with drive board Electronics Co.Ltd. 50Hz/60Hz appliance Changzhou 2.PCB Haihong KB-5150 CEM-1 E166702 Electronics Co.Ltd. Changzhou Haihong ZD-95GF CEM-1 E166702 Electronics Co.Ltd. HT Circuits S3155 CEM-1 E56334 (Qingdao) Co.,Ltd. HT Circuits S3116 CEM-1...
  • Page 31 SERVICE MANUAL 03D Series Others(universal) DIN VDE 0281 1.Power Cord Various H05VV-F 3G*1.5mm Various AC 250V, 16A, DIN VDE 0620 2.Power Plug Various Chau’s Electrical BS-01 AC 250V; 13A BS1363 Company Limited BS1363 KEMA LEONI Cabel CW3201 AC250V 13A (Changzhou) Co., ASTA BS 1363 Fund...
  • Page 32 SERVICE MANUAL 03D Series Dongguan Ark-les ZV-446 250V 16(6)A, IEC/EN 60730 8. Micro-delay door Electric switch Components Co.,Ltd ROLD 250V 16(6)A, IEC/EN 60730 ENEC Aerodev DNF06-Q RALA 12A,250VAC. IEC60939 SEMKO 9. Filter Electromagnetic 50/60hz.25/085/21 /EN133200 Tech.Inc L: 2x( 4mH) C: (0.68+0.47)UF (X2) 2x4700pF(Y) 3/4”...
  • Page 33 SERVICE MANUAL 03D Series 11. PUMP Jiangmen Hanyu B20-6A IEC/EN 60335 Electrical Co., AC 220-240V 50HZ Ltd. Askoll (China) S3000 220-240V,50HZ IEC/EN 60335 Motor 25W,0.2A Technologies Co., Changzhou Leshi BPX2-34 AC 220-240V 50HZ IEC/EN 60335 Leili Motor Co.,Ltd Protector for Hanyu Chang zhou City KW-90 IEC/EN 60730...
  • Page 34 SERVICE MANUAL 03D Series Toneluck IEC/EN 61058 ENEC 12.Aqua proof 0.1A 125/250VAC Electro-Mechanics 1E5,40T85 (Huizhou) Co., Ltd. Chwen-Der CD79 13.Protector for AC250V, operating IEC/EN 60730 Thermostat & temperature 145± haier motor Co.,Ltd. 5ºC Sensata 17AM216A5 ENEC AC250V, operating IEC/EN 60730 Technologies ,Holl temperature 145±...
  • Page 35 SERVICE MANUAL 03D Series 10 Washing process table * Water Supply : W·S * Intermittent Spin : I·S * Disentangle : D·T Washing Rinse Spin Main Normal Rinse + Washing Staycooling Normal · · Working · · · · · ·...
