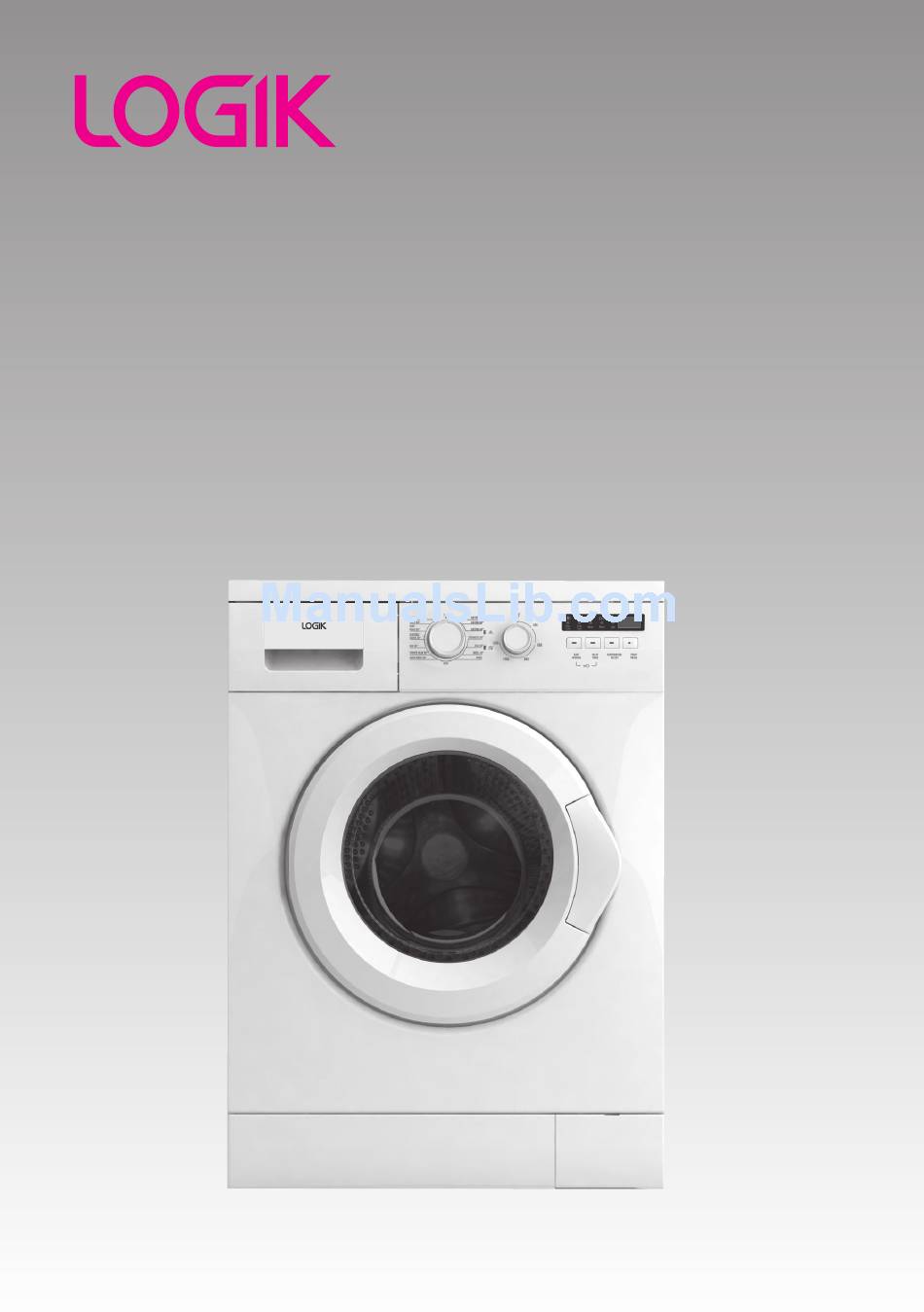

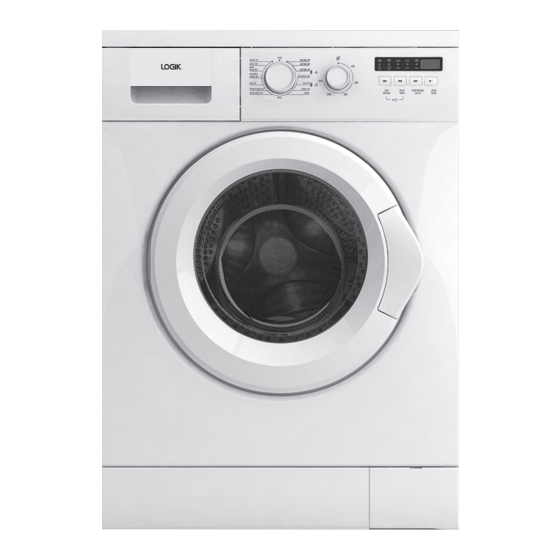

- Page 1 7KG Washing Machine Installation Guide / Instruction Manual L712WM12...
-
Page 3: Table Of Contents
Contents Unpacking ................................4 Installing Your Washing Machine .......................... 5 Choosing the Right Location for Your Washing Machine ......................5 Moving and Installing ............................6 Removing the Transit Bolts .................................. 6 Moving the Washing Machine from One Location to Another ....................6 Hose and Cable Lengths .................................. -
Page 4: Unpacking
Thank you for purchasing your new Logik Washing Machine. You must spend some time reading this installation/instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this installation/ instruction manual for future reference. -
Page 5: Installing Your Washing Machine
INSTALLATION Installing Your Washing Machine Please read and follow the instructions carefully. • In addition to the instructions mentioned here, special regulations of the relevant water and power supply companies may apply. If in doubt, have the washing machine connected by a qualified technician. -
Page 6: Moving And Installing
INSTALLATION Moving and Installing Removing the Transit Bolts Four transit bolts keep the interior of the washing machine in place while it’s being moved. They need to be removed before installation. Use a spanner (not supplied) and follow the instructions detailed below. -
Page 7: Hose And Cable Lengths
INSTALLATION Hose and Cable Lengths How to connect from the left side How to connect from the right side ~80cm ~130cm STOP RAPID 15’ COTTON 95° DAILY 60’ COTTON 60° BABY Door Child WASH 50° COTTON 40° Lock Lock Wash Rinse Spin BLOUSES/... -
Page 8: Water Drain Hose
INSTALLATION Connecting the Water Supply Hose 1. To prevent leakage from the connection 3/4” 3/4” joints, ensure the rubber washer seals are fitted to each end of the water supply hose. min. 10 mm min. 10 mm Do not use without the seals in place. Plastic joint 2. -
Page 9: Connecting To The Mains Supply
INSTALLATION Connecting to the Mains Supply For your safety: • Do not use a mains plug adapter or extension cable. • If the mains cable or mains plug are damaged, stop using them and call a qualified technician for assistance. •... -
Page 10: Product Overview
Product Overview The unit Control Panel Detergent Compartment Window Door Handle Filter Door... -
Page 11: Control Panel
Control Panel Digital Display • Only the relevant phase currently in operation (wash, rinse, spin) will be displayed during the washing process. • The delay light will be on to indicate the delay time. It will start the programme after the selected number of hours. -
Page 12: Preparation
Preparation Read the following to understand how best to prepare your laundry for washing. Organising Laundry • Read the washing label on each garment to help you sort your washing into different loads. • Sort the laundry by colour, type of fabric and by how soiled it is. This will help you choose the correct programme and temperature for each wash. - Page 13 • Do not use washing machine when the detergent drawer is removed. It may cause a water leak or it may not work normally. • If you forget to add detergent, you can drain the washing machine by running a spin only programme. Then you can add detergent and start the programme again.
-
Page 14: Selecting The Programme
Selecting the Programme Here are the available programmes, additional functions and option settings. Spin speed can be selected separately for certain programmes. Max Spin Max Load Programme Description Temperature Speed (kg) 95°C 90°C 1200 For average soiled cottons, household linens 60°C 60°C 1200... -
Page 15: Wash Setting
Wash Setting First washing operation Some water may be left in your machine due to tests carried out during production. To dispose of this water, it is recommended to perform the first washing operation with the programme (Cotton 95ºC) and without laundry by inserting ½... -
Page 16: Optional Functions
Optional Functions Depending on the programme you select, you can combine different optional functions. You may need to press the functions buttons more than once to get all the functions you want. • Press the button of the optional function you would like to select. •... -
Page 17: How To Set The Child Lock
How to Set the Child Lock The Child Lock prevents children from stopping programmes accidentally. It only locks the control buttons not the Programme Dial. Switch the washing machine on. 1. When the washing machine is operating, press and hold Easy Ironing and Door Child Delay Timer button for 3 seconds, “CL”... -
Page 18: Important Information
Important Information Washing Delicates (Wool and Silk Programmes) These programmes rock the drum gently for best results on delicate laundry. • Delicate laundry loads: 2kg or less • Tips for Wool programme: Approximate Weights: - Wool sweater (400g) - Silk blouse / under garment (200g) - Trousers (400g) Adding Delicate Laundry Items to the Drum •... -
Page 19: Maintenance - Cleaning The Washing Machine
Maintenance - Cleaning the Washing Machine Always unplug the washing machine before cleaning. Cleaning the Drum Rust left inside the drum by metal articles should be removed immediately with chlorine-free detergent. Never use steel wool. Don’t put laundry in the washing machine during the drum cleaning. Cleaning the Exterior of your Washing Machine •... -
Page 20: Cleaning The Drain Filter
Cleaning the Drain Filter Be careful not to burn yourself as water in the pump may be hot after a high temperature wash. Before cleaning the drain filter, first start the spin programme, then switch off and unplug the washing machine. -
Page 21: Hints And Tips
Hints and Tips Problems Solutions Buttons don’t work • Key lock is activated. Deactivate the key lock function. • The washing machine is operating a programme. • The Programme Dial was turned to a different programme. Door doesn’t open Door lock may be active. First press Start/Pause button or turn the Programme Dial to “Off”. - Page 22 There’s not much foam • This can happen if you’ve put powder detergent directly into the drum – you must put it in the detergent drawer. • The amount of foam can vary, depending on the temperature, level and softness of your water. •...
-
Page 23: Troubleshooting
Troubleshooting Troubles Reason Solutions • Check that the door is closed tightly. • Check that the power is on. Washing machine • Check that the water supply tap is open. cannot start up Check that the Start/Pause button is • pressed. -
Page 24: Error Code
Error Code When an error occurs, the washing machine will display one of the following on the front control panel. If a fault cannot be rectified or a repair is required, then; Set Programme Dial to STOP and pull out the mains plug. •... -
Page 25: Specification
Specification Model L712WM12 Rated Voltage 220 - 240V~ Rated Frequency 50 Hz Maximum Energy Rated Power Input 2200 W Heating Energy Rated Power Input 2000 W 595mm (W) x 520mm (D) (excluding controls and door) Dimensions of the Product x 855mm (minimum) (H) -
Page 26: Product Fiche
Product Fiche Model: L712WM12 Rated capacity: 7 kg Energy efficiency class: A+ Energy consumption is 222 kwh per year based on 220 standard washing cycles for cotton programmes set at 60° C and 40° C, with full and partial loads, and the consumption of low-power modes. -
Page 27: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. WARNING! • If you will not be using the washing machine for a while such as when you go on holiday, disconnect the plug from the mains supply and turn off the water supply to the washing machine. - Page 28 • Make sure your home voltage matches the voltage displayed on the washing machine. If you are not sure, contact an electrician. • The mains plug must remain accessible to allow disconnection or an all pole switch must be incorporated in the fixed wiring in accordance with the wiring rules. To Prevent Injury / Damage •...
- Page 29 There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Ltd • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England (P.N.: L712WM12-001)
