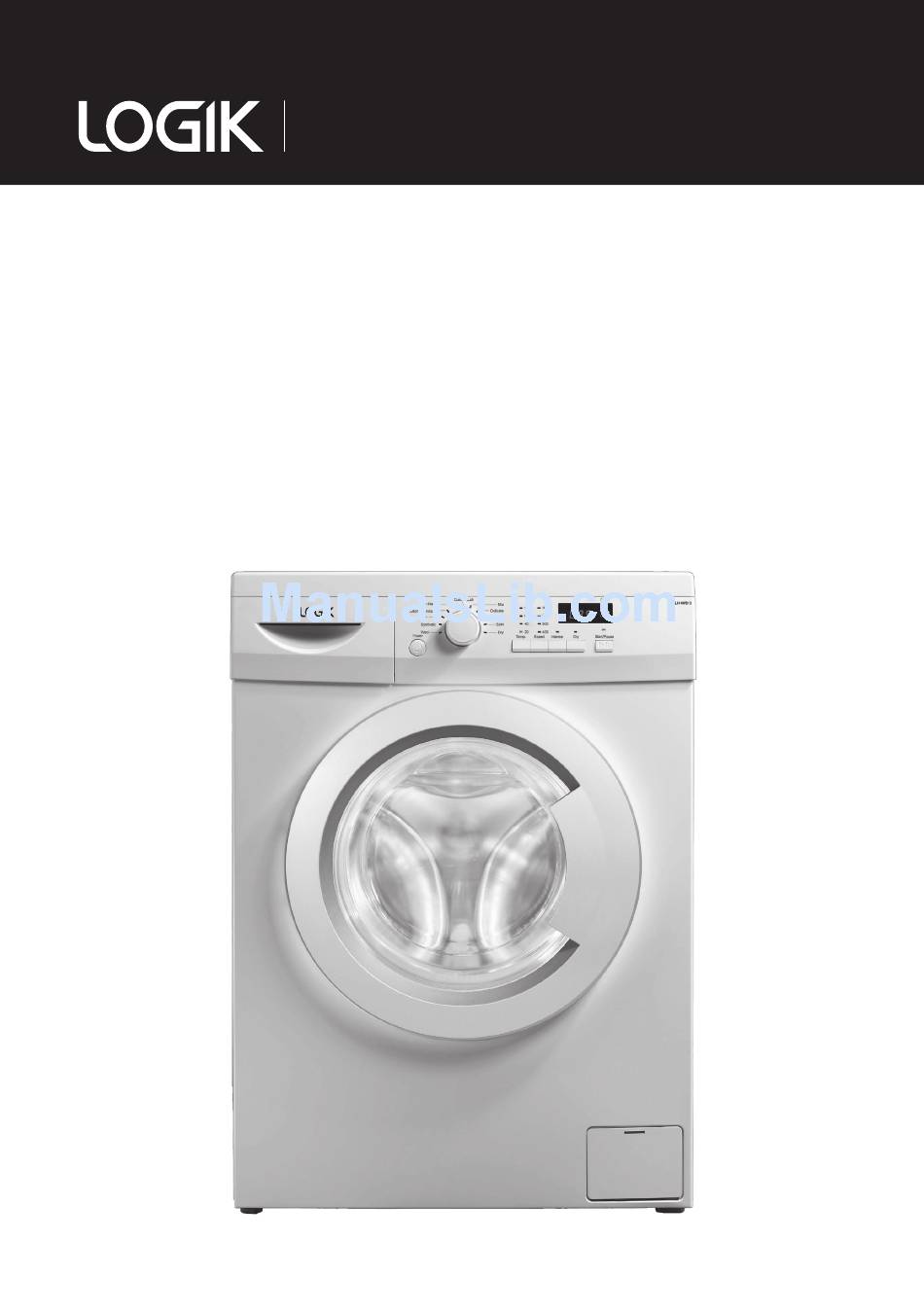

- Page 1 Instruction / Installation Manual Washer Dryer L614WD13...
-
Page 3: Table Of Contents
Contents Safety Warnings ..........................5 Unpacking ............................. 8 Installing Your Washing Machine ....................9 Choosing the Right Location for Your Washing Machine ................9 Moving and Installing ........................ 10 Installing the Noise Protection Board ......................10 Removing the Transit Bolts ..........................10 Moving the Washing Machine from One Location to Another ............. - Page 4 Hints and Tips ..........................24 Troubleshooting ......................... 26 Error Code ................................26 Specifications ..........................28 Product Fiche ..........................29...
-
Page 5: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. WARNING! • If you will not be using the washing machine for a while such as when you go on holiday, turn off the water supply to the washing machine. - Page 6 Power Source and Cable • Use an independent household dedicated mains socket, fully rated at AC 220V to 240V. If the washing machine is plugged in with other appliances, it may overheat and cause a fire. • Make sure the mains plug is pushed firmly in the socket. A loose connection may overheat and cause electrical shock or a fire.
- Page 7 • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 8: Unpacking
Unpacking Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations. The following items are included: This product has been wet tested to ensure correct operation. As a result some water may remain Delay Quick Wash Pre-Wash... -
Page 9: Installing Your Washing Machine
INSTALLATION Installing Your Washing Machine Please read and follow the instructions carefully. • In addition to the instructions mentioned here, special regulations of the relevant water and power supply companies may apply. If in doubt, have the washing machine connected by a qualified technician. •... -
Page 10: Moving And Installing
INSTALLATION Moving and Installing Two or more people are required to carry the washing machine and for any installation work. Fix the Noise Protection Board onto the bottom of the machine BEFORE removing the transit bolts. Installing the Noise Protection Board To reduce the noise produced by the washing machine, install the noise protection board. -
Page 11: Moving The Washing Machine From One Location To Another
INSTALLATION To remove the transit bolts: 1. Use a spanner to remove the 4 transit bolts before removing the cross-bar. They are located at the rear side of the washing machine. 2. Make sure the transit bolts and the entire cross-bar are removed. 3. -
Page 12: Levelling The Washing Machine
INSTALLATION Levelling the Washing Machine There are 4 levelling feet on the underside. They must be adjusted to make sure the washing machine is level. 1. On each stand, loosen the lock nut by turning it clockwise with a spanner. 2. -
Page 13: Water Drain Hose
INSTALLATION Water Drain Hose Points to remember: • Don’t twist, pull out or bend the drain hose. • Your washing machine should be no more than 135cm from the drain outlet. Draining to a sink or wash-basin • Secure the drain hose in position, so it can’t drop out of the basin. •... -

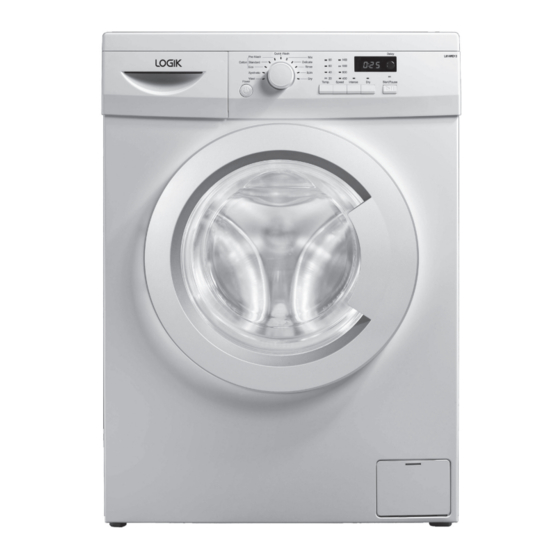

Page 14: Product Overview
Product Overview The unit Delay Detergent Quick Wash 1400 Pre-Wash Control Panel Delicate Standard Cotton 1000 Rinse Spin Synthetic Compartment Wool Start/Pause Speed Intense Temp. Power Door Handle Window Filter Door... -
Page 15: The Control Panel
The Control Panel Quick Wash Delay Pre-Wash 1400 Cotton Standard Delicate 1000 Rinse Synthetic Spin Wool Power Temp. Speed Intense Start/Pause 1. The Detergent Compartment 6. Temperature Button 2. Programme Dial • Selects the required washing temperature. • Different wash programmes can be 7. -
Page 16: Preparation
Preparation Read the following to understand how best to prepare your laundry for washing. Organising Laundry • Read the washing label on each garment to help you sort your washing into different loads. • Sort the laundry by colour, type of fabric and by how soiled it is. This will help you choose the correct programme and temperature for each wash. -
Page 17: Selecting The Programme
Selecting the Programme Below are the available programmes, additional functions and optional settings. Spin speed can be selected separately for certain programmes. Detergent Box Preset Setting Default Selectable /Max Default Programme Description Load Temp. range Approximate Temp. Spin Spin (kg) (˚C) Time (Min) (˚C) -
Page 18: Wash Setting
Wash Setting First Time Use Before the first use, run the machine empty with detergent using the Cotton 60°C programme. This ensures any effects from the manufacturing process are removed. Standard Washing 1. Pull the door handle and put the laundry in the Quick Wash Pre-Wash drum. -
Page 19: Optional Functions
Optional Functions Depending on the programme you select, you can combine different optional functions. You may need to press the function buttons more than once to get all the functions you want. Optional Function When you want to How it works Water temperature Adjust the water It increases / decreases... -
Page 20: Important Information
Important Information Washing Delicates These programmes rock the drum gently for best results on delicate laundry. • Tips for Wool programme: Approximate Weights: - Wool sweater (400g) - Blouse / under garment (200g) - Trousers (400g) Adding Delicate Laundry Items to the Drum •... -
Page 21: Muting The Alarm
Muting the Alarm To mute the machin’s beep. 1. Switch on the machine. 2. Secure the Spin Cycle Programme. 3. Press Delay and Dry together and hold for 3 seconds. 4. “BEEP OFF” will be displayed on the LED screen to indicate the machines’s alarm is muted. 5. -
Page 22: Maintenance - Cleaning The Washing Machine
Maintenance – Cleaning the Washing Machine Cleaning the Drum Any rust left inside the drum by metal articles must be removed immediately with chlorine-free detergent. Never use steel wool. Don’t put laundry in the washing machine during the drum cleaning. Cleaning the Exterior of your Washing Machine •... -
Page 23: Cleaning The Drain Filter
Cleaning the Drain Filter Be careful not to burn yourself while handling your clothes or touching the inside of the drum after a high temperature wash. Before cleaning the drain filter, switch off and unplug the washing machine. 1. Use a coin to open the Service Flap. Delay Quick Wash Pre-Wash... -
Page 24: Hints And Tips
Hints and Tips Problems Solutions Buttons don’t work • Key lock is activated. Deactivate the key lock function. • A wash programme is running. • Options are not available for the selected programme. Door doesn’t open • Door lock may be active. •... - Page 25 There’s not much foam • This can happen if you’ve put powder detergent directly into the drum – you must put it in the detergent drawer. • The amount of foam can vary, depending on the temperature, level and softness of your water. •...
-
Page 26: Troubleshooting
Troubleshooting Troubles Reason Solution • Check that the door is closed tightly. • Check that the power plug is inserted Washing correctly. machine cannot • Check that the water supply tap is open. start up • Check that the Power button is pressed. Check that the Start/Pause button is •... - Page 27 Display Fault What to do: Heating malfunction (display after Ask a qualified service agent to repair it. procedure operation). Water intake Check the water pressure is too low or water malfunction. supply is cut off. Motor malfunction. Contact your qualified service agent. Water overflow.
-
Page 28: Specifications
Specifications Model L614WD13 Rated Voltage 220 - 240 V ~ Rated Frequency 50Hz Maximum Energy Rated Power Input 2050W Heating Energy Rated Power Input 1800W Dimensions of the Product H=85cm, D= 52cm, W= 59cm Weight of the Product 67 kg... -
Page 29: Product Fiche
Product Fiche Model: L614WD13 Rated capacity: 6 kg Energy efficiency class: B EU Ecolabel: N/A Energy efficiency class is “B”, on a scale of A (most efficient) to G (least efficient). Maximum spin speed: 1400 rpm Airborne acoustical noise (spinning): 78 dB Airborne acoustical noise (standard 60°... - Page 32 EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Ltd. (co. no. 504877) Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK L614WD13-IB-130712v1...
