Instruction / Installation Manual

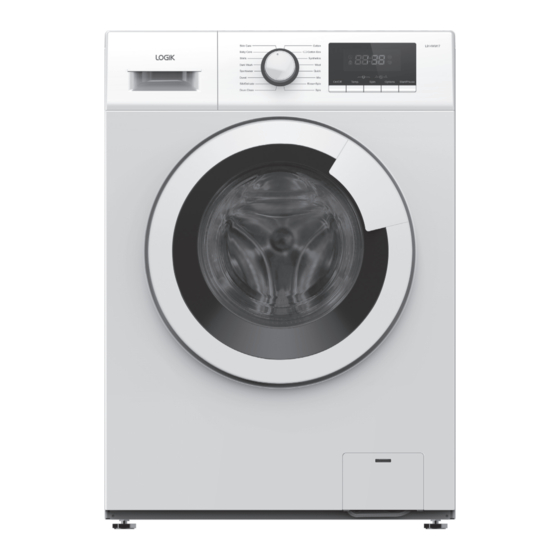

9KG Washing Machine
L914WM17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L914WM17 and is the answer not in the manual?

Questions and answers

Related Manuals for Logik L914WM17

Summary of Contents for Logik L914WM17

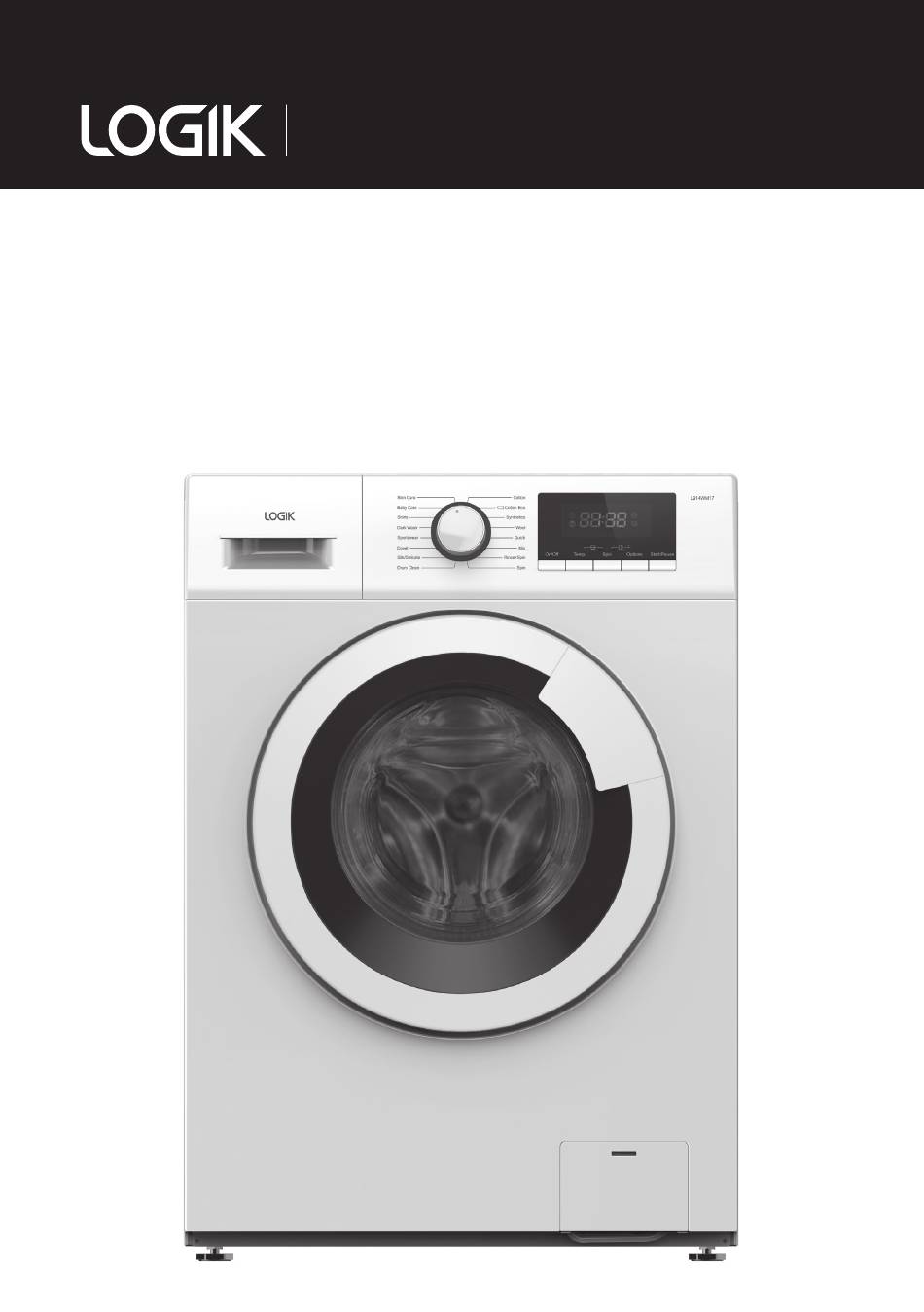

  • Page 1 Instruction / Installation Manual 9KG Washing Machine L914WM17...

  • Page 2: Table Of Contents

    Contents Safety Warning ..................................3 Unpacking .................................... 6 Installation ................................... 7 Installing Your Washing Machine ............................7 Choosing the Right Location for Your Washing Machine ......................... 7 Moving and Installing ................................. 8 Removing the Transit Bolts ....................................8 Moving the Washing Machine from One Location to Another ......................8 Hose and Cable Lengths ......................................

  • Page 3: Safety Warning

    Safety Warning For your continued safety and to • Keep burning objects such as reduce the risk of injury or electric candles or cigarettes, away from shock, please follow all the safety the washing machine. They may precautions listed below. cause a fire or damage.
  • Page 4 Power Source and Cable overheat and cause a fire. • Use an independent household • Make sure your home voltage dedicated mains socket, rated at matches the voltage displayed on least 13 Amp 220V to 240V AC. If the washing machine. If you are the washing machine is plugged not sure, contact an electrician.
  • Page 5 drum. To prevent an injury. should not be reused. • Do not dismantle, repair or • The ventilation openings at the modify the washing machine. base of the washing machine The washing machine could must not be obstructed by a malfunction and cause a fire or carpet.

  • Page 6: Unpacking

    Thank you for purchasing your new Logik Washing Machine. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference.

  • Page 7: Installation

    Installation INSTALLATION Installing Your Washing Machine Please read and follow the instructions carefully. • In addition to the instructions mentioned here, special regulations of the relevant water and power supply companies may apply. If in doubt, have the washing machine connected by a qualified technician.

  • Page 8: Moving And Installing

    INSTALLATION Moving and Installing Removing the Transit Bolts Four transit bolts keep the interior of the washing machine in place while it’s being moved. They need to be removed before installation. Use a spanner (not supplied) and follow the instructions detailed below. Don’t run the washing machine without removing the transit bolts, as this can cause excessive vibrations and may damage your machine.

  • Page 9: Hose And Cable Lengths

    INSTALLATION Hose and Cable Lengths How to connect from the left side How to connect from the right side ~80cm ~130cm ~90cm ~40cm 110 -135cm Levelling the Washing Machine There are 4 levelling feet on the underside. They must be adjusted to make sure the washing machine is level.

  • Page 10: Water Drain Hose

    INSTALLATION Connecting the Water Supply Hose 1. To prevent leakage from the connection 3/4” 3/4” joints, ensure the rubber washer seals are fitted to each end of the water supply min. 10 mm min. 10 mm hose. Do not use without the seals in Plastic joint place.

  • Page 11: Connecting To The Mains Supply

    INSTALLATION Connecting to the Mains Supply For your safety: • Do not use a mains plug adapter or extension cable. • If the mains cable or mains plug are damaged, stop using them and call a qualified technician for assistance. • An earthed plug has been attached to the power cable of your washing machine.

  • Page 12: Product Overview

    Product Overview The unit Control Panel Detergent Compartment Door Handle Window Drain Pump Door Cover...

  • Page 13: The Control Panel

    The Control Panel LED Display • The delay light will be on to indicate the delay time. It will start the programme after the selected hours. Programme Dial • After the wash procedure begins, the display will show the wash remaining Different wash programmes can be time.

  • Page 14: Preparation

    Preparation Read the following to understand how best to prepare your laundry for washing. Organising Laundry • Read the washing label on each garment to help you sort your washing into different loads. • Sort the laundry by colour, type of fabric and by how soiled it is. This will help you choose the correct programme and temperature for each wash.
  • Page 15 • Do not use the washing machine when the detergent drawer is removed. It may cause a water leak or it may not work normally. • If you forget to add detergent, you can drain the washing machine by running a drain only programme.

  • Page 16: Before First Use

    Before First Use Before washing your clothes for the first time, run a full wash programme first: 1. Connect the machine to the mains power supply and the water supply. 2. Put a small amount of detergent in the detergent drawer. Close the drawer. 3.

  • Page 17: Selecting The Programme

    Selecting the Programme Here are the available programmes, additional functions and option settings. Temperature can be selected separately for certain programmes. Procedure Detergent Box Default Default Time Default Load(kg) Temp.(˚C) (Min) Speed (rpm) Case Case Softener Case Description Cotton 1000 Cotton Eco 1000 Synthetics...

  • Page 18: Delay End The Programme

    Here are the additional functions and option settings. Delay Prewash Extra Rinse Cotton Cotton Eco Synthetics Wool Quick Rinse+Spin Spin Skin Care Baby Care Shirts Dark Wash Sportswear Duvet Silk/Delicate Drum Clean O Means optional X Means not necessary Delay End the Programme 1.

  • Page 19: Adding Laundry During Wash

    Adding Laundry during Wash You can still add laundry into the unit while it is running a wash programme. Make sure to follow the procedures below in order to avoid being scalded by the hot water in the drum. 1. Press the Start/Pause button. 2.

  • Page 20: How To Use Laundry Starch

    How to Use Laundry Starch Synthetic laundry starch is a stiffening agent. Follow the laundry starch manufacturer’s instructions. • To use laundry starch, simply add it to the softener compartment, next to where you add detergent. It will automatically be applied to your clothes as part of the final rinsing cycle. • If it’s hard to pour, you can dilute the starch slightly with water before adding it to the softener compartment.

  • Page 21: Maintenance - Cleaning The Washing Machine

    Maintenance - Cleaning the Washing Machine Always unplug the washing machine before cleaning. Cleaning the Drum Any rust left inside the drum by metal articles must be removed immediately with chlorine-free detergent. Never use steel wool. Don’t put laundry in the washing machine during the drum cleaning. Cleaning the Exterior of your Washing Machine • Clean the outside of your washing machine with a soft cloth and mild detergent such as kitchen detergent.

  • Page 22: Cleaning The Drain Filter

    Cleaning the Drain Filter Be careful not to burn yourself while cleaning the drain filter. Water draining from the filter compartment may be hot after a high temperature wash. Before cleaning the drain filter, switch off and unplug the washing machine. 1.

  • Page 23: Hints And Tips

    Hints and Tips Issues Solutions Buttons don’t work • Child lock is activated. Deactivate the child lock function. • The washing machine is operating a wash programme. • The Programme Dial was turned to a different programme. Door doesn’t open • Door lock may be active.
  • Page 24 There’s not much foam. • This can happen if you’ve put powder detergent directly into the drum – you must put it in the detergent drawer. • The amount of foam can vary, depending on the temperature, level and softness of your water. • You may not be using enough detergent.

  • Page 25: Questions And Answers

    Questions and Answers Issues Reasons Solutions • Check if the door is closed tightly. • Check if power plug is inserted properly. Washing machine cannot • Check if water supply tap is opened. start up • Check if button Start/Pause is pressed. • Check if button On/Off is pressed.

  • Page 26: Error Codes

    Spin, close the door and start the programme. Others • Please call the service line if there is any other issue. Specifications Model L914WM17 Rated Voltage 220 - 240V~ Rated Frequency 50 Hz Maximum Energy Rated Power Input...

  • Page 27: Product Fiche

    Product Fiche Model: L914WM17 Rated capacity: 9 kg Energy efficiency class: A+++ Energy consumption 217 kWh per year, based on 220 standard washing cycles for cotton programmes set at 60° C and 40° C at full and partial load, and the consumption of the low- power modes.
  • Page 28 For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product. DSG Retail Ltd. (co. no. 504877) 1 Portal Way, London, W3 6RS, UK IB-L914WM17-170628V1...
